Name: N Female To TNCA Male Adapter
SKU: N/A

N Female To TNCA Male Adapter

1. N-type female to TNC male adapter, a connector with an N-type female interface on one end and a TNC male interface on the other, used for signal conversion between RF systems with different interface types.
2. Such adapters must match the system's operating frequency, 50-ohm impedance, and power requirements to ensure low insertion loss and good voltage standing wave ratio.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.2:1 to 18GHz typical
5. Insertion loss: .04√f (GHz)
6. Temperature range: -55°C to 125°C

N Female To TNCA Male Adapter - High-Performance RF Connector Solution

Are you looking for a reliable connector to bridge different RF interface types in your electronic systems? Our N Female To TNCA Male Adapter delivers exceptional performance for signal conversion between N-type and TNC interface systems.This precision-engineered connector guarantees consistent network whereas keeping up flag judgment over a wide recurrence extend. Whether you're working on broadcast communications, therapeutic gear, or testing applications, this item gives the vigorous association you require for professional-grade results.

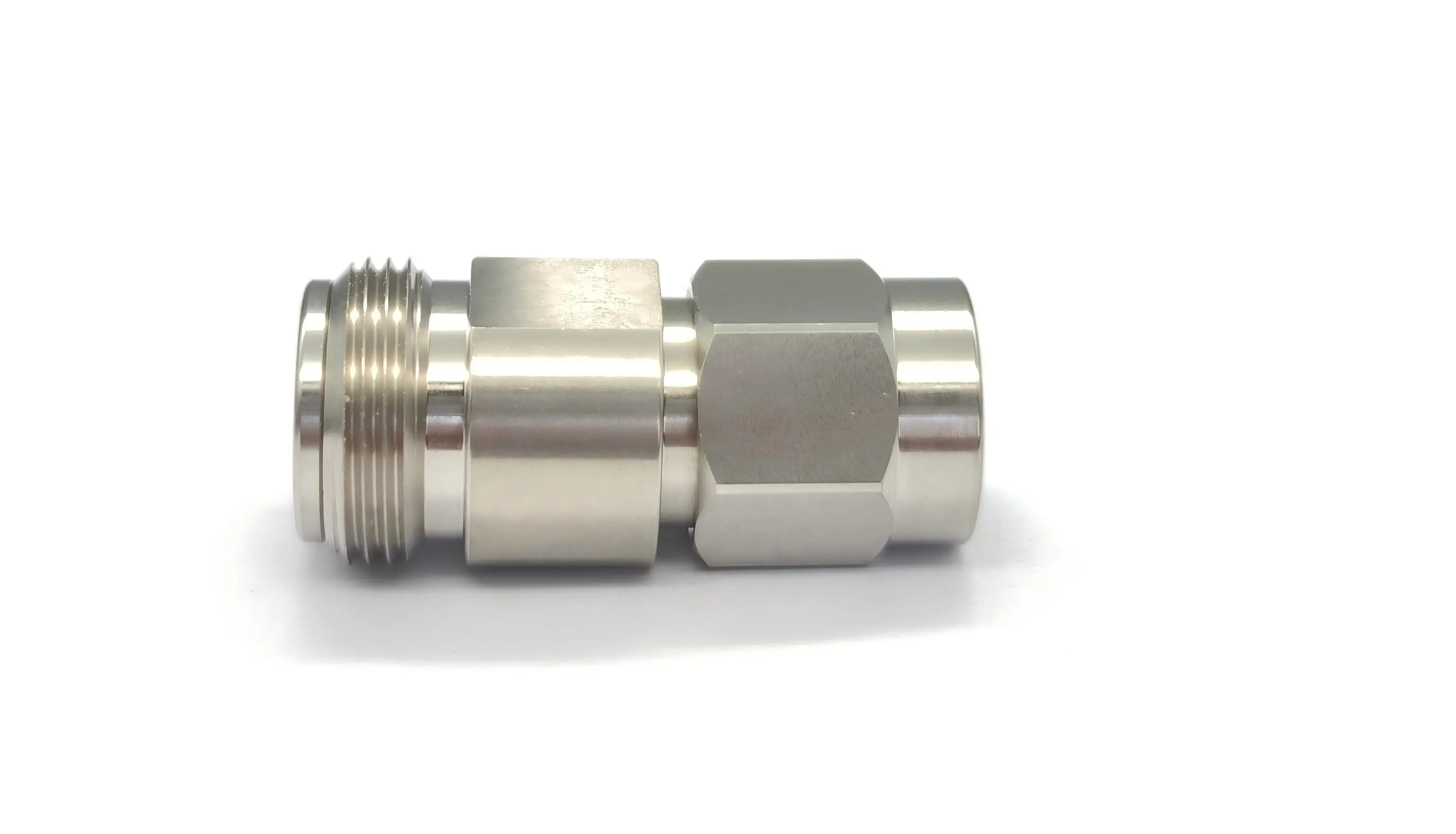

N-type female to TNCA male adapter

Superior Design for Professional Applications

When reliability matters, our adapter combines N-type mechanical strength with TNC threading for a compact, durable solution. The N-type female interface ensures excellent durability, ideal for high-vibration environments.

Its strong development can withstand rehashed associations whereas keeping up steady electrical execution. On the other conclusion, the TNC male interface highlights a strung self-locking structure that guarantees secure, dependable associations each time.

Key Features That Set Us Apart

Wide Frequency Range: Operating from DC to 18GHz, this adapter ensures reliable performance across various RF applications without degradation.

Low Insertion Loss: With insertion loss of .04√f (GHz), signals maintain strength, ensuring peak efficiency and minimal performance degradation.

Excellent VSWR Performance: The typical 1.2:1 VSWR to 18GHz means better signal reflection control. This translates to cleaner signals and improved overall system performance.

Temperature Resilience: Operating from -55°C to 125°C, this adapter ensures reliable performance in extreme temperatures, from arctic to high-temperature environments.

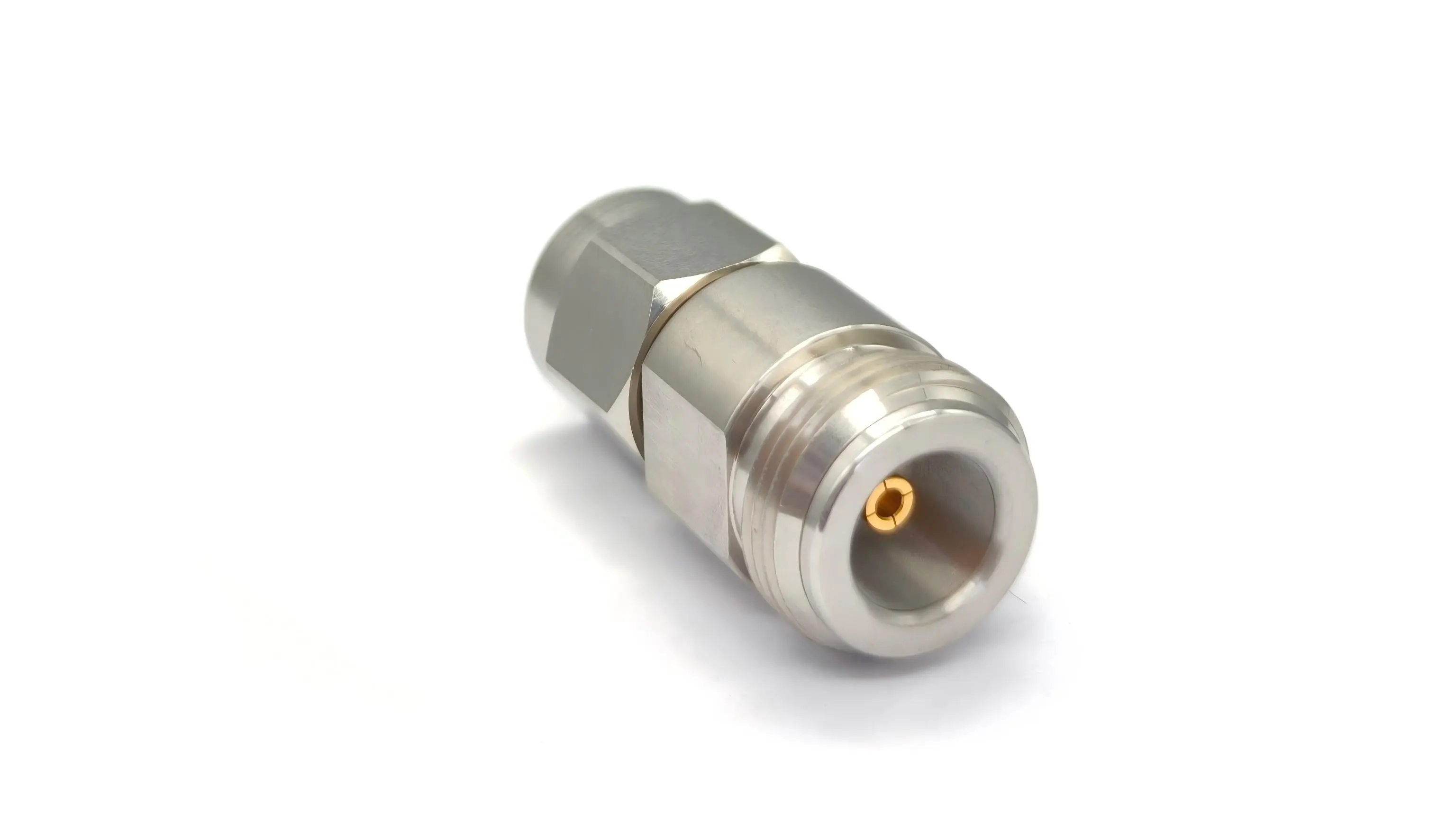

N-type female to TNCA male adapter

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.2:1 to 18GHz typical
Insertion Loss	.04√f (GHz)
DWV @ Sea Level	2000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	5 milliohms maximum
Materials
Housings	Stainless steel passivated
Center Contacts	Beryllium copper gold
Insulators	PEI
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.23N.m
Connection Torque (N)	0.79N·m - 1.13N·m
Connection Torque (TNCA)	0.45N·m - 0.68N·m
Withstand Torque	1.69N·m

Built for Demanding Environments

Your equipment faces tough conditions, and our N Female To TNCA Male Adapter is built to handle them. The stainless steel lodging offers erosion resistance, and the passivated wrap up guarantees toughness. Beryllium copper gold contacts give prevalent conductivity, whereas the PEI separators guarantees steady dielectric execution over the temperature run.

Quality You Can Trust

At Shaanxi Chuangyu Electronic Technology, we understand that your projects can't afford connector failures. That's why every adapter undergoes rigorous testing to meet military standards including thermal shock, salt spray, vibration, and moisture resistance tests.

Our digital manufacturing approach combined with strict production process management ensures consistent quality in every unit. Precision testing instruments verify that each adapter meets our exacting standards before it reaches your hands.

N-type female to TNCA male adapter - Quality Guaranteed

Applications Across Industries

This versatile adapter serves multiple industries and applications:

Telecommunications: Connect different equipment types in cellular and wireless networks
Medical Equipment: Ensure reliable connections in diagnostic and treatment devices
Test and Measurement: Bridge different connector types in laboratory setups
Military and Aerospace: Reliable performance in mission-critical applications

Why Choose Our Solution

When you select our productr, you're choosing a product backed by extensive research and development expertise. Our team specializes in precision electrical connectors and RF components, ensuring you receive a solution that meets professional standards.

We focus on providing electronic innovation design and manufacturing solutions that help you achieve your project goals. Our commitment to quality and customer satisfaction drives everything we do.

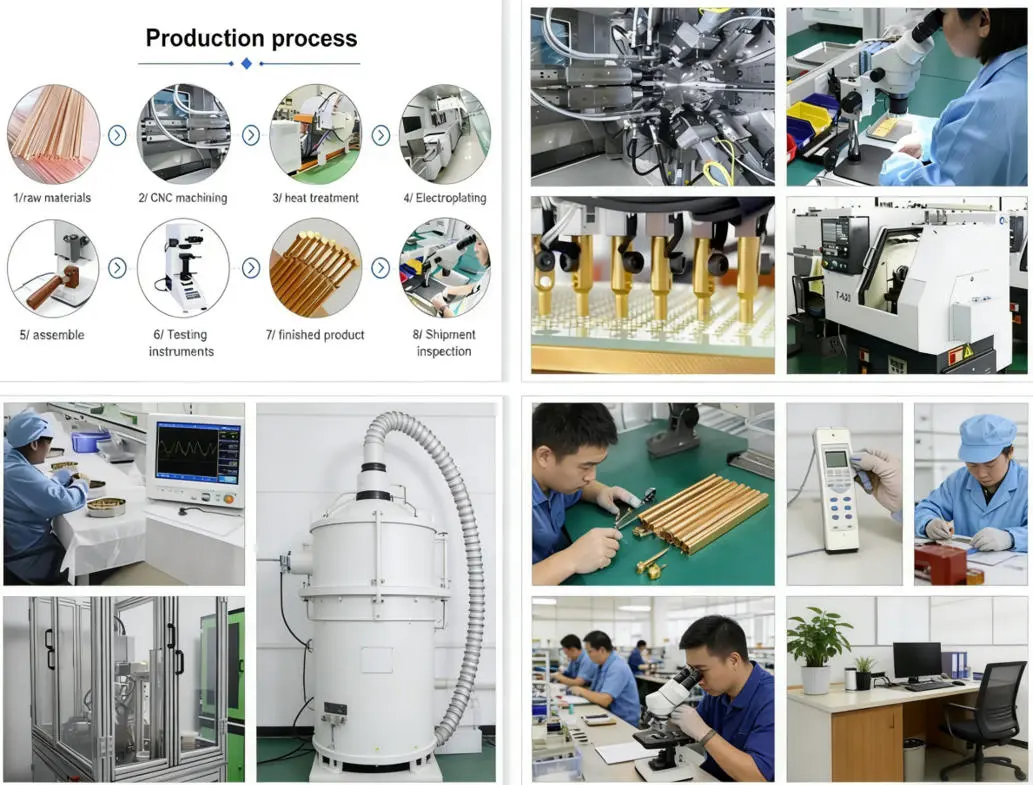

N-type female to TNCA male adapter (Workshop)

Get Started Today

Ready to enhance your RF connectivity? Our team helps you select the right solution, offering both standard and custom options.Contact us at postmaster@cymicrowave.com to discuss your project needs. Let us help you achieve reliable, high-performance RF connections that keep your systems running smoothly.

Experience the difference that precision engineering and quality manufacturing make in your RF applications. Choose reliability. Choose performance. Choose our N Female To TNCA Male Adapter solution.
