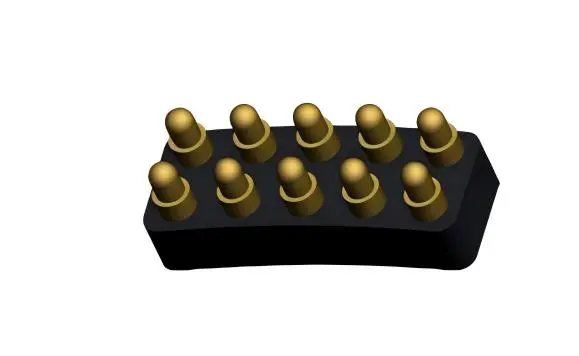

When you need reliable electrical connections for surface mount technology applications, SMT Pogo Pins deliver the precision and durability your projects demand. These spring-loaded test tests are particularly built for PCB testing, advertising extraordinary execution in mechanized testing situations. Our item highlight beryllium copper development with gold plating, guaranteeing ideal conductivity and long-lasting unwavering quality. Whether you're working on photovoltaic frameworks, restorative gadgets, or broadcast communications gear, these connectors give reliable electrical contact with negligible resistance. With working stroke capabilities and current appraisals up to 6A, you get the execution required for requesting applications.
Our precision-engineered spring connectors stand out in the competitive electronics testing market. You'll appreciate the advanced manufacturing processes we employ, including cold press and injection molding techniques. These methods ensure each connector meets strict quality standards.
The beryllium copper development with gold plating gives amazing erosion resistance. Your testing gear will keep up ideal execution indeed in challenging situations. Temperature soundness from -45°C to +80°C implies solid operation over differing conditions.

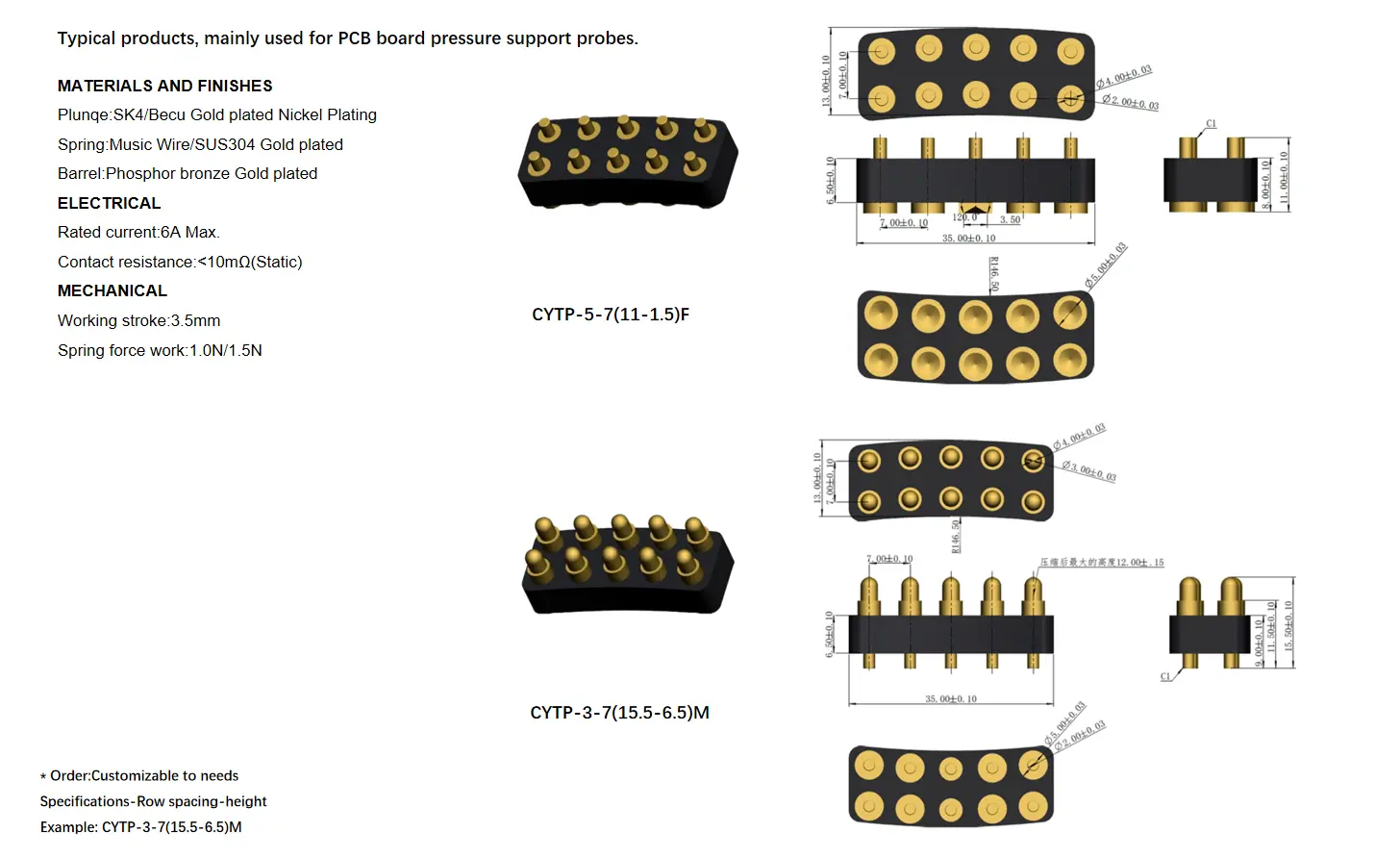

| Parameter | Specification |
|---|---|
| Model | CYTP10-3-7(15.5-6.5)m |
| Operating Temperature | -45°C to +80°C |
| Plunger Material | Beryllium copper with gold plating |
| Barrel Material | Phosphor bronze with gold plating |
| Spring Material | Steel with gold plating |
| Total Length | 15.5 mm |
| Barrel Diameter | 4 mm |
| Maximum Stroke | 10.5 mm |
| Working Stroke | 3.5 mm |
| Spring Force | 5N at working stroke |
| Tip Style | Ball |
| Tip Diameter | 3 mm |
| Current Rating | 6A |
| Typical Resistance | <10 mΩ |
Our connector portfolio includes multiple configurations to meet your specific requirements. The flat base design offers excellent PCB soldering stability. Insertion board types feature positioning pins that prevent displacement during assembly.
Bent tail configurations provide space-saving solutions for compact designs. Dual-pin shaft options enable bidirectional connections. SMT Pogo Pins and solder cup types work perfectly for cable terminations. Threaded variants offer customizable solutions for unique applications.
Enhanced Reliability: Gold-plated contacts resist oxidation and provide consistent electrical performance over millions of test cycles.
Precision Engineering: Tight manufacturing tolerances ensure repeatable test results and accurate measurements.
Flexible Configurations: Multiple pitch options including 1.27mm, 2.0mm, 2.54mm, and 3.0mm accommodate various PCB layouts.
High Current Capacity: 6A rating handles power-hungry devices without voltage drop concerns.
Long Service Life: Our photovoltaic test probes achieve over 0.5 million operational cycles.
Located in Xi'an's Chang'an Innovation and Technology Industrial Park, our facility maintains strict production standards. Digital manufacturing processes and precision testing instruments ensure consistent quality from design through delivery.
Our quality management system covers every production stage. You receive products that meet international standards while remaining competitively priced. Comprehensive testing validates electrical and mechanical performance before shipment.
We specialize in custom solutions for non-standard applications. Our engineering team works closely with you to develop the product that meets unique specifications. From prototype to production, we support your project requirements.
These connectors serve diverse sectors including new energy systems, medical equipment, telecommunications, and automation. Photovoltaic testing applications particularly benefit from our miniature probe capabilities, with outer diameters as small as 0.15mm.
Military and aerospace applications rely on our connectors' temperature stability and vibration resistance. Medical device manufacturers appreciate the biocompatible materials and precise electrical characteristics.
Ready to enhance your testing capabilities? Our technical team stands ready to discuss your specific requirements. We'll help you select the optimal SMT Pogo Pins configuration for your application.
Contact us today to explore custom solutions tailored to your needs. Email us at postmaster@cymicrowave.com to begin your consultation. Let's work together to solve your connection challenges with precision-engineered spring-loaded connectors.
