Name: 2.4 RF Attenuator
SKU: N/A

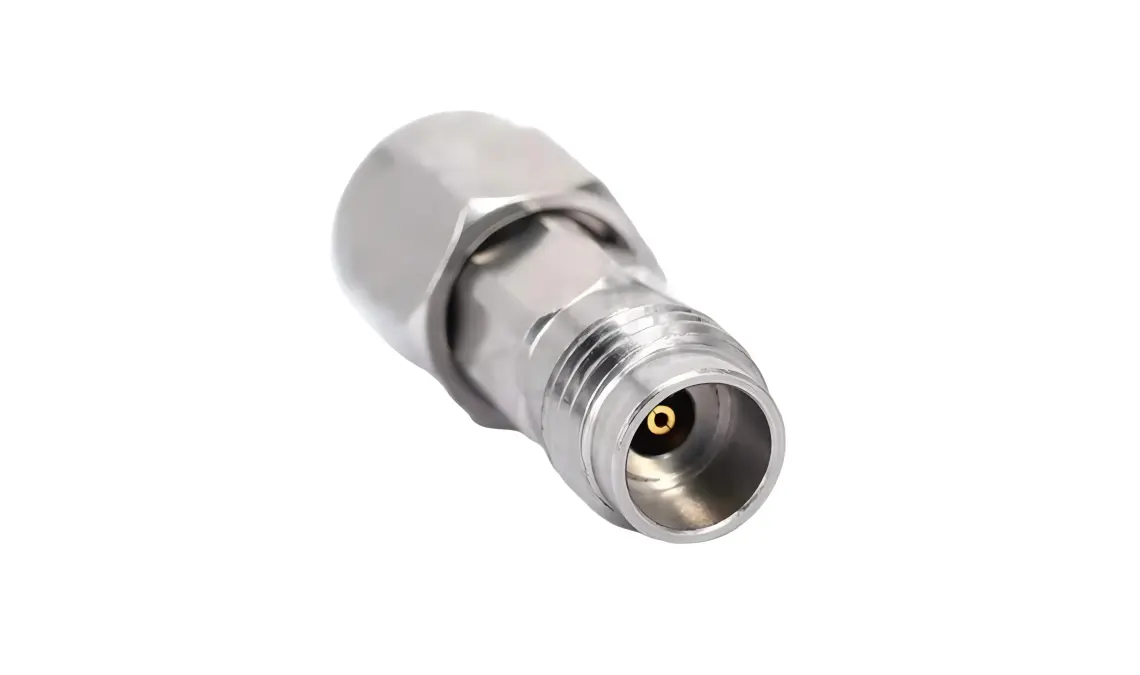

2.4 RF Attenuator

1.2.4 An RF attenuator is a device used for radio frequency testing and measurement. It supports high-frequency testing from 0Hz to 50GHz and is suitable for scenarios such as high-speed data transmission measurement and radio communication equipment.
2. Attenuation value (e.g., 1dB-40dB), power capacity 2W.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 50GHz
5. VSWR: 1.3:1 to 50GHz typical
6. Power: 2W
7. Attenuation value: 40dB
8. Attenuation accuracy: ±1dB
9. Temperature range: -55°C to 125°C

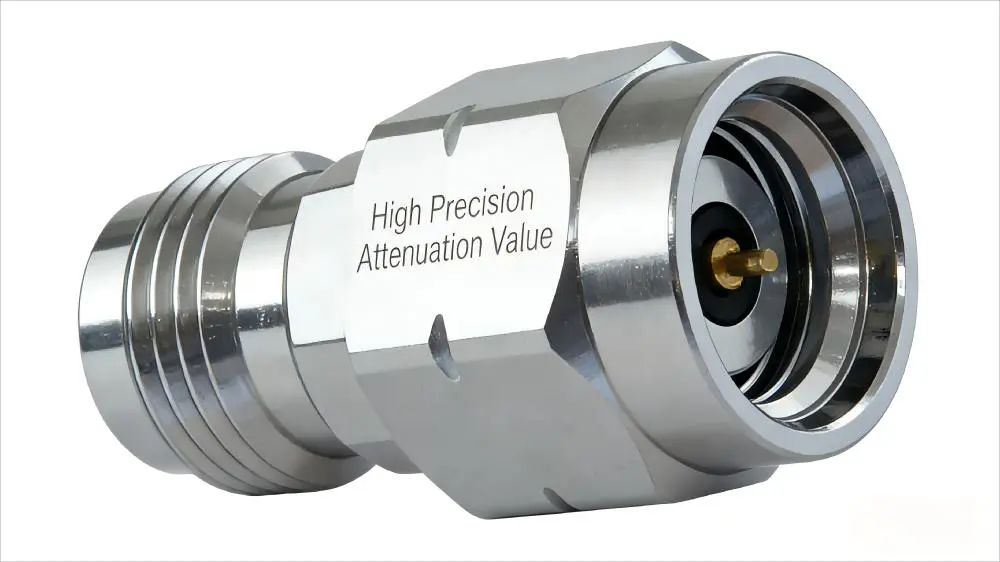

2.4 RF Attenuator - Precision High-Frequency Testing Solutions

Looking for reliable radio frequency testing equipment? Our 2.4 RF Attenuator delivers exceptional performance for your high-frequency measurement needs. This precision device supports testing from DC to 50GHz, making it perfect for high-speed data transmission measurement and radio communication equipment. Whether you're working in inquire about, advancement, or quality control, our item gives the exactness and unwavering quality you request for proficient RF testing applications.

product-783-783

Why Select Our RF Attenuator Solutions?

At Shaanxi Chuangyu Electronic Innovation, we get it the challenges you confront in RF testing. Flag astuteness things. Your estimations require to be precise. Your hardware must perform reliably beneath requesting conditions.

Our building group has created this attenuator with your particular needs in intellect. We've combined progressed materials with demonstrated plan standards to make a apparatus that conveys dependable comes about each time.

product-1-1

Key Benefits That Make a Difference

Exceptional Recurrence Extend: From DC to 50GHz scope guarantees compatibility with your differing testing necessities. You won't require different gadgets for distinctive recurrence bands.

Precise Weakening Control: With 40dB constriction esteem and ±1dB exactness, you get the exactness required for basic estimations. Your test comes about will be reliable and reliable.

Robust Control Dealing with: 2W control capacity gives the headroom you require for different testing scenarios without compromising performance.

Temperature Resilience: Operating range from -55°C to 125°C means your equipment works reliably in challenging environments with the 2.4 RF Attenuator.

product-1-1

Technical Specifications

General Parameters

Parameter	Specification
Product Name	2.4JKS-50-2W-40dB Attenuator
Impedance	50 Ohms nominal
Frequency Range	DC to 50 GHz
Temperature Range	-55°C to 125°C

Electrical Performance

Parameter	Specification
VSWR	1.3:1 to 50GHz typical
Attenuation Value	40dB
Attenuation Accuracy	±1dB
Power Rating	2W

Materials & Construction

Component	Material
Housing	Stainless Steel (Passivated)
Center Contacts	Beryllium Copper (Gold Plated)
Insulators	PEI

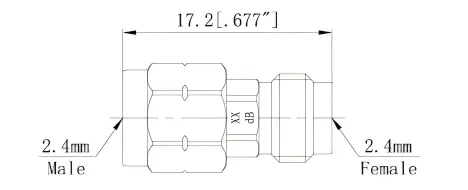

Mechanical Specifications

Parameter	Specification
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≤0.23N.m
Connection Torque	0.8N·m - 1.1N·m
Connector Withstand Torque	1.65N·m

Environmental Standards

Test	Standard
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106 (except Step 7B)

Applications Across Industries

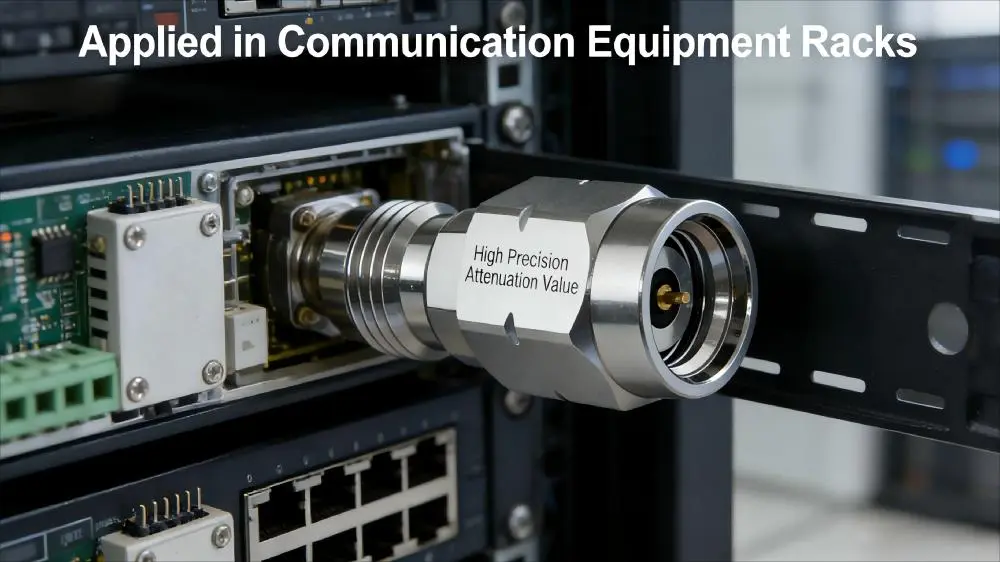

Communications Testing: Perfect for cellular base station testing, radio wire estimations, and remote gadget advancement, with a wide recurrence run covering most communication bands.

Aerospace & Defense: Military-grade natural determinations guarantee solid operation in requesting conditions. Your basic estimations remain precise when it things most.

Research & Improvement: Whether you're creating modern RF circuits or approving existing plans, exact weakening makes a difference you get it genuine gadget performance.

Manufacturing Quality Control: Steady, repeatable estimations offer assistance keep up item quality benchmarks over your generation line.

product-1-1

Why Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Innovation Park, we specialize in precision RF components and testing solutions, with expertise in millimeter wave technology up to 110 GHz, addressing real-world challenges through hardware innovation.This experience in extreme frequency applications ensures our 2.4 RF Attenuator incorporates advanced design principles throughout its operating range.

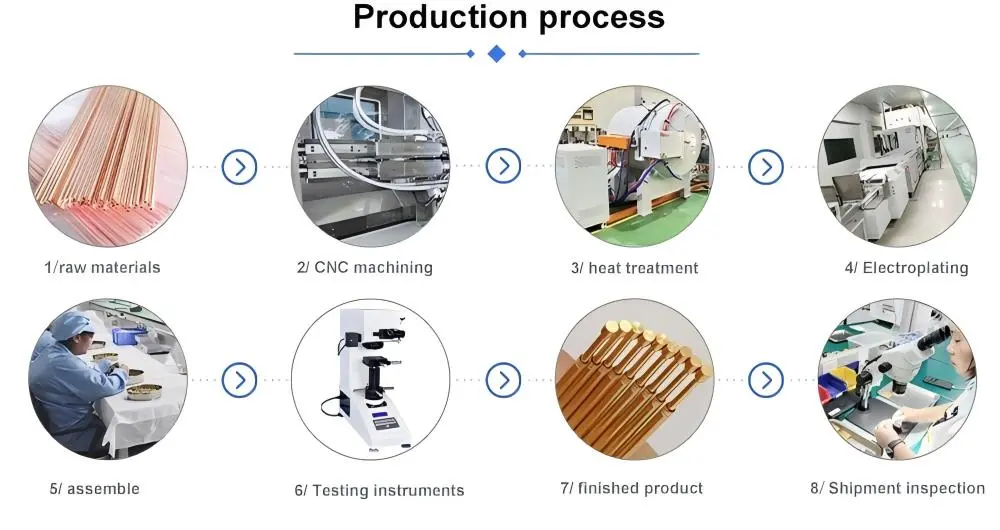

Our commitment to quality appears in each detail. From fabric choice to last testing, we keep up strict benchmarks that guarantee long-term unwavering quality. You get hardware that performs reliably, estimation after measurement.

product-1-1

Quality You Can Trust

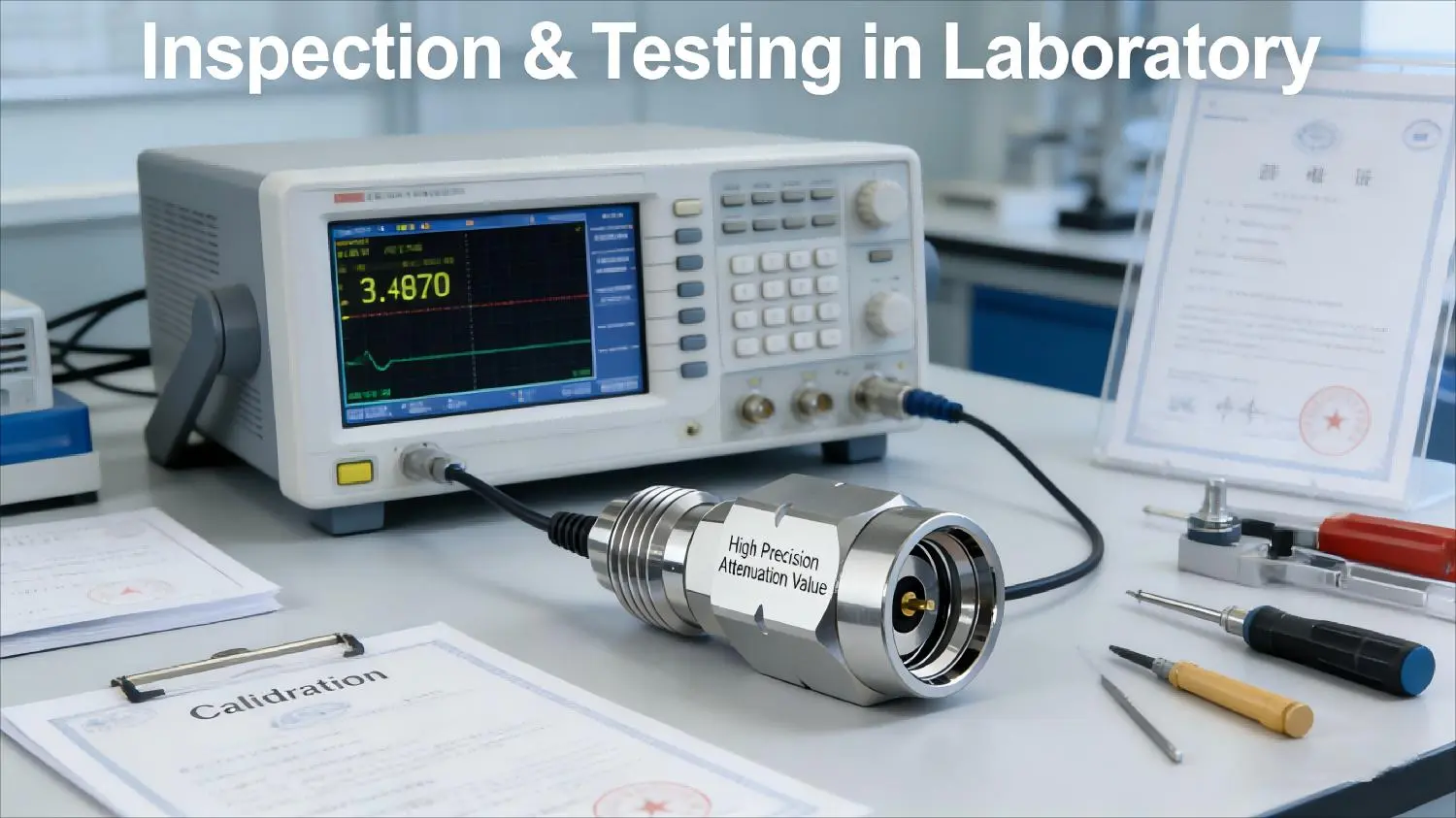

Every attenuator undergoes comprehensive testing before shipment. We verify electrical performance, mechanical specifications, and environmental compliance. This thorough approach means you receive equipment ready for immediate use.

Our RoHS2 compliance illustrates our commitment to natural obligation without compromising execution. You get the unwavering quality you require whereas assembly administrative prerequisites.

product-1-1

Professional Support When You Need It

Questions about implementation? Need technical specifications for your specific application? Our engineering team understands RF testing challenges and provides the support you need.

Ready to enhance your RF testing capabilities? Contact us at postmaster@cymicrowave.com to discuss your requirements. We'll help you select the right solution for your specific testing needs.

Our 2.4 RF Attenuator represents the precision and reliability that professional RF testing demands. Experience the difference that quality engineering makes in your measurement accuracy.
