Name: 0.5mm Ball Head Photovoltaic Test Probe
SKU: N/A

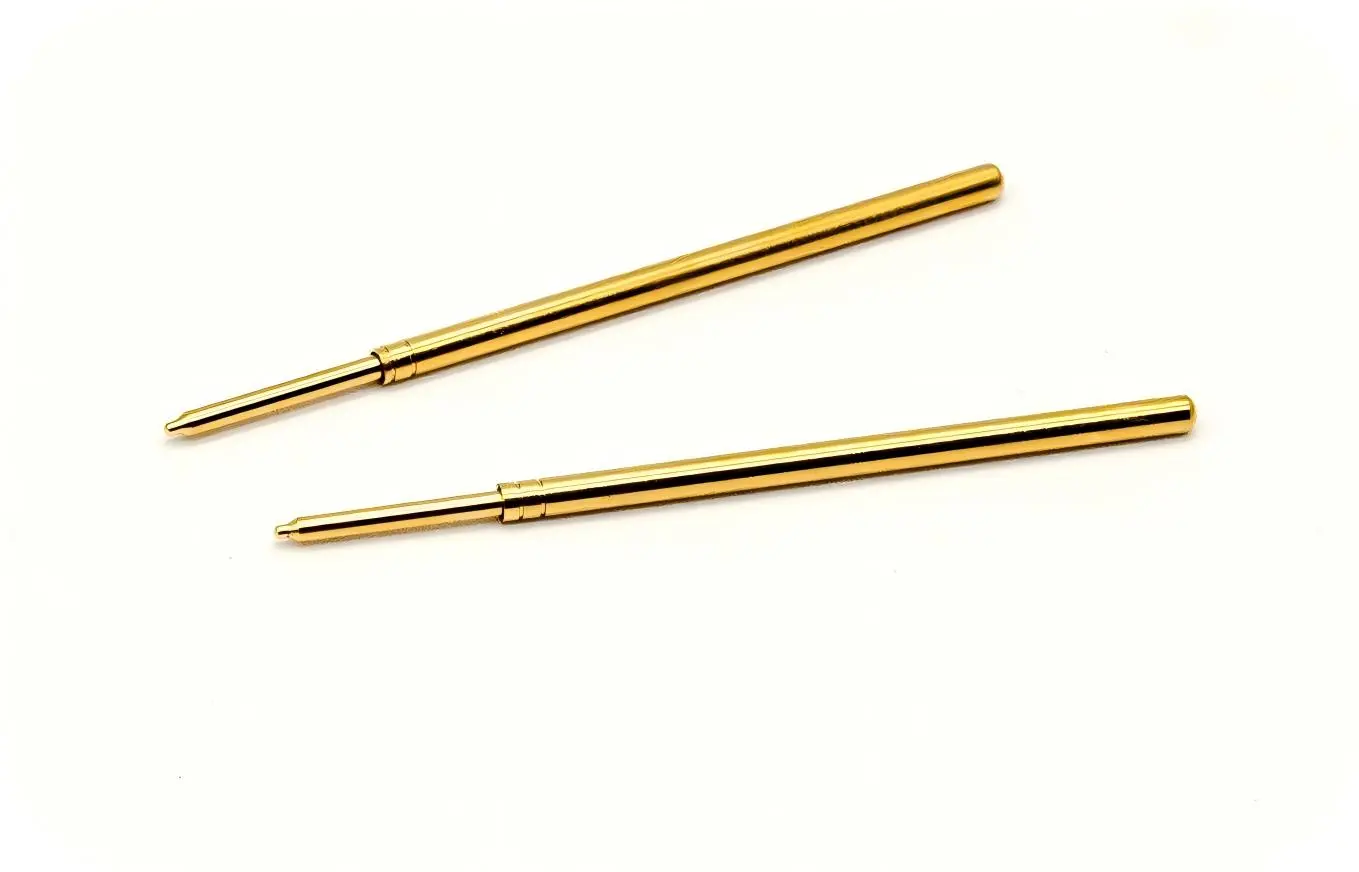

0.5mm Ball Head Photovoltaic Test Probe

1. Spherical head photovoltaic test probe. The spherical probe head with a diameter of 0.5mm is a photovoltaic test probe, serving as a precision contact component for solar photovoltaic cell performance testing. It achieves stable contact with the battery electrodes through the spherical tip joint of the bark layer, ensuring the accurate transmission of test signals, mainly applied in BC solar photovoltaic wafer testing.\n2. Spacing: 2.54mm/100mil\n3. Material: Beryllium copper gold-plated, phosphor bronze gold-plated tube, steel gold-plated spring\n4. Total length: 33.4mm\n5. Head diameter: 0.5mm\n6. Head shape: Spherical\n7. Working stroke force: 1N@4.3mm\n8. Current carrying capacity: 7A\n9. Typical resistance: <15mOhm\n10. Operating temperature: -45°C to +80°C\n11. Test cycle: 2000K times

0.5mm Ball Head Photovoltaic Test Probe - Precision Testing Solutions for Solar Cells

When you're testing solar photovoltaic cells, precision matters. The 0.5mm Ball Head Photovoltaic Test Probe from Shaanxi Chuangyu Electronic Technology delivers the accuracy you need for reliable BC solar wafer testing. This specialized probe combines a spherical tip design with advanced materials to ensure stable electrode contact and precise signal transmission. Whether you're working with PERC, HPBC, or TOPCon products, this testing solution provides consistent performance across demanding applications.

0.5mm Ball Head Photovoltaic Test Probe

What Makes Our Ball Head Photovoltaic Test Probe Special?

Our precision-engineered probe stands out in the competitive testing market. The 0.5mm spherical head design creates optimal contact with solar cell electrodes. You get stable electrical connections that maintain accuracy throughout your testing process.

The probe features beryllium copper gold-plated construction. This material combination ensures excellent conductivity while providing durability for extended use. Your testing operations benefit from reduced downtime and consistent results.

0.5mm Ball Head Photovoltaic Test Probe

Key Benefits for Your Testing Operations

Exceptional Durability: With over 2 million test cycles, this probe outlasts standard alternatives. You'll experience fewer replacements and lower operational costs.

Superior Electrical Performance: The typical resistance stays below 15mOhm. Your measurements remain accurate across thousands of testing cycles.

Temperature Resilience: Operating range from -45°C to +80°C means reliable performance in various environmental conditions. You can count on consistent results regardless of your testing environment.

High Current Capacity: 7A current carrying capability handles demanding testing requirements. Your applications benefit from robust electrical performance.

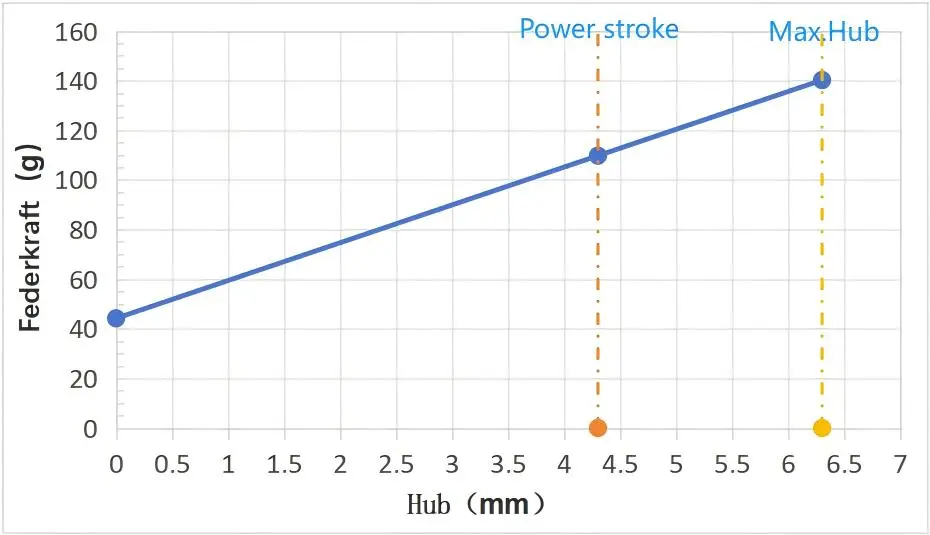

0.5mm ball-shaped photovoltaic test probe elasticity curve

Technical Specifications

Parameter	Specification
Model	CY100 050A 5100
Pitch	2.54mm / 100mil
Operating Temperature	-45°C to +80°C
Total Length	33.4mm
Barrel Diameter	1.37mm
Maximum Stroke	6.35mm
Working Stroke	4.3mm
Spring Force	1N @ 4.3mm
Tip Diameter	0.5mm
Tip Style	Ball/Spherical
Current Capacity	7A
Typical Resistance	<15mOhm
Test Cycles	2,000,000+

Material Construction

Component	Material
Plunger	Beryllium copper gold-plated
Barrel	Phosphor bronze gold-plated
Spring	Steel gold-plated
Tip Surface	Gold

Applications and Industries

Your photovoltaic testing operations benefit from the 's versatile design. BC solar wafer testing becomes more efficient with stable contact resistance. The spherical tip excels in EL imaging applications where precision matters most.

Manufacturing facilities use these probes for quality control testing. Research laboratories rely on them for accurate performance measurements. Production lines integrate them into automated testing systems.

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Innovation and Technology Industrial Park, our company specializes in precision electrical connectors and test probes. We focus on electronic product research, development, and hardware innovation.

Our manufacturing process includes strict quality control and precision testing instruments. You receive products that meet international standards while offering competitive pricing compared to imported alternatives.

We can customize various non-standard probes for your specific requirements. Our engineering team works with you to develop solutions that match your testing needs perfectly.

0.5mm Ball-Head Photovoltaic Test Probe About Us

Installation and Compatibility

The standard 2.54mm pitch ensures compatibility with most testing fixtures. Your existing equipment likely accommodates this product without modifications.

The 33.4mm total length fits standard probe holders. Installation requires minimal setup time, getting your testing operations running quickly.

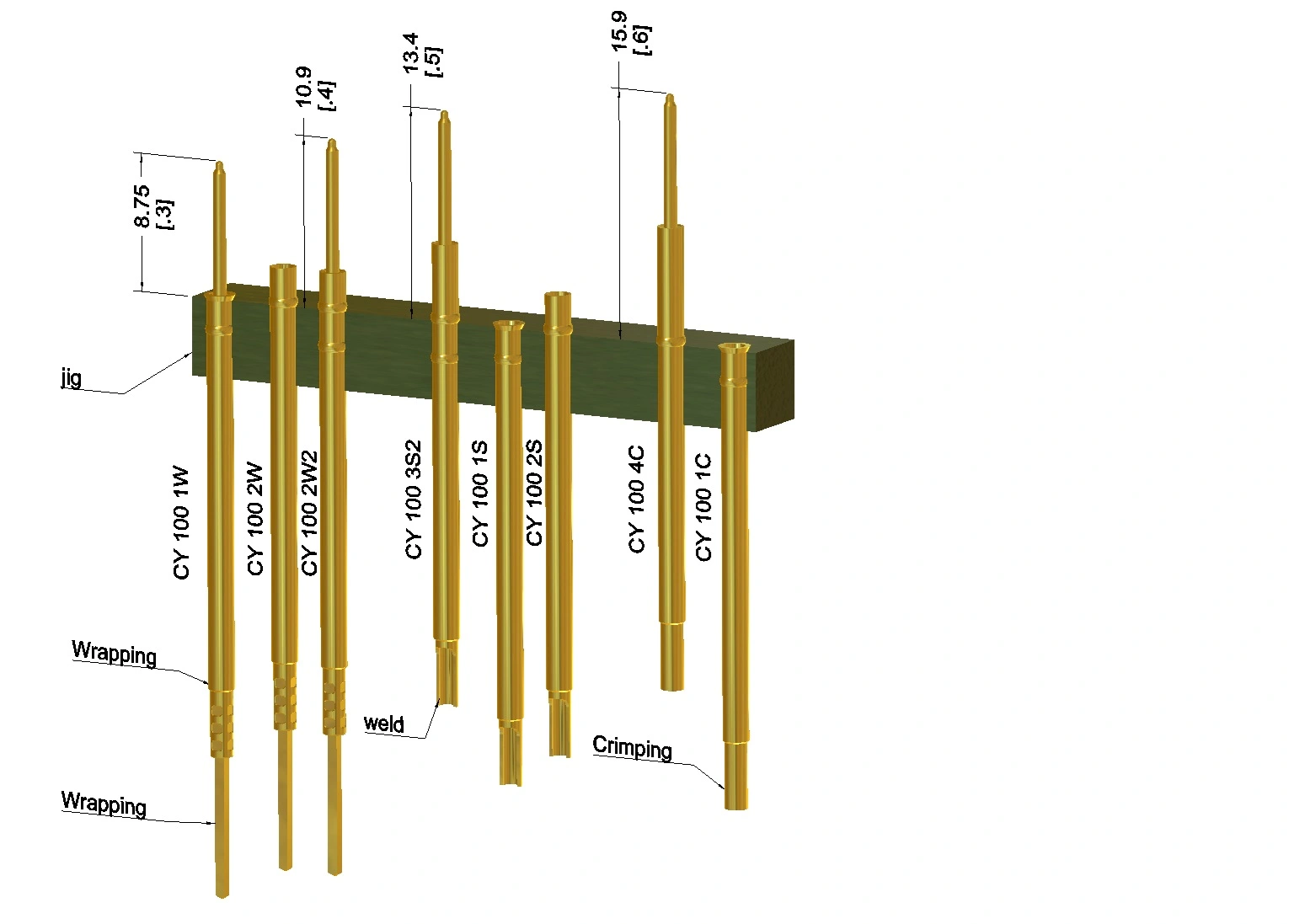

0.5mm ball-shaped photovoltaic test probe installation

Quality Assurance

Our digital manufacturing approach ensures consistent product quality. Each probe undergoes rigorous testing before shipment. You receive products that meet our high standards for reliability and performance.

The gold-plated surfaces resist corrosion and maintain electrical properties over time. Your investment in these probes provides long-term value through extended service life.

Getting Started

Ready to improve your photovoltaic testing accuracy? The 0.5mm Ball Head Photovoltaic Test Probe delivers the precision and reliability your operations demand.

Contact our technical team for detailed specifications or custom solutions. We're here to help you select the right testing components for your specific applications.

Contact us today: postmaster@cymicrowave.com
