Name: Male To Male SMA Adapter
SKU: N/A

Male To Male SMA Adapter

1. Male to male SMA adapter: refers to the RF coaxial connector with SMA male plugs on both ends, used to connect devices with SMA female interfaces (such as antennas, radios, RF modules, etc.) to achieve RF signal transmission.
2. Impedance: 50 Ohms nominal
3. VSWR: 1.15:1 to 18GHz typical
4. Insertion loss: .04 √f (GHz)
5. Temperature range: -65°C to 165°C

Male To Male SMA Adapter - High-Performance RF Connector for Professional Applications

When you need reliable RF signal transmission between devices with SMA female interfaces, our Male To Male SMA Adapter delivers exceptional performance. This precision-engineered connector highlights SMA male plugs on both closes, making it culminate for interfacing radio wires, radios, RF modules, and other communication gear. Our item offers predominant electrical characteristics with 50-ohm impedance coordinating and bolsters frequencies up to 18 GHz, guaranteeing your basic communications stay clear and stable.

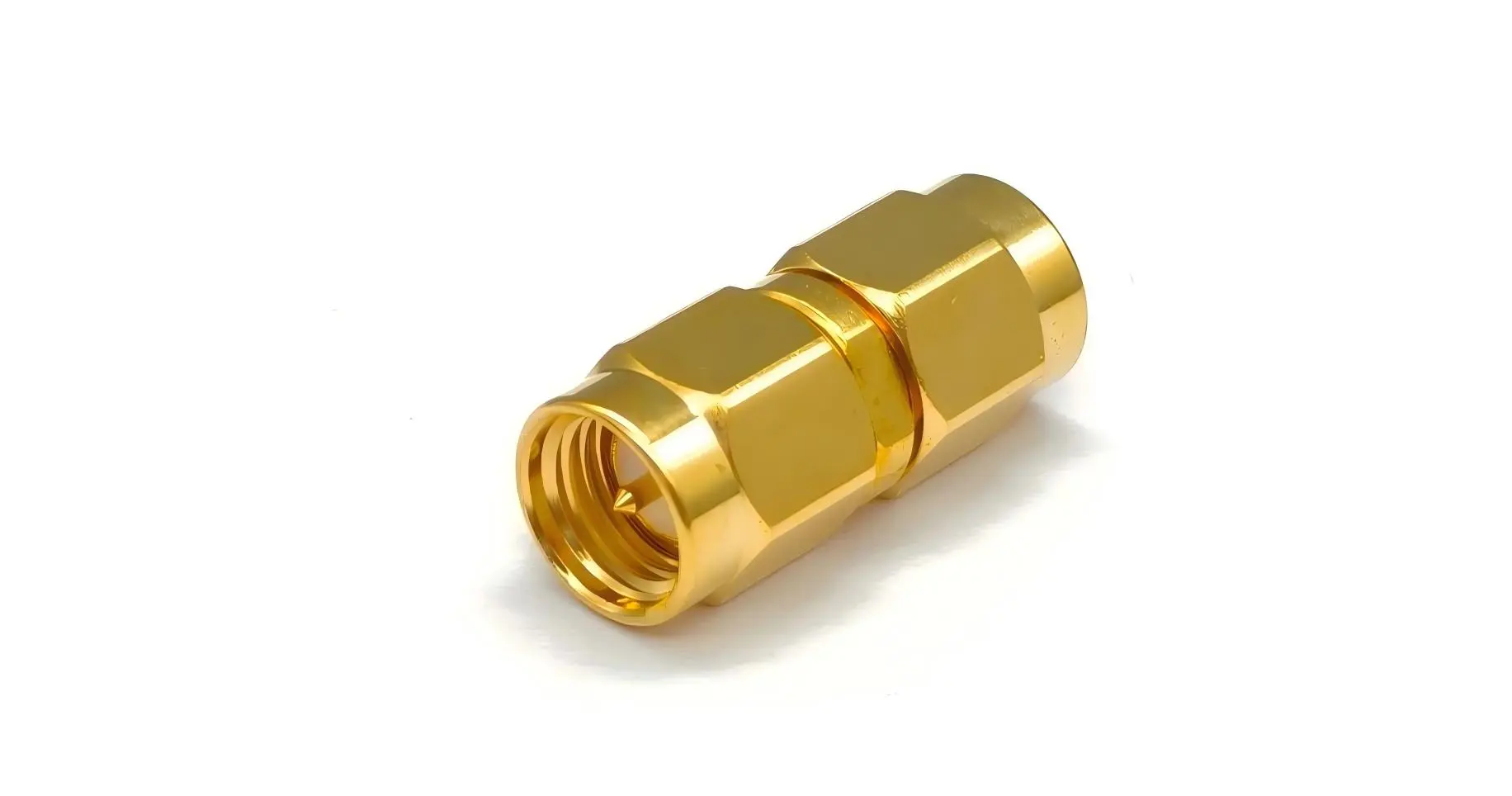

SMA male to male adapter

Superior Designing for Basic Applications

You'll appreciate the fastidious consideration to detail in each perspective of this connector's plan. The brass lodging highlights premium gold plating for most extreme toughness and erosion resistance. The beryllium copper center contacts are moreover gold-plated, giving amazing conductivity and long-term reliability.

Our designing group has optimized each component to provide extraordinary electrical execution. The PTFE cover guarantees negligible flag misfortune whereas keeping up fabulous temperature steadiness over requesting working conditions.

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 18 GHz
VSWR	1.15:1 to 18GHz typical
Insertion Loss	.04 √f (GHz)
Temperature Range	-65°C to 165°C
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Housing Material	Brass gold-plated
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m-1.13N·m
Withstand Torque	1.69N·m

Built for Harsh Environments

This connector meets MIL-STD-202 details for warm stun, salt shower, vibration, and dampness, with a wide working temperature extend of -65°C to 165°C, guaranteeing solid execution in extraordinary conditions. This flexibility makes it perfect for open air establishments, military applications, and requesting mechanical settings.

Precision Fabricating Excellence

At Shaanxi Chuangyu Electronic Innovation Co., Ltd., we keep up strict quality control all through our fabricating handle. Found in Xi'an's Chang'an Advancement Stop, our office specializes in accuracy connectors and RF cable gatherings, with skill expanding to 110GHz. Progressed fabricating and testing guarantee each item meets thorough standards.

Versatile Application Solutions

This Male To Male SMA Adapter serves numerous industries and applications. You'll find it invaluable for:

Telecommunications Equipment: Connect base station components and test equipment
Laboratory Testing: Link RF generators, analyzers, and measurement devices
Antenna Systems: Bridge antenna elements and distribution networks
Medical Devices: Enable reliable connections in diagnostic and therapeutic equipment
Military Communications: Provide secure, reliable RF connections in defense applications
Aerospace Systems: Support critical communication links in aircraft and satellite systems

Applications of SMA male-to-male adapters

Quality Assurance and Reliability

Every connector experiences comprehensive testing some time recently shipment. Our quality administration framework guarantees reliable execution and unwavering quality. The gold-plated contacts give great erosion resistance and keep up moo contact resistance over thousands of association cycles.

The precision-machined strings guarantee smooth, dependable mating with standard SMA connectors. Legitimate torque details avoid over-tightening whereas guaranteeing secure associations that won't extricate beneath vibration.

SMA male-to-male adapter quality control

Why Select Our SMA Adapters

When you select our item, you're choosing demonstrated unwavering quality supported by thorough testing and quality confirmation. Our commitment to exactness fabricating and client fulfillment has made us a trusted accomplice over differing industries.

The combination of predominant materials, accuracy fabricating, and comprehensive testing guarantees that your basic RF associations stay dependable when it things most. Believe our item for your following extend and encounter the distinction that quality designing makes.

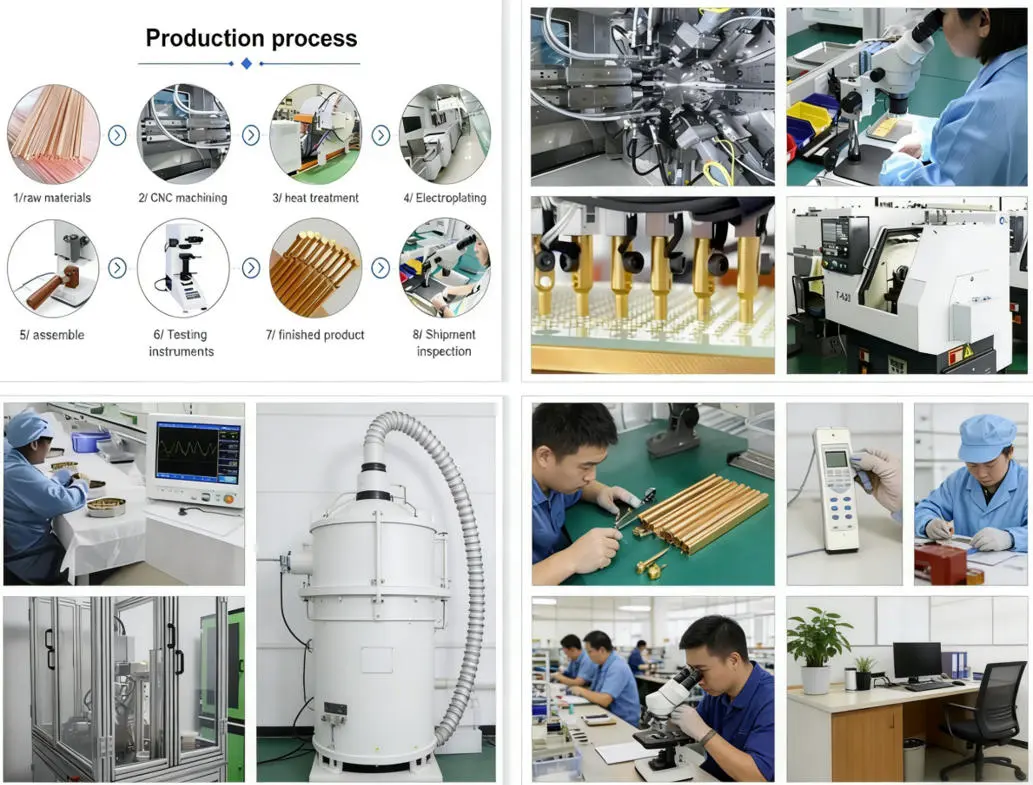

SMA male-to-male adapter production workshop

Customer Support and Customization

We understand that your projects may have unique requirements. Our engineering team can provide customized solutions to meet specific performance or mechanical needs. Whether you need special plating options, modified dimensions, or enhanced environmental specifications, we're here to help.

Customization process for SMA male-to-male adapters

Contact us

For technical support, pricing information, or custom solutions, contact our team at postmaster@cymicrowave.com. Our experts are ready to assist with your connector requirements, including the Male To Male SMA Adapter, and provide detailed technical documentation.
