Name: 2.4 Male To N Female Adapter
SKU: N/A

2.4 Male To N Female Adapter

1.2.4mm male to N-type female adapter, one end is a 2.4mm male connector, and the other end is an N-type female connector, used for signal transmission conversion between different interfaces in radio frequency (RF) or microwave systems.
2. Typically used in high-precision scenarios such as communication and test measurement.
3.Impedance: 50 Ohms nominal
4.VSWR: 1.15:1 to 18GHz typical
5.Insertion loss: .04√f (GHz)
6.Temperature range: -55°C to 125°C

2.4 Male To N Female Adapter - Professional RF Coaxial Adapter

Are you looking for a reliable interface solution between different RF connectors? This 2.4 Male To N Female Adapter provides seamless signal transmission conversion in radio frequency and microwave systems. Our professional-grade connector highlights one conclusion with a 2.4mm male connector and the other with an N-type female connector. This connector guarantees ideal execution for communications and testing, conveying unwavering quality in both research facility and field applications.

What Is a 2.4mm Male to N Female Adapter?

This compact coaxial connector bridges 2.4mm to N-type connectors, perfect for test setups, estimation frameworks, and communication applications where space is restricted. You can believe this connector to keep up flag judgment over its working recurrence run. Its exactness building guarantees reliable execution in requesting environments.

Key Highlights and Benefits

Wide Recurrence Coverage

Our connector bolsters DC to 18GHz, making it perfect for both moo- and high-frequency frameworks without compromising performance.

Superior Fabric Construction

The stainless steel lodging offers strength and erosion resistance, whereas beryllium copper gold contacts guarantee solid electrical association and long-lasting performance.

Excellent Electrical Performance

With a moo VSWR of 1.15:1 up to 18GHz and negligible inclusion misfortune, this connector guarantees most extreme control exchange and negligible flag degradation.

Temperature Resilience

Operating temperature extend ranges from -55°C to 125°C. This wide run permits utilize in unforgiving natural conditions. Your frameworks will perform dependably whether in extraordinary cold or tall warm circumstances.

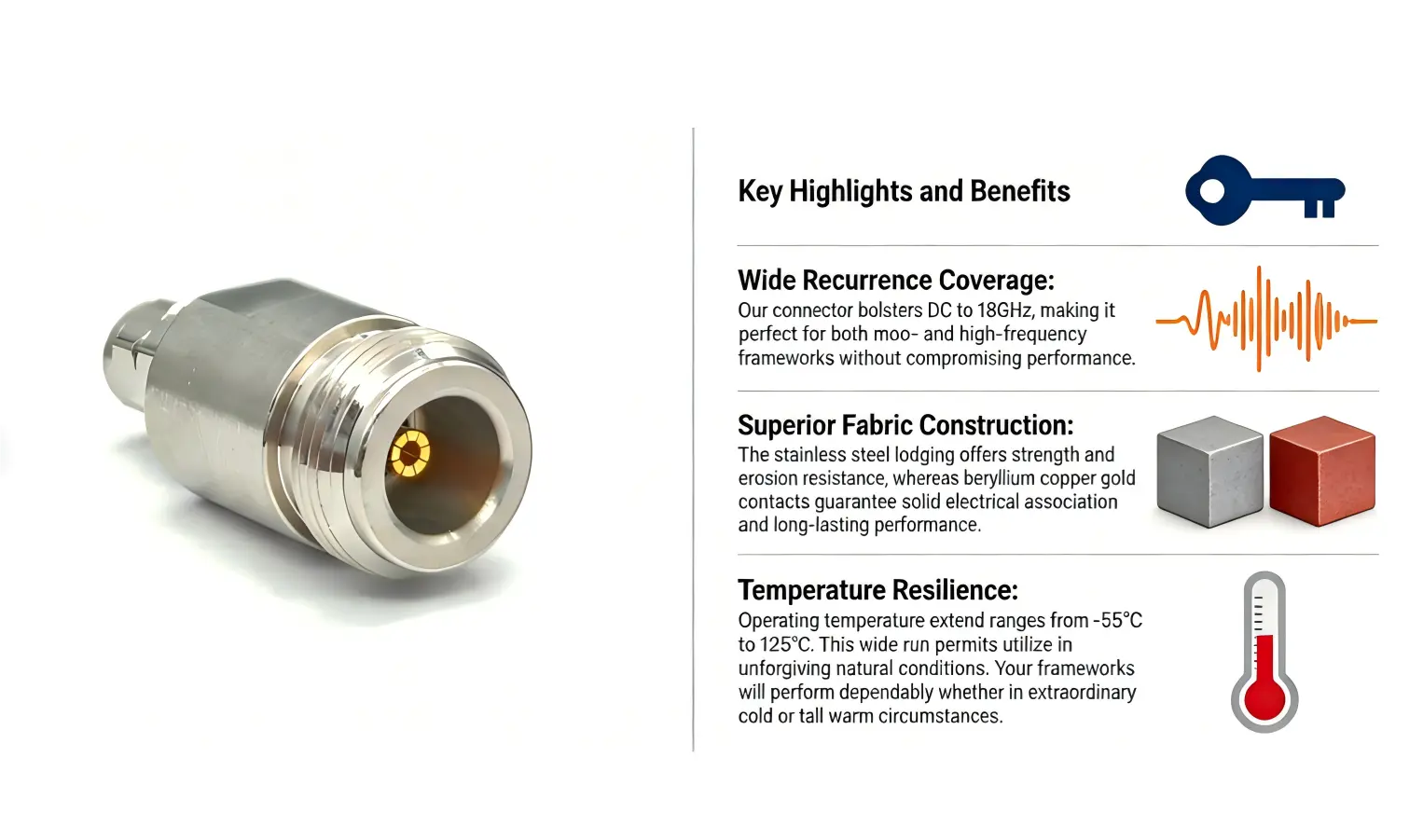

2.4mm Male to N-Type Female Adapter Performance Advantages

Technical Specifications

Parameter Category	Specification	Value
General
	Impedance	50 Ohms nominal
	Frequency Range	DC to 18GHz
	Temperature Range	-55°C to 125°C
Electrical
	VSWR	1.15:1 to 18GHz typical
	Insertion Loss	.04√f (GHz)
	DWV @ Sea Level	1000 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	2.5 milliohms maximum
	Contact Resistance (Inner)	3 milliohms maximum
Materials
	Housings	Stainless Steel Passivated
	Center Contacts	Beryllium Copper Gold
	Insulators	PEI & PTFE
Mechanical
	Mate/Demate Cycles	500 cycles
	Engagement Force	≥0.23N.m
	Connection Torque	0.79N·m - 1.13N·m
	Withstand Torque	1.69N·m

Applications and Use Cases

Test and Measurement

These adapters, including the 2.4 Male To N Female Adapter, enable seamless connection of test equipment like network analyzers, spectrum analyzers, and signal generators in laboratory environments.

Communication Systems

Cellular base stations and microwave communication links use these adapters. They provide flexibility in system design and maintenance. Field technicians appreciate the reliable connection they provide.

Military and Aerospace

Defense applications demand the highest reliability standards. Our adapters meet stringent military specifications. They perform consistently in harsh operational environments.

Research and Development

R&D labs need versatile connection solutions. These adapters allow engineers to test various configurations quickly. Prototype development becomes more efficient with reliable interface adapters.

2.4mm male to N-type female adapter application industries

Installation and Usage Guidelines

Proper Connection Technique

Hand-tighten connectors first, then use a torque wrench to apply specified values, avoiding over-tightening to prevent damage and performance loss.

Handling Precautions

Handle the adapter carefully to avoid damage to precision surfaces. Store in protective packaging when not in use. Regular inspection helps identify wear before it affects performance.

Maintenance Tips

Regularly clean connectors, inspect for wear or corrosion, and replace adapters with excessive wear to maintain system performance.

2.4mm Male to N-Type Female Adapter Installation Requirements

Quality Assurance and Testing

Every adapter undergoes rigorous testing before shipment. We verify electrical performance across the entire frequency range. Mechanical specifications receive thorough validation through cycle testing.

Our quality management system ensures consistent production standards. Environmental testing confirms performance under extreme conditions. You receive products that meet or exceed published specifications.

2.4mm Male to N-Type Female Adapter - Quality Guaranteed

Why Choose Our Adapters?

Shaanxi Chuangyu Electronic Technology brings extensive experience in precision RF components. Our Xi'an facility uses advanced techniques to meet international standards. Our engineering team designs solutions for modern RF systems, with continuous improvement driven by customer feedback.

2.4mm Male to N-Type Female Adapter Customization Process

Ordering and Support

Ready to enhance your RF system connectivity? Contact us for pricing and delivery information. Our technical support team can help you select the right adapter for your application.

For questions about specifications or custom requirements, reach out to us at postmaster@cymicrowave.com. We provide comprehensive technical support throughout your product selection process.

This 2.4 Male To N Female Adapter represents the quality and reliability you expect from professional RF components. Trust in our experience to deliver the performance your applications demand.
