High-Performance SMA Female To TNCA Male Adapter - Precision RF Connection Solution
When you need reliable signal conversion between SMA and TNC interfaces, our SMA Female To TNCA Male Adapter delivers exceptional performance for demanding RF applications. This precision-engineered connector consistently interfaces gadgets with SMA female interfacing to hardware with TNC male interfacing, guaranteeing ideal flag astuteness over a wide recurrence run. Our connector keeps up 50-ohm impedance all through the association, making it perfect for broadcast communications, test hardware, and military applications where flag quality cannot be compromised.
Why Select Our SMA Female To TNC Male Adapter?
Our connector fathoms RF interface challenges with accuracy fabricating, guaranteeing dependable execution from DC to 18GHz. It withstands extraordinary temperatures and cruel conditions, making it perfect for aviation, defense, and mechanical applications.
Signal loss matters in your RF systems. Our low insertion loss design minimizes signal degradation. The .04√f (GHz) insertion loss specification keeps your signals strong throughout the frequency range. This performance advantage translates to better system efficiency and reduced signal distortion.
Superior Design Features
Precision Materials for Long-Term Reliability

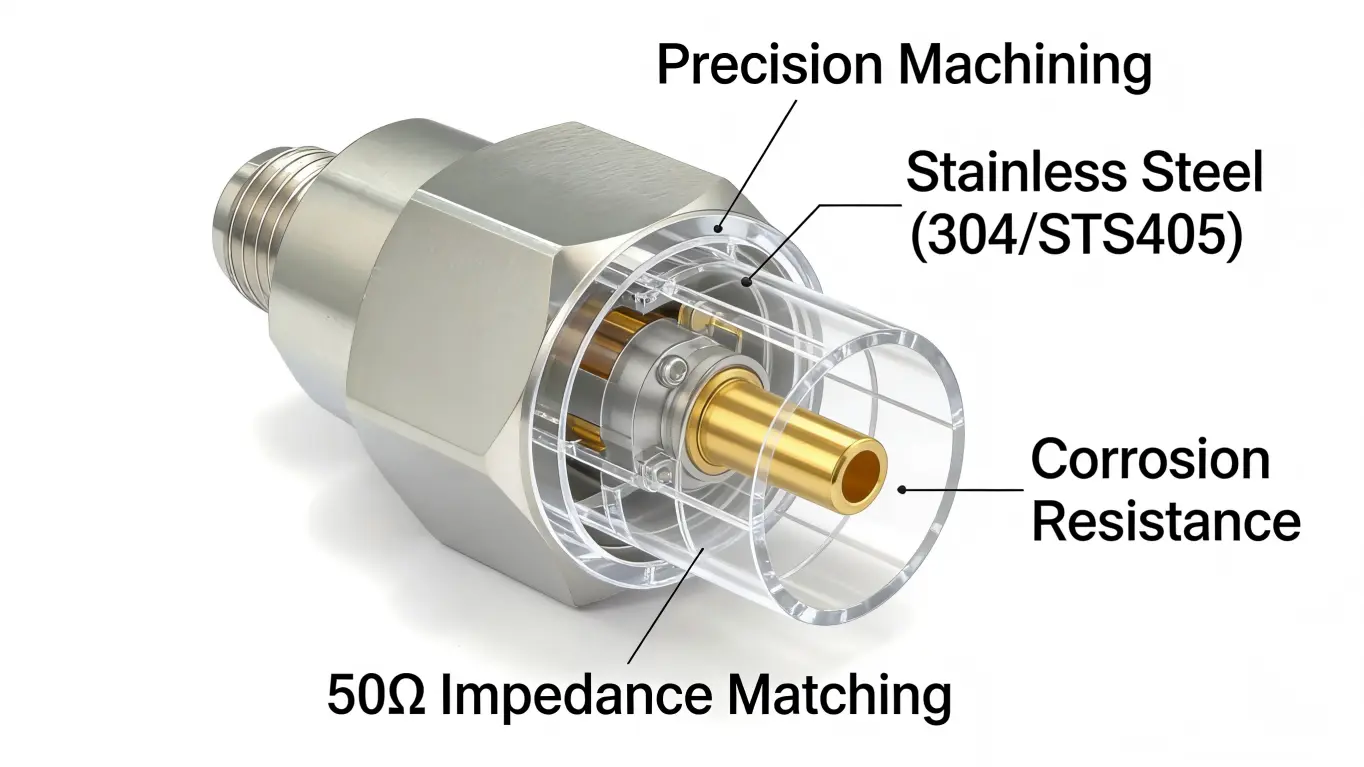

Our connectors highlight premium materials: stainless steel for erosion resistance, beryllium copper gold contacts for conductivity, and PTFE insulin for steady dielectric properties over temperature ranges.
Outstanding Electrical Performance
Your applications require reliable electrical characteristics. The 1.2:1 VSWR detail to 18GHz guarantees negligible flag reflection. This moo VSWR keeps up flag quality and diminishes framework wasteful aspects. The 50-ohm impedance coordinating jam flag judgment all through your RF chain.
Robust Mechanical Construction
Our SMA Female To TNCA Male Adapter supports 500 mate/demate cycles without degradation, with proper engagement force and connection torque to ensure secure, reliable connections every time.
Technical Specifications
| Parameter |
Specification |
| General Specifications |
|
| Impedance |
50 Ohms nominal |
| Frequency Range |
DC to 18GHz |
| Temperature Range |
-55°C to 125°C |
| Electrical Performance |
|
| VSWR |
1.2:1 to 18GHz typical |
| Insertion Loss |
.04√f (GHz) |
| DWV @ Sea Level |
1000 Vrms |
| Insulation Resistance |
5,000 megohms minimum |
| Contact Resistance (Outer) |
3 milliohms maximum |
| Contact Resistance (Inner) |
5 milliohms maximum |
| Materials |
|
| Housings |
Stainless Steel Passivated |
| Center Contacts |
Beryllium Copper Gold |
| Insulators |
PTFE |
| Mechanical Data |
|
| Mate/Demate Cycles |
500 cycles |
| Engagement Force |
≥0.23N.m |
| Connection Torque |
0.79N·m - 1.13N·m |
| Withstand Torque |
1.69N·m |
| Environmental Standards |
|
| Thermal Shock |
MIL-STD-202, Method 107, Condition B |
| Salt Spray |
MIL-STD-202, Method 101, Condition B |
| Vibration |
MIL-STD-202, Method 204, Condition D |
| Shock |
MIL-STD-202, Method 213, Condition I |
| Moisture Resistance |
MIL-STD-202, Method 106 |
Applications and Use Cases
This adapter is essential for RF applications, offering reliable connections for test equipment, telecommunications, and military/aerospace uses. Its rugged construction and MIL-STD compliance ensure performance in extreme environments.
Your calibration and measurement systems achieve better accuracy with consistent connections. The low insertion loss and excellent VSWR characteristics maintain measurement integrity. This precision supports critical applications where measurement accuracy is paramount.
Quality Assurance and Manufacturing Excellence
Shaanxi Chuangyu Electronic Innovation combines progressed fabricating strategies with thorough quality control. Our generation office in Chang'an Development and Innovation Mechanical Stop keeps up strict prepare administration frameworks. Accuracy testing rebellious confirm each connector meets details some time recently shipment.
Our products undergo thermal shock, vibration, and salt spray testing for reliable performance. With expertise in millimeter wave and over 200 connector specifications, we deliver superior performance across the frequency range.
Get Your High-Performance RF Adapter Today
Transform your RF connections with our precision adapters. We offer consistent quality, reliable delivery, and expert technical support for your application needs.We customize solutions for unique applications and provide technical support throughout your project lifecycle. Email us at postmaster@cymicrowave.com to start optimizing your RF connections with our SMA Female To TNCA Male Adapter.
Experience the difference that precision engineering makes in RF performance. Your applications deserve reliable connections that maintain signal integrity across demanding operating conditions. Choose our adapter solution for superior RF performance and long-term reliability.
