Name: Short Stroke Test Probe
SKU: N/A

Short Stroke Test Probe

1. Spring-loaded probes for electronic testing, characterized by a short travel distance, suitable for flexible mechanical pressing of PCB boards.
2. Spacing: 2.54mm/100mil
3. Materials: Beryllium Copper with Nickel Plating, Phosphor Bronze with Gold Plated Tube, Steel with Nickel Plated Spring
4. Overall Length: 15mm
5. Working Travel Force: 0.5N@2mm
6. Operating Temperature: -45°C to +80°C
7. Test Cycles: 5000K times

Short Stroke Test Probe - High-Performance Electronic Testing Solution

When you need reliable contact for PCB testing with limited space constraints, our delivers exceptional performance and durability. This spring-loaded testing probe features a compact design with minimal travel distance, making it perfect for your flexible mechanical pressing applications on PCB boards. Our product combines precision engineering with robust construction to ensure consistent, low-resistance connections during electronic testing operations. You'll benefit from its exceptional contact stability and extended service life in demanding testing environments.

Short Stroke Test Probe

Why Choose Our High-Performance Test Probes?

Our precision-engineered test probes represent years of specialized experience in electronic testing solutions. You get superior contact reliability with minimal mechanical wear, thanks to our advanced material selection and manufacturing processes.

The compact design makes these probes ideal when you're working with height-restricted testing setups. Your testing efficiency improves significantly with the short stroke mechanism that reduces cycle time while maintaining excellent electrical contact.

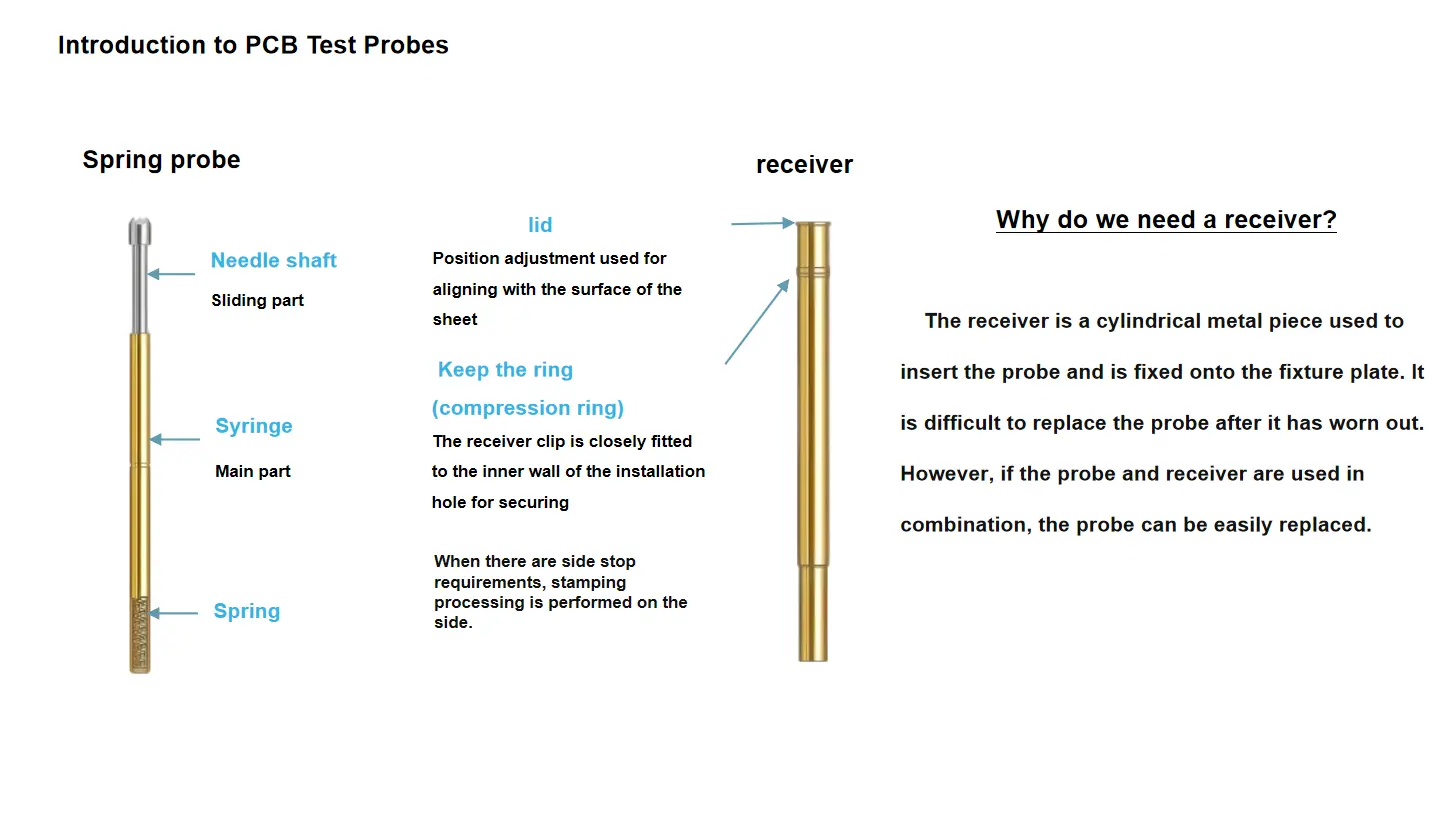

Short-stroke test probe installation application

Key Benefits for Your Testing Applications

Predominant Contact Execution: Our beryllium copper plunger plan guarantees low-resistance associations, whereas nickel plating offers great erosion resistance and long-term stability.

Extended Benefit Life: With 5,000,000 test cycles, these tests decrease support costs and increment efficiency, advertising uncommon esteem for high-volume testing.

Temperature Strength: Working dependably from -45°C to +80°C, you can utilize these tests over differing natural conditions without execution degradation.

Precise Mechanical Design: The Short Stroke Test Probe's 2mm working stroke with 0.5N force provides optimal contact pressure for reliable connections without damaging delicate PCB surfaces.

Technical Specifications

Parameter	Specification
Model	CY100 190N 5050
Pitch	2.54mm / 100mil
Operating Temperature	-45°C to +80°C
Total Length	15mm
Barrel Diameter	1.37mm
Maximum Stroke	3mm
Working Stroke	2mm
Spring Force	0.5N at working stroke
Tip Style	Flat
Tip Diameter	1.9mm
Current Capacity	5A
Typical Resistance	< 15 mOhm
Test Cycles	5,000,000 times

Material Composition

Component	Material	Coating
Plunger	Beryllium Copper	Nickel Plated
Barrel	Phosphor Bronze	Gold Plated
Spring	Steel	Nickel Plated
Tip Surface	-	Nickel

Applications and Use Cases

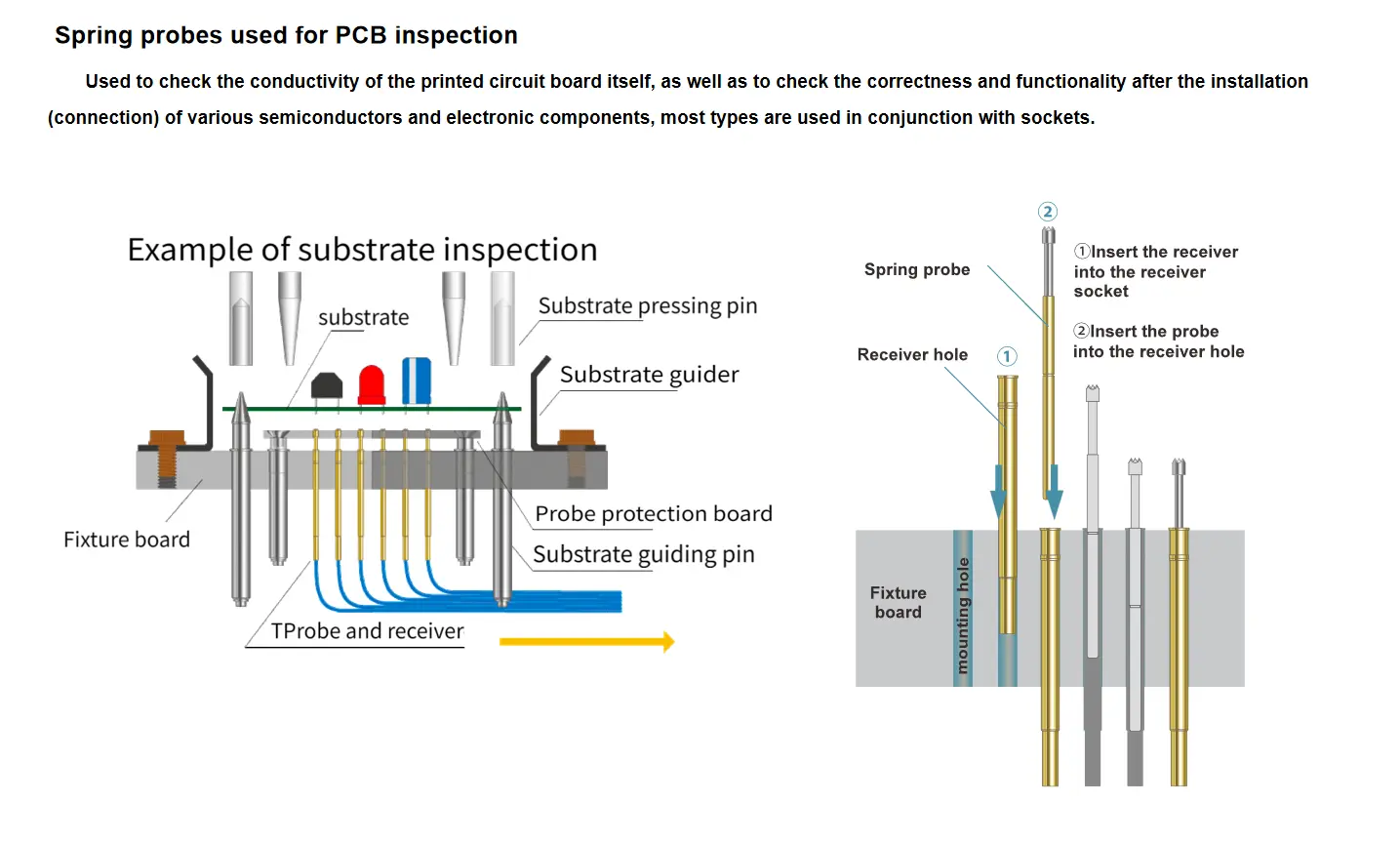

PCB Testing: Perfect for bare board testing including traditional and SMT PCB inspection. The short stroke design improves testing efficiency while ensuring reliable contact.

Functional Testing: Ideal for environments with low height requirements where standard probes cannot fit. You maintain testing accuracy in space-constrained applications.

Quality Control: Suitable for high-volume production testing where consistent performance and long service life are critical for maintaining throughput.

In-Circuit Testing: Excellent for ICT applications requiring precise contact with minimal mechanical stress on test points.

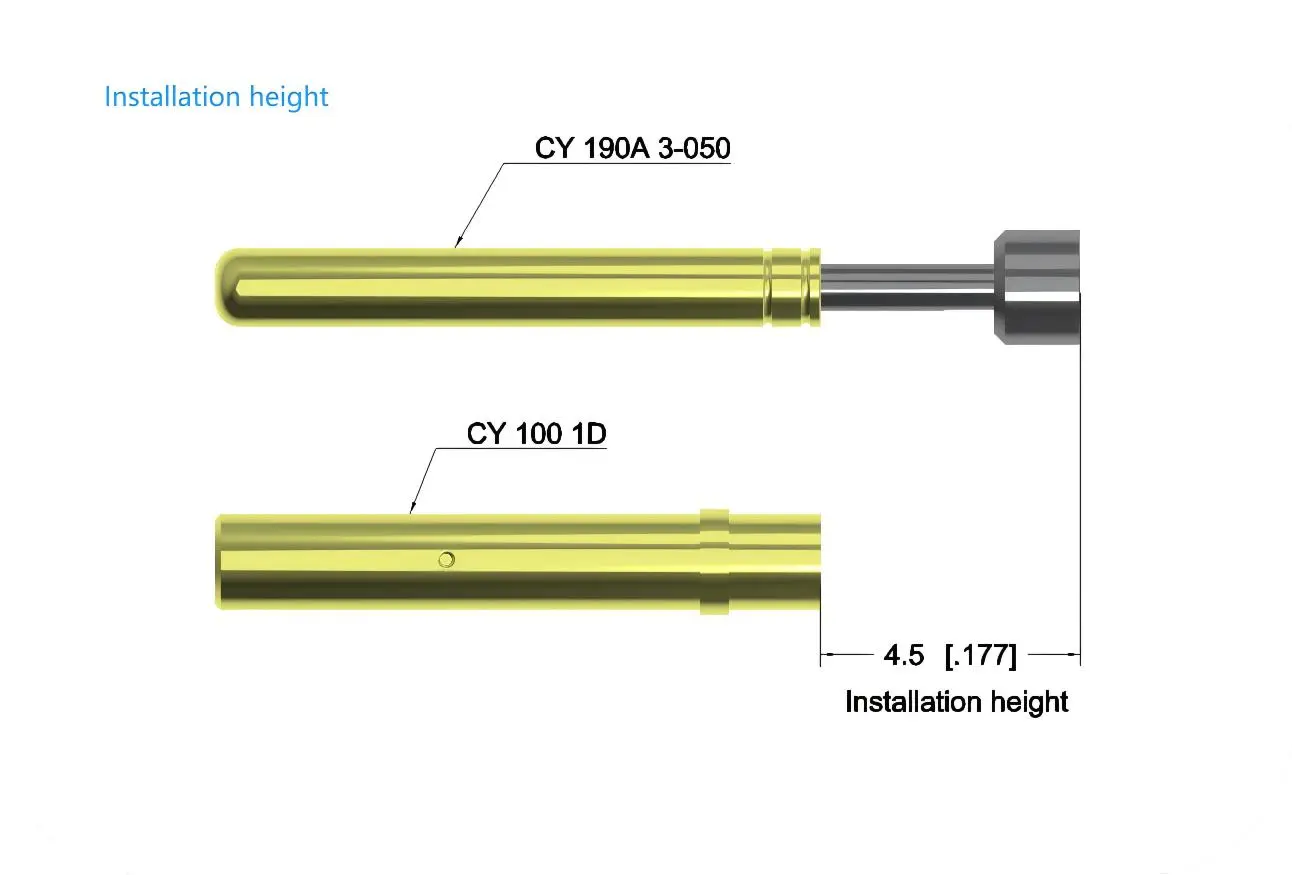

Short-stroke test probe installation application
