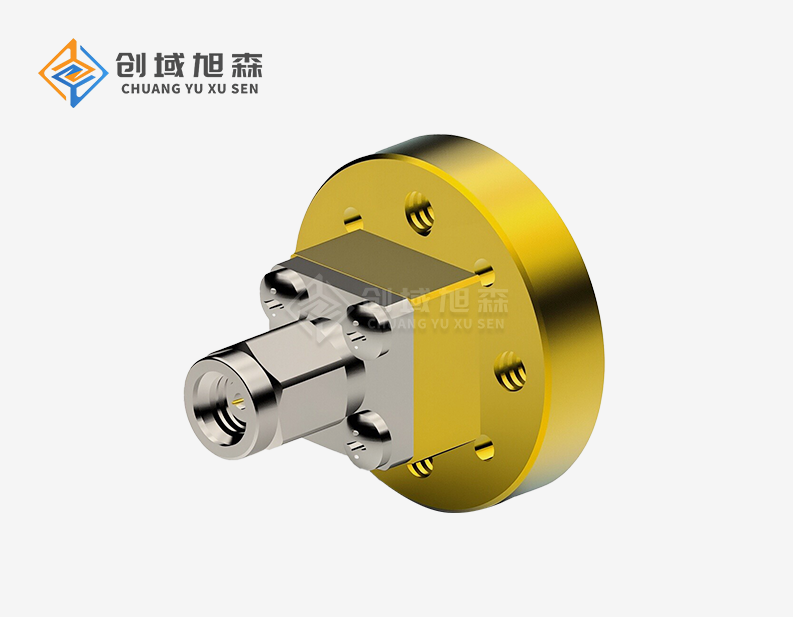

Looking for reliable signal conversion between coaxial and waveguide transmissions? Our Terminated Waveguide Coaxial Converter delivers exceptional performance for your millimeter wave applications. This precision-engineered microwave gadget highlights a coaxial connector amplifying from the waveguide's conclusion confront, guaranteeing consistent flag move. With recurrence scope from 75GHz to 110GHz, you get the unwavering quality and precision your ventures request. Our imaginative plan fathoms conventional situating challenges whereas keeping up predominant electrical performance.
Our waveguide converter design features a through-slot and stepped impedance transformer block, addressing positional deviations. The precise alignment improves VSWR performance, reduces debugging complexity, and eliminates installation shifts found in traditional designs.
Our converters offer consistent results with 50-ohm nominal impedance, minimal insertion loss (≤0.7dB), and excellent VSWR of 1.4:1. This ensures optimal signal power transfer, improved system efficiency, and minimal reflections for demanding applications.

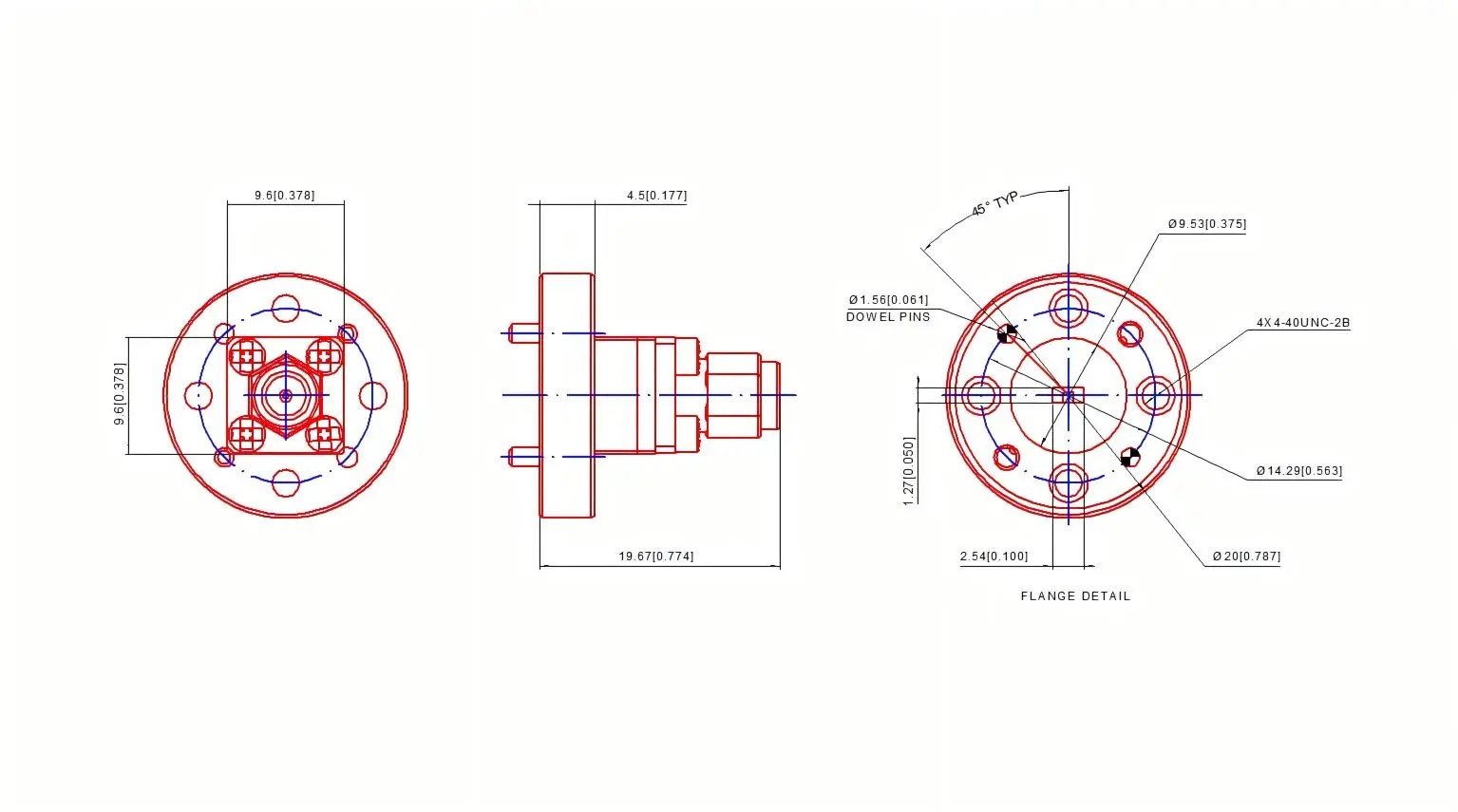

| Parameter | Specification |
|---|---|
| Product Name | 1.0-WR10-JFD Coaxial Waveguide Converter |
| Impedance | 50 Ohms nominal |
| Frequency Range | 75GHz to 110GHz |
| Temperature Range | -55°C to 125°C |
| Connector Type | 1.0-J |
| Waveguide Port | WR10 |
| Flange Model | UG387/U |
| Structure Type | Termination |
| VSWR | 1.4:1 |
| Insertion Loss | ≤0.7dB |
| Power Handling | 10W |
| Housing Material | Gold-plated copper |
| Center Contacts | Beryllium copper gold |
| Insulators | PEI |

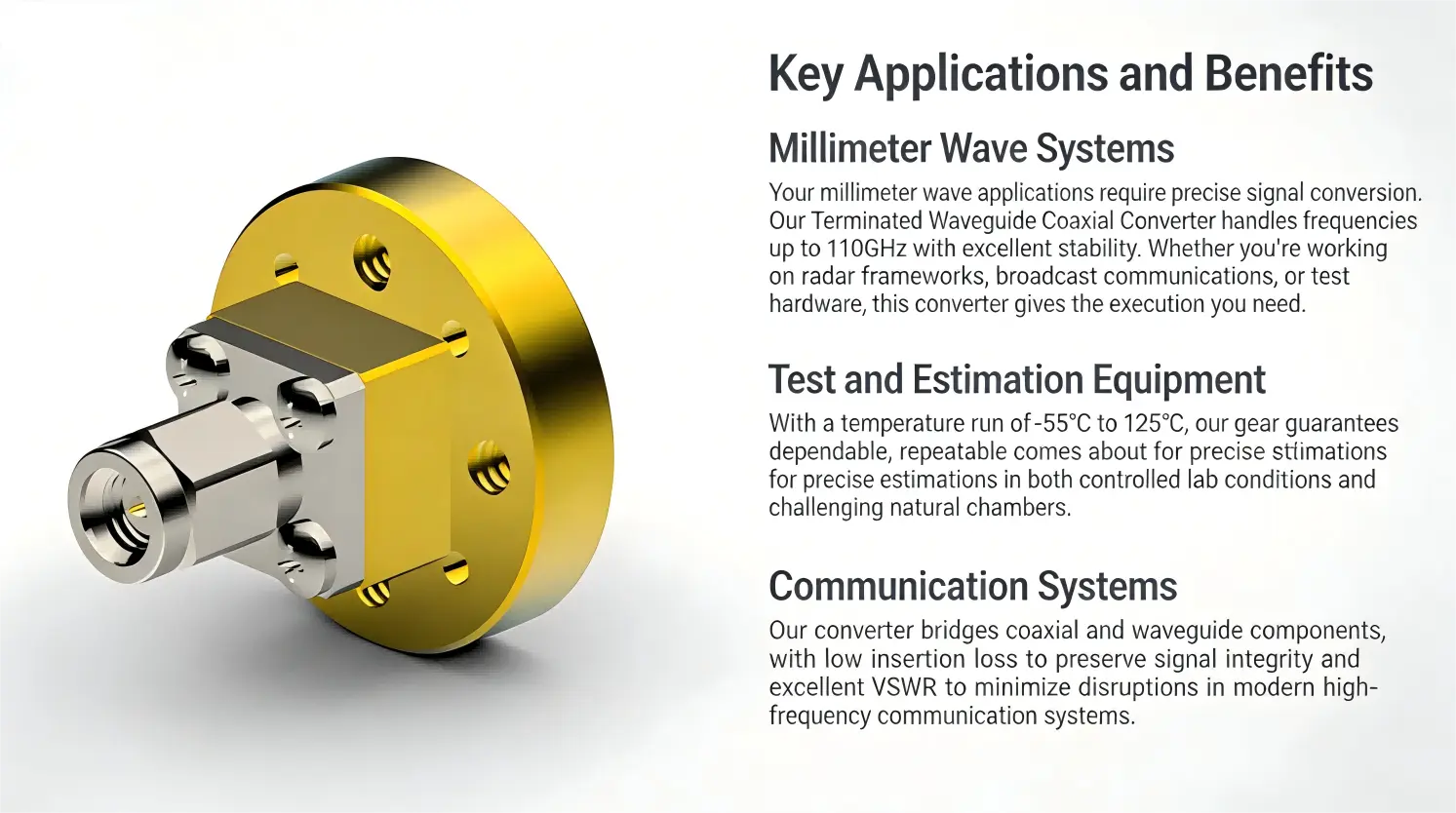

Your millimeter wave applications require precise signal conversion. Our Terminated Waveguide Coaxial Converter handles frequencies up to 110GHz with excellent stability.
Whether you're working on radar frameworks, broadcast communications, or test hardware, this converter gives the execution you need.
With a temperature run of -55°C to 125°C, our gear guarantees dependable, repeatable comes about for precise estimations in both controlled lab conditions and challenging natural chambers.
Our converter bridges coaxial and waveguide components, with low insertion loss to preserve signal integrity and excellent VSWR to minimize disruptions in modern high-frequency communication systems.
We utilize as it were premium materials in our converters. Gold-plated copper lodgings give amazing conductivity and erosion resistance. Beryllium copper gold center contacts guarantee dependable electrical associations over millions of mating cycles.
The PEI separators fabric offers remarkable dielectric properties at tall frequencies. This combination of materials conveys long-term unwavering quality in requesting applications.

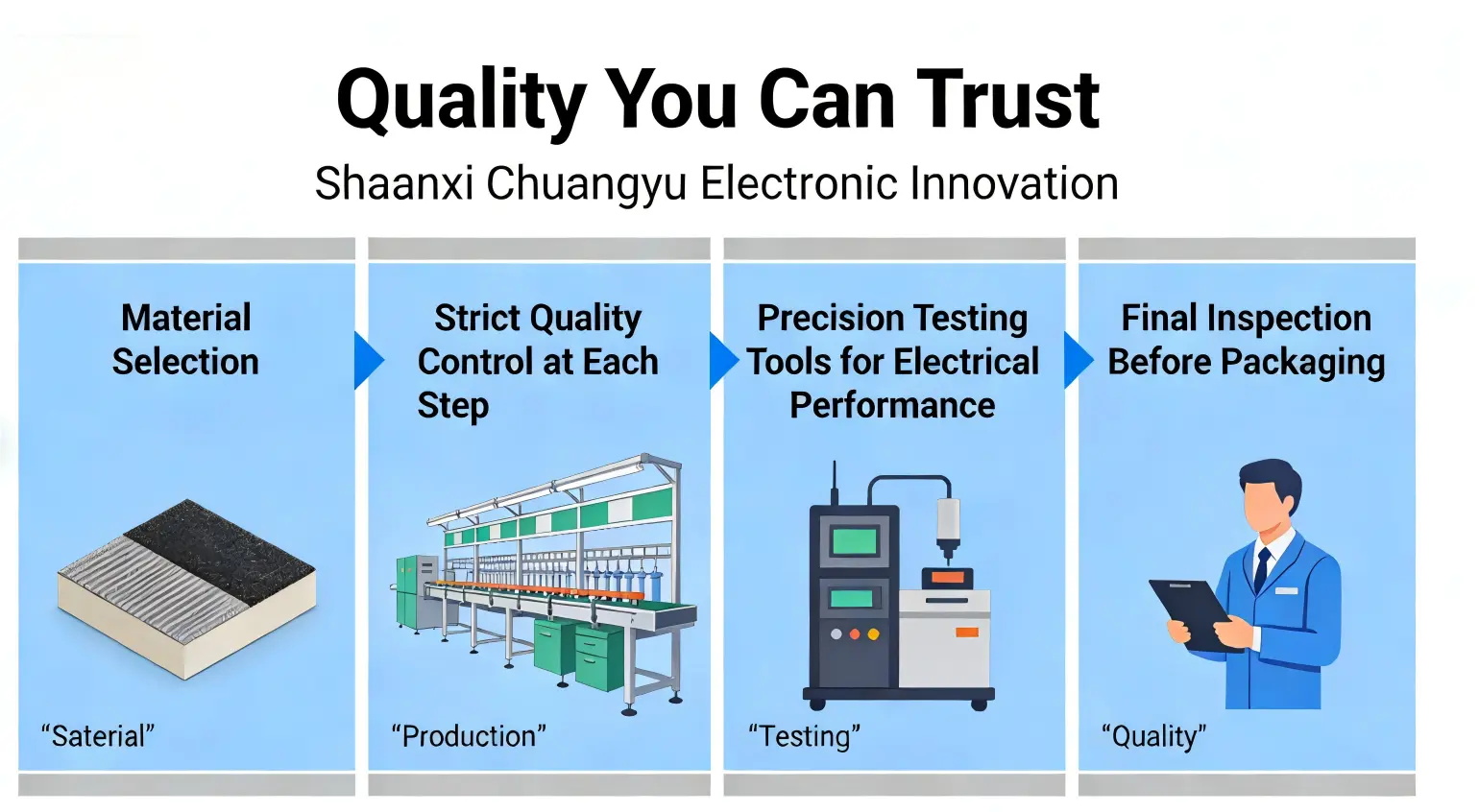

Each converter undergoes rigorous testing for VSWR, insertion loss, and power handling. Digital manufacturing and strict process management ensure consistent quality and high standards with every unit.
Our group has created over 200 millimeter wave connector and 400 cable get together details, displaying our skill and commitment to assembly different client needs with inventive arrangements.
Standard products don't always fit unique requirements. We offer customization services to adapt our Terminated Waveguide Coaxial Converter for your specific needs. Different connector types, frequency ranges, or power levels can be accommodated through our engineering team.
We offer complete system solutions, including electronic design, PCB manufacturing, and assembly, supporting you from concept to final production.
Ready to integrate our high-performance converters into your next project? Contact our technical team at postmaster@cymicrowave.com for detailed specifications, pricing, and delivery information. We're here to help you select the right Terminated Waveguide Coaxial Converter for your application.
Our experienced engineers can discuss your specific requirements and recommend optimal solutions. Whether you need standard products or custom designs, we have the expertise and manufacturing capabilities to support your success.
