Name: BNC RF Coaxial Load
SKU: N/A

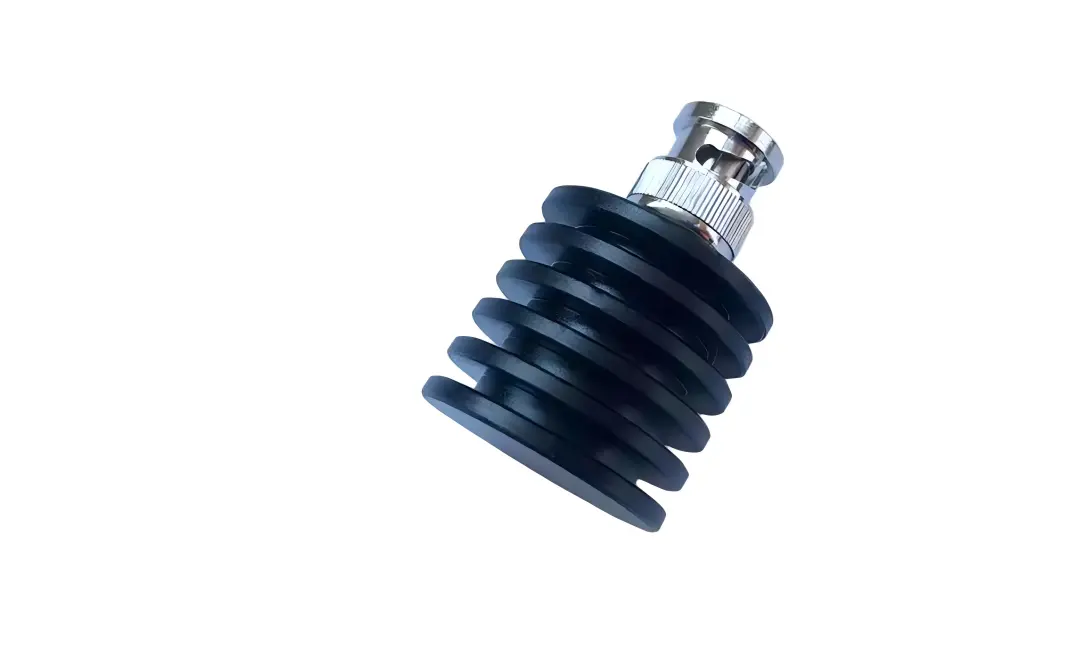

BNC RF Coaxial Load

1. The BNC RF coaxial load is a component used for terminal connection in a coaxial transmission system, primarily for matching the impedance of RF signal transmission systems, commonly used for system testing.
2. Frequency range covers DC to 4GHz, with power ratings typically ranging from 1W to 5W.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 4GHz
5. VSWR: 1.15:1 typical up to 4GHz
6. Power: 5W
7. Temperature range: -55°C to 125°C

BNC RF Coaxial Load - Precision Terminal Components for RF Systems

When you need reliable impedance matching in your RF signal transmission systems, a high-quality BNC RF Coaxial Load becomes essential. At Shaanxi Chuangyu Electronic Technology Co., Ltd., we specialize in manufacturing precision terminal components that deliver consistent performance across demanding applications. Our product solutions provide the stability and reliability your testing systems require, with frequency coverage from DC to 4GHz and robust 5W power handling capabilities.

product-1-1

What Is the product?

A BNC coaxial stack is a pivotal terminal component, guaranteeing appropriate impedance coordinating and anticipating flag reflections. This keeps up exact flag transmission and solid test comes about over the whole working extend with steady 50-ohm impedance. Whether you're conducting research facility estimations or field testing, legitimate end makes the distinction between precise and misshaped readings.

product-1-1

Key Features and Benefits

Superior Electrical Performance

Our BNC RF Coaxial Load delivers exceptional electrical characteristics that meet demanding industry standards:

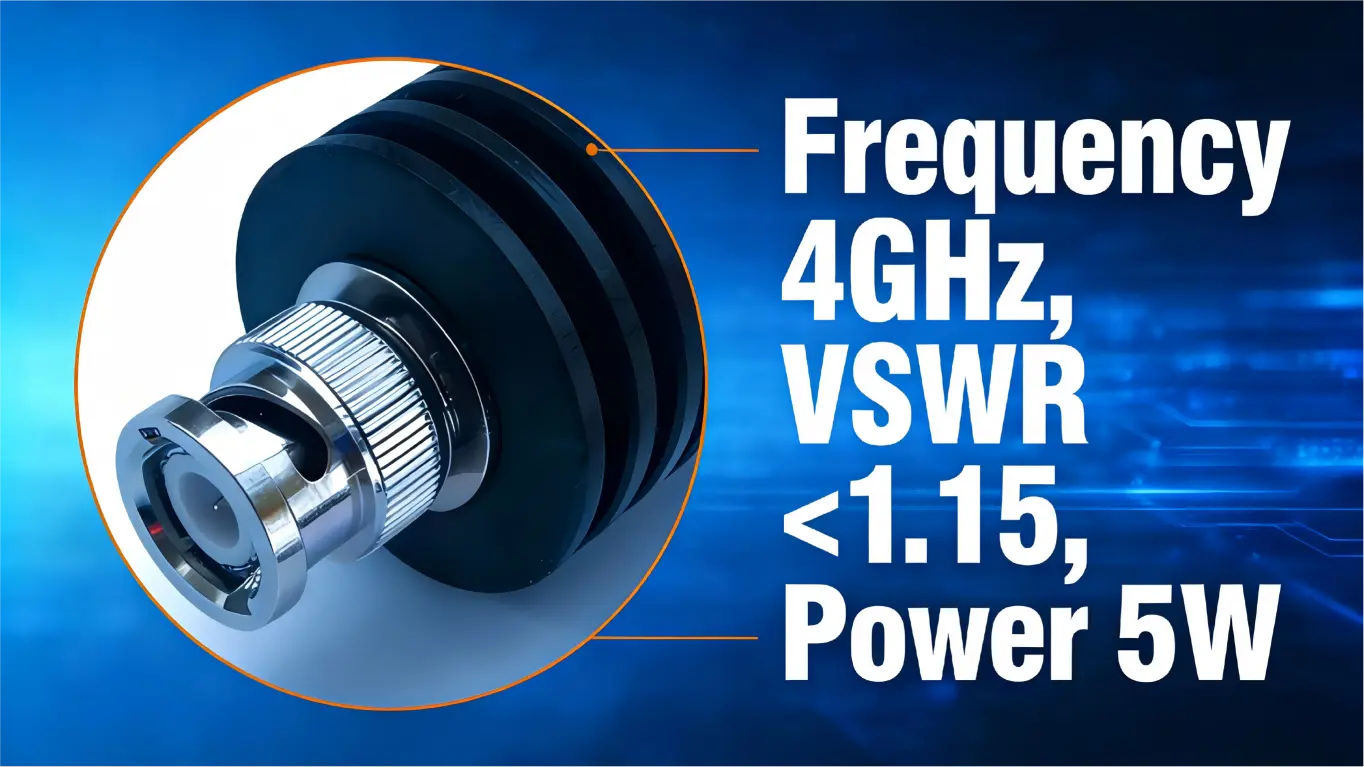

VSWR of 1.15:1 typical up to 4GHz ensures minimal signal reflection
DC to 4GHz frequency coverage handles most standard applications
5W power rating provides adequate capacity for typical testing scenarios
Low insertion loss maintains signal integrity

Robust Construction Materials

We construct our loads utilizing premium materials chosen for strength and performance:

Housing: Nickel-plated brass gives great protecting and erosion resistance. This fabric choice guarantees long-term unwavering quality indeed in challenging environments.

Center Contacts: Gold-plated beryllium copper guarantees prevalent conductivity and contact unwavering quality, anticipating oxidation and keeping up moo contact resistance over thousands of association cycles.

Insulators: PTFE (Teflon) separator offers great dielectric properties and temperature solidness over the full working extend.

Extended Operating Range

Your applications often demand components that perform reliably across extreme conditions. Our loads operate effectively from -55°C to 125°C, making them suitable for both laboratory and field environments.

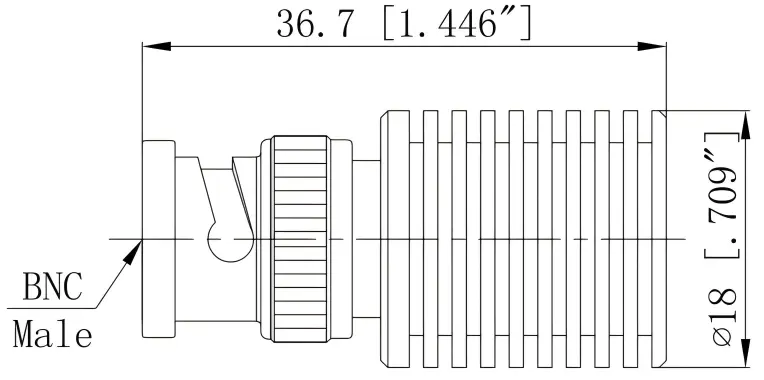

Technical Specifications

Parameter	Specification
Product Name	BNC-JR-04-5W RF Load
Impedance	50 Ohms nominal
Frequency Range	DC to 4GHz
Temperature Range	-55°C to 125°C
VSWR	1.15:1 to 4GHz typical
Insertion Loss	0.1√f (GHz)
Power Rating	5W
Dielectric Withstanding Voltage	1500 Vrms @ sea level
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	2.5 milliohms maximum
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.6 N.m

Applications and Use Cases

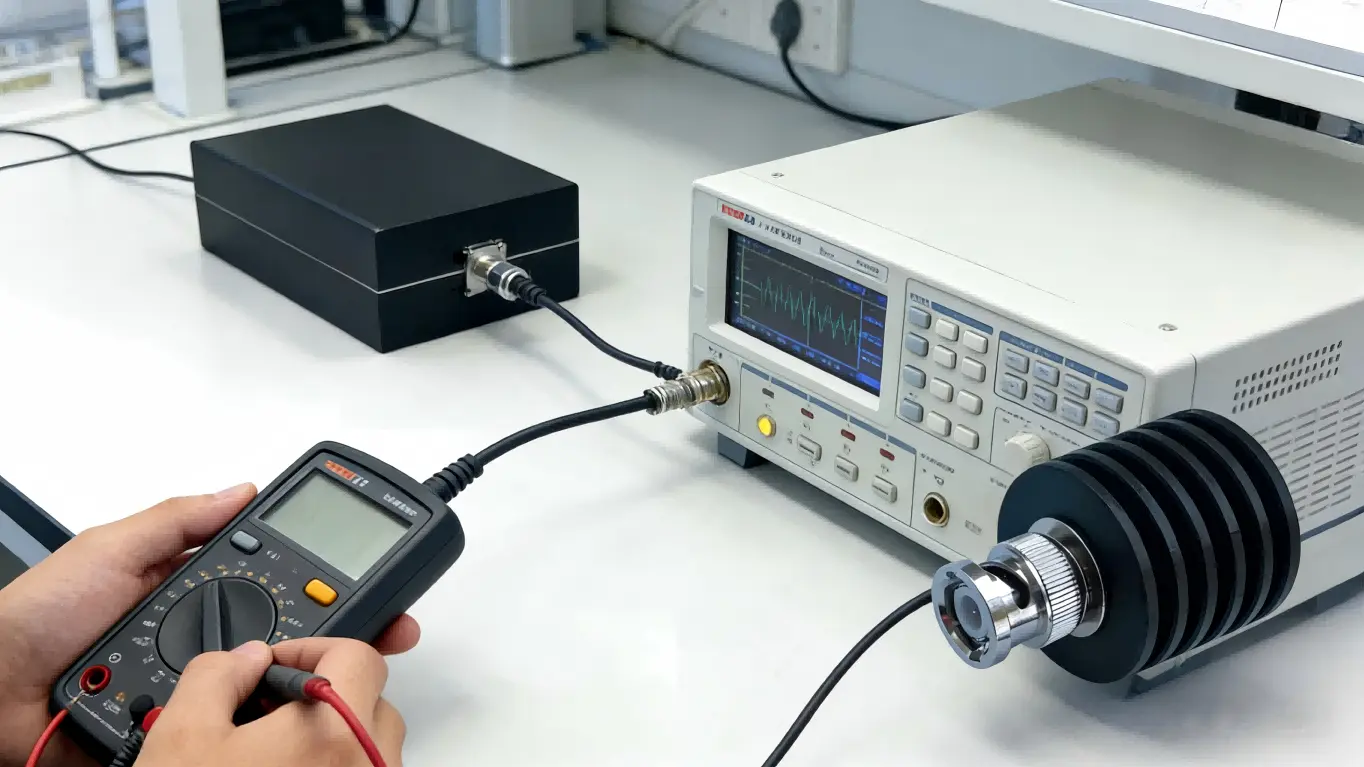

Laboratory Testing

Research facilities rely on our loads for stable termination, ensuring accurate network analysis and true device performance in product development.

Production Testing

These loads, with durable construction and reliable performance, are ideal for manufacturing environments and automated test equipment applications.

Field Testing

The wide temperature range and durable materials ensure reliable operation in varying environmental conditions, whether testing equipment in arctic cold or desert heat.

System Integration

When designing RF systems, proper termination prevents unwanted reflections that can cause measurement errors or system instability. Our BNC RF Coaxial Load components integrate seamlessly into your existing setups.

product-1-1

Quality and Reliability Standards

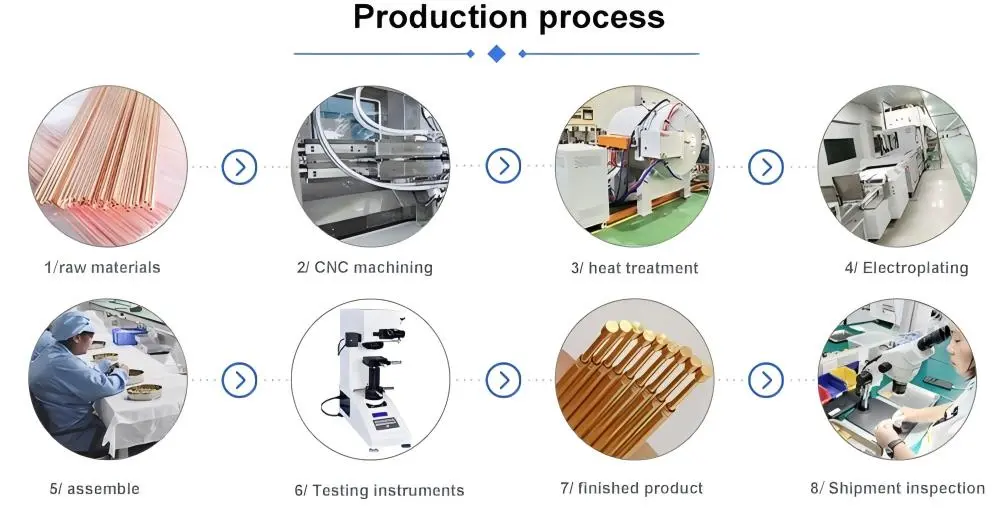

We maintain strict quality control throughout our manufacturing process. Each component undergoes comprehensive testing to verify:

Environmental compliance per MIL-STD-202 standards
Thermal shock resistance (Method 107, Condition B)
Salt spray resistance (Method 101, Condition B)
Vibration resistance (Method 204, Condition D)
Shock resistance (Method 213, Condition I)
Moisture resistance (Method 106)

This rigorous testing ensures your components perform reliably throughout their service life.

product-1-1

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, we specialize in precision RF components and microwave technology. Our expertise extends to millimeter wave frequencies up to 110 GHz, demonstrating our commitment to advanced RF technology.

We understand that each application has unique requirements. Our engineering team can work with you to develop custom solutions when standard products don't meet your specific needs.

product-1-1

Get Started Today

Ready to enhance your RF testing capabilities? Our BNC RF Coaxial Load components deliver the precision and reliability your applications demand. Contact our technical team at postmaster@cymicrowave.com to discuss your specific requirements.

We're here to help you select the right components for your applications and provide the technical support you need for successful implementation.
