Name: SMA Female To N Male Adapter
SKU: N/A

SMA Female To N Male Adapter

1. SMA female to N male adapter, used for connecting RF devices with different interface types. One end is an SMA female connector, and the other end is an N-type male connector.
2. Common in antenna feed systems for communication, radar, and test measurement applications, it achieves signal transmission adaptation between different RF interfaces.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.2:1 to 18GHz typical
5. Insertion loss: .04√f (GHz)
6. Temperature range: -55°C to 125°C

SMA Female To N Male Adapter: Professional RF Connection Solution

Are you searching for a reliable connector to bridge different RF interfaces? Our SMA Female To N Male Adapter provides the perfect solution for connecting RF devices with different interface types. This precision-engineered connector highlights an SMA female connector on one conclusion and an N-type male connector on the other, empowering consistent flag transmission between distinctive RF frameworks. Whether you're working on communication frameworks, radar applications, or test estimation setups, this connector guarantees dependable execution over a wide recurrence range.

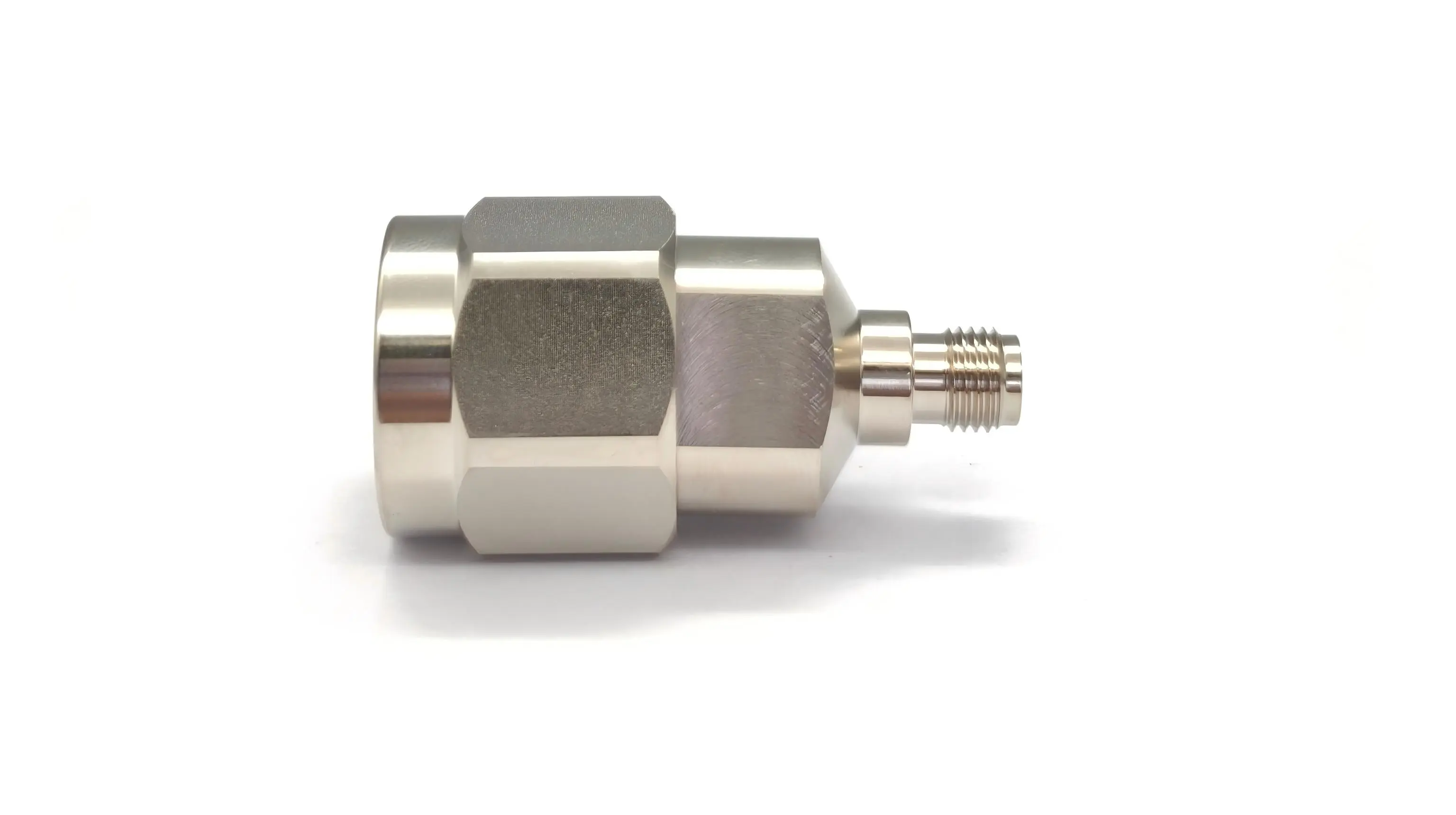

N-type male to SMA female adapter

What Makes Our RF Connector Stand Out?

Our connector conveys extraordinary execution in requesting situations. The 50-ohm impedance plan guarantees ideal flag judgment, whereas the wide recurrence run from DC to 18GHz makes it reasonable for different applications.

You'll appreciate the vigorous development including stainless steel lodgings and gold-plated beryllium copper center contacts. This combination gives great conductivity and long-term unwavering quality. The PTFE and PEI insulin offer prevalent dielectric properties, keeping up flag quality indeed beneath extraordinary conditions.

Key Applications

Communication Systems: Perfect for antenna feed systems where you need to connect different connector types. The adapter maintains signal integrity across the entire frequency spectrum.

Test and Measurement: This connector's precise electrical characteristics make it ideal for calibrated measurements and equipment connections in laboratory environments.

Radar Systems: The low insertion loss and excellent VSWR performance make it ideal for radar applications where signal fidelity is critical.

Antenna Systems: Bridge the gap between different antenna configurations and transmission lines with confidence.

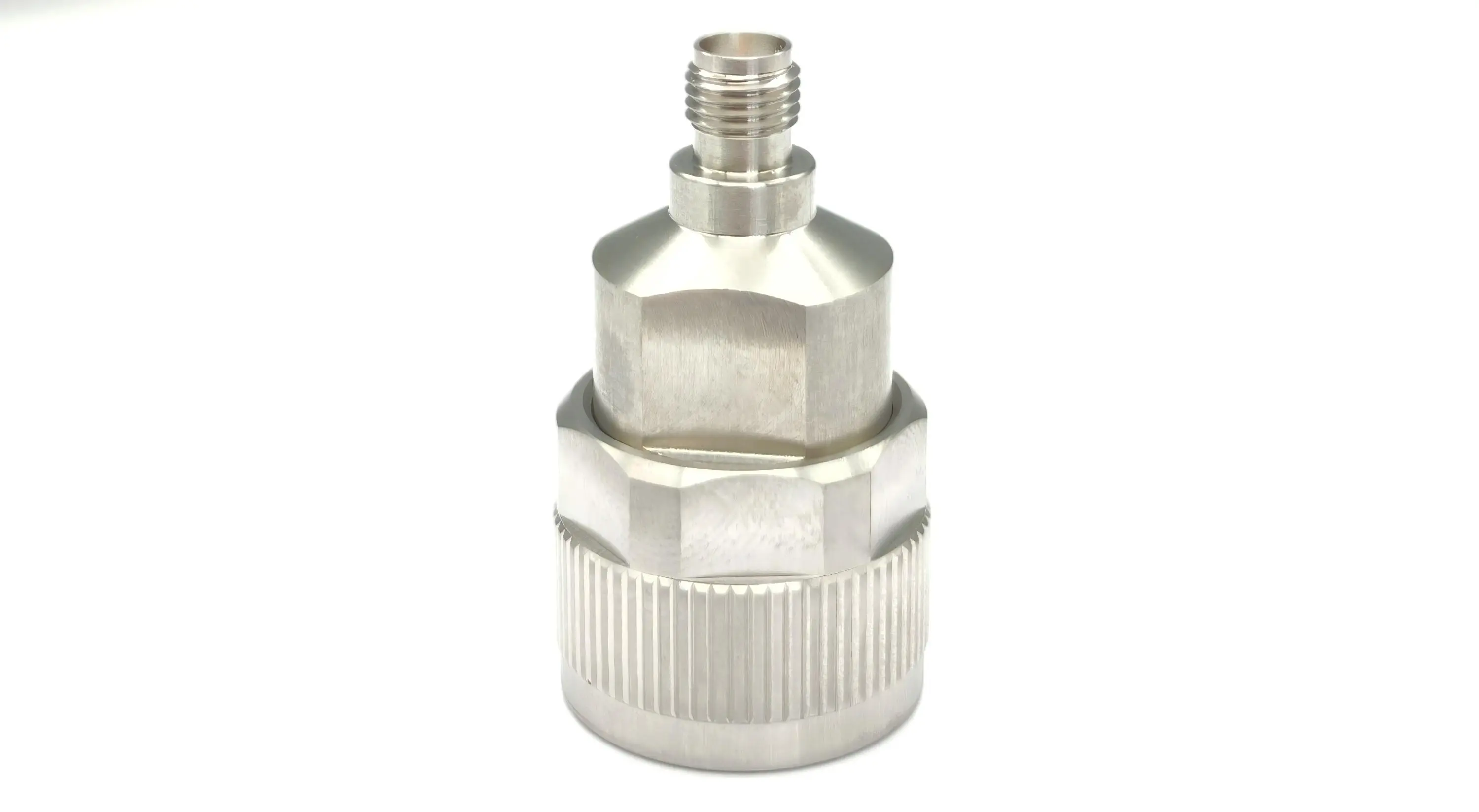

N-type male to SMA female adapter

Technical Specifications

Category	Specification	Value
General	Impedance	50 Ohms nominal
	Frequency Range	DC to 18GHz
	Temperature Range	-55°C to 125°C
Electrical	VSWR	1.2:1 to 18GHz typical
	Insertion Loss	.04√f (GHz)
	DWV @ Sea Level	1000 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	2.5 milliohms maximum
	Contact Resistance (Inner)	3 milliohms maximum
Materials	Housings	Stainless Steel Passivated
	Center Contacts	Beryllium Copper Gold
	Insulators	PTFE & PEI
Mechanical	Mate/Demate Cycles	500 cycles
	Engagement/Disengagement Force	≥0.23N.m
	Connection Torque	0.79N·m - 1.13N·m
	Withstand Torque	1.69N·m
Environmental	Thermal Shock	MIL-STD-202, Method 107, Condition B
	Salt Spray	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D
	Shock	MIL-STD-202, Method 213, Condition I
	Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, Shaanxi Province, we specialize in precision electrical connectors and RF cable assemblies, including SMA Female To N Male Adapters. Our expertise spans over 200 specifications of millimeter wave connectors and more than 400 specifications of cable assemblies.

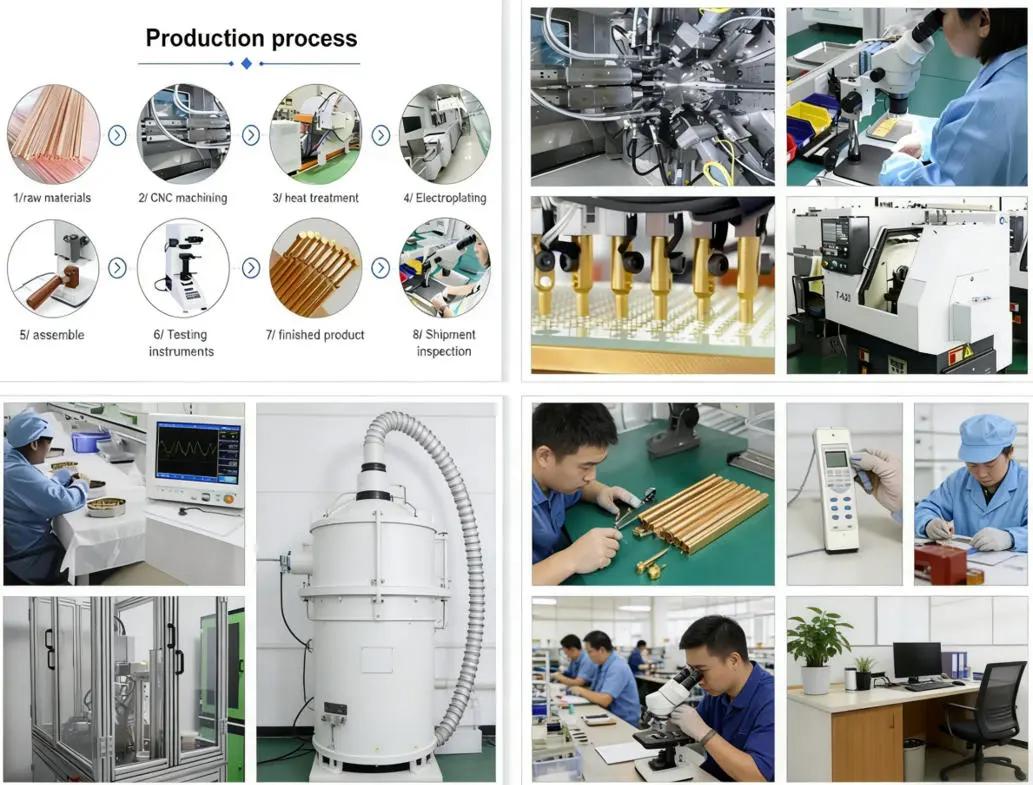

Our Manufacturing Excellence

We utilize strict prepare administration and accuracy testing to guarantee quality from plan to utilize. Our RF connectors and cable congregations expand to 110 GHz, exhibiting our commitment to development and progressed technology.

Quality Assurance

Each connector experiences thorough MIL-STD testing for warm stun, salt shower, vibration, and stun resistance. Stainless steel lodgings and gold-plated beryllium copper contacts guarantee toughness, erosion resistance, and fabulous conductivity.

Installation and Usage Tips

Proper establishment guarantees ideal execution. Utilize indicated torque values, clean connector interfacing with suitable solvents, and maintain a strategic distance from over-tightening to avoid harm and keep up great VSWR performance.

Store unused connectors in defensive caps or cases. This avoids defilement and mechanical harm to the precision-machined surfaces.

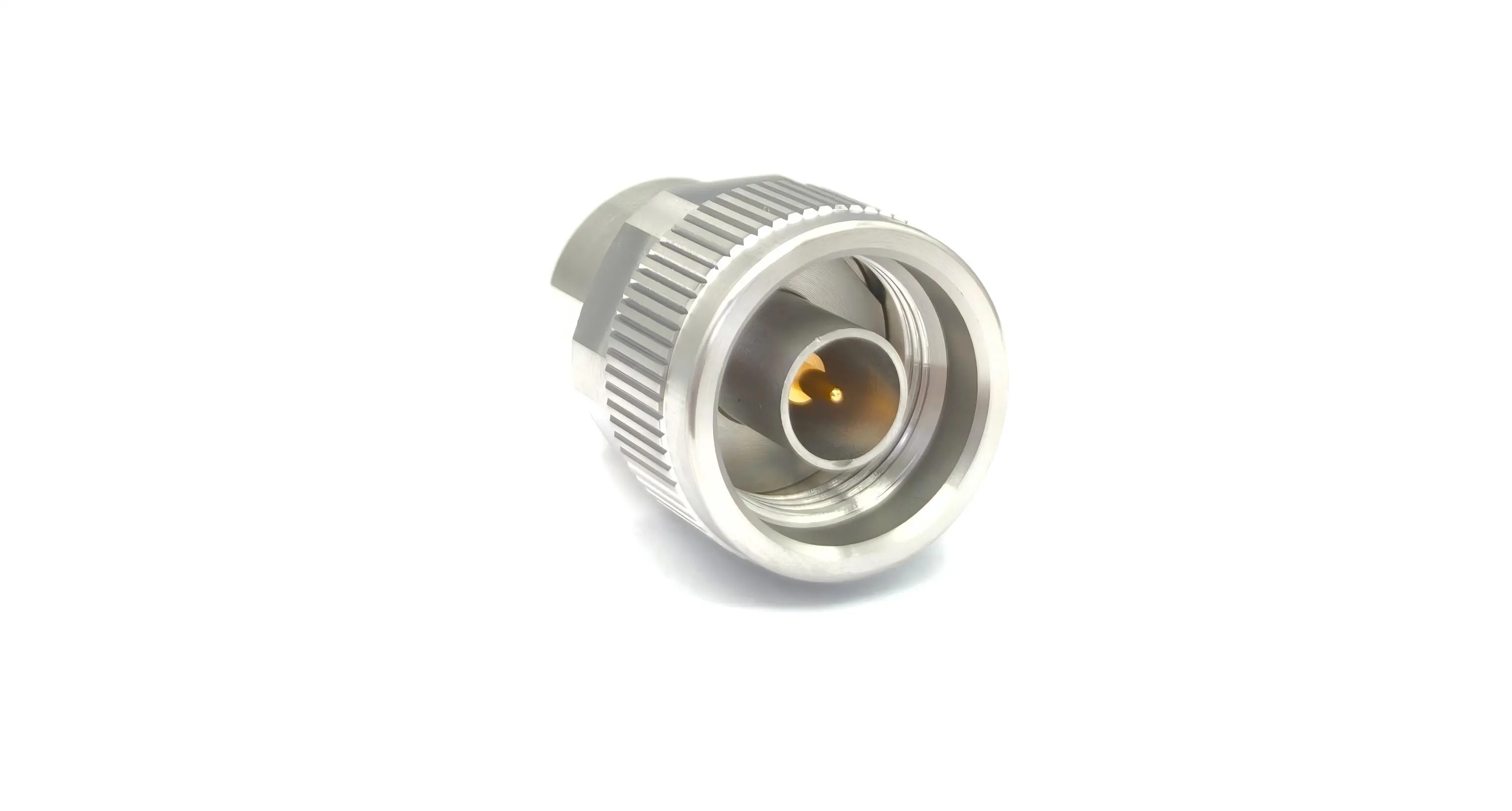

N-type male to SMA female adapter

Industries We Serve

Our solutions support diverse industries including new energy, photovoltaic, medical, communications, military, and automation sectors. Each application benefits from our commitment to quality and precision manufacturing.

The communication industry relies on our connectors for base station equipment and test systems. Medical applications use our products for diagnostic equipment and monitoring systems. Military applications demand the rugged construction and reliable performance our adapters provide.

N-type male to SMA female adapter

Get Your Product Today

Ready to enhance your RF system performance? Our SMA Female To N Male Adapter provides the reliability and precision your applications demand. Contact us at postmaster@cymicrowave.com for pricing, technical support, or custom solutions.

We offer comprehensive support from initial consultation through product delivery. Our technical team can help you select the right adapter configuration for your specific requirements. Whether you need standard products or custom solutions, we're here to help you succeed.
