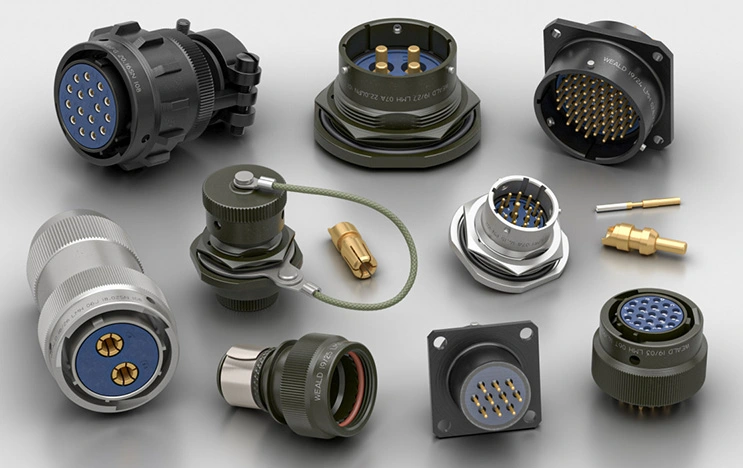

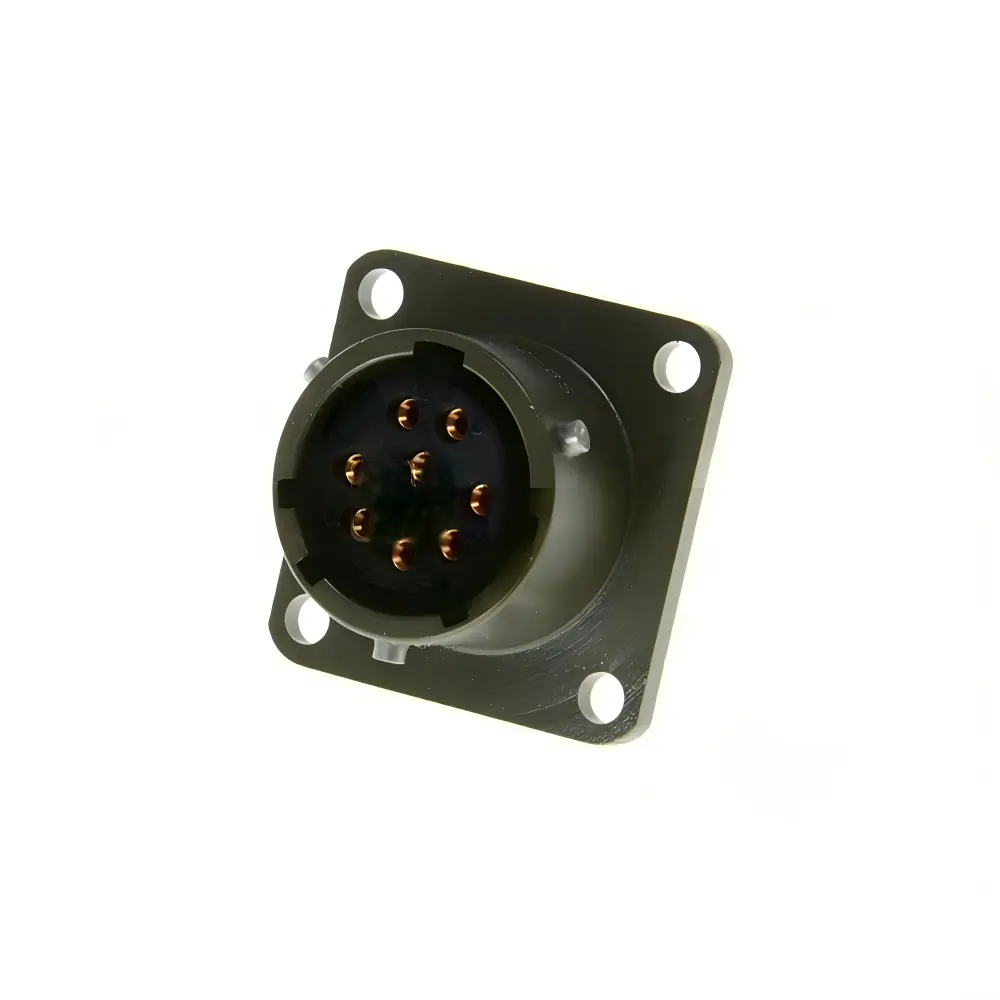

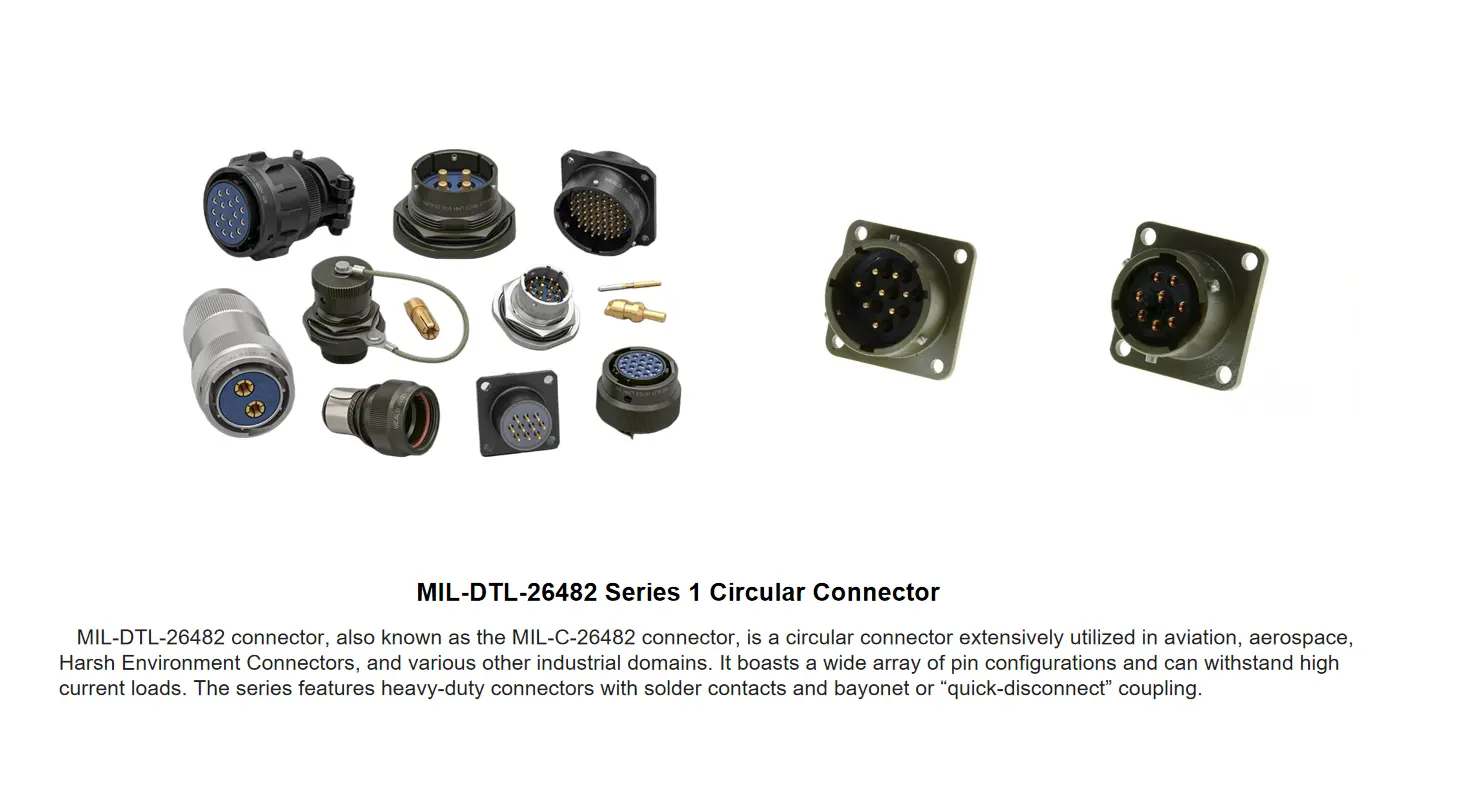

MIL-DTL-26482 Series 1 Snap-On Circular Connector

MIL-DTL-26482 Series 1 Snap-On Circular Connector - Professional Military Standard Solutions

Are you looking for reliable, high-performance circular connectors that meet strict military specifications? The MIL-DTL-26482 Series 1 Snap-On Circular Connector from Shaanxi Chuangyu Electronic Technology Co., Ltd. delivers exceptional reliability for demanding aerospace, military, and industrial applications. Our connectors highlight speedy pike coupling, IP67 rating, and work from -55°C to 165°C, guaranteeing culminate execution in merciless conditions. Each encounters exhaustive testing to meet U.S. military standard prerequisites.

Why Choose Our Military Standard Circular Connectors?

Quick Connection Design

Our bayonet-style coupling structure enables rapid connection and disconnection. This design reduces vibration risks and prevents incorrect insertions. You can complete connections quickly in field conditions.

High-Density Contact Configuration

These connectors provide flexible circuit configurations from 2 to 61 positions. You get reliable signal and power transmission for complex applications. The 12-8 contact layout offers excellent versatility.

Superior Environmental Protection

Built for extreme conditions, these connectors feature IP67 protection rating. They stand up to salt shower, extraordinary temperatures, and dampness. The aluminum combination or stainless steel shell gives fabulous toughness.

Advanced Materials

• Shell Construction: Premium aluminum alloy or stainless steel with cadmium olive drab finish
• Center Contacts: Beryllium copper with gold plating for superior conductivity
• Insulation: High-grade thermoplastic or thermosetting materials

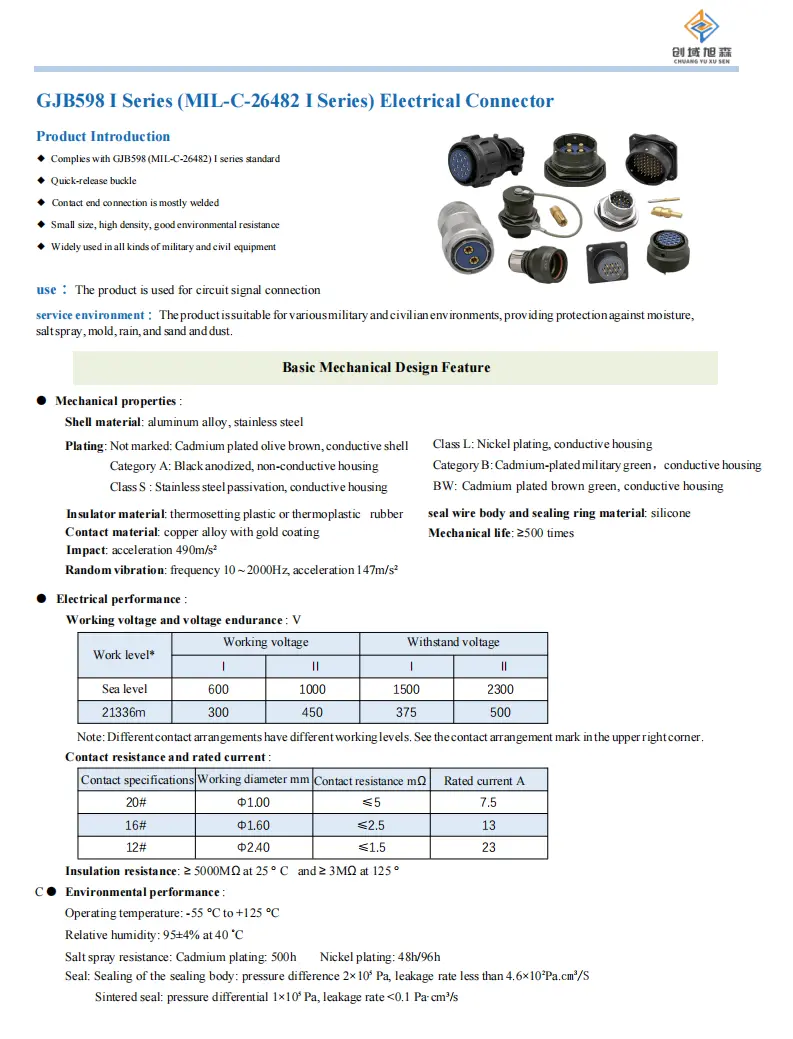

Technical Specifications

Key Applications

Aerospace Systems

Perfect for aircraft avionics, navigation systems, and flight control equipment. The connectors withstand extreme altitude conditions and temperature variations.

Military Equipment

Ideal for communication systems, radar equipment, and tactical devices. They meet stringent military specifications for reliability and durability.

Industrial Control

Fabulous for robotization frameworks, mechanical technology, and handle control applications. The vigorous plan guarantees persistent operation in mechanical environments.

Marine Applications

With IP67 assurance, these connectors exceed expectations in marine situations. They stand up to saltwater erosion and keep up flag judgment.

​​​​​​​

Performance Advantages

The MIL-DTL-26482 Series 1 Snap-On Circular Connector offers exceptional shielding effectiveness up to 85dB at 1GHz. This guarantees negligible electromagnetic impedances in touchy applications. The gold-plated beryllium copper contacts give fabulous conductivity and erosion resistance.

Our sealing technology exceeds industry standards. The connector body achieves leak rates less than 4.6×102Pa.cm3/S at 2×105 Pa pressure differential. Sintered seals maintain leak rates below 0.1 Pa·cm³/s.

Quality Assurance

Shaanxi Chuangyu Electronic Technology follows strict quality control processes. Every connector experiences comprehensive testing counting warm stun, vibration, and dampness resistance tests. Our fabricating office in Xi'an actualizes progressed quality administration systems.

We conduct thorough electrical testing to confirm cover resistance and voltage withstand capabilities.Mechanical testing ensures reliable mate/demate performance over 500 cycles.

Custom Solutions Available

Need specific configurations? We offer customization services for your unique requirements. Our engineering team can modify contact arrangements, shell sizes, and cable assemblies. We also provide custom test fixtures and specialized probe solutions.

About Shaanxi Chuangyu Electronic Technology

Located in Chang'an Development Stop, we specialize in exactness connectors and RF components, serving businesses like vitality, therapeutic, and communications. With 15+ a long time of encounter, we offer over 200 connector specs and 400+ cable arrangements, assembly universal quality benchmarks.

Ready to enhance your system reliability with proven MIL-DTL-26482 Series 1 Snap-On Circular Connector solutions? Contact our technical team at postmaster@cymicrowave.com for detailed specifications, custom quotes, and application support. We're here to help you find the perfect connector solution for your critical applications.
