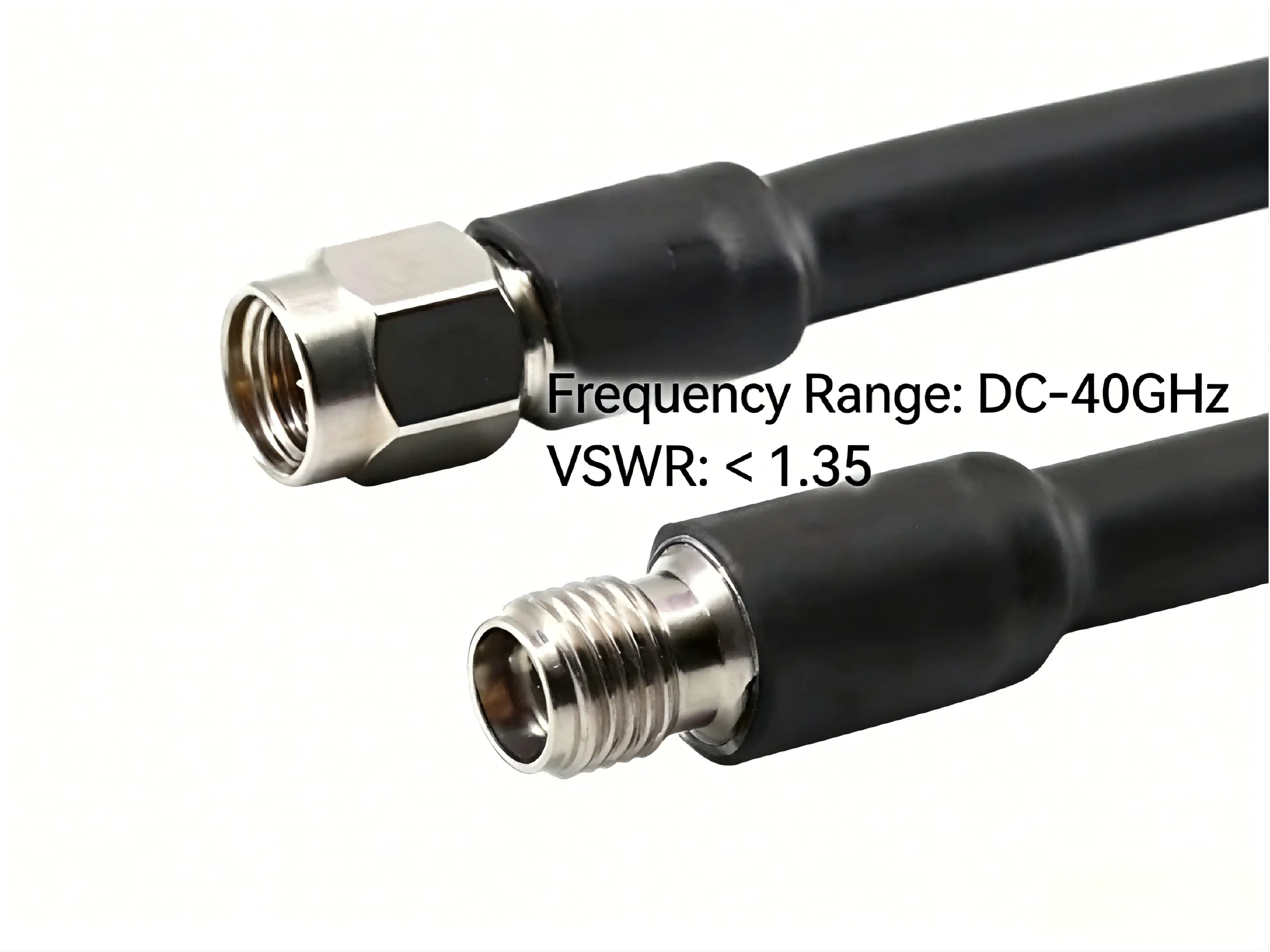

When you need reliable signal transmission for high-frequency applications, the 2.92 Female To 2.92 Male RF Cable Assembly delivers exceptional performance. This precision-engineered cable gathering highlights 2.92mm female and male connectors on both closes, outlined particularly for radio recurrence flag transmission and testing applications. Whether you're working on remote communication testing, microwave estimation, or aviation ventures, this cable get together gives the unwavering quality and exactness you request for basic applications.
Our cable get together stands out in today's requesting RF testing environment. You get prevalent execution over a wide recurrence extend from DC to 40GHz. The low-loss plan guarantees your flag judgment remains intaglio indeed amid amplified testing sessions.
The precision manufacturing process guarantees consistent performance. Each cable undergoes rigorous testing to meet strict quality standards. You can trust this assembly for your most critical measurement applications.
Our 50-ohm cable get together guarantees accuracy, negligible reflection, and greatest control exchange, with solid execution in extraordinary situations (-55°C to 125°C).

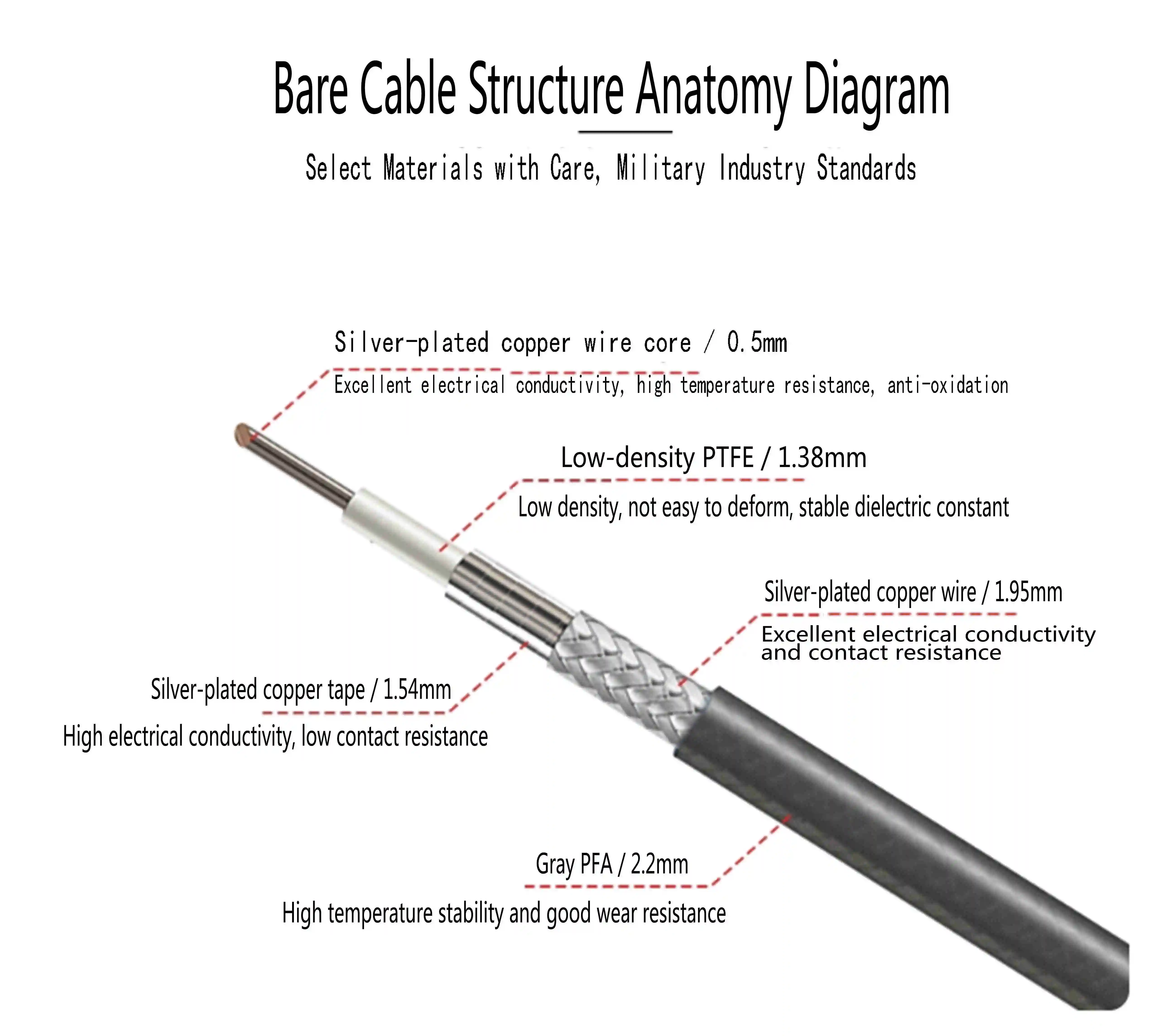

We utilize premium materials, counting stainless steel lodgings, beryllium copper gold contacts, and PEI insulin, guaranteeing solidness, dependable associations, and steady execution over a wide temperature extend.

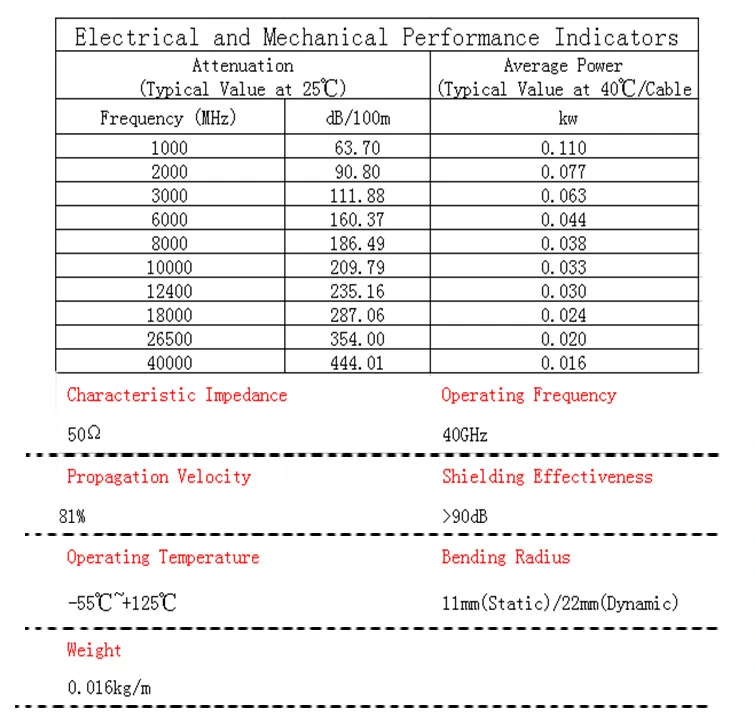

| Parameter | Specification |
|---|---|
| General Specifications | |
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 40GHz |
| Temperature Range | -55°C to 125°C |
| Adaptation Cable | CXN3506 |
| Static Bending Radius | 11mm |
| Dynamic Bending Radius | 22mm |
| Electrical Performance | |
| VSWR | 1.35:1 to 40GHz typical |
| Insertion Loss | 0.05 √f (GHz) |
| DWV @ Sea Level | 1000 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
| Outer Conductor Resistance | 2.5 milliohms maximum |
| Inner Conductor Resistance | 5 milliohms maximum |
| Materials | |
| Housings | Stainless Steel Passivated |
| Center Contacts | Beryllium Copper Gold |
| Insulators | PEI |
| Mechanical Data | |
| Mate/Demate Cycles | 500 cycles |
| Engagement/Disengagement Force | ≤0.23N.m |
| Connection Torque | 0.79N·m - 1.13N·m |
| Connector Withstand Torque | 1.69N·m |
Your 5G testing requirements demand precision components. This 2.92 Female To 2.92 Male RF Cable Assembly supports the high frequencies needed for next-generation wireless testing.
Test base stations, mobile devices, and network equipment with confidence, ensuring accurate measurements and maintaining signal integrity through low insertion loss.
Our cable assembly ensures dependable measurements with excellent VSWR performance, integrating seamlessly with test equipment for reliable, repeatable results.
This cable assembly meets strict medical testing standards, offering stable electrical performance across temperature variations for reliable operation in critical healthcare environments.
Our cable assembly withstands extreme conditions, meeting military standards for reliable performance in demanding applications like satellite communications and radar systems.
We understand that your applications may require specific configurations. Our engineering team can customize cable lengths to meet your exact requirements. You get the perfect fit for your test setup or system integration.
Different cable types are available depending on your performance needs. Whether you need maximum flexibility or lowest loss, we can configure the assembly to match your specifications.
Our manufacturing facility in Xi'an implements strict quality control processes. Every cable assembly undergoes comprehensive testing before shipment. You receive products that meet or exceed specifications.
The digital manufacturing approach ensures consistency across all products. Each product meets the same high standards, giving you confidence in performance and reliability.
Our experienced engineering team provides comprehensive technical support. Whether you need application guidance or custom solutions, we're here to help. You get the expertise needed to optimize your RF testing setup.
We understand the critical nature of your applications. Our responsive support team ensures you get the information and assistance needed to keep your projects on track.
Ready to enhance your RF testing capabilities? Contact our team to discuss your specific requirements. We'll help you select the right configuration and provide detailed specifications.
For technical questions or custom requests, reach out to our engineering team at postmaster@cymicrowave.com. We're committed to providing solutions, like the 2.92 Female To 2.92 Male RF Cable Assembly, that meet your exact needs and exceed your expectations.
