DIN RF Coaxial Load

1. The DIN RF coaxial load belongs to the category of RF connectors and components. It adopts the 7/16 DIN interface standard (commonly used in communication equipment such as base stations) to terminate RF signals and prevent reflections, ensuring system stability.
2. Primarily used in communication base stations and RF testing systems as a termination load to absorb excess signal energy, avoiding interference or equipment damage.
3. Features excellent weather resistance.
4. Impedance: 50 Ohms nominal
5. Frequency range: DC to 6GHz
6. VSWR: 1.15:1 to 6GHz typical
7. Power: 5W
8. Temperature range: -55°C to 125°C

DIN RF Coaxial Load - Professional Termination Solution for RF Systems

When you're working with RF communication systems and base station equipment, proper signal termination is crucial for optimal performance. Our DIN RF Coaxial Load delivers exceptional reliability and precision termination for your critical applications. This high-performance product features a robust 7/16 DIN interface standard that ensures seamless compatibility with your communication equipment while preventing signal reflections that could compromise system stability.

DIN RF Coaxial Load

product-1-1

What Makes Our DIN RF Termination Load Special?

You require end arrangements that perform reliably beneath requesting conditions. Our RF coaxial stack eliminators are built to meet the exacting necessities of present day communication frameworks. The precision-crafted plan retains overabundance flag vitality successfully, securing your important hardware from impedances and potential damage.

Each unit experiences thorough testing to guarantee it meets industry benchmarks for unwavering quality and execution. You can believe this arrangement for both lasting establishments and testing applications where reliable comes about matter most.

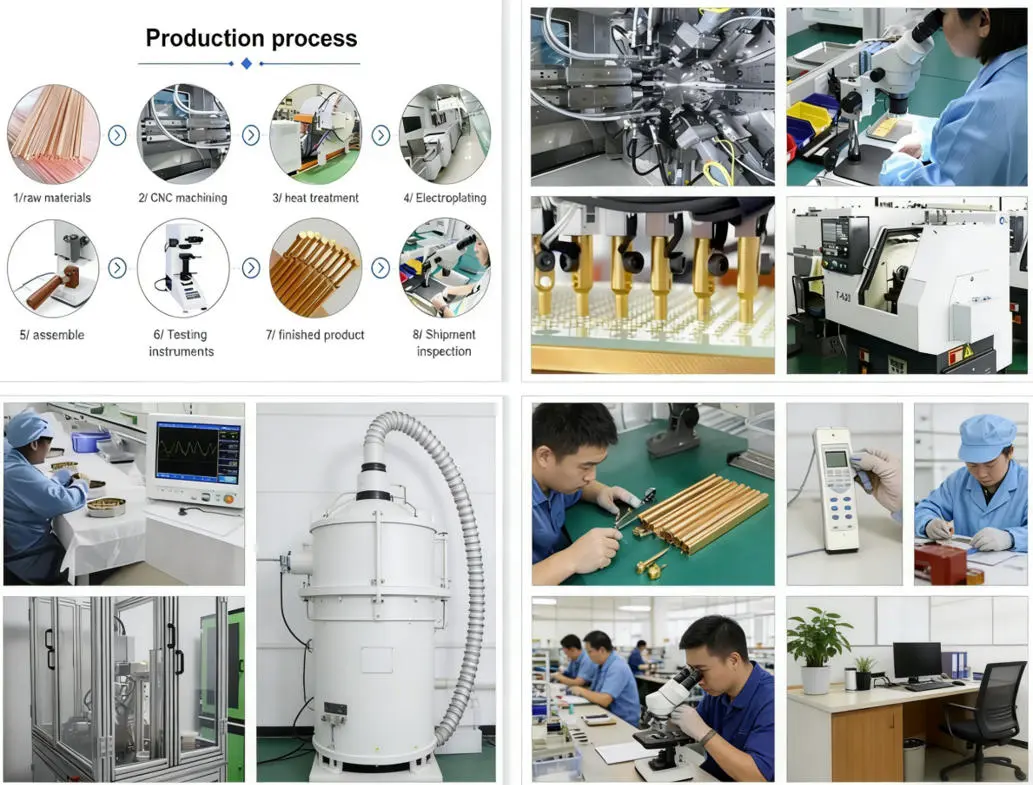

product-1-1

Key Features and Benefits

Superior Construction Quality

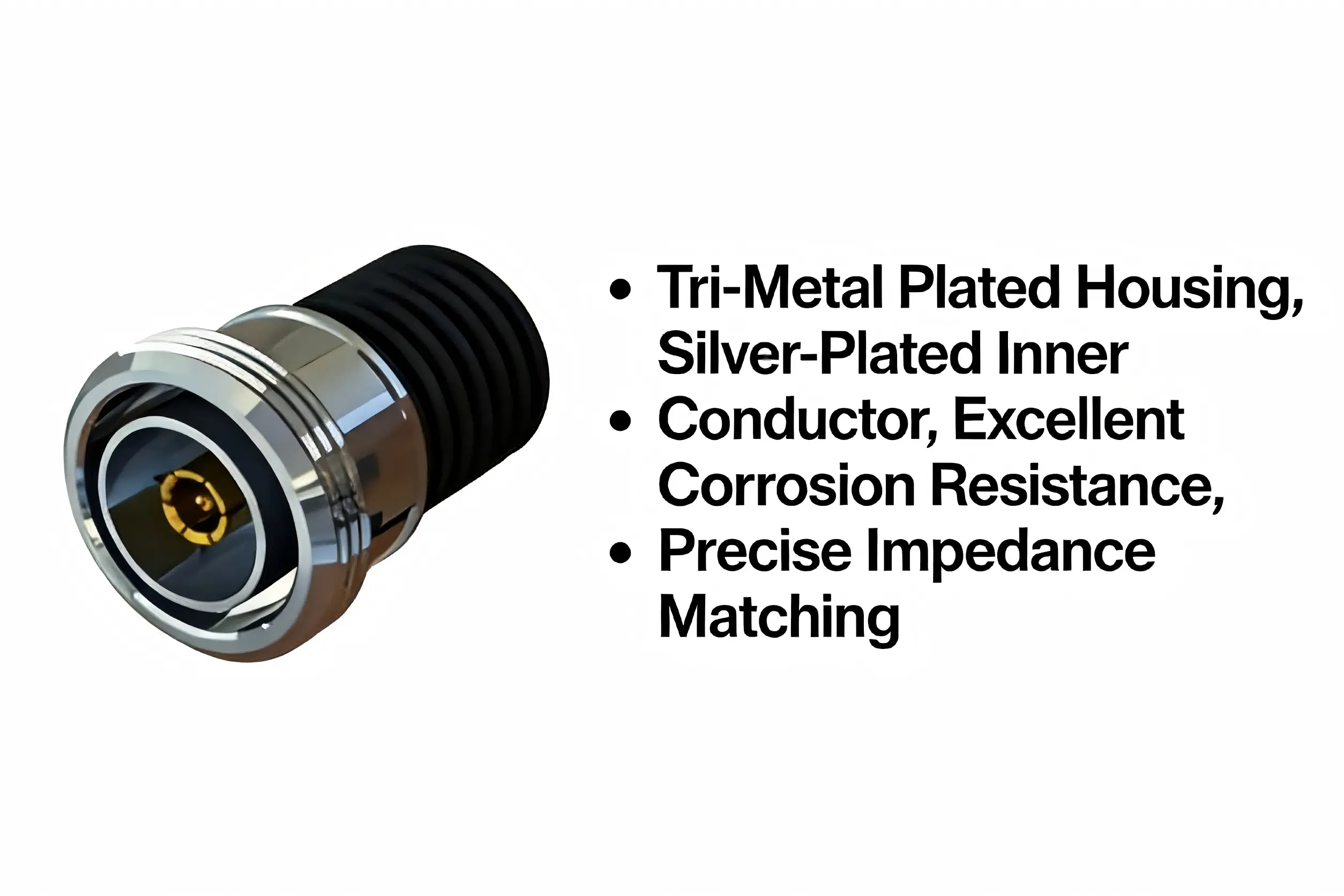

Our components feature copper-plated ternary alloy housing for durability, silver-plated copper center contacts for signal integrity, and PTFE insulation for consistent performance across the full temperature range.

Exceptional Weather Resistance

This stack eliminator keeps up execution in open air or unforgiving situations, with strong development safe to erosion, dampness, and temperature extremes that would compromise lesser components.

Precise Signal Termination

You need accurate impedance matching for your RF systems. The DIN RF Coaxial Load with 50-ohm nominal impedance ensures proper signal termination without unwanted reflections. This precision helps maintain signal quality throughout your entire system.

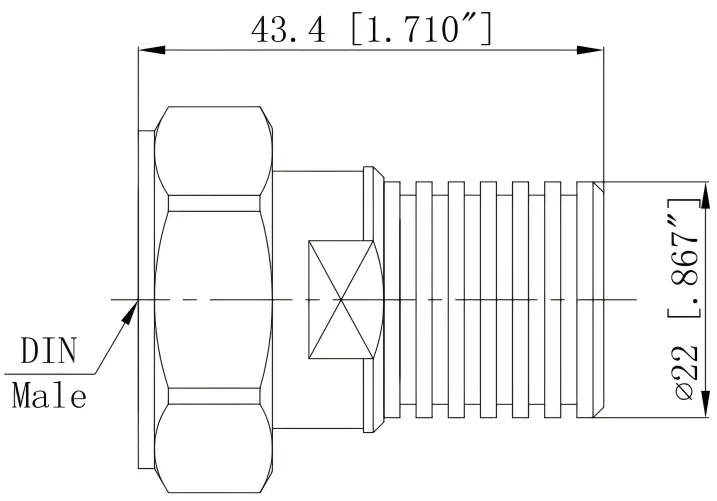

Technical Specifications

Category	Parameter	Specification
General	Product Name	DIN-JR-06-5W RF Load
	Impedance	50 Ohms nominal
	Frequency Range	DC to 6GHz
	Temperature Range	-55°C to 125°C
Electrical	VSWR	1.15:1 to 6GHz typical
	Insertion Loss	0.1 √f (GHz)
	Power Rating	5W
	DWV @ Sea Level	3000 Vrms
	Insulation Resistance	5,000 megohms minimum
	Contact Resistance (Outer)	0.3 milliohms maximum
	Contact Resistance (Inner)	1 milliohms maximum
Materials	Housings	Copper-plated ternary alloy
	Center Contacts	Silver-plated copper
	Insulators	PTFE
Mechanical	Mate/Demate Cycles	500 cycles
	Biting Force	≤34-1.13N
	Separation Force	≥12.7N
	Connection Torque	25N.m-34N.m
Environmental	Thermal Shock	MIL-STD-202, Method 107, Condition B
	Salt Spray	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D
	Shock	MIL-STD-202, Method 213, Condition I
	Moisture Resistance	MIL-STD-202, Method 106, except Step 7B
