Name: MCX RF Extension Cable
SKU: N/A

MCX RF Extension Cable

1.MCX RF Extension Cable is a type of radio frequency coaxial extension cable equipped with MCX connectors and coaxial cable, primarily used to extend the transmission distance of radio frequency signals.
2. It is widely used in devices requiring radio frequency signal transmission, such as wireless communication (e.g., wireless local area networks), smartphones, GPS, medical equipment, and antenna systems.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 6GHz
5. Adapter cable: RG316
6. Static bending radius: 11mm
7. Dynamic bending radius: 22mm
8. Temperature range: -55°C to 125°C

MCX RF Extension Cable: High-Performance RF Solutions for Your Applications

When you need reliable signal transmission in your RF applications, the MCX RF Extension Cable becomes an essential component. This radio recurrence coaxial expansion cable highlights MCX connectors and high-quality coaxial cables, particularly planned to expand transmission separations whereas keeping up flag astuteness. Whether you're working on remote communication frameworks, GPS gadgets, or restorative hardware, our item conveys the execution you require for your basic applications.

product-1-1

Understanding the Product

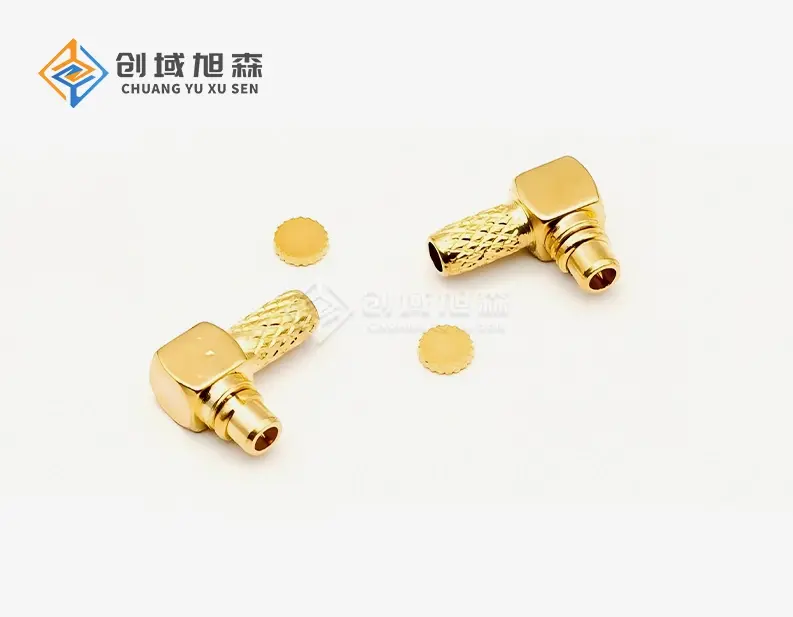

MCX connectors are compact, snap-on RF connectors that offer amazing execution in space-constrained applications. These scaled down coaxial connectors give dependable associations whereas keeping up a little impression. Your ventures advantage from their quick-connect plan and vigorous development.

The extension cables bridge the gap between your devices and antennas. They maintain signal quality over extended distances. You can position your equipment optimally without compromising performance.

Key Features and Benefits

Superior Signal Performance

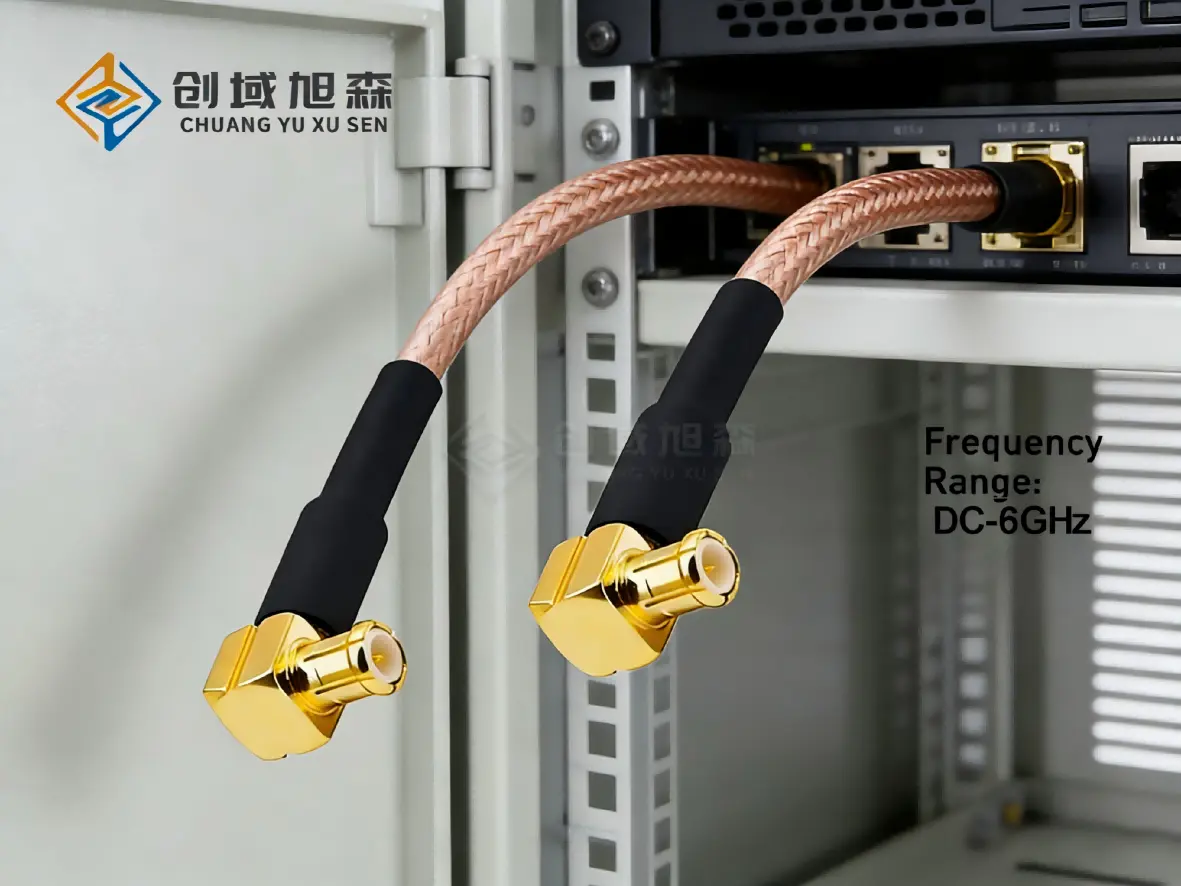

Our cables operate effectively from DC to 6GHz frequency range. You get consistent performance across wide bandwidth applications. The 50-ohm impedance ensures proper matching with your equipment.

Flexible Customization Options

Customize connectors with male/female types, straight/right-angle orientations, flexible/semi-rigid cables, and various lengths and colors for your installation needs.

Robust Construction

High-quality materials like brass-gold housings, beryllium copper contacts, and PTFE insulators ensure durability, conductivity, and stable performance across temperature ranges in the MCX RF Extension Cable.

Wide Temperature Range

Operating temperature spans from -55°C to 125°C. Your applications work reliably in harsh environments. The cables maintain performance characteristics across extreme conditions.

product-1-1

Applications and Use Cases

Wireless Communication Systems

Wireless LAN installations benefit from reliable signal extension, allowing optimal access point positioning and supporting high-frequency data transmission.

Mobile Device Testing

Smartphone and tablet manufacturers rely on these cables for testing procedures. You can connect test equipment without compromising device functionality. The compact MCX connectors fit into tight spaces easily.

GPS and Navigation Equipment

Location-based services require accurate signal transmission. Your GPS receivers maintain precision when connected through our extension cables. Marine and automotive applications benefit from the ruggedized construction.

Medical Equipment

Healthcare devices demand reliable RF performance. You ensure patient safety through consistent signal transmission. The cables meet stringent medical industry requirements.

Antenna Systems

Base station installations require flexible connectivity options, such as the MCX RF Extension Cable. You can route signals efficiently between equipment and antennas, with low insertion loss maintaining signal strength over extended runs.

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 6GHz
Temperature Range	-55°C to 125°C
Cable Type	RG316
Electrical Performance

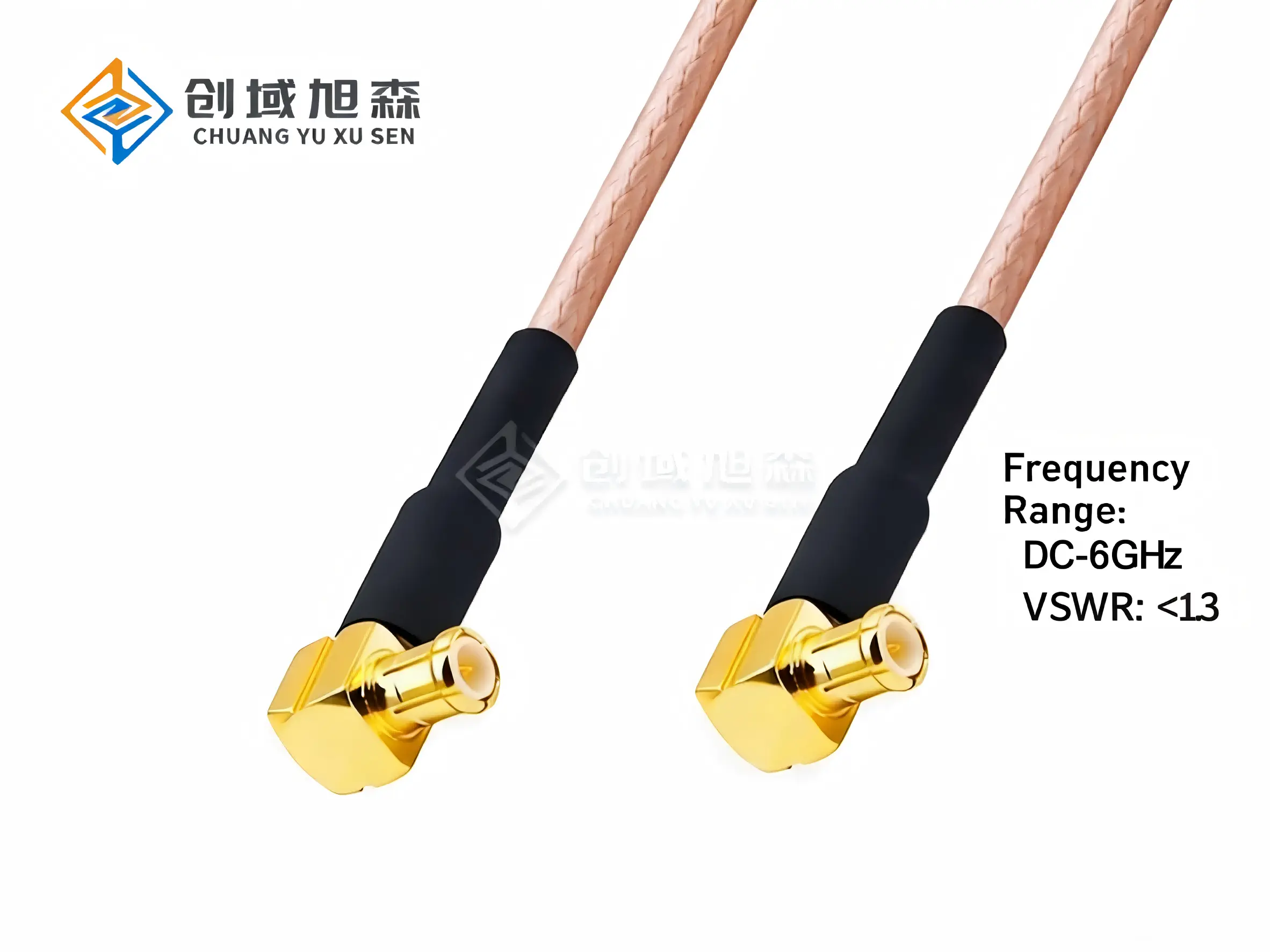

VSWR	1.30:1 to 6GHz typical
Insertion Loss	.10 √f (GHz)
DWV @ Sea Level	750 Vrms
Insulation Resistance	5,000 megohms minimum
Outer Conductor Resistance	2.5 milliohms maximum
Inner Conductor Resistance	5 milliohms maximum
Materials
Housings	Brass-gold
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Maximum Occlusal Force	≥63N
Minimum Separation Force	8-20N
Static Bending Radius	11mm
Dynamic Bending Radius	22mm

Quality and Reliability Standards

Our manufacturing processes follow strict quality control procedures. Each cable undergoes comprehensive testing before shipment. Environmental testing includes thermal shock, salt spray, vibration, and moisture resistance according to MIL-STD-202 standards.

You receive products that meet or exceed industry specifications. Our precision testing instruments verify performance characteristics. Digital manufacturing techniques ensure consistent quality across production runs.

product-1-1

Installation and Handling Guidelines

Proper installation ensures optimal performance from your cables. Avoid exceeding the minimum bending radius during routing. The snap-on MCX connectors require gentle pressure for secure connections. Check connections periodically in high-vibration environments.

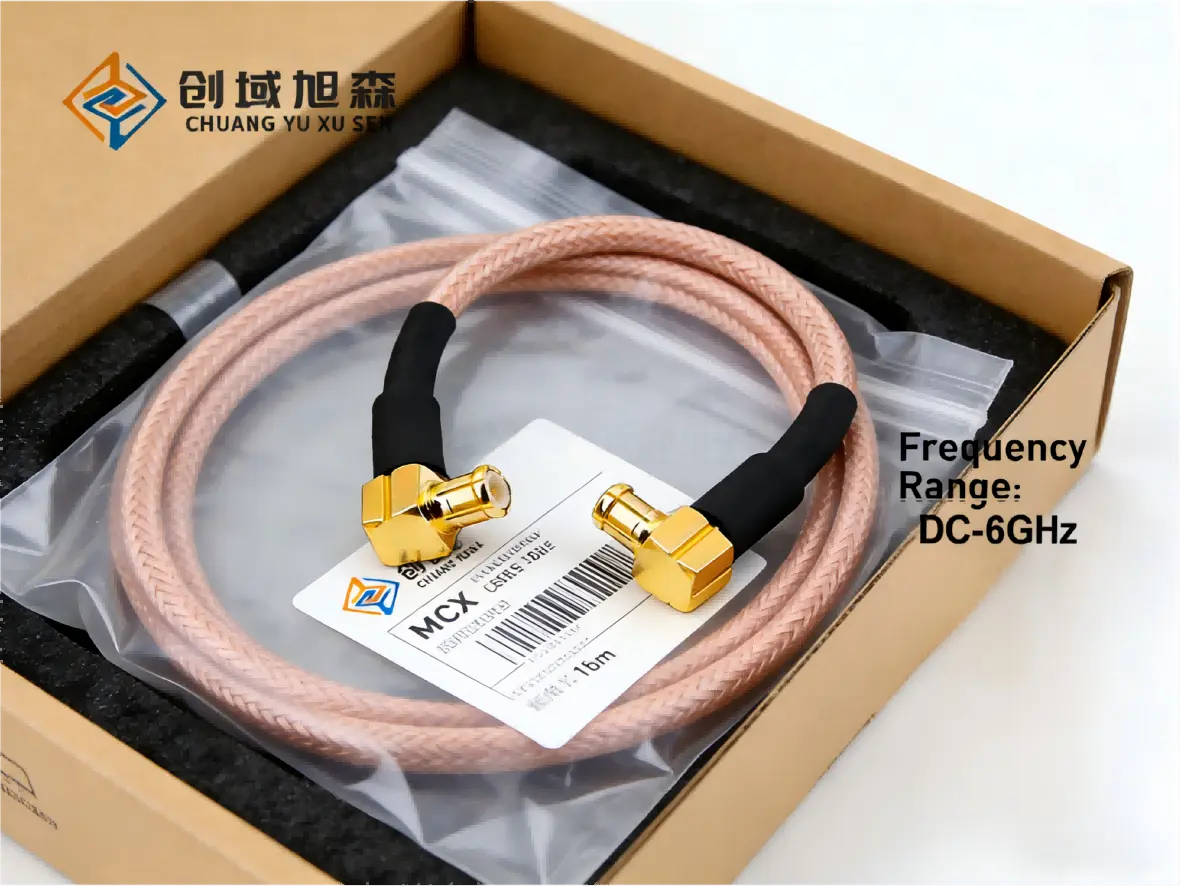

Store unused cables in protective packaging. Keep connectors clean and dry. Inspect cables regularly for signs of wear or damage. Replace cables that show degraded performance characteristics.

product-1-1

Why Choose Shaanxi Chuangyu Electronic Technology

Specializing in precision connectors and RF solutions, including the MCX RF Extension Cable, we serve industries like energy, medical, and communications. Our engineering team offers custom solutions, with quality and customer satisfaction as top priorities.

product-1-1

Contact us

Ready to enhance your RF applications? Contact our technical team at postmaster@cymicrowave.com for detailed specifications and custom solutions. We'll help you select the perfect cable configuration for your specific needs.
