Name: 1.0mm 50 Ohm Termination
SKU: N/A

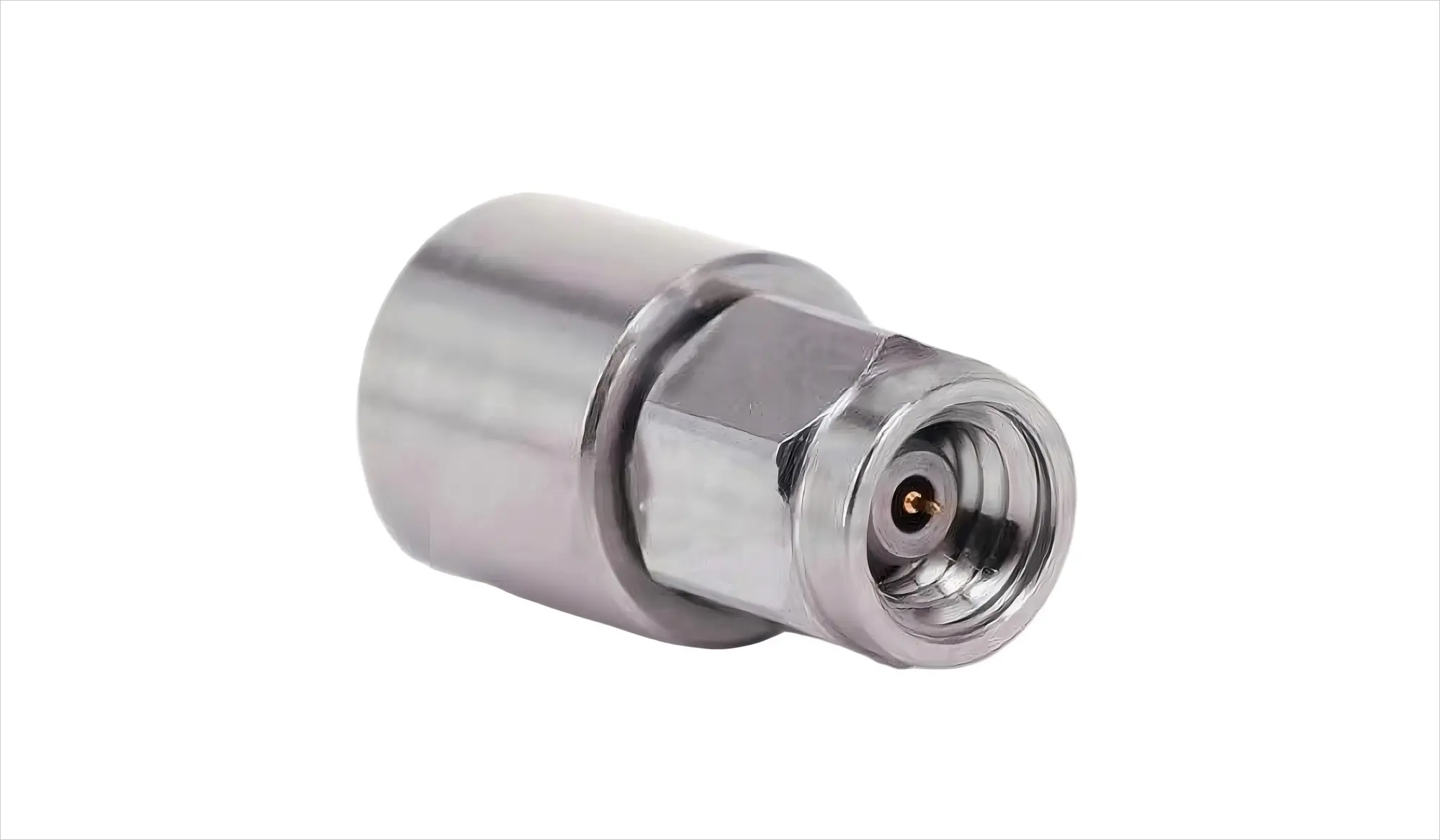

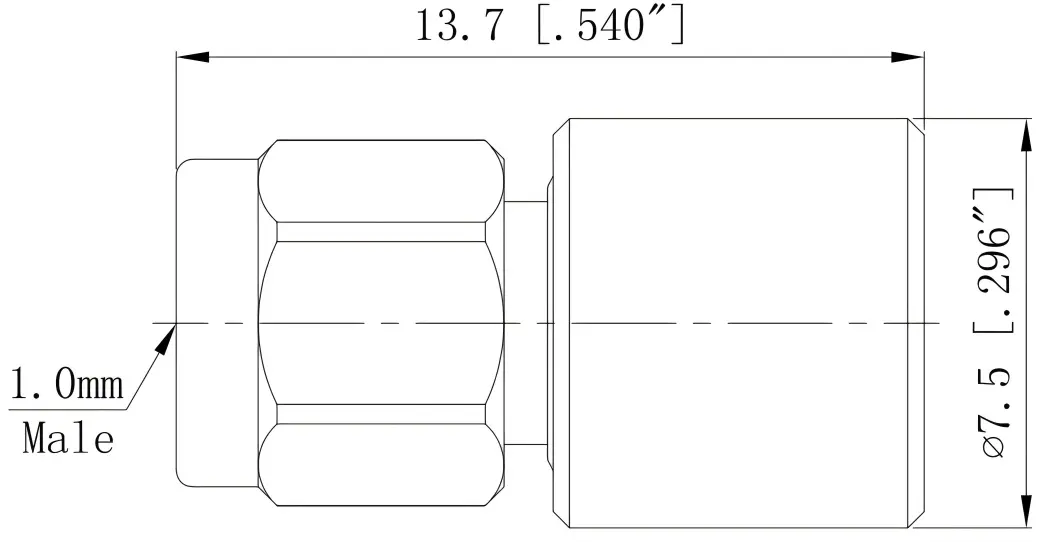

1.0mm 50 Ohm Termination

1. The 50-ohm termination refers to the 50-ohm termination configuration of the 1.0mm model RF coaxial connector, whose core function is to optimize signals by matching the characteristic impedance of the transmission line.
2. It is primarily used for line termination in RF/microwave systems and is commonly found in high-frequency interconnection scenarios, such as precision measurement and millimeter-wave testing.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 110GHz
5. VSWR: 1.5:1 to 110GHz typical
6. Power: 1W
7. Temperature range: -65°C to 165°C

1.0mm 50 Ohm Termination - Precision Millimeter Wave Component

When you need reliable signal termination for high-frequency applications, our 1.0mm 50 Ohm Termination delivers exceptional performance up to 110 GHz. This precision-engineered component optimizes your RF and microwave systems by matching characteristic impedance perfectly. Whether you're working on millimeter-wave testing or exactness estimations, this end guarantees clean flag ways without undesirable reflections. Built with discuss dielectric plan, it minimizes addition misfortune whereas keeping up prevalent VSWR execution. You can believe this component for basic applications in broadcast communications, aviation, and inquire about situations where flag judgment things most.

1.0mm 50 Ohm Termination

Why Choose Our 1.0mm Termination Components?

Our termination solutions stand out in the competitive millimeter-wave market. You get industry-leading performance with frequencies extending to W-band applications. The air dielectric construction reduces signal loss significantly compared to solid dielectric alternatives.

These components improve measurement accuracy by eliminating reflections. The compact 1.0mm interface saves space, while temperature stability (-65°C to 165°C) ensures reliable performance in harsh environments.

1.0mm 50 Ohm Termination

Technical Specifications

Category	Parameter	Value
General	Impedance	50 Ohms nominal
	Frequency Range	DC to 110 GHz
	Temperature Range	-65°C to 165°C
Electrical	VSWR	1.5:1 to 110GHz typical
	Insertion Loss	0.07 √f (GHz)
	DWV @ Sea Level	500 Vrms
	Insulation Resistance	5,000 megohms minimum
	Power Rating	1W
	Contact Resistance (Outer)	3 milliohms maximum
	Contact Resistance (Inner)	5 milliohms maximum
Materials	Housing	Stainless Steel Passivated
	Center Contact	Beryllium Copper Gold
	Insulator	PEI
Mechanical	Mate/Demate Cycles	500 cycles
	Engagement/Disengagement Force	≤0.23 N.m
	Connection Torque	0.3-0.45 N·m
	Withstand Torque	0.7 N·m
Environmental	Standards Compliance	MIL-STD-202 Methods

Key Applications

Millimeter Wave Testing

Your test setups benefit from clean signal termination at frequencies up to 110 GHz. Unwanted reflections disappear when proper termination is applied.

Precision Measurement Systems

Network analyzers and spectrum analyzers require accurate load termination. Our components ensure measurement integrity across the entire frequency range.

RF Circuit Development

Prototype circuits need reliable termination for proper characterization. You can trust our terminators for consistent results during design validation.

5G Infrastructure

High-frequency 5G equipment relies on precise impedance matching. These terminators support next-generation wireless communication systems.

1.0mm 50 Ohm Termination: Key Applications

Design Excellence

Our engineering team optimizes performance with air dielectric design, precision machining, stainless steel construction, and gold-plated contacts, ensuring reliability and low resistance in space-constrained, harsh environments.

Quality control processes verify each component meets specification requirements. Environmental testing confirms reliable operation across temperature extremes. You receive components ready for immediate integration into your systems.

Installation and Usage

Proper installation ensures optimal performance from your 1.0mm 50 Ohm Termination. Use appropriate torque specifications during assembly to avoid damage. Hand-tighten initially, then apply final torque with calibrated tools.

Clean mating surfaces before connection to ensure reliable contact. Avoid over-torquing which can damage the precision threads. Regular inspection maintains long-term reliability in critical applications.

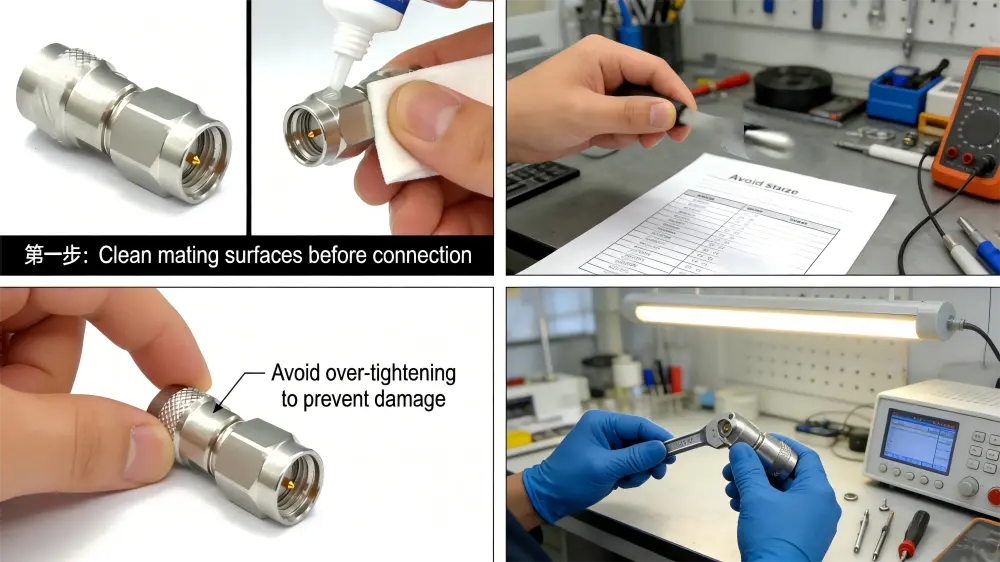

1.0mm 50-ohm termination for installation and use
