Name: LMR 400 SMA Connector
SKU: N/A

LMR 400 SMA Connector

1.A type of RF connector designed for LMR-400 coaxial cable, using the SMA interface standard, with a 50-ohm impedance, suitable for RF signal transmission.
2.Straight wall thread fixed SMA female connector
3.Impedance: 50 Ohms nominal
4.VSWR: 1.2:1 to 18GHz typical
5.Insertion loss: .05√f (GHz)
7.Adaptation cable: .086
6.Temperature range: -55°C to 125°C

LMR 400 SMA Connector - High-Performance RF Connectors for Professional Applications

When you need reliable RF connectivity for your LMR-400 coaxial cable applications, the LMR 400 SMA Connector stands out as the perfect solution. This precision-engineered RF connector combines the demonstrated SMA interface standard with 50-ohm impedance coordinating, conveying uncommon flag transmission execution. Whether you're working in broadcast communications, defense, or test gear applications, this item gives the unwavering quality and exactness your ventures request. Our straight divider string settled SMA female connector guarantees secure associations with negligible flag misfortune over requesting working conditions.

SMA female connector for LMR400 cable

Why Select Our Product?

Our item guarantees amazing flag astuteness with a ordinary VSWR of 1.2:1 up to 18GHz. It handles temperatures from -55°C to 125°C without execution debasement and keeps up reliable 50-ohm impedance through accuracy manufacturing.This implies your flag remains clean and solid all through the transmission way. You can tally on steady execution whether you're in research facility situations or unforgiving field conditions.

Superior Build Quality

Each connector features premium materials selected for durability and performance:

Stainless steel housings provide corrosion resistance and mechanical strength
Beryllium copper gold center contacts ensure excellent conductivity and longevity
PTFE insulators deliver superior dielectric properties across the entire frequency range

The robust construction withstands repeated mating cycles while maintaining electrical specifications. Your investment in these connectors pays off through years of reliable service.

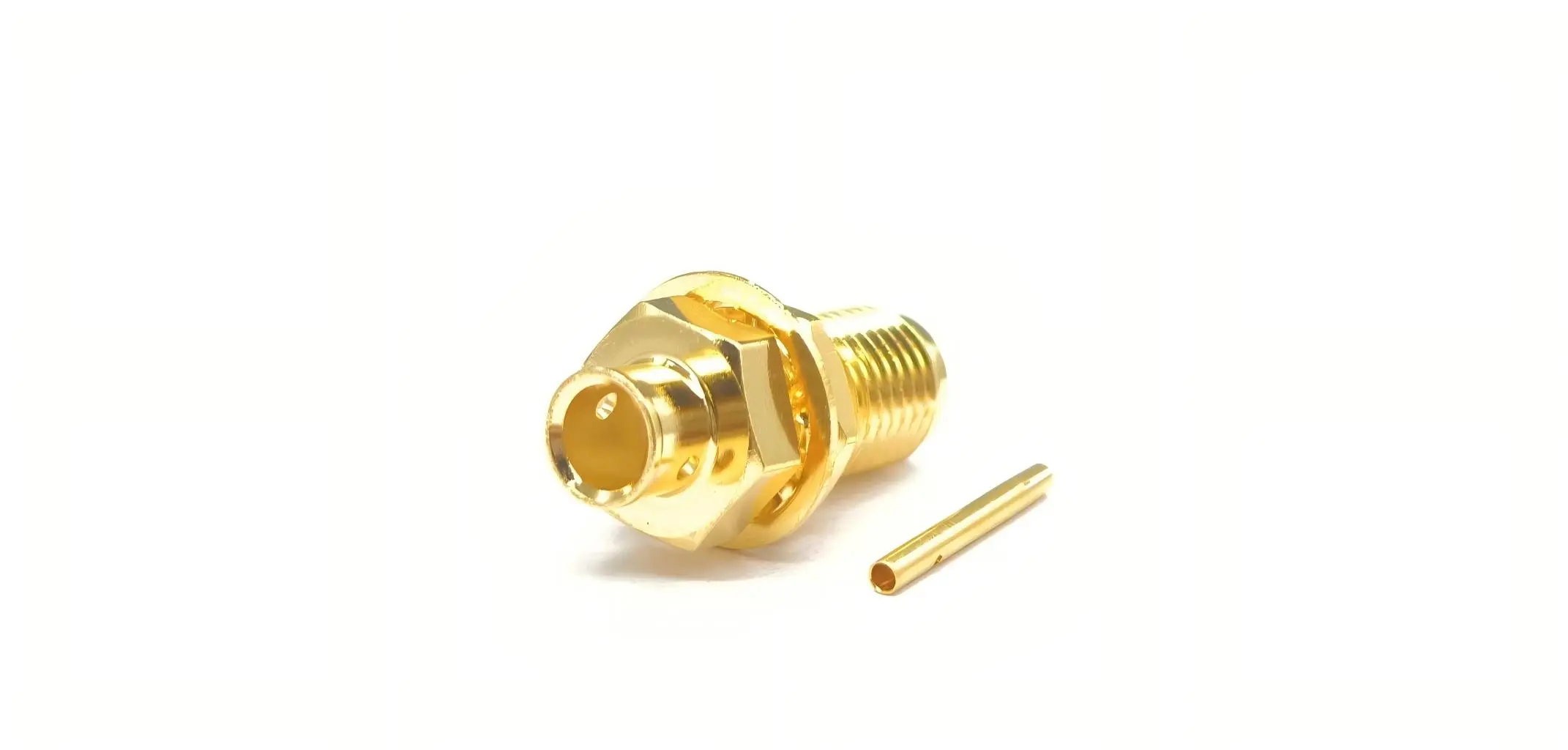

SMA female connector for LMR400 cable

Technical Specifications

Parameter	Value
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
VSWR	1.2:1 to 18GHz typical
Insertion Loss	.05√f (GHz)
DWV @ Sea Level	750 Vrms
Insulation Resistance	5,000 megohms minimum

Contact Resistance Specifications

Contact Type	Maximum Resistance
Outer Conductor	2.5 milliohms
Inner Conductor	4 milliohms

Mechanical Performance

Specification	Value
Mate/Demate Cycles	500 cycles (SMA Port)
Engagement/Disengagement Force	≤0.23N.m (SMA Port)
Connection Torque	0.79N·m - 1.13N·m
Connector Withstand Torque	1.69N·m

Applications and Industries

Your LMR 400 SMA Connector excels in demanding applications across multiple industries:

Telecommunications Foundation: Base stations, radio wire frameworks, and flag conveyance systems advantage from the connector's moo misfortune characteristics and wide recurrence coverage.

Test and Estimation: Research facility and field test rebellious depend on these connectors for accuracy, guaranteeing precise estimations over the whole recurrence range.

Defense and Aviation: Military communication frameworks depend on our rough connectors, with a wide temperature extend and strong development assembly strict military specifications.

Medical Hardware: RF components in restorative gadgets require reliable execution and long-term unwavering quality. These connectors give the accuracy required for delicate restorative applications.

SMA female connector for LMR400 cable

Environmental Durability

You can deploy these connectors in challenging environments with confidence. Our comprehensive environmental testing includes:

Thermal Shock Testing per MIL-STD-202, Method 107, Condition B
Salt Spray Resistance per MIL-STD-202, Method 101, Condition B
Vibration Testing per MIL-STD-202, Method 204, Condition D
Shock Testing per MIL-STD-202, Method 213, Condition I
Moisture Resistance per MIL-STD-202, Method 106

These rigorous tests ensure your connectors perform reliably in real-world conditions.

Quality Manufacturing Process

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we keep up strict quality control all through the fabricating handle. Our accuracy testing disobedient confirm each connector meets determinations some time recently shipment. You get items that reliably convey the execution your applications require.

Our computerized fabricating approach guarantees repeatability and traceability. Each connector experiences comprehensive electrical and mechanical testing to confirm compliance with distributed specifications.

SMA female connector for LMR400 cable

Professional Bolster and Customization

Need help selecting the right connector setup? Our specialized group gives master direction to offer assistance you select the ideal arrangement for your particular application requirements.

We offer customization capabilities for one of a kind applications. Whether you require adjusted mechanical measurements or extraordinary natural evaluations, we can work with you to create the idealize arrangement.

Get Your Product Today

Ready to enhance your RF system performance? Contact our team to discuss your specific requirements and receive detailed technical support for the LMR 400 SMA Connector. We're committed to providing solutions that exceed your expectations.

For technical inquiries, pricing, or custom solutions, reach out to us at postmaster@cymicrowave.com. Our experienced engineers are ready to help you achieve optimal system performance with the right connector solution.
