Name: GPPO Surface Connector
SKU: N/A

GPPO Surface Connector

1. The GPPO (Mini-SMP) surface mount connector is a type of RF connector suitable for PCB surface mounting.
2. It is used in fields such as aerospace and communication equipment that require high-frequency performance and high integration density. It supports multi-channel designs (e.g., 16-channel board edge connectors) to improve connection efficiency.
3. Tail pin surface mount soldering
4. Impedance: 50 Ohms nominal
5. VSWR: 1.5:1 up to 40GHz typical
6. Insertion loss: .1√f (GHz)
7. Temperature range: -55°C to 125°C

GPPO Surface Connector: Precision RF Solutions for High-Frequency Applications

When you need reliable high-frequency connectivity in compact spaces, the GPPO Surface Connector delivers exceptional performance. This advanced Mini-SMP surface mount connector brings together cutting-edge engineering and robust design to meet your most demanding RF applications. At Shaanxi Chuangyu Electronic Technology, we've perfected this product technology to support frequencies up to 40GHz with outstanding signal integrity. Whether you're working in aerospace, communications, or precision electronics, this connector provides the reliability and performance you need.

Our engineering team understands the challenges you face in modern electronic design. Space constraints, signal integrity, and thermal management all demand innovative solutions. That's why we've developed this advanced connector series with features that address real-world application requirements.

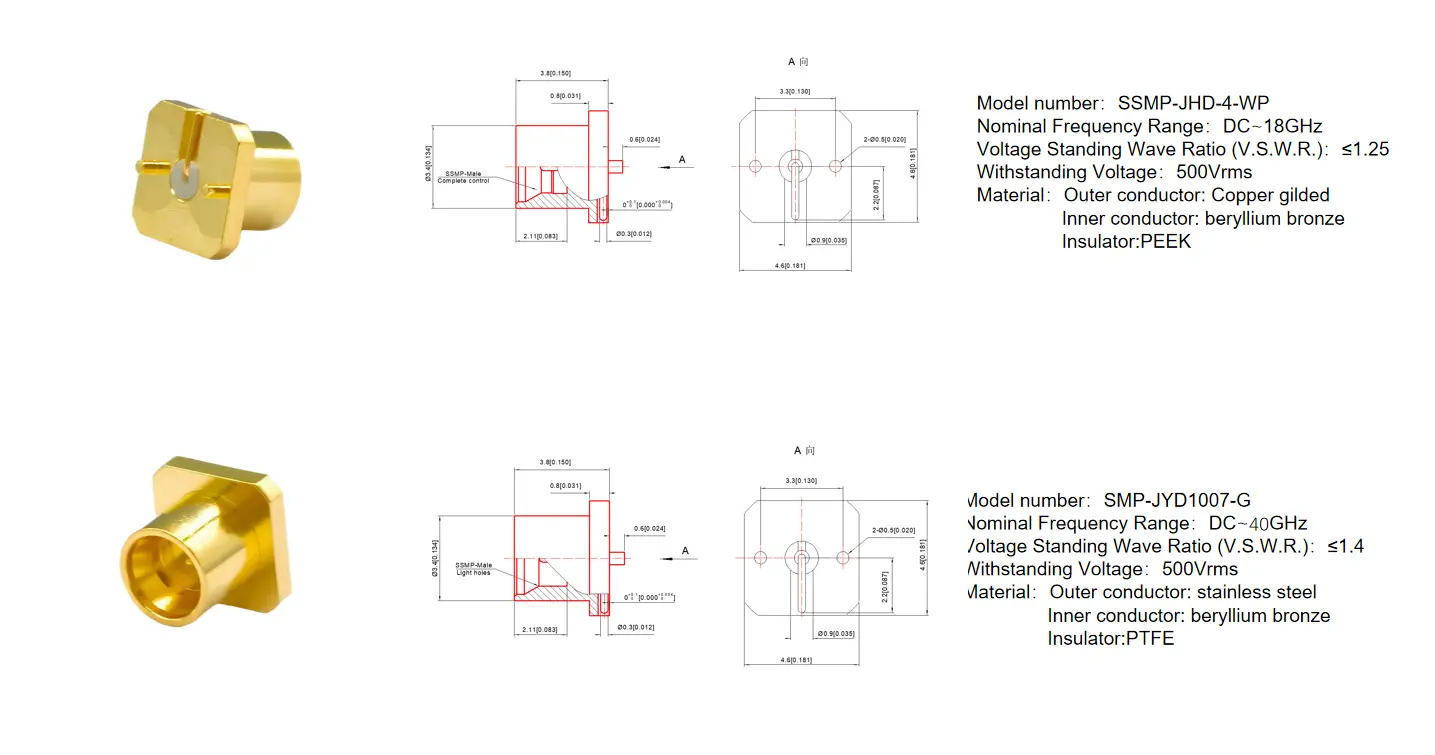

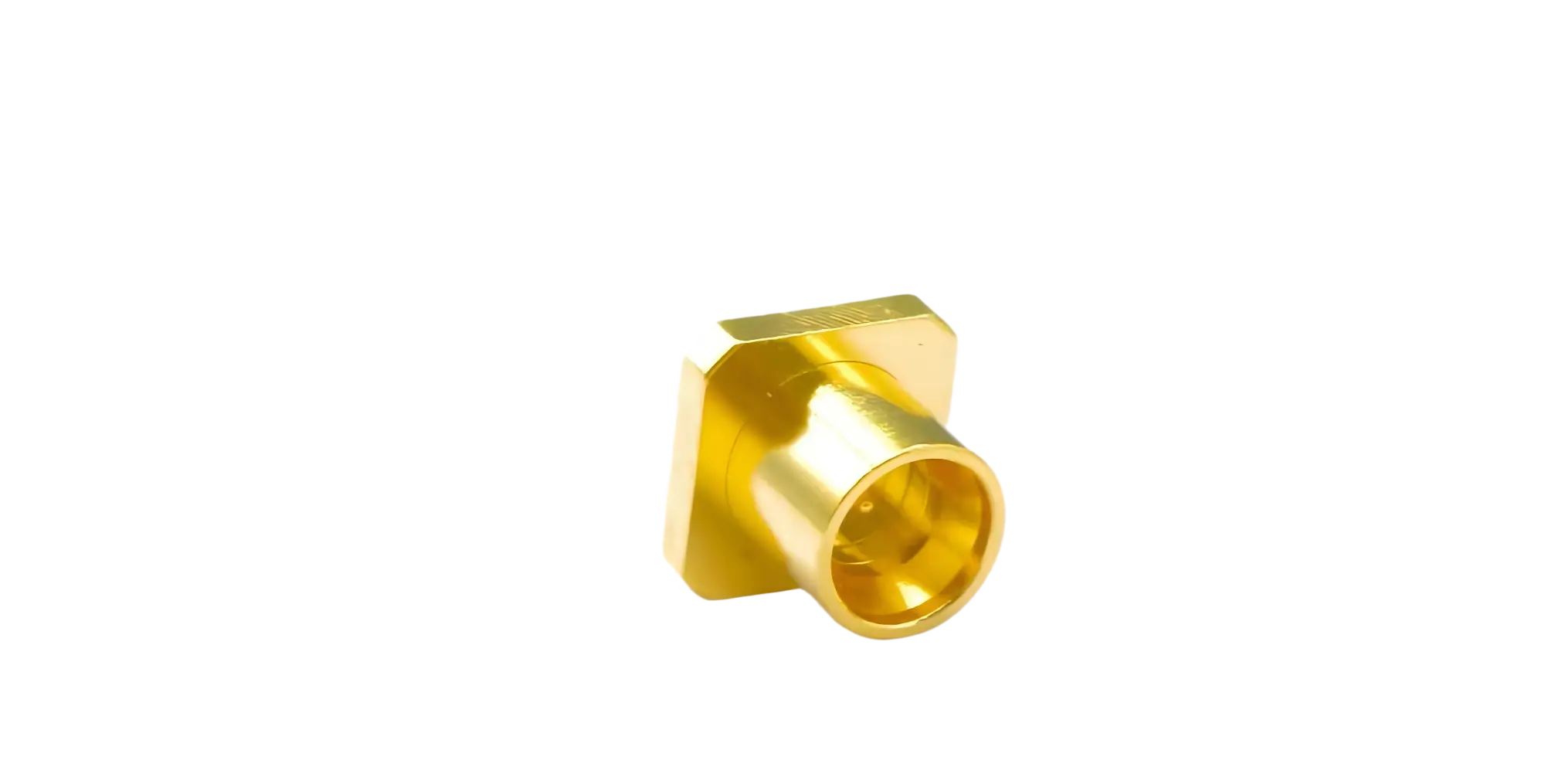

SSMP surface mount connector

Key Features and Benefits

Compact Design Excellence

The blind-mate design philosophy makes installation straightforward and reliable. You'll appreciate the space-saving dimensions - some models measure just 5.36mm in length. This compact footprint allows for higher channel density on your PCB designs.

Superior Electrical Performance

Your high-frequency applications require consistent performance. This connector maintains 50-ohm impedance across its entire frequency range. The low insertion loss characteristics (.1√f GHz) ensure minimal signal degradation in critical applications.

Robust Construction

Premium materials ensure long-term reliability. GPPO Surface Connectors with brass housings and gold plating provide excellent conductivity and corrosion resistance. Beryllium copper center contacts deliver consistent electrical performance over thousands of mating cycles.

SSMP surface mount connector

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.5:1 to 40GHz typical
Insertion Loss	.1√f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housing	Brass Gold Plated
Center Contacts	Beryllium copper gold
Insulators	PEEK
Mechanical Data
Mate/Demate Cycles (FD)	100 minimum
Mate/Demate Cycles (SB)	500 minimum
Engagement Force (FD)	4.5lb typical
Disengagement Force (FD)	6.5lb typical
Engagement Force (SB)	2.5lb typical
Disengagement Force (SB)	1.5lb typical

Applications and Industries

Aerospace and Defense

Mission-critical systems demand unwavering reliability. These connectors meet stringent military standards including MIL-STD-202 requirements for thermal shock, vibration, and environmental resistance.

Communication Equipment

High-frequency communication systems benefit from the excellent VSWR characteristics and low insertion loss. Multi-channel configurations support complex array designs and high-density applications.

Test and Measurement

Precision testing requires consistent electrical performance. The stable impedance characteristics and repeatable mating ensure accurate measurements across your frequency range.

Medical Electronics

Progressed therapeutic gadgets progressively depend on high-frequency hardware. The biocompatible materials and solid execution make these connectors appropriate for therapeutic applications.

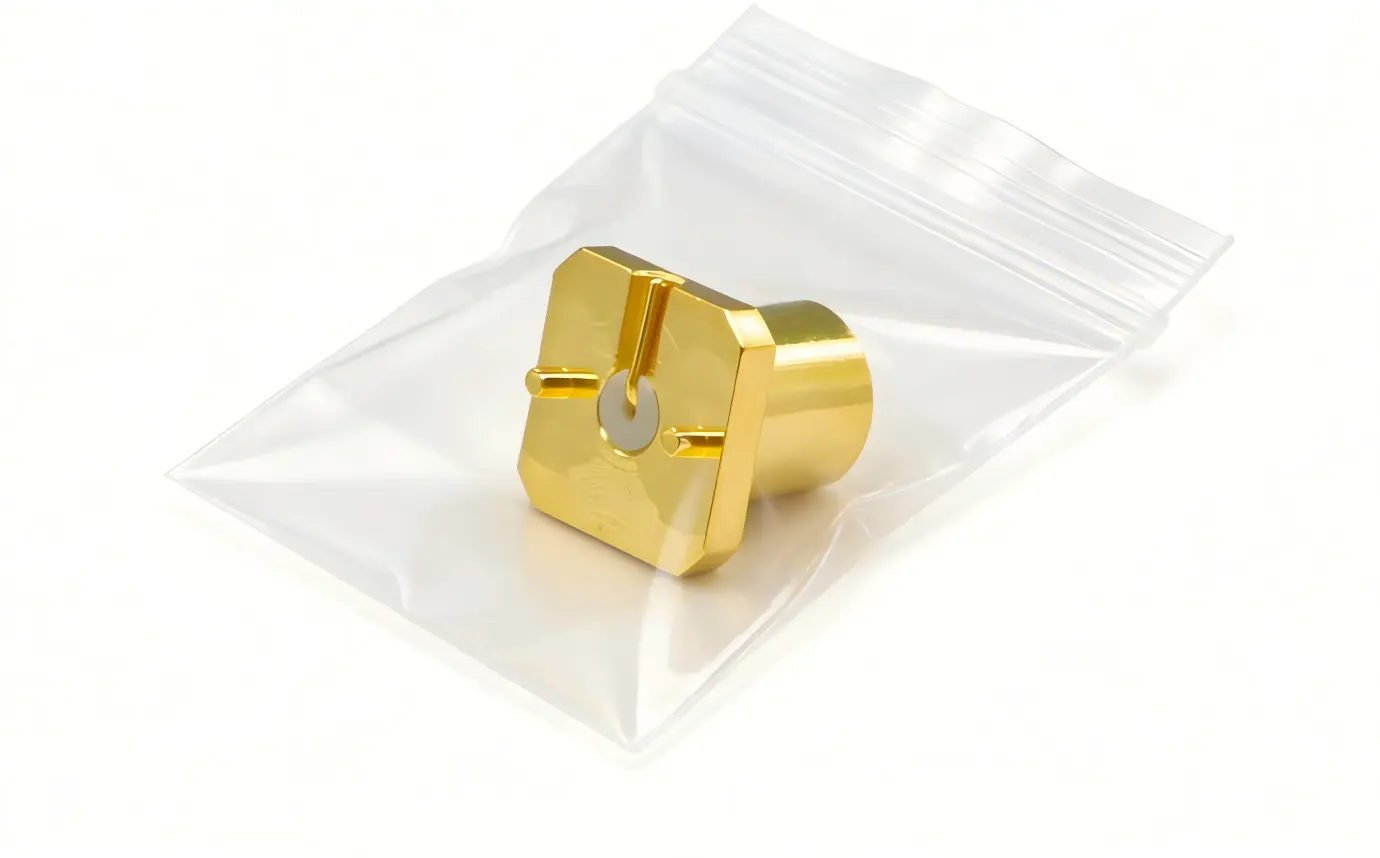

SSMP surface mount connector packaging
