Name: 2.4 Female To 2.4 Male RF Cable Assembly
SKU: N/A

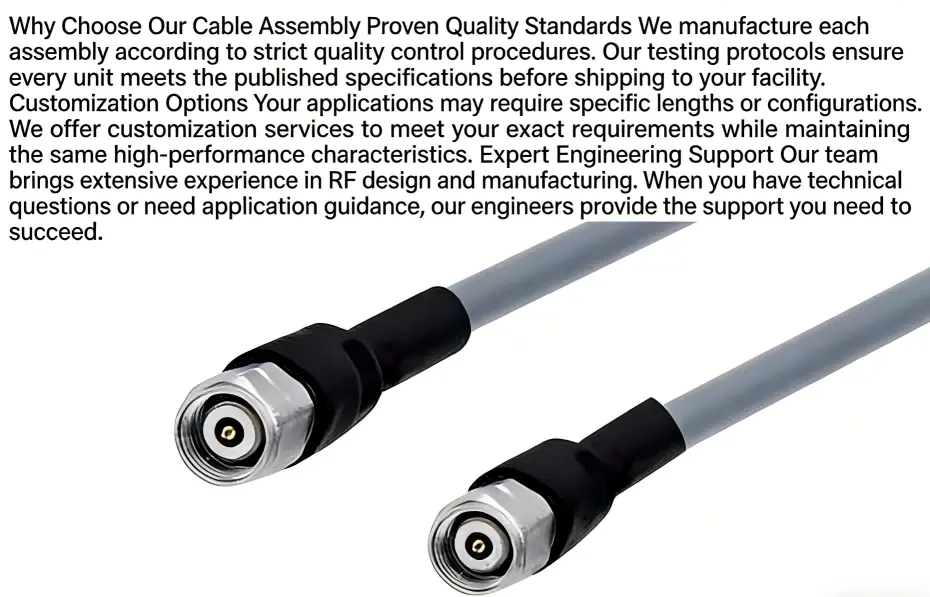

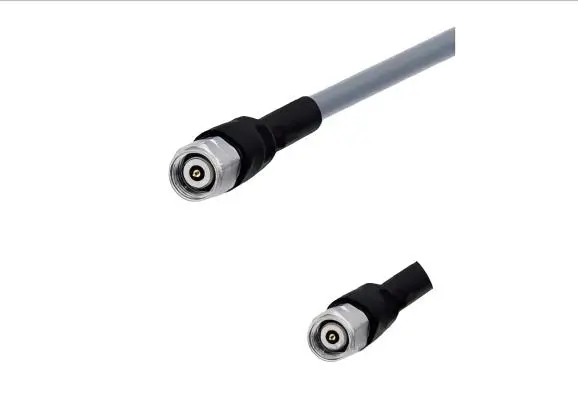

2.4 Female To 2.4 Male RF Cable Assembly

1. 2.4 Female to 2.4 Male RF cable assembly, with 2.4mm female and male connectors on both ends, is used for the transmission and testing of radio frequency signals.
2. It is widely used in wireless communication testing (e.g., mobile 5G signal testing), microwave measurement, medical equipment, and aerospace fields, supporting custom lengths and specifications.
3. Impedance: 50 Ohms nominal
4. Frequency range: DC to 50GHz
5. VSWR: 1.4:1 to 50GHz typical
6. Adapter cable: CXN3506
7. Static bending radius: 11mm
8. Dynamic bending radius: 22mm
9. Temperature range: -55°C to 125°C

High-Performance 2.4 Female To 2.4 Male RF Cable Assembly

When you need reliable microwave signal transmission up to 50GHz, our 2.4 Female To 2.4 Male RF Cable Assembly delivers exceptional performance for your most demanding applications. This precision-engineered cable get together highlights strong 2.4mm connectors on both closes, guaranteeing steady network for remote communication testing, restorative hardware, and aviation applications. This get together offers a wide recurrence run and moo inclusion misfortune for solid flag transmission, assembly the most noteworthy guidelines for 5G testing and touchy microwave measurements.

2.4 Female To 2.4 Male RF Cable Assembly

Product Overview

Our premium cable assembly combines advanced engineering with practical functionality. Featuring stainless steel lodging, gold-plated beryllium copper contacts, and PEI insulin, it offers fabulous erosion resistance, flag keenness, and steady execution over all frequencies. Its adaptable plan suits both inactive and energetic applications with optimized twisting span.

This makes the assembly perfect for laboratory testing environments where precision matters most. Your testing setup will benefit from the stable 50-ohm impedance that maintains signal quality throughout your measurements.

Key Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 50GHz
Temperature Range	-55°C to 125°C
Adaptation Cable	CXN3506
Electrical Performance
VSWR	1.4:1 to 50GHz typical
Insertion Loss	0.05 √f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI
Mechanical Properties
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Static Bending Radius	11mm
Dynamic Bending Radius	22mm

Superior Performance Features

Exceptional Frequency Response

Our cable assembly supports DC to 50GHz with minimal signal loss, ensuring accurate measurements across the frequency spectrum for high-frequency applications requiring precision.

Robust Construction

Built to withstand demanding environments, the 2.4 Female To 2.4 Male RF Cable Assembly features stainless steel housing that resists corrosion and mechanical stress. The gold-plated contacts provide excellent conductivity while preventing oxidation over time.

Flexible Design

With optimized bending radius, our assembly ensures easy installation in tight spaces and adapts to static or dynamic applications without compromising performance.

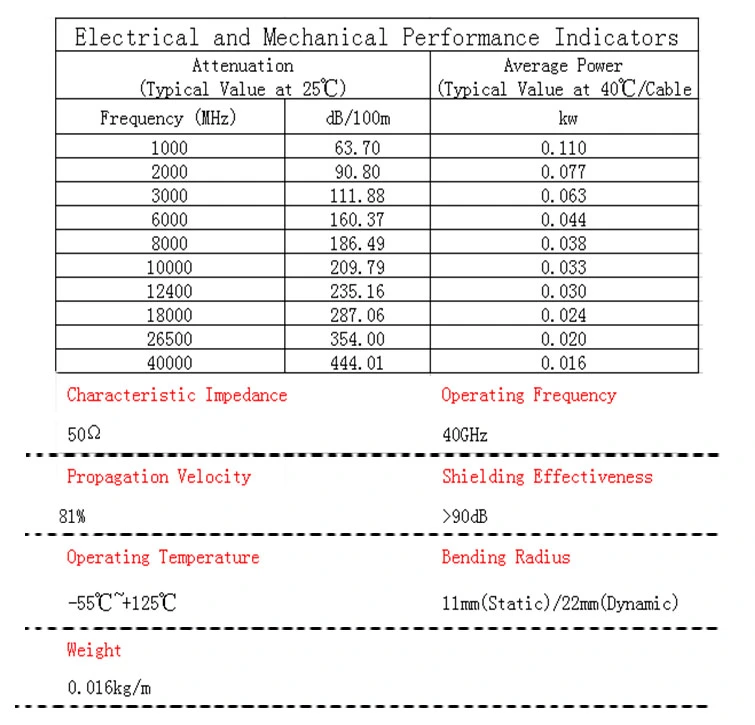

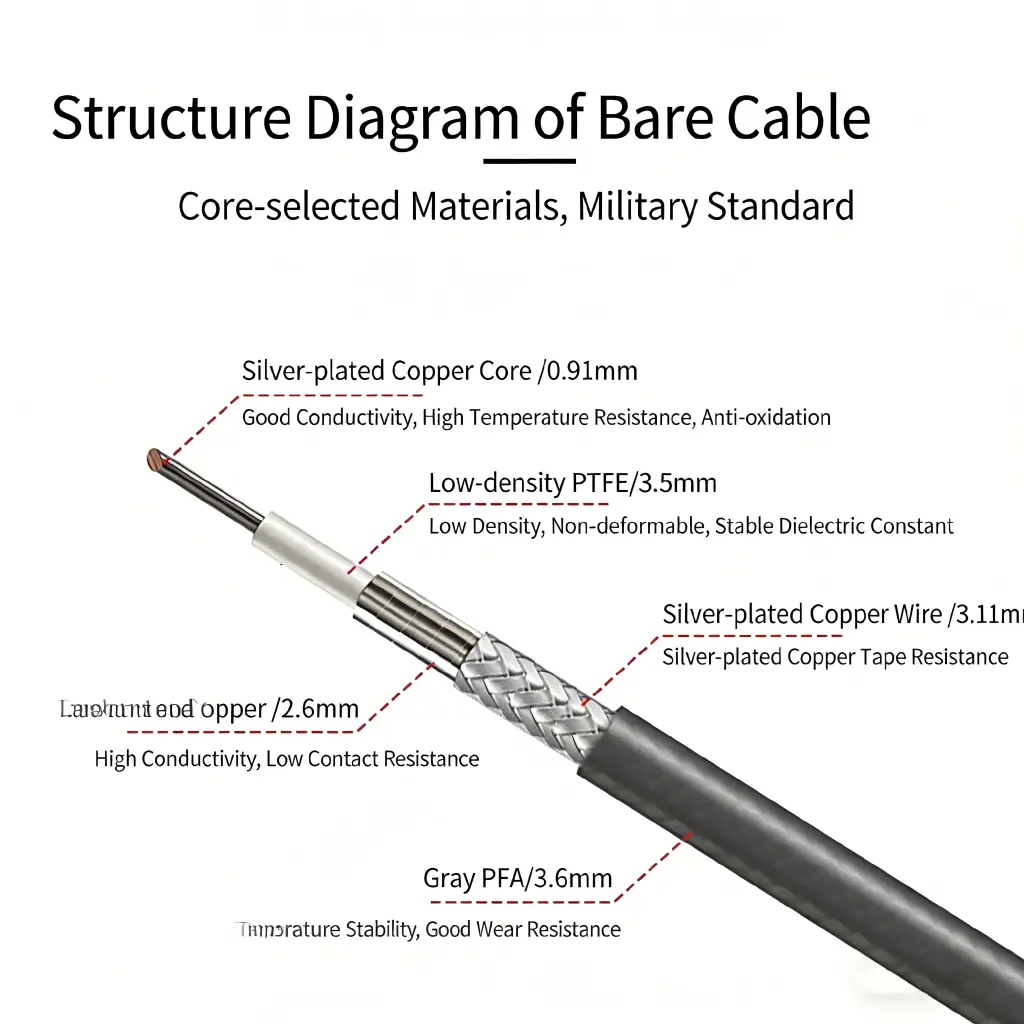

2.4 Female to 2.4 Male RF cable assembly for use with 3506 cable

Industry Applications

Wireless Communication Testing

Our cable assembly ensures reliable performance for 5G testing, offering consistent signal accuracy and network optimization across millimeter wave frequencies for precise analysis and testing protocols.

Medical Equipment Integration

Medical devices demand unwavering reliability. The assembly's stable electrical characteristics make it ideal for diagnostic equipment and therapeutic devices where precision is critical for patient safety.

Aerospace and Defense

Our assembly meets stringent military and aerospace standards, ensuring performance under extreme conditions, including thermal shock, vibration, and moisture resistance.

Laboratory and Research

Research facilities need equipment they can trust. The assembly's low insertion loss and excellent VSWR characteristics ensure your measurements remain accurate and repeatable.

2.4 Female to Male RF Cable Assembly Application Areas

Why Choose Our Cable Assembly

Proven Quality Standards

We manufacture each assembly according to strict quality control procedures. Our testing protocols ensure every unit meets the published specifications before shipping to your facility.

Customization Options

Your applications may require specific lengths or configurations. We offer customization services to meet your exact requirements while maintaining the same high-performance characteristics.

Expert Engineering Support

Our team brings extensive experience in RF design and manufacturing. When you have technical questions or need application guidance, our engineers provide the support you need to succeed.

2.4 Female To 2.4 Male RF Cable Assembly

Environmental Compliance

The assembly meets stringent environmental standards including:

Thermal shock resistance per MIL-STD-202, Method 107
Salt spray protection per MIL-STD-202, Method 101
Vibration resistance per MIL-STD-202, Method 204
Shock resistance per MIL-STD-202, Method 213

Contact Information

Ready to enhance your testing capabilities? Our 2.4 Female To 2.4 Male RF Cable Assembly provides the performance and reliability your applications demand. Contact our technical team at postmaster@cymicrowave.com to discuss your specific requirements and learn how our precision-engineered solutions can support your success.

We deliver standard or custom cable assemblies that exceed expectations. Trust Shaanxi Chuangyu Electronic Technology for your critical RF connectivity needs.
