Name: Female To Female Gppo Adapter
SKU: N/A

Female To Female Gppo Adapter

1. Multi-way high-seal vertical interconnect GPPO adapter, used to connect two devices or cables with male GPPO interfaces.
2. GPPO connector is the miniature version of the GPO (SMP) connector, with a size only one-third of the GPO, and a working bandwidth up to 65GHz, suitable for high-frequency microwave systems that require miniaturization and high-frequency connections.
3. VSWR: 1.4:1 to 40GHz typical
4. Insertion loss: .04√f (GHz)

Female To Female GPPO Adapter: Professional High-Frequency Interconnect Solutions

Are you looking for reliable high-frequency interconnect solutions for your microwave systems? Our Female To Female GPPO Adapter provides exceptional performance for demanding RF applications. This miniature adapter connects two devices or cables with male GPPO interfaces, offering superior connectivity in compact designs. The GPPO connector offers miniaturized RF connections, one-third the size of GPO connectors, delivering excellent electrical performance up to 65GHz with unmatched signal integrity and space efficiency.

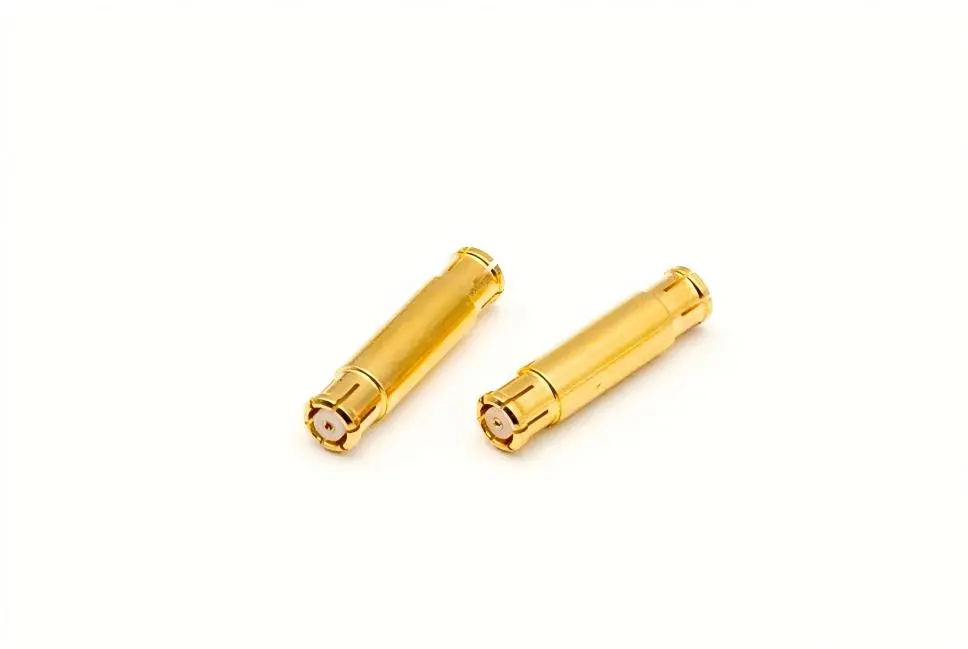

Female To Female GPPO Adapter

What Makes Our GPPO Adapters Special?

Our GPPO adapters excel in space-constrained, high-frequency applications, bridging miniaturization and performance for modern RF systems with a design focused on maximizing performance density. While traditional connectors often require trade-offs between size and capability, our adapters maintain excellent electrical characteristics in remarkably compact packages.

Key Performance Benefits

High-Frequency Excellence: Operating from DC to 40GHz with select designs reaching 50GHz, these adapters handle demanding bandwidth requirements with ease.

Superior Signal Integrity: Typical VSWR of 1.4:1 to 40GHz ensures minimal signal reflection and optimal power transfer throughout your system.

Compact Design: The miniaturized footprint allows for increased packaging density while maintaining professional-grade performance standards.

Flexible Alignment Tolerance: Engineered to accommodate both radial and axial misalignment without significant VSWR degradation, simplifying installation and reducing assembly stress.

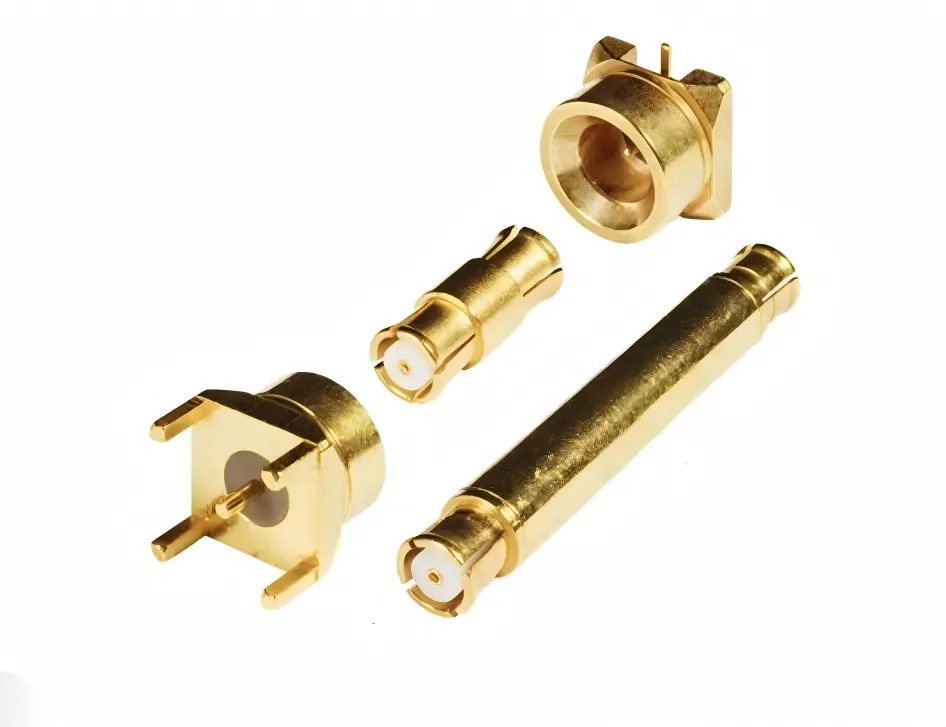

Key advantages of the GPPO female-to-female adapter

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 40 GHz (select designs to 50 GHz)
Operating Temperature	-65°C to 165°C
Electrical Performance
VSWR	1.4:1 to 40GHz typical
Insertion Loss	.04√f (GHz)
Dielectric Withstanding Voltage	500 Vrms @ sea level
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
RF Leakage	-80 dB (typical mated pair)
Materials
Housing	Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	FD: 100 minimum; SB: 500 minimum
Engagement Force	FD: 4.5lb typ; SB: 2.5lb typ
Disengagement Force	FD: 6.5lb typ; SB: 1.5lb typ
Radial Misalignment Tolerance	3 degrees
Axial Misalignment Tolerance	0.02" (flush to 0.010 from reference)

Applications and Industries

Your Female To Female GPPO Adapter finds applications across multiple demanding industries:

Broadcast communications Framework: Arrange hardware requiring high-density intercontinental benefits from the compact plan and amazing electrical performance.

Aerospace and Defense: Military-grade natural compliance guarantees solid operation in cruel conditions whereas assembly strict measure and weight requirements.

Test and Estimation: Research facility hardware and computerized test frameworks use the accuracy characteristics for exact measurements.

Medical Gadgets: Progressed therapeutic imaging and symptomatic hardware utilizes these connectors for high-frequency flag processing.

Research and Advancement: Colleges and corporate labs utilize these components in cutting-edge RF inquire about projects.

GPPO female-to-female adapter application industries

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Development and Innovation Mechanical Stop in Xi'an, our company specializes in accuracy electrical connectors and RF cable gatherings. We center on electronic item inquire about, advancement, and equipment innovation.

We offer mmWave arrangements up to 110GHz, with 200+ connector and 400+ cable get together details. Our thorough quality control and exactness testing guarantee top-tier execution from plan to deployment.

Company Profile: GPPO Female-to-Female Adapter Manufacturer

Environmental Compliance and Reliability

Your applications demand components that perform consistently across environmental extremes. Our adapters meet stringent military standards:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106 (modified)

These certifications validate performance under real-world operating conditions, ensuring your systems maintain reliability when it matters most.

Custom Solutions and Support

Understanding that standard items do not continuously meet interesting application prerequisites, we offer customization administrations. Our building group works closely with clients to create specialized arrangements that address particular specialized challenges.

Whether you require adjusted mechanical interfacing, improved natural assurance, or specialized recurrence reactions, our plan and fabricating capabilities can suit your prerequisites.

GPPO Female-to-Female Adapter Customization Process

Get Started Today

Ready to integrate high-performance Female To Female GPPO Adapter solutions into your next project? Our technical team stands ready to help you select the optimal configuration for your specific requirements.

Contact us at postmaster@cymicrowave.com to discuss your application needs. We offer technical guidance and competitive pricing for standard and custom GPPO adapters, helping you achieve superior RF performance.
