Name: SMA Detachable Connector
SKU: N/A

SMA Detachable Connector

1. The SMA separable connector supports quick field disassembly and installation, being one of the termination methods for SMA connectors.
2. It is used for RF systems that require field maintenance, such as temporary signal connections for wireless base stations and test equipment, as well as communication devices and test instruments.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.25:1 up to 18GHz typical
5. Insertion loss: .05√f (GHz)
6. Temperature range: -55°C to 125°C

SMA Detachable Connector - Quick Field Installation & Maintenance Solution

Looking for a reliable RF connection solution that doesn't require specialized tools? Our SMA Detachable Connector delivers exceptional performance for field maintenance applications. Whether you're working with remote base stations, test gear, or communication gadgets, this connector gives fast establishment and expulsion capabilities. With 50-ohm impedance and fabulous execution up to 18GHz, this item underpins visit alterations and brief associations, perfect for adaptable, energetic RF environments.

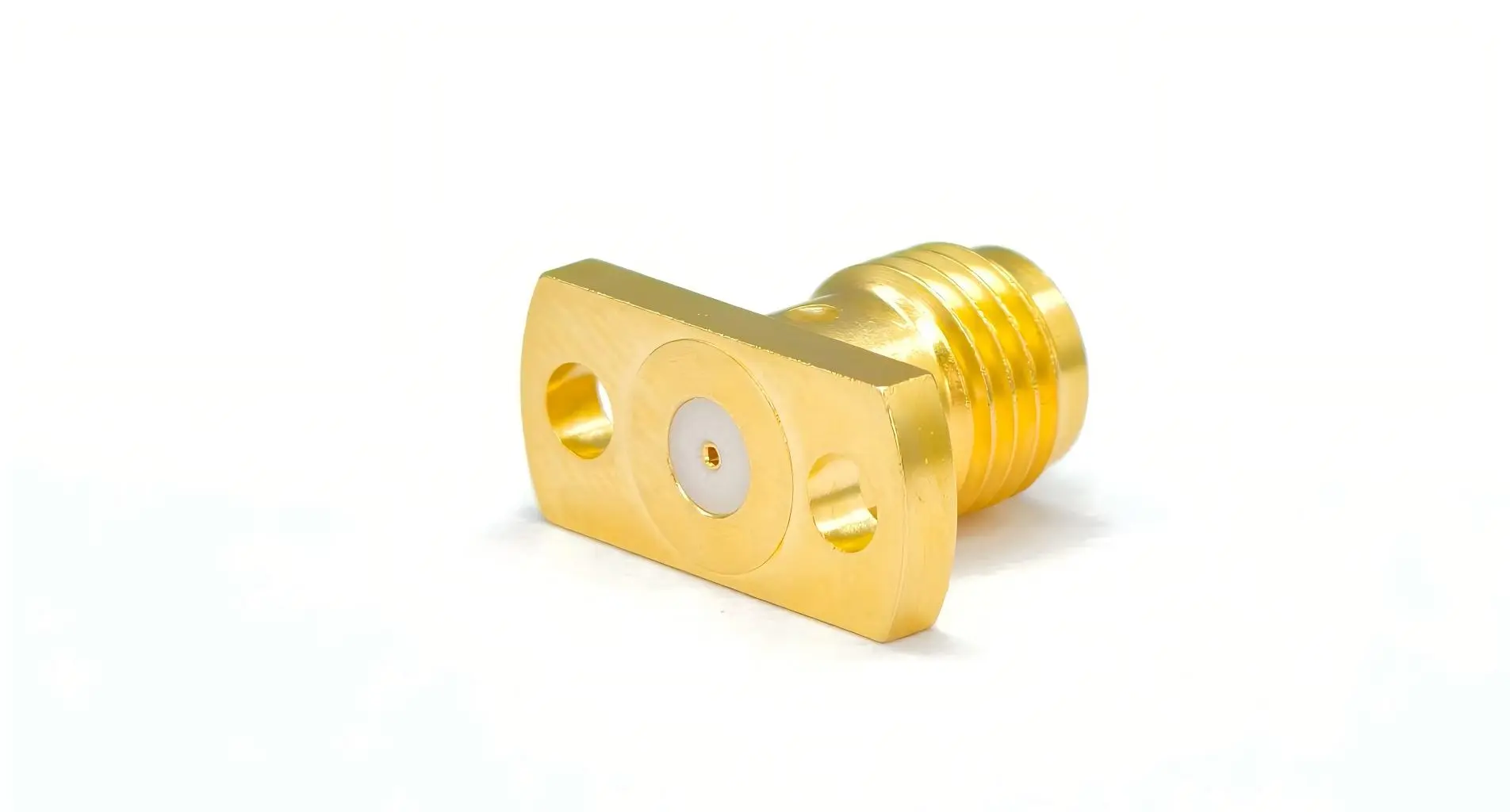

product-1-1

Why Choose Our Detachable SMA Connectors?

Field maintenance is made easy with our detachable SMA solution, removing the need for professional tools during connector replacement. You enjoy the reliable performance of traditional SMA connectors, now with enhanced convenience and simplified upkeep.

Key Benefits

Tool-free operation - Complete installation and removal without specialized equipment
Rapid deployment - Perfect for temporary signal connections and testing scenarios
Frequent use design - Built to handle up to 500 mate/demate cycles
Wide temperature range - Operates reliably from -55°C to 165°C
Military-grade testing - Meets rigorous MIL-STD-202 environmental standards

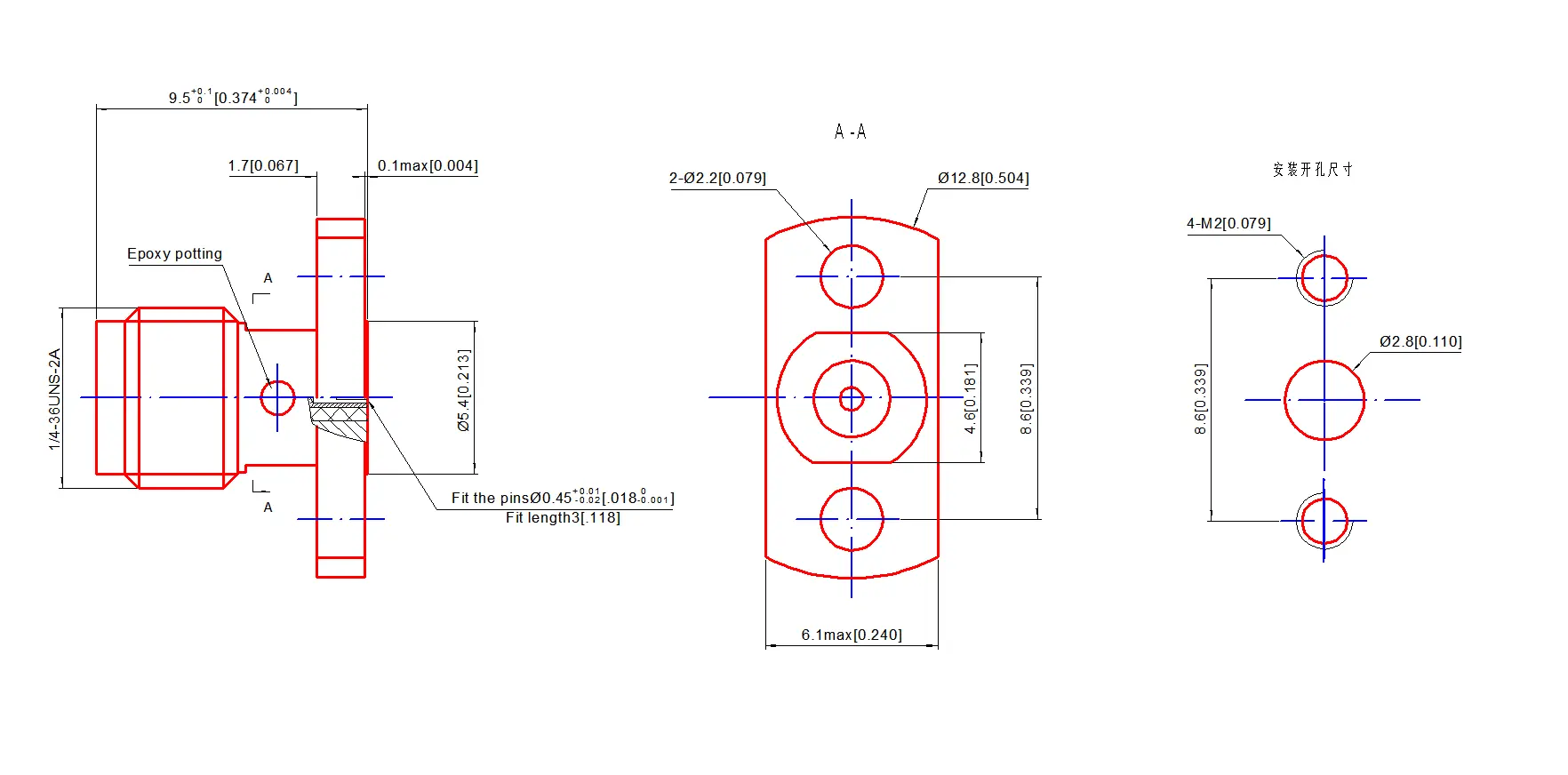

product-1-1

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 165°C
Adaptation Pin	φ0.51mm
Electrical Performance
VSWR	1.25:1 to 18GHz typical
Insertion Loss	.05√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Materials
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
SMA Port Force	≤0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.69N·m
Environmental Testing
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Perfect Applications for Detachable Connectors

Wireless Infrastructure

Your base station maintenance becomes simpler with quick-disconnect capability. No downtime waiting for specialized tools or technicians.

Test Equipment Integration

Laboratory and field testing scenarios benefit from rapid reconfiguration. You can switch connections quickly during measurement sequences.

Communication Systems

Network equipment often requires temporary connections during troubleshooting. Our detachable design streamlines this process.

Military and Aerospace

Mission-critical applications request dependable associations that work in cruel situations. These connectors meet rigid military specifications.

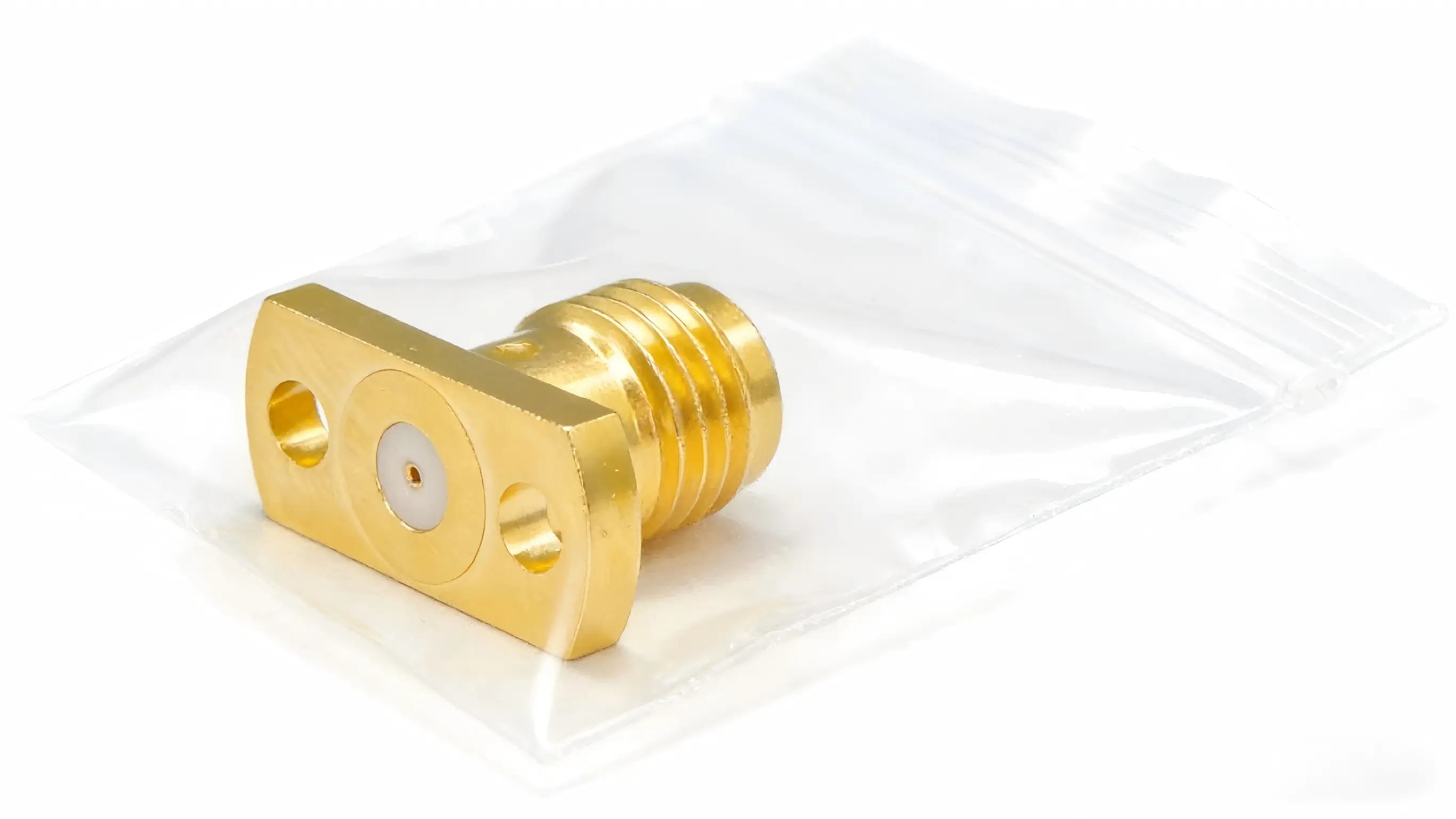

product-1-1

Superior Materials and Construction

We utilize premium materials to guarantee long-term unwavering quality. The stainless steel lodging gives fabulous erosion resistance.Beryllium copper center contacts with gold plating deliver superior conductivity and durability. PTFE insulators maintain consistent electrical properties across the full temperature range.

Your connector will maintain its 50-ohm impedance characteristics throughout its service life. The precision manufacturing process ensures consistent VSWR performance up to 18GHz.

Quality You Can Trust

At Shaanxi Chuangyu Electronic Technology, we specialize in precision RF solutions. Our manufacturing facility in Xi'an combines advanced technology with rigorous quality control. Each SMA Detachable Connector undergoes comprehensive testing to verify electrical and mechanical performance.

We serve customers across new energy, communications, medical, and military industries. Our experience with millimeter-wave technology up to 110GHz demonstrates our commitment to precision engineering.

product-1-1

Environmental Reliability

These connectors excel in challenging conditions. Salt spray testing confirms corrosion resistance. Thermal shock testing validates performance across extreme temperatures. Vibration and shock testing ensure mechanical integrity in mobile applications.

You can depend on consistent performance whether operating in desert heat or arctic conditions.

Easy Integration

The standard SMA interface ensures compatibility with existing equipment. You won't need adapter cables or special mounting hardware. The detachable feature adds convenience without compromising electrical performance.

Installation takes seconds instead of minutes. This time savings adds up significantly during large installations or frequent maintenance activities.

Get Started Today

Ready to simplify your RF connections? Our SMA Detachable Connector solutions are available for immediate delivery. We can also customize specifications to meet your unique requirements.

Contact our technical team at postmaster@cymicrowave.com for detailed specifications, pricing, or application support. We’re here to help you find the perfect connector solution. Enjoy tool-free maintenance for reliable RF connections without sacrificing performance or reliability.
