Name: Female To Female GPO Adapter
SKU: N/A

Female To Female GPO Adapter

1. Female to female GPO adapter, used to connect two RF/microwave devices with GPO (smp) female interfaces, achieving signal path extension or conversion.
2. GPO complies with MIL-STD-348 standard and is compatible with SMP interfaces. Commonly used in RF/microwave systems such as communication equipment and test instruments for multi-signal interconnection applications.
3. VSWR: 1.35:1 to 40GHz typical
4. Insertion loss: .1√f (GHz)

Female To Female GPO Adapter - High-Precision RF Connector Solution

Are you looking for a reliable connector solution for your RF and microwave applications? Our Female To Female GPO Adapter delivers exceptional performance for connecting two RF/microwave devices with GPO male interfaces. This precision-engineered adapter extends signal paths while maintaining signal integrity in demanding environments. This GPO adapter meets MIL-STD-348 standards and is fully SMP-compatible, ensuring consistent performance across a wide frequency range for communication and test equipment.

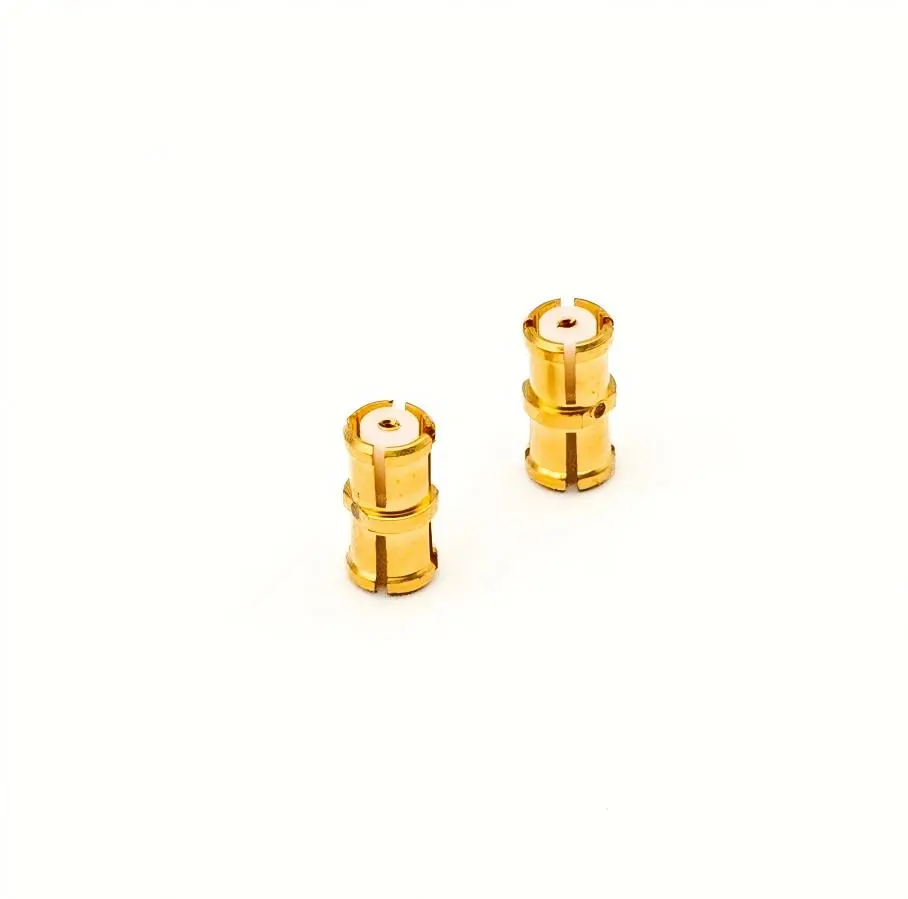

Female-to-female GPO adapter

What Makes Our GPO Adapter Stand Out

Superior Signal Performance

Our adapter maintains excellent signal quality across its entire operating range. With a normal VSWR of 1.15:1 up to 40GHz, you get negligible flag reflection. The inclusion misfortune remains moo at fair .1√f (GHz), guaranteeing your signals remain solid and clear.

Robust Construction Materials

We use only premium materials in our construction:

Beryllium copper with gold plating for both housings and center contacts
PTFE insulators for excellent electrical properties
Corrosion-resistant finish for long-term reliability

Compact Design Benefits

The center-to-center spacing of 0.170 inches allows for increased package density in your systems. This compact footprint helps you save valuable space while maintaining full functionality.

Flexible Alignment Tolerance

Our adapter handles up to 3 degrees radial and 0.03 inches axial misalignment, ensuring easy installation without performance loss.

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 40 GHz
VSWR	1.15:1 to 40GHz typical
Insertion Loss	.1√f (GHz)
Temperature Range	-65°C to 165°C
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum

Durability and Reliability

Proven Lifecycle Performance

Our adapters deliver impressive durability:

FD Series: Minimum 100 mate/demate cycles
LD Series: Minimum 500 mate/demate cycles
SB Series: Minimum 1,000 mate/demate cycles

Environmental Compliance

We test every adapter to rigorous military standards:

Thermal shock resistance per MIL-STD-202, Method 107
Salt spray protection per MIL-STD-202, Method 101
Vibration tolerance per MIL-STD-202, Method 204
Shock resistance per MIL-STD-202, Method 213
Moisture resistance per MIL-STD-202, Method 106

Perfect Applications for Your Needs

Communication Systems

Your wireless communication equipment benefits from our adapter's stable performance. Whether you're working on base stations or mobile equipment, our Female To Female GPO Adapter maintains signal quality throughout the system.

Test and Measurement

Laboratory environments demand precision. Our adapter provides the accuracy you need for critical measurements. The low insertion loss and excellent VSWR make it ideal for test setups.

Military and Aerospace

Harsh situations require vigorous arrangements. Our MIL-STD compliant connector withstands extraordinary temperatures and natural conditions whereas keeping up performance.

Medical Equipment

RF medical devices require reliable connections. Our adapter ensures consistent performance in medical imaging and therapeutic equipment.

Mother-to-mother GPO adapter applications

Installation and Usage Tips

Proper Connection Technique

Always align the connectors carefully before engagement. The spring-loaded mechanism provides positive connection feedback. Apply steady pressure during mating to ensure proper seating.

Maintenance Recommendations

Regular inspection extends adapter life. Check for wear on contact surfaces and ensure clean connections. Store in protective packaging when not in use.

System Integration

Minimize connection stress with proper cable routing and strain relief, while maintaining 50-ohm impedance matching throughout your system.

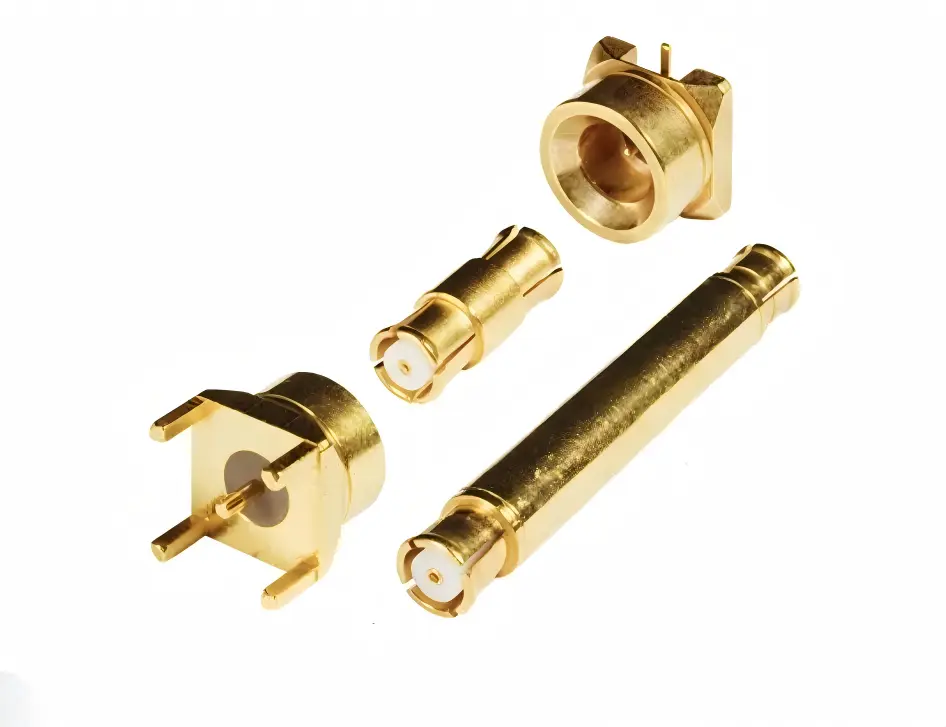

Female To Female GPO Adapter

Why Choose Shaanxi Chuangyu Electronic Technology

With decades of mastery in accuracy RF components, we give cutting-edge connector arrangements from our Chang'an office, serving businesses like unused vitality, therapeutic, communications, military, and computerization. Our commitment to quality implies each item experiences thorough testing some time recently shipment.

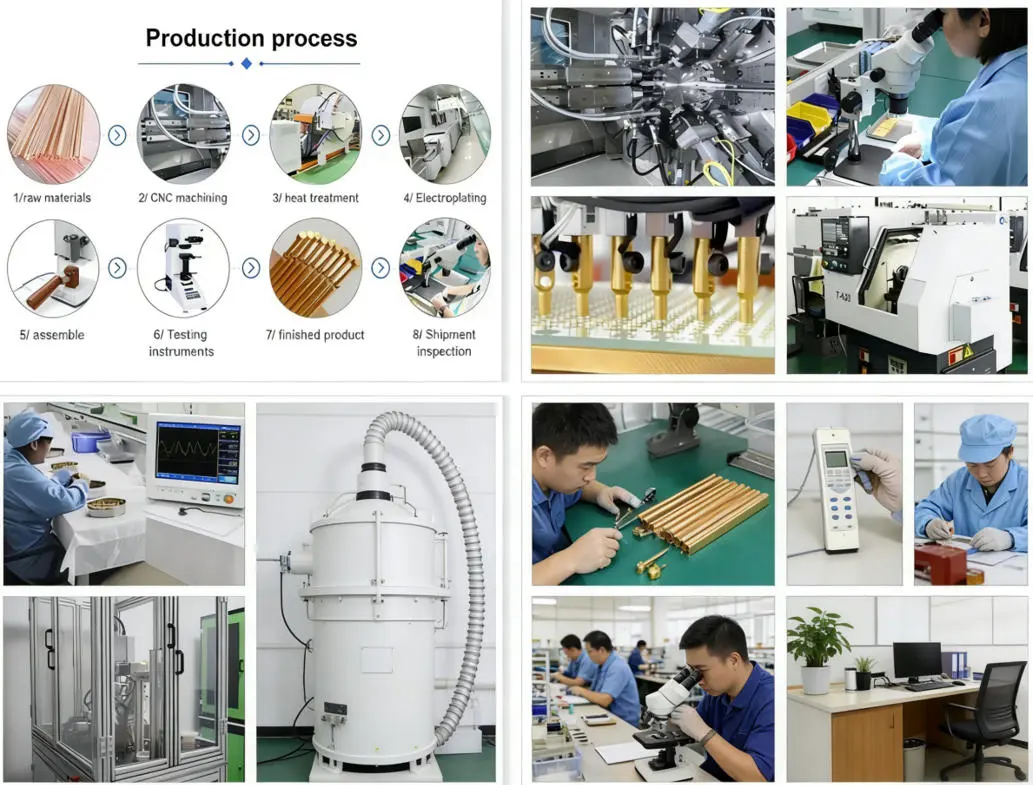

Comprehensive testing of female-to-female GPO adapters.

Custom Arrangements Available

Need something particular for your application? We offer full customization administrations to meet special necessities. Our experienced building group collaborates with you to create custom-made arrangements, guaranteeing your correct determinations are met for ideal execution.

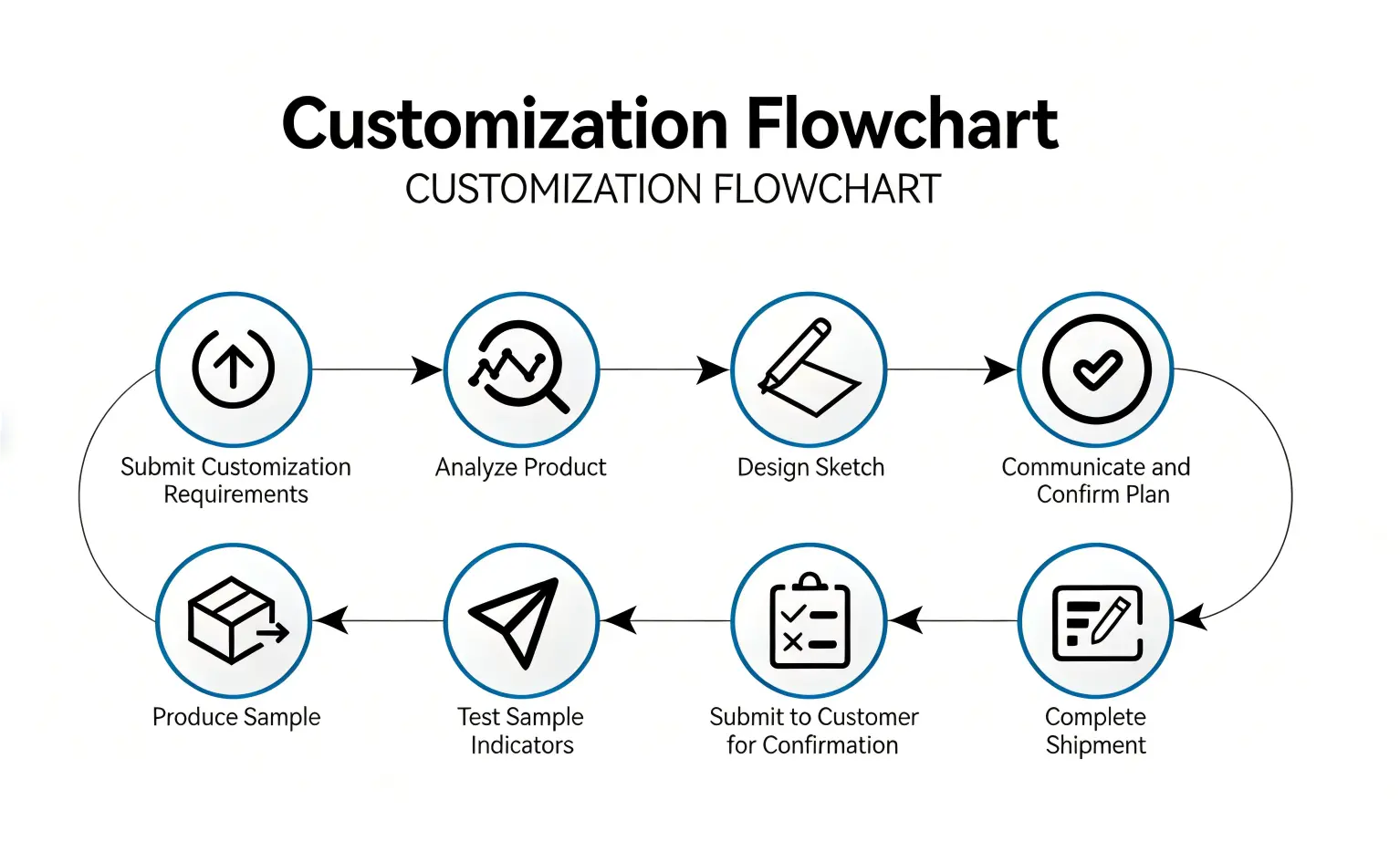

Customization process for female-to-female GPO adapters

Get Your Product Today

Ready to upgrade your RF connections? Our adapters, including the Female To Female GPO Adapter, provide the performance and reliability your applications demand. Contact our technical team for assistance in selecting the right configuration for your needs.

For technical support, custom orders, or product inquiries, reach out to us at postmaster@cymicrowave.com. We're here to help you find the perfect connector. Choose our precision adapters for reliable performance in demanding applications.
