Name: QMA Male To SMA Female Adapter
SKU: N/A

QMA Male To SMA Female Adapter

1. QMA male to SMA female adapter, used for signal conversion between devices with different interfaces. It enables the connection between QMA male connectors and SMA female connectors.
2. Commonly found in scenarios such as drones (humans), communication equipment, etc., supporting radio frequency signal transmission.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 18GHz typical
5. Insertion loss: .04√f (GHz)
6. Temperature range: -55°C to 125°C

QMA Male to SMA Female Adapter - Professional RF Connector Solution

When you need reliable signal conversion between different RF interfaces, the QMA Male to SMA Female Adapter delivers exceptional performance for your critical applications. This precision-engineered connector bridges QMA male and SMA female interfaces seamlessly. Whether you're working with drones, communication equipment, or test systems, this product ensures optimal signal integrity across your entire frequency range.

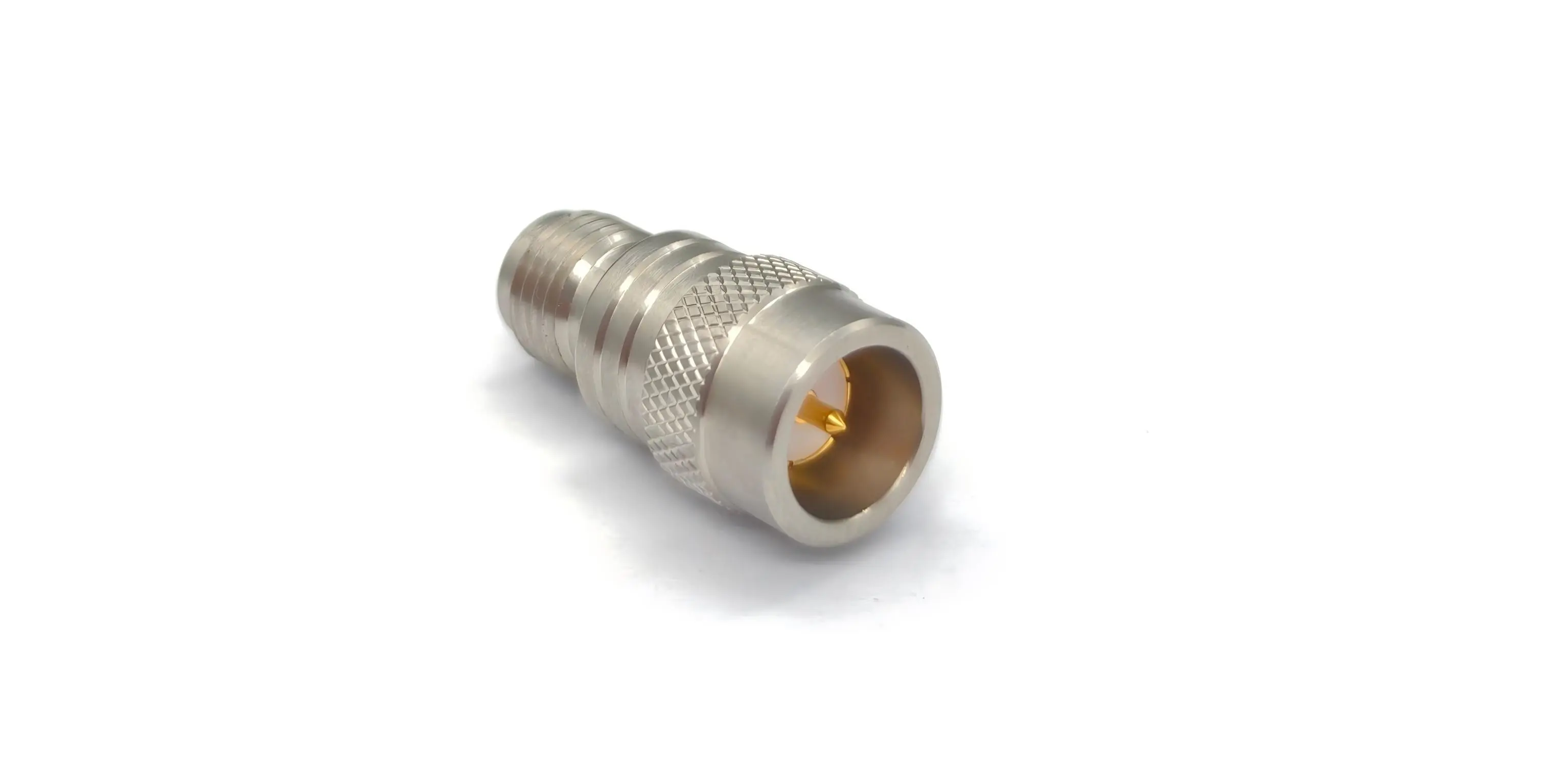

QMA male to SMA female adapter

Why Choose Our RF Adapters?

At Shaanxi Chuangyu Electronic Innovation, we get it your challenges in RF framework integration. You require components that work immaculately beneath requesting conditions. Our connectors fathom common network issues whereas keeping up flag quality.

Key Benefits:

Reliable signal conversion between incompatible connector types
Robust construction for harsh environments
Minimal signal loss across wide frequency ranges
Cost-effective solution for interface mismatches
Quick installation without special tools

QMA male to SMA female adapter

Technical Excellence You Can Trust

Our engineering team designs every adapter with precision manufacturing standards. You get consistent performance from DC to 18GHz with exceptional VSWR characteristics.

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
VSWR	1.15:1 to 18GHz typical
Insertion Loss	.04√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum

Contact Resistance

Component	Resistance
Outer Conductor	2.5 milliohms maximum
Inner Conductor	3 milliohms maximum

Materials & Construction

Component	Material
Housings	Stainless steel Passivated
Center Contacts	Beryllium copper gold
Insulators	PTFE

Mechanical Performance

Parameter	Specification
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≥0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.69N·m

Environmental Standards

Test	Standard
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106, except Step 7B

Common Applications

Drone Systems: You'll find these adapters essential for connecting antenna systems with mixed connector types. The lightweight design doesn't add unnecessary weight to your aircraft.

Test Equipment: Laboratory setups often require interface conversion. Our QMA Male To SMA Female Adapter maintains measurement accuracy while providing reliable connections.

Communication Networks: Base stations and repeaters benefit from the wide frequency response and low insertion loss characteristics.

Military & Aerospace: The rugged construction meets demanding environmental requirements for mission-critical applications.

Application areas of QMA male to SMA female adapters

Quality Manufacturing Process

Our Xi'an facility employs advanced manufacturing procedures guaranteeing steady quality. Each connector experiences thorough testing some time recently shipment. You get items that meet worldwide benchmarks.

Quality Assurance Features:

Precision machining for optimal fit
Gold-plated contacts for corrosion resistance
PTFE insulation for stable dielectric properties
Stainless steel housing for durability
Comprehensive electrical testing

QMA male to SMA female adapter with quality assurance.

Installation Made Simple

Introducing your modern connector requires no extraordinary devices. The strung coupling gives secure association whereas keeping up legitimate impedance coordinating. Hand-tightening taken after by legitimate torque guarantees ideal execution.

Installation Tips:

Clean mating surfaces before connection
Apply recommended torque specifications
Avoid over-tightening to prevent damage
Inspect connections periodically

QMA male to SMA female adapter installation instructions

Why Shaanxi Chuangyu Electronic Technology?

We've set up ourselves as a driving supplier of accuracy RF components. Found in Chang'an Development and Innovation Mechanical Stop, our office combines progressed fabricating with experienced building.

Our Expertise:

Over 200 millimeter wave connector specifications
More than 400 cable assembly configurations
Frequency capabilities up to 110GHz
Custom solutions for unique requirements
Comprehensive testing and quality assurance

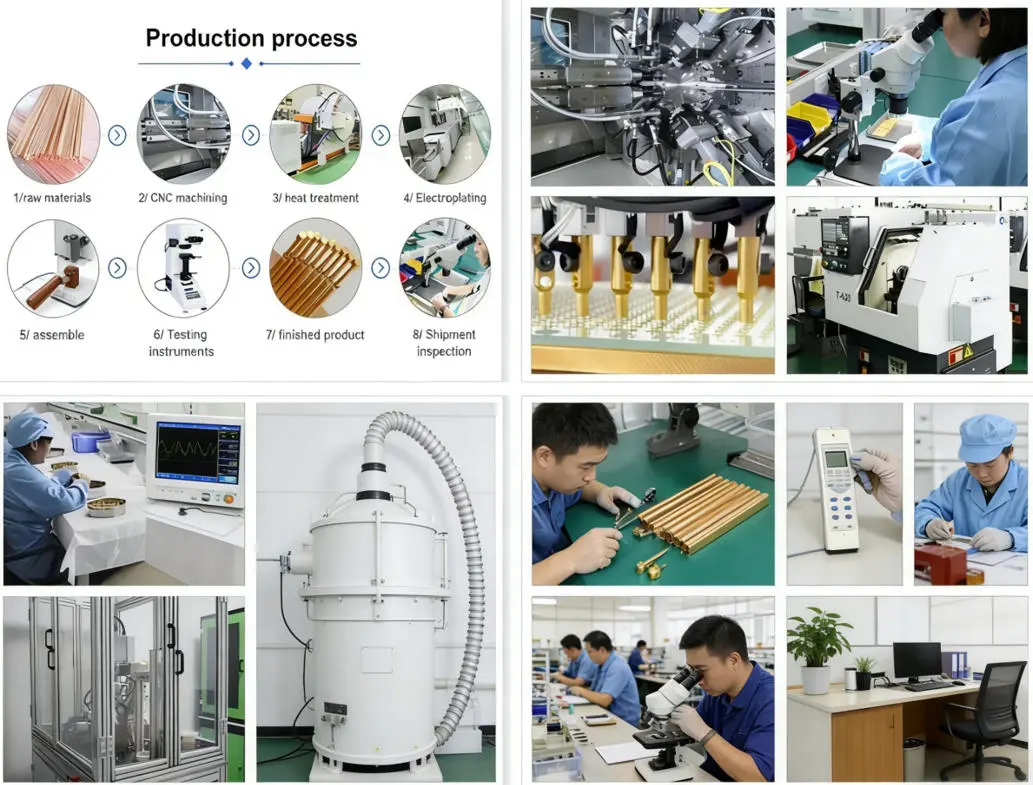

QMA male to SMA female adapter production workshop

Get Your Solution Today

Ready to solve your RF connectivity challenges? Our QMA Male to SMA Female Adapter provides the performance and reliability your applications demand. With proven track record across multiple industries, you can trust our products for critical applications.

Contact our technical team today for pricing and availability. We're ready to support your project requirements with expert guidance and rapid delivery.

Contact Information:

Email: postmaster@cymicrowave.com

Transform your RF system performance with professional-grade adapters designed for demanding applications. Experience the difference that quality engineering makes in your next project.
