Name: Cylindrical Battery Test Probe
SKU: N/A

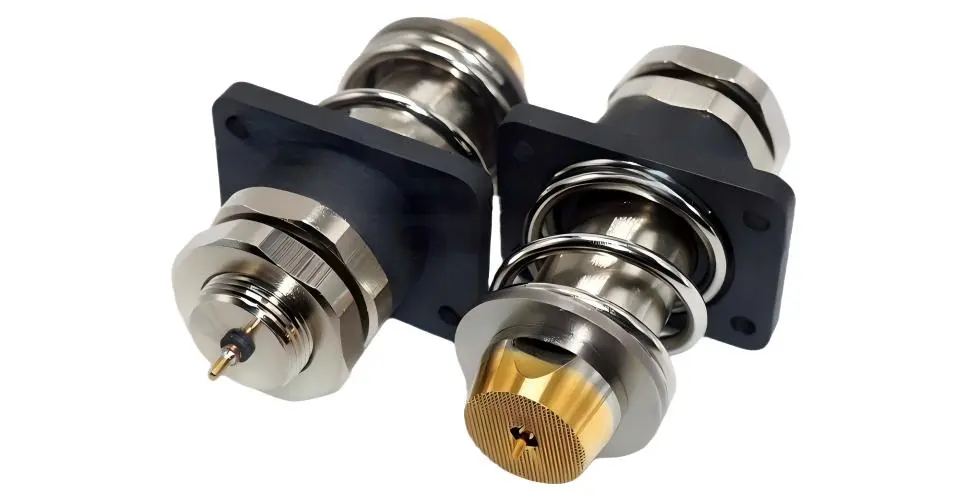

Cylindrical Battery Test Probe

1. Aging test for cylindrical battery testing, current transmission, signal induction or temperature measurement, conforms to specifications such as low resistance, high current transmission and stable contact.
2. Material: Beryllium copper gold-plated
3. Total length: 75mm
4. Working stroke force: 150N@6mm
5. Current load capacity: 300A
6. Typical resistance: <1mOhm
7. Operating temperature: -45°C to +200°C.

Cylindrical Battery Test Probe - High-Performance Testing Solution for Battery Applications

When you need reliable battery testing equipment, our Cylindrical Battery Test Probe delivers exceptional performance for aging tests, current transmission, and signal induction. Designed for precision cylindrical battery testing applications, this specialized contact component ensures stable contact and accurate measurements. Whether you're conducting OCV/DCIR testing or comprehensive aging evaluations, our probe meets the demanding requirements of modern battery testing protocols. With superior current handling capabilities and low-resistance design, this testing solution provides the reliability your operations demand.

Cylindrical Battery Test Probe

Why Choose Our Battery Testing Probes?

Battery testing requires precision equipment that can handle high currents while maintaining consistent contact. Our testing probes are engineered to meet these challenging demands. You get reliable performance across a wide temperature range, from -45°C to +200°C.

The beryllium copper construction with gold plating ensures excellent conductivity and corrosion resistance. This material combination provides long-lasting performance in demanding testing environments. Your testing accuracy depends on consistent electrical contact, which our probes deliver reliably.

Cylindrical Battery Test Probe

Advanced Design Features

Superior Current Handling

Our probe supports up to 300A with resistance below 1mOhm, ensuring accurate measurements and minimal heat generation, making it reliable for critical battery evaluation.

Robust Mechanical Performance

With a 75mm length, 6mm stroke, and 150N force rating, our probe ensures consistent contact pressure. The serrated tip design enhances stability across various battery surface conditions.

Temperature Resilience

Operating reliably from -45°C to +200°C, our probes handle extreme testing conditions. This wide temperature range supports comprehensive battery evaluation protocols. Your testing procedures can include thermal cycling without equipment limitations.

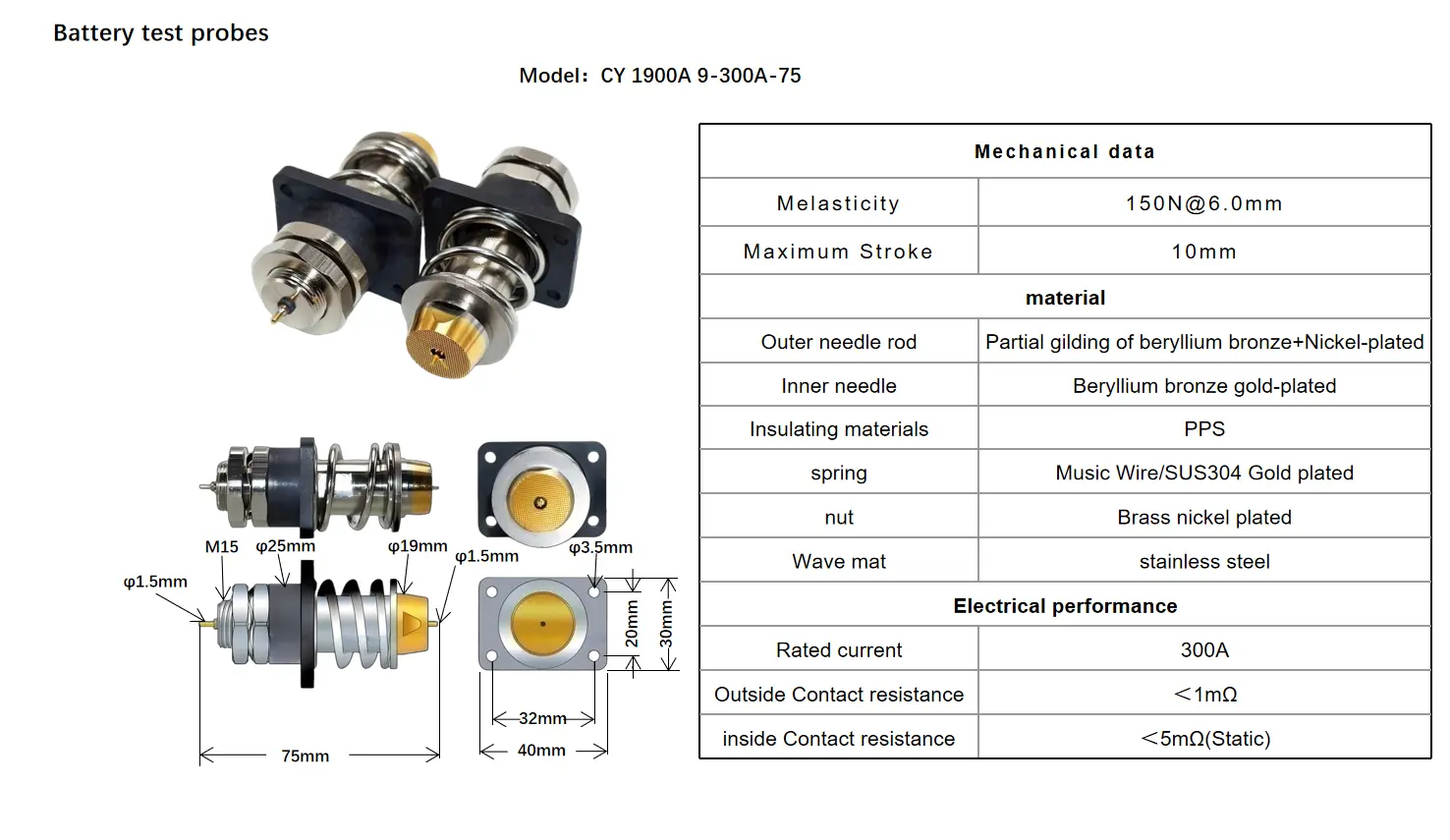

Technical Specifications

General Specifications
Model	CY 1900A 9-300A-75
Operating Temperature	-45°C to +200°C
Materials
---------------	---
Plunger	Beryllium copper gold
Barrel	Plastic
Spring	Steel
Mechanical Data
-------------------	---
Total Length	75 mm
Barrel Diameter	25 mm
Maximum Stroke	10 mm
Working Stroke	6 mm
Spring Force at Working Stroke	150 N
Tip Style	Serration
Tip Diameter	19 mm
Tip Surface	Gold
Electrical Data
-------------------	---
Current Load Capacity	300 A
Typical Resistance (Ri)	< 1 mOhm

Applications and Benefits

Battery Manufacturing

Our probe's precision and durability enhance quality control, enabling consistent testing protocols. Its high current capacity supports comprehensive electrical characterization of battery cells.

Research and Development

Laboratory testing requires equipment that delivers repeatable results. Our Cylindrical Battery Test Probe provides the accuracy needed for research applications. You get reliable data for battery performance analysis and development work.

Aging Test Operations

Our probes provide durable contact solutions for long-term testing, maintaining consistent performance through extended cycles with minimal maintenance during continuous operation.

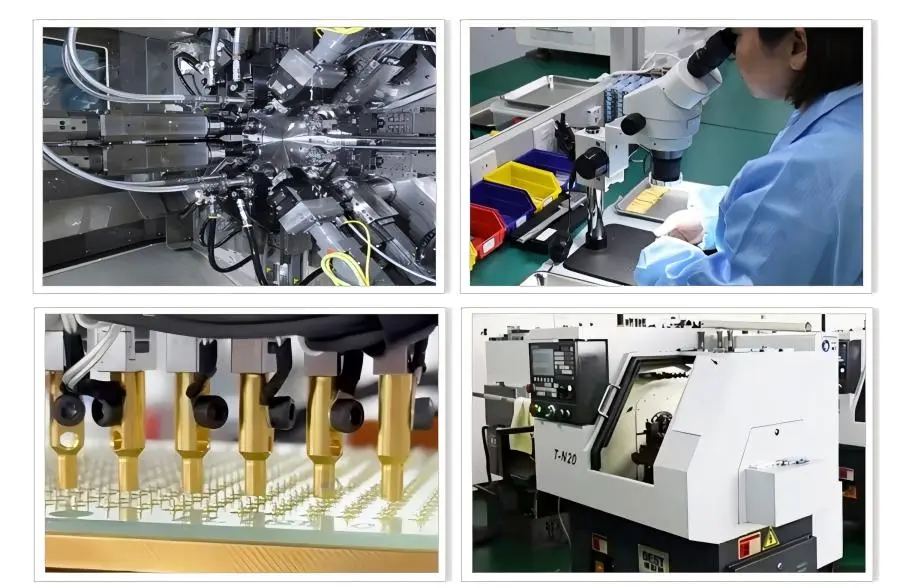

Cylindrical battery test probe applications

Quality and Reliability

Shaanxi Chuangyu Electronic Technology Co., Ltd. maintains strict production standards for all testing equipment. Our digital manufacturing processes ensure consistent quality across every probe. Precision testing instruments validate performance before shipment.

The gold-plated contact surface resists oxidation, ensuring low contact resistance and stable electrical performance, leading to consistent test results and reduced calibration needs over the probe's lifetime.

Cylindrical battery test probe quality control

Customization Options

Standard specifications meet most testing requirements, but we understand unique applications may need specialized solutions. Our engineering team can customize probe dimensions, current ratings, and tip configurations. You get testing equipment designed for your specific requirements.

Contact us to discuss custom probe designs for specialized battery testing applications. Our experience with precision test equipment enables effective solutions for challenging testing scenarios.

Customization process for cylindrical battery test probes

Getting Started

Ready to enhance your battery testing capabilities? Our product offers the performance and reliability your operations need. Contact our technical team to discuss your specific testing requirements and application details.

For technical specifications, pricing information, or custom design consultation, reach out to us at postmaster@cymicrowave.com. We're here to support your battery testing success with high-quality probe solutions.
