Name: Coaxial Adapter 3.5mm Plug To 3.5mm Jack
SKU: N/A

Coaxial Adapter 3.5mm Plug To 3.5mm Jack

1. Coaxial adapter 3.5mm plug to 3.5mm socket. Used for radio frequency (RF) signal transmission, connecting devices with 3.5mm interfaces on both ends, achieving the conversion of male and female interfaces of the same specification. 2. Used in scenarios requiring stable RF connections, such as communication equipment and test instruments. 4. Can be interchanged with 2.92mm connectors or SMA connectors. 5. VSWR: 1.15:1 to 26.5GHz typical 6. Insertion loss: .05√f (GHz)

Coaxial Adapter 3.5mm Plug To 3.5mm Jack - Professional RF Connection Solution

Looking for a reliable RF connection solution? Our Coaxial Adapter 3.5mm Plug To 3.5mm Jack delivers exceptional performance for your communication and testing needs. This precision-engineered connector interfaces gadgets with 3.5mm interfacing on both closes, changing over male to female associations consistently. With 50-ohm impedance and recurrence extend up to 26.5GHz, you get professional-grade network for basic applications. Whether you're working with communication hardware or test rebellious, this connector guarantees steady RF flag transmission each time.

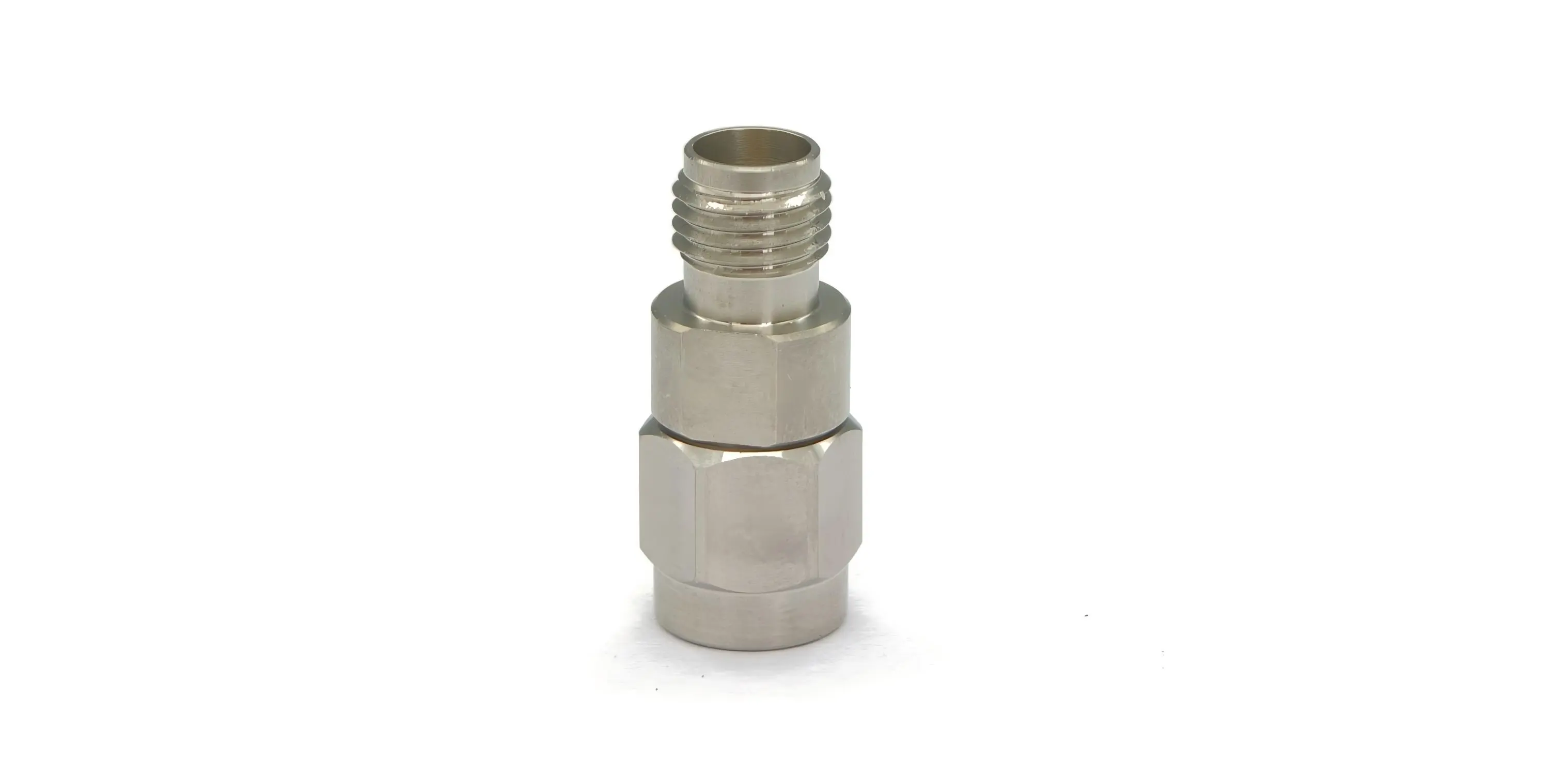

Coaxial adapter, 3.5mm plug to 3.5mm jack

Why Select Our 3.5mm Coaxial Adapter?

You require components that perform immaculately beneath requesting conditions. Our connector stands out with a few key advantages:

High-Frequency Execution: Working up to 26.5GHz, this connector handles indeed the most requesting RF applications. You can believe it for millimeter wave communications and exactness testing.

Universal Compatibility: The design allows complete interchange with SMA and 2.92mm connectors. This flexibility saves you inventory costs and simplifies your system design.

Reliable Connection: Each mate and demate cycle maintains consistent performance. With 500 cycle durability, you get long-term value from every adapter.

Precision Engineering: Our manufacturing process ensures tight tolerances and consistent quality. Every adapter meets strict performance standards before shipping.

Coaxial adapter with 3.5mm plug to 3.5mm jack - Key features

Technical Excellence You Can Trust

Electrical Performance

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 26.5 GHz
VSWR	1.15:1 to 26.5GHz typical
Insertion Loss	.05√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum

Mechanical Specifications

Parameter	Specification
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≤0.23N.m
Connection Torque	0.79N·m-1.13N·m
Withstand Torque	1.69N·m
Temperature Range	-65°C to 165°C

Materials & Construction

Component	Material
Housing	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI

Built for Demanding Environments

Your applications don't stop for harsh conditions. Our adapters meet rigorous military standards:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

These certifications mean you can deploy our adapters in aerospace, defense, and industrial environments with confidence.

Perfect Applications for Your Projects

Our Coaxial Adapter 3.5mm Plug To 3.5mm Jack excels in numerous scenarios:

Test Equipment: Connect oscilloscopes, spectrum analyzers, and network analyzers. The low insertion loss preserves signal integrity for accurate measurements.

Communication Systems: Link transmitters, receivers, and amplifiers in wireless infrastructure. High-frequency capability supports 5G and beyond applications.

Laboratory Research: Enable precise connections in R&D environments. Reliable performance ensures consistent experimental results.

Microwave Applications: Handle millimeter wave frequencies with minimal loss. Perfect for radar and satellite communication systems.

Coaxial adapter, 3.5mm plug to 3.5mm jack for industrial applications.

Quality Manufacturing Process

At Shaanxi Chuangyu Electronic Technology, we understand that precision matters. Our manufacturing facility in Xi'an employs advanced processes to ensure every adapter meets your expectations.

We use precision testing instruments throughout production. Each adapter undergoes comprehensive testing before shipping. This attention to detail has earned recognition from customers across new energy, medical, communications, and military industries.

Our expertise extends beyond standard products.We can customize arrangements for interesting prerequisites. Whether you require extraordinary materials, adjusted measurements, or improved execution details, our designing group works with you to create the idealize arrangement.

Coaxial adapter with 3.5mm plug to 3.5mm jack - Quality Guarantee

Expert Support When You Need It

You deserve responsive technical support. Our experienced team understands RF applications and can help you select the right components for your project, including the Coaxial Adapter 3.5mm Plug To 3.5mm Jack.

Have questions about compatibility? Need guidance on installation? Want to discuss custom requirements? We're here to help. Contact us at postmaster@cymicrowave.com for prompt, knowledgeable assistance.
