Name: SMA To SMA RF Extension Cable
SKU: N/A

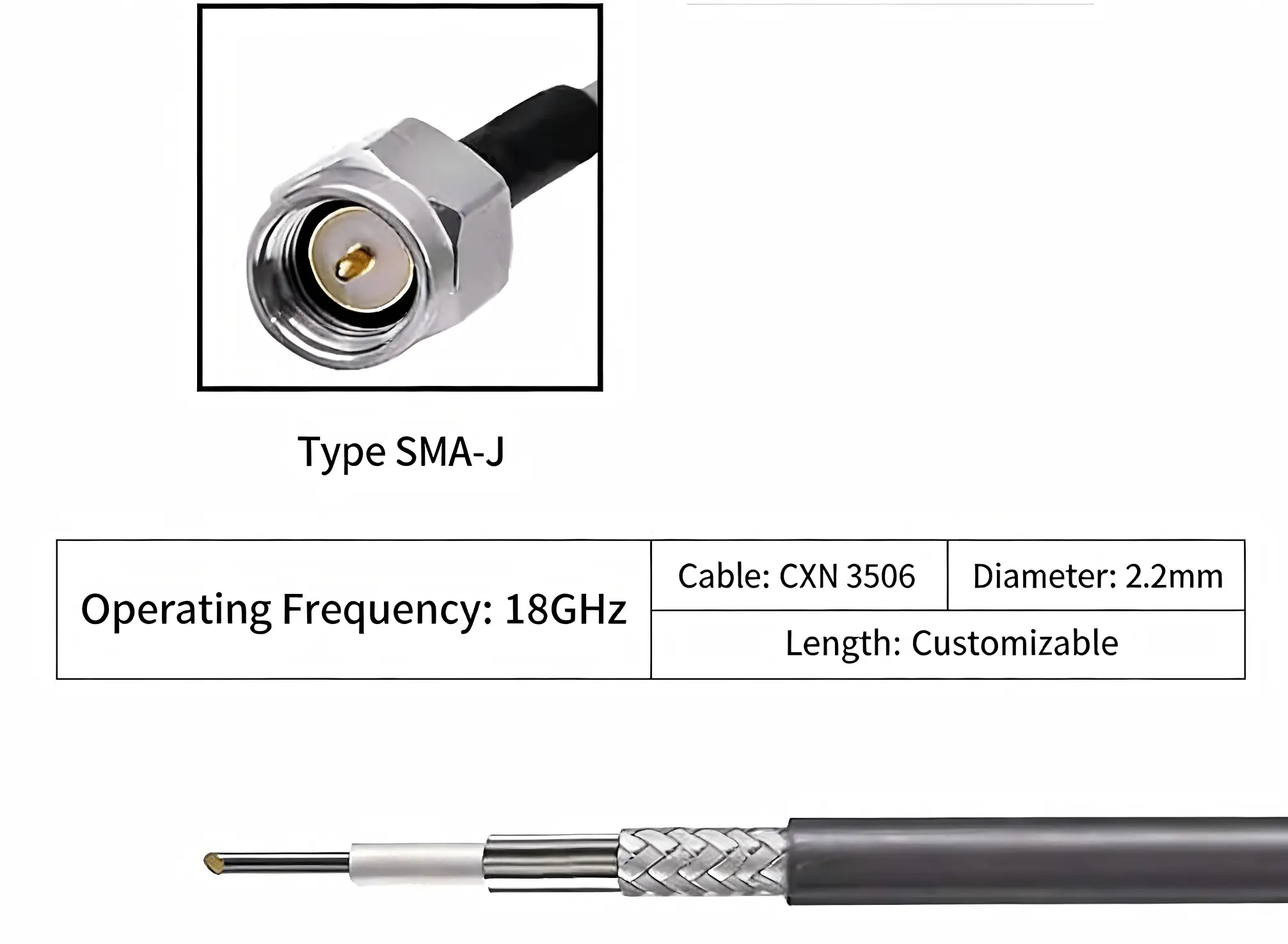

SMA To SMA RF Extension Cable

1. The SMA to SMA RF extension cable is a coaxial RF extension cable with one end featuring an SMA male connector (plug) and the other end featuring an SMA female connector (jack), used to extend the transmission distance of RF signals.
2. Impedance: 50 Ohms nominal
3. Frequency range: DC to 18GHz
4. Adapter cable: CXN3506
5. Static bend radius: 11mm
6. Dynamic bend radius: 22mm
7. Temperature range: -55°C to 125°C

SMA To SMA RF Extension Cable - Premium Quality Coaxial RF Solutions

Looking for reliable RF signal transmission solutions? Our SMA To SMA RF Extension Cable delivers exceptional performance for your communication and testing needs. Designed with precision engineering, this coaxial extension cable features an SMA male connector on one end and an SMA female connector on the other. Whether you're working on laboratory testing, antenna applications, or wireless communication systems, this cable ensures optimal signal integrity across demanding environments. Built to professional standards, it maintains consistent 50-ohm impedance throughout its length.

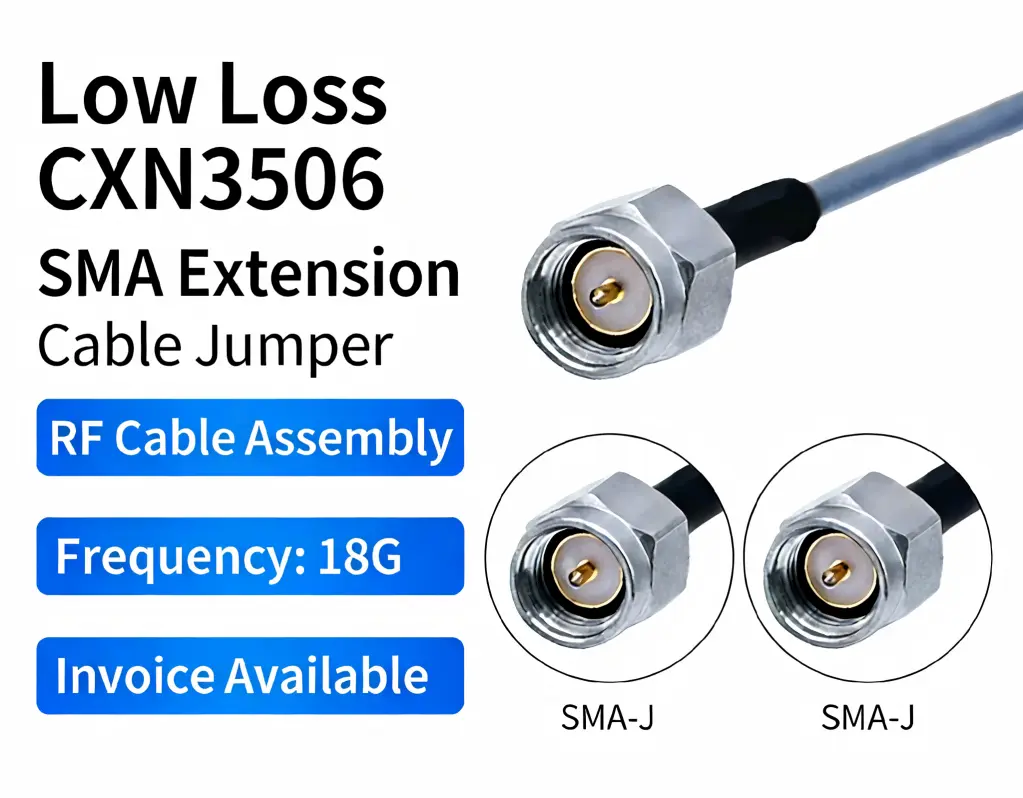

SMA To SMA RF Extension Cable

What Makes Our RF Extension Cables Special?

At Shaanxi Chuangyu Electronic Technology, we understand that signal quality matters. Our engineering team has developed these extension cables using premium CXN3506 low-loss coaxial technology. Each cable undergoes rigorous testing to meet international standards.

The pure copper core construction minimizes signal degradation. Meanwhile, the advanced shielding provides over 100dB of interference protection. This combination ensures your signals remain clean and reliable, even in challenging electromagnetic environments.

Our manufacturing facility in Xi'an employs strict quality control measures. Every connector receives precise machining and careful assembly. The result? Cables that perform consistently across their entire frequency range.

SMA To SMA RF Extension Cable

Technical Specifications

General Specifications	Value
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Adapter Cable	CXN3506
Temperature Range	-55°C to 125°C
Static Bend Radius	11mm
Dynamic Bend Radius	22mm
Electrical Performance	Value
---------------------------	-----------
VSWR	1.25:1 to 18GHz typical
Insertion Loss	0.05 √f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum
Outer Conductor Resistance	2.5 milliohms maximum
Inner Conductor Resistance	4 milliohms maximum
Materials & Construction	Specification
-----------------------------	-------------------
Housings	Stainless steel passivated
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical Data	Value
--------------------	-----------
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque	0.79N·m-1.13N·m
Withstand Torque	1.69N·m

Key Applications and Benefits

These RF extension cables offer excellent signal fidelity for test setups, flexibility for antenna systems, and stable performance across a wide temperature range, making them ideal for military, aerospace, medical, and outdoor applications.

Your projects deserve components that won't let you down. Our SMA To SMA RF Extension Cable delivers that reliability. The low insertion loss preserves signal strength over extended runs. High-quality materials resist corrosion and wear.

Why Choose Our RF Solutions?

We've been serving the electronics industry for years. Our experience spans multiple sectors, including telecommunications, military, and medical applications. This expertise shows in every product we manufacture.

Quality control starts with incoming materials inspection. Every component meets our strict standards before assembly. Final testing ensures each cable performs to specification.

Our customer service team understands RF applications. They're ready to help you select the right cable configuration. Need custom lengths or special connectors? We can accommodate most requirements.

SMA To SMA RF Extension Cable

Environmental Standards and Reliability

These cables meet rigorous environmental standards. They pass thermal shock testing per MIL-STD-202 specifications. Salt spray resistance ensures reliable coastal and marine operation.

Vibration and shock testing validate mechanical integrity. Moisture resistance testing confirms performance in humid conditions. These tests guarantee your cables will perform when you need them most.

The gold-plated center contacts resist oxidation. PTFE insulation maintains electrical properties across temperature extremes. Stainless steel housings provide long-term durability.

Getting Started with Your Order

Ready to enhance your RF setup? Contact our team to discuss your specific requirements. We'll help you select the optimal cable configuration for your application.

Our SMA To SMA RF Extension Cable options include various lengths and configurations. Standard lead times keep projects on schedule, while volume pricing makes large orders economical. Quality documentation and test reports ensure compliance with industry standards.

For technical questions or custom requirements, reach out to us at postmaster@cymicrowave.com. Our engineering team is ready to support your project success. Let us help you achieve reliable RF connectivity today.
