4.3-10 RF Coaxial Load
1.4.3-10 RF Coaxial Load is a type of RF coaxial load adopting the 4.3-10 interface standard, featuring a 50-ohm impedance.
2.It is primarily used in RF systems for power absorption or matching. Suitable for scenarios such as RF testing and communication base stations, it serves as a terminal load or power matching component, equipped with a high-impedance anti-corrosion coating to enhance durability.

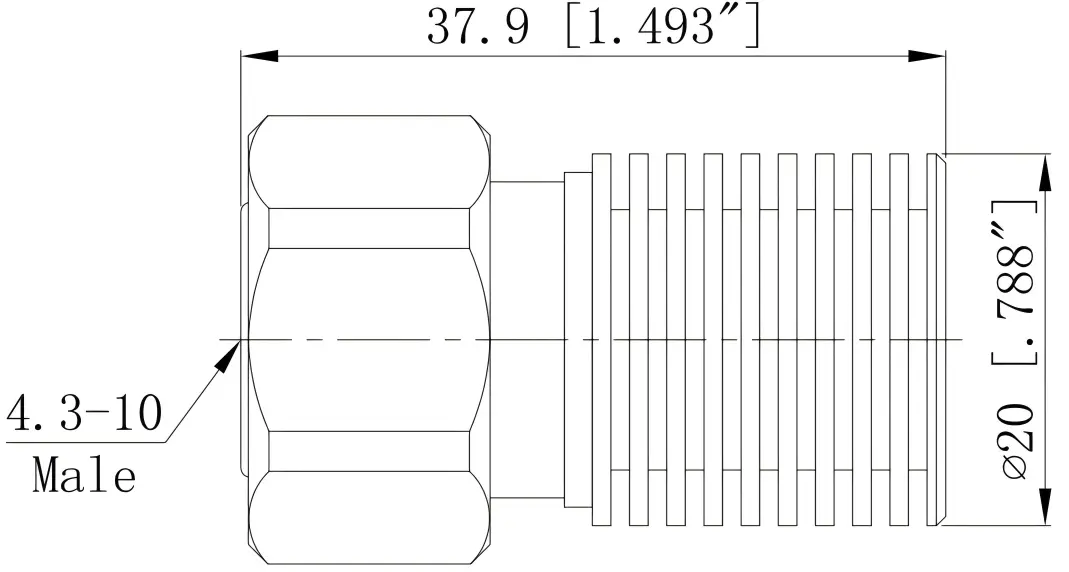

3.It supports threaded (tool-installed) and quick-lock (tool-free push-pull) connections, with a more compact size (outer diameter approximately 20.0mm) and lighter weight.
4.Impedance: 50 Ohms nominal
5.Frequency range: DC to 6GHz
6.VSWR: 1.15:1 to 6GHz typical
7.Power: 10W
8.Temperature range: -55°C to 125°C
2.It is primarily used in RF systems for power absorption or matching. Suitable for scenarios such as RF testing and communication base stations, it serves as a terminal load or power matching component, equipped with a high-impedance anti-corrosion coating to enhance durability.
3.It supports threaded (tool-installed) and quick-lock (tool-free push-pull) connections, with a more compact size (outer diameter approximately 20.0mm) and lighter weight.
4.Impedance: 50 Ohms nominal
5.Frequency range: DC to 6GHz
6.VSWR: 1.15:1 to 6GHz typical
7.Power: 10W
8.Temperature range: -55°C to 125°C
Product Description
4.3-10 RF Coaxial Load - Professional Power Absorption Solution for RF Systems
Are you looking for a reliable RF termination solution for your communication systems? Our 4.3-10 RF Coaxial Load delivers exceptional power absorption performance with 50-ohm impedance matching. This progressed RF component highlights the industry-standard 4.3-10 interface, making it idealize for RF testing applications, communication base stations, and control coordinating prerequisites. Built with high-impedance anti-corrosion coating, our item guarantees long-lasting strength and steady execution over requesting environments.
What Is the product?
An RF coaxial stack retains undesirable RF vitality, anticipating flag reflections and ensuring hardware. Our 4.3-10 connector offers a compact plan, superior execution, and less demanding establishment than conventional 7-16 Commotion connectors.
The 50-ohm impedance detail guarantees culminate coordinating with standard RF transmission lines. This anticipates standing wave arrangement and maximizes control exchange productivity all through your system.
Key Features and Benefits
Compact and Lightweight Design
The 4.3-10 interface provides substantial size reduction compared to legacy connectors. You'll appreciate the easier handling and installation, especially in dense equipment configurations.
Dual Connection Options
Choose between threaded (tool-required) and quick-lock (tool-free push-pull) connection methods. The quick-lock feature enables faster installation and maintenance while maintaining secure connections.
Superior Electrical Performance
Our load delivers excellent VSWR performance of 1.15:1 typical across the entire DC to 6GHz frequency range. This ensures minimal signal reflection and optimal system performance.
Enhanced Durability
The high-impedance anti-corrosion coating ensures against natural variables. Your speculation remains secured through expanded operational life, indeed in challenging open air establishments.
Wide Operating Temperature Range
Function reliably from -55°C to +125°C, making our 4.3-10 RF Coaxial Load suitable for extreme climate conditions and diverse geographical deployments.
Technical Specifications
| Category | Parameter | Value |
|---|---|---|
| General | Product Name | 4.3-10-JR-06-10W RF Load |
| Impedance | 50 Ohms nominal | |
| Frequency Range | DC to 6GHz | |
| Temperature Range | -55°C to +125°C | |
| Electrical | VSWR | 1.15:1 to 6GHz typical |
| Insertion Loss | .1 √f (GHz) | |
| Power Rating | 10W | |
| DWV @ Sea Level | 2500 Vrms | |
| Insulation Resistance | 5,000 megohms minimum | |
| Contact Resistance (Outer) | 0.3 milliohms maximum | |
| Contact Resistance (Inner) | 1 milliohms maximum | |
| Materials | Housings | Copper-plated ternary alloy |
| Center Contacts | Silver-plated copper | |
| Insulators | PTFE | |
| Mechanical | Mate/Demate Cycles | 500 cycles |
| Biting Force | ≤34-1.13N | |
| Separation Force | ≥12.7N | |
| Connection Torque | 5N.m | |
| Environmental | Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Salt Spray | MIL-STD-202, Method 101, Condition B | |
| Vibration | MIL-STD-202, Method 204, Condition D | |
| Shock | MIL-STD-202, Method 213, Condition I | |
| Moisture Resistance | MIL-STD-202, Method 106, except Step 7B |
Applications and Use Cases
Communication Base Stations
RF loads are crucial in cellular infrastructure, providing reliable termination for unused ports, antenna testing, and system commissioning with consistent performance.
RF Testing and Measurement
Laboratory and field testing demand precise load characteristics. The excellent VSWR specification ensures accurate measurements across your frequency range of interest.
Antenna Systems
During antenna installation and maintenance, loads provide safe termination for RF ports. This prevents equipment damage and ensures worker safety around high-power transmitters.
Broadcasting Equipment
Radio and television broadcast facilities require dependable RF components. Our load meets broadcast industry standards for reliability and performance.
Why Choose Shaanxi Chuangyu Electronic Technology?
Our engineering team can customize solutions for unique requirements. Whether you need modified specifications or special packaging, we work with you to deliver the exact solution your application demands.
Quality Assurance and Testing
Each load component undergoes rigorous testing according to military and industry standards. Environmental testing includes thermal shock, salt spray exposure, vibration, and moisture resistance evaluation.
The 500-cycle mate/demate specification ensures long-term reliability in field applications. PTFE insulation provides excellent dielectric properties and chemical resistance.
Silver-plated copper contacts minimize insertion loss while copper-plated housing ensures optimal shielding effectiveness.
Get Started Today
Ready to integrate our 4.3-10 RF Coaxial Load into your next project? Our technical team stands ready to assist with selection guidance and application support.
Contact us at postmaster@cymicrowave.com for detailed specifications, pricing information, and delivery schedules. We offer detailed technical documentation to support successful implementation. Our RF loads provide reliable performance for both new designs and system upgrades in mission-critical applications.
