Name: SSMA RF Connector
SKU: N/A

SSMA RF Connector

1. SSMA RF connector A miniaturized RF connector with superior high-frequency performance. It is designed based on the SMA interface standard, with a size of about 70% of the conventional SMA connector, featuring a characteristic impedance of 50 ohms, and uses a threaded connection (10-36UNF-2).
2. Its operating frequency is up to 26.5GHz, suitable for high-precision microwave signal transmission. Its applications include microwave communication, measurement equipment, missile guidance, satellite payloads, and many other fields.
2. Bent SSMA male connector
3. Impedance: 50 Ohms nominal
4. VSWR: 1.2:1 to 26.5GHz typical
5. Insertion loss: .1√f (GHz)
7. Adaptation cable: RG316
6. Temperature range: -55°C to 125°C

SSMA RF Connector: Precision Engineered for High-Frequency Applications

When you need reliable microwave connectivity in space-constrained environments, our SSMA RF Connector delivers exceptional performance. This miniaturized RF connector provides superior high-frequency capabilities while maintaining the reliability you demand. Based on the proven SMA interface standard, the product measures approximately 70% the size of conventional SMA connectors. You get 50-ohm characteristic impedance with threaded connection reliability (10-36UNF-2). Operating frequencies reach up to 26.5GHz, making this connector perfect for high-precision microwave signal transmission in demanding applications.

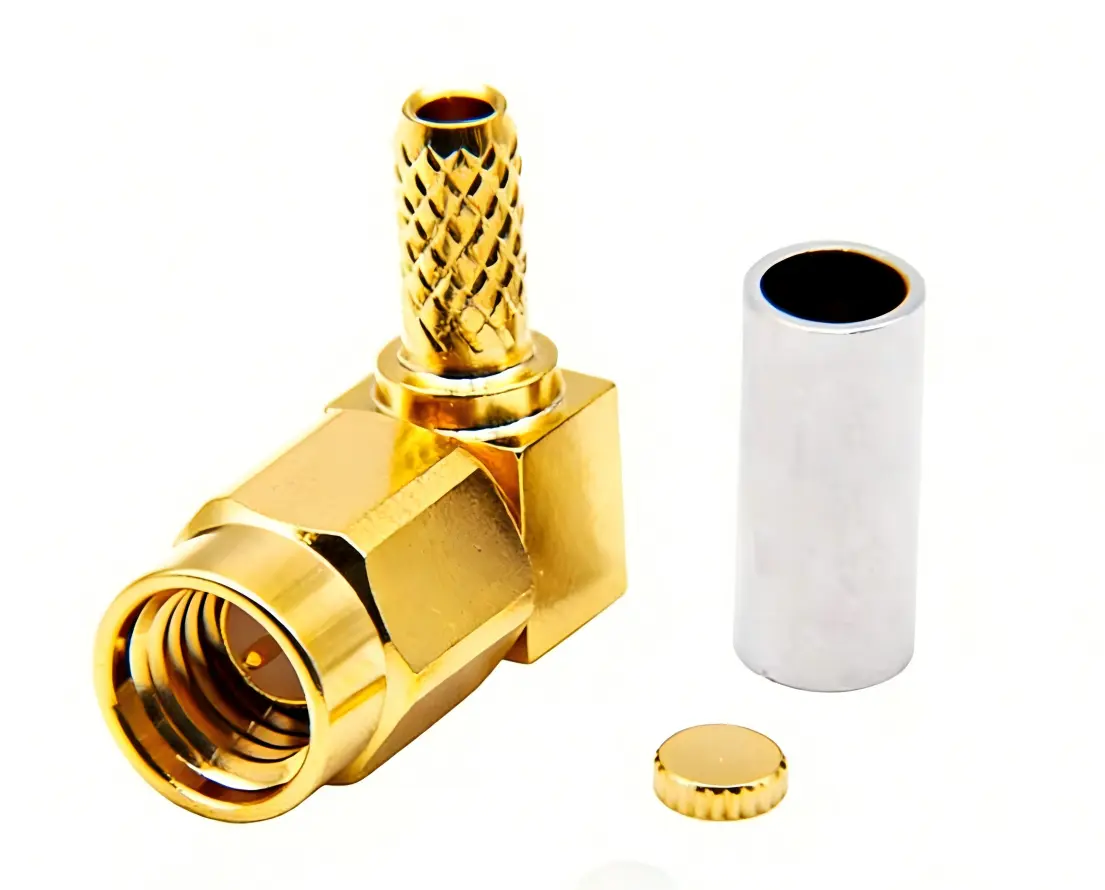

SSMA right-angle crimp cable connector

What Makes Our SSMA Connectors Special?

Our connectors feature compact design without performance compromise. You benefit from high-density integration capabilities with an outer conductor inner diameter of just 2.79mm. This space-efficient design fits perfectly in your tightest installations.

The threaded locking mechanism ensures stable connections even in harsh environments. Whether you're working on aerospace projects, defense systems, or precision measurement equipment, these connectors maintain signal integrity under extreme conditions.

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 26.5GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.2:1 to 26.5GHz typical
Insertion Loss	.1√f (GHz)
DWV @ Sea Level	750 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	4 milliohms maximum
Materials
Housing	Stainless steel passivated
Center Contacts	Beryllium copper gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.12N.m
Connection Torque	0.6N·m - 0.8N·m
Withstand Torque	1.2N·m

Key Applications

Your projects benefit from these connectors in multiple industries:

Microwave Communication Frameworks: Culminate for cellular base stations, remote framework, and communication systems where space is premium.

Precision Estimation Hardware: Perfect for test and estimation applications requiring exact flag transmission.

Aerospace and Defense: Meets rigid military benchmarks for adj. payloads, rocket direction frameworks, and radar applications.

Medical Gear: Appropriate for high-frequency restorative imaging and demonstrative equipment.

Automotive Testing: Perfect for modern vehicle communication systems and testing equipment.

SSMA right-angle crimp cable connector

Quality You Can Trust

Our manufacturing process follows strict quality control standards. Every SSMA RF Connector undergoes rigorous testing to ensure reliability. We use precision testing instruments throughout production to guarantee consistent performance.

Environmental testing includes thermal shock, salt spray resistance, vibration, and moisture resistance per MIL-STD-202 standards. Your connectors perform reliably in challenging conditions.

Why Choose Shaanxi Chuangyu?

Located in Chang'an Advancement and Innovation Mechanical Stop, we specialize in exactness electrical connectors and RF arrangements. Our skill amplifies to millimeter wave frequencies up to 110GHz, guaranteeing future-proof arrangements for your projects.

We offer custom arrangements for non-standard necessities. Our designing group works with you to create connectors that meet your particular application needs. From starting plan through generation and testing, we keep up quality at each step.

Our item portfolio incorporates over 200 determinations of mmWave connectors and 400+ details of cable gatherings. This broad extend guarantees you discover the right arrangement for your application.
