Name: 2.92 Female To N Male Adapter
SKU: N/A

2.92 Female To N Male Adapter

1.2.92mm female to N-type male adapter, used for connecting different types of radio frequency interfaces. It converts the 2.92mm female interface to an N-type male interface, enabling signal transmission between different radio frequency systems.
2.N-type extended to 18GHz.
3.Impedance: 50 Ohms nominal.
4.VSWR: 1.15:1 to 18GHz typical.
5.Insertion loss: .04√f (GHz).
6.Temperature range: -55°C to 125°C.

2.92 Female To N Male Adapter - Professional RF Connector Solution

Looking for a reliable connector to bridge different RF interfaces? Our 2.92 Female To N Male Adapter delivers exceptional performance for your precision applications. This high-quality adapter seamlessly converts 2.92mm female interfaces to N-type male connections, enabling smooth signal transmission between different RF systems. With support for frequencies up to 18GHz and superior stainless steel construction, this adapter meets demanding technical requirements. Whether you're working in telecommunications, testing, or research applications, this product provides the reliability you need.

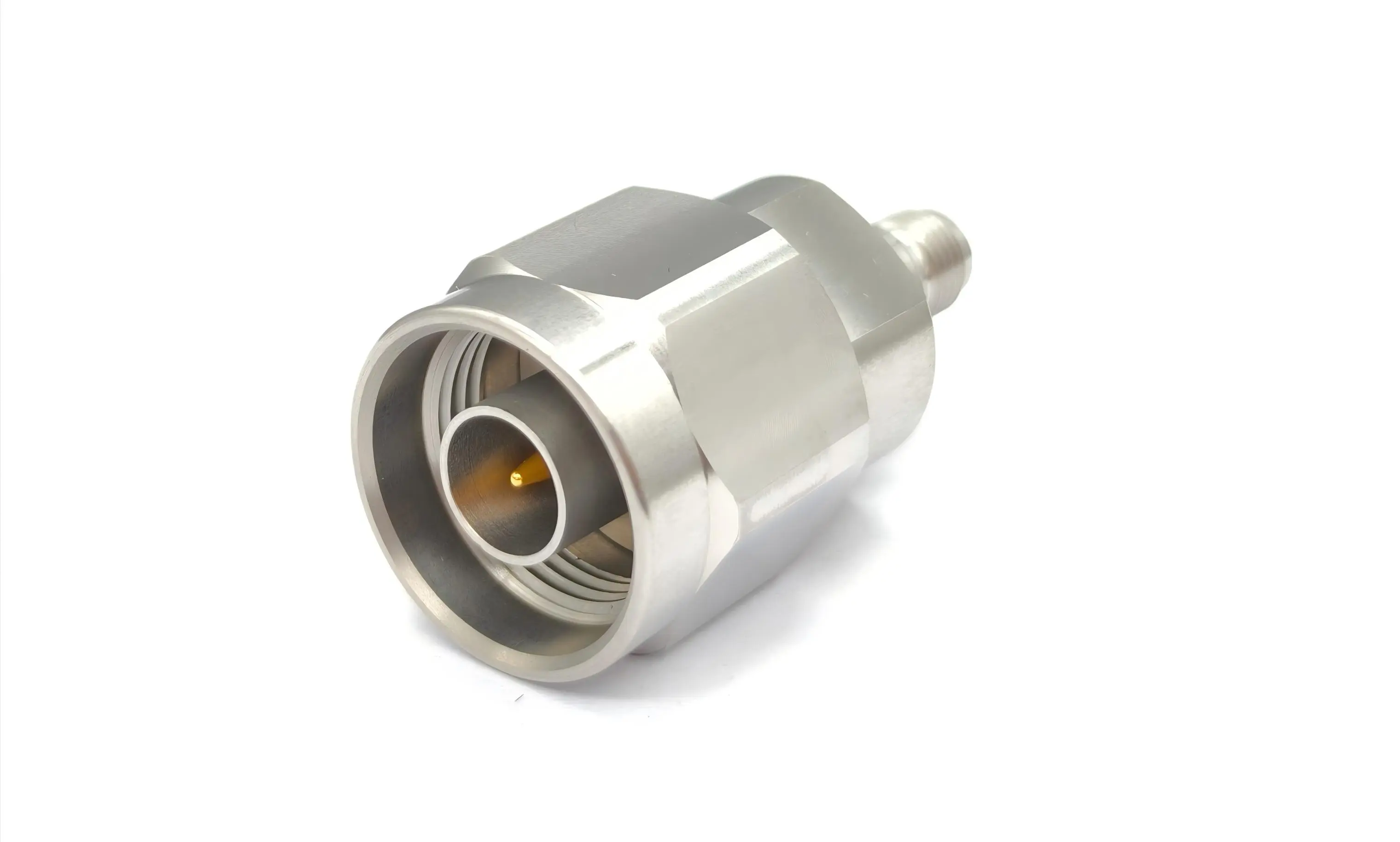

2.92 female to N male adapter

What Makes Our RF Adapter Special?

You get more than just a standard connector with our adapter. The stainless steel construction ensures excellent durability and superior salt spray resistance. This means your connections stay reliable even in harsh environments.

With a frequency range from DC to 18GHz, this adapter suits telecommunications, test equipment, and research. It offers excellent temperature performance from -55°C to 125°C, ensuring reliable operation in extreme conditions.

Technical Excellence You Can Trust

Electrical Performance

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
VSWR	1.15:1 to 18GHz typical
Insertion Loss	.04√f (GHz)
DWV @ Sea Level	1000 Vrms
Insulation Resistance	5,000 megohms minimum

Contact Resistance

Component	Maximum Resistance
Outer Conductor	2.5 milliohms
Inner Conductor	3 milliohms

Material Construction

Component	Material
Housings	Stainless Steel Passivated
Center Contacts	Beryllium Copper Gold
Insulators	PEI & PTFE

Mechanical Specifications

Parameter	Value
Mate/Demate Cycles	500 cycles
Engagement/Disengagement Force	≥0.23N.m
Connection Torque	0.79N·m - 1.13N·m
Withstand Torque	1.69N·m
Temperature Range	-55°C to 125°C

Superior Design Features

Robust Construction

The 2.92 Female To N Male Adapter features a stainless steel housing that provides excellent mechanical strength. You get consistent performance even after repeated connections. The passivated finish adds extra corrosion resistance.

Premium Contact Materials

Beryllium copper center contacts with gold plating ensure optimal signal transfer. This combination delivers low insertion loss and excellent conductivity. The gold plating prevents oxidation over time.

Advanced Insulation

PEI and PTFE insulators provide superior electrical properties. These materials maintain their characteristics across the full temperature range. You get stable performance in any environment.

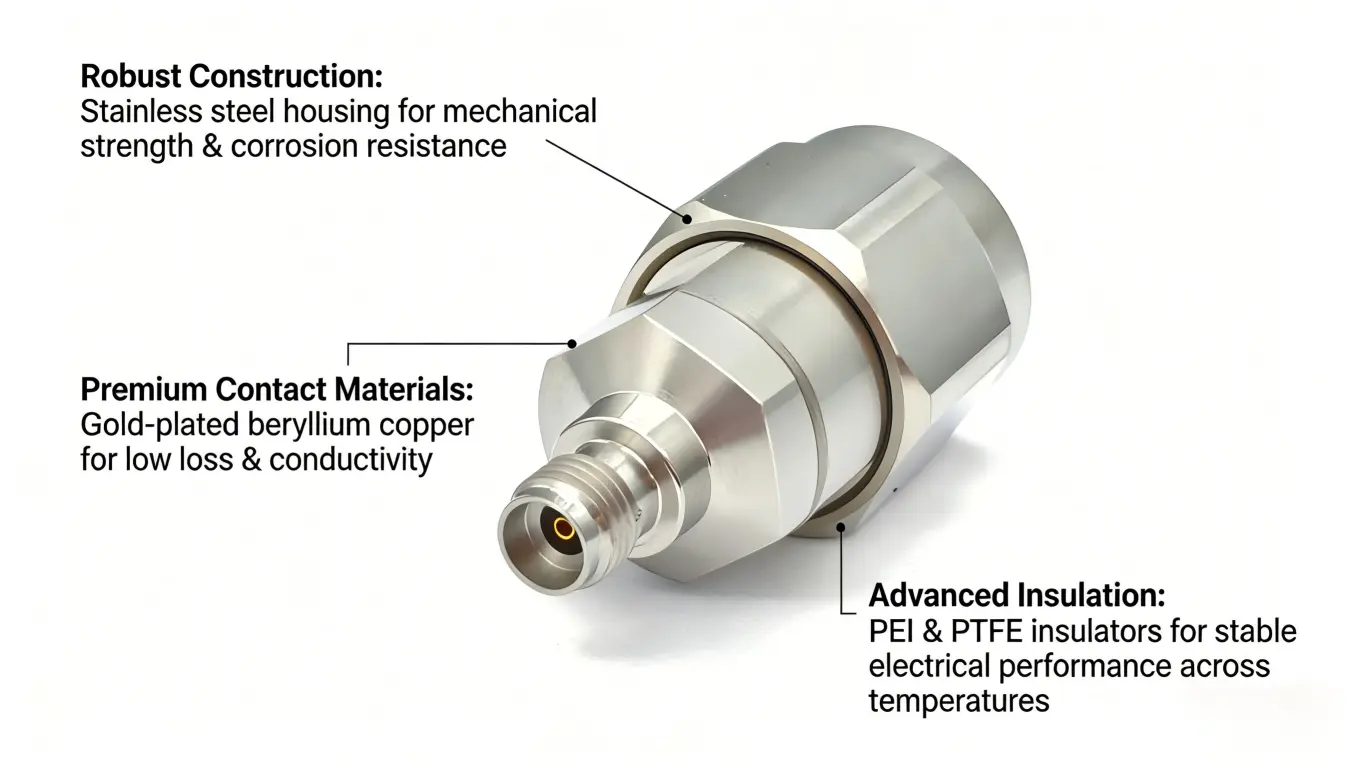

2.92mm female to N-type male adapter design features

Environmental Compliance

Our adapter meets rigorous military standards for reliability:

Thermal Shock: MIL-STD-202, Method 107, Condition B
Salt Spray: MIL-STD-202, Method 101, Condition B
Vibration: MIL-STD-202, Method 204, Condition D
Shock: MIL-STD-202, Method 213, Condition I
Moisture Resistance: MIL-STD-202, Method 106

These certifications mean you can trust this adapter in demanding applications. Military-grade testing ensures consistent performance.

Why Choose Shaanxi Chuangyu?

With years of expertise in precision RF components, our Chang'an facility leverages advanced manufacturing capabilities. We ensure strict quality control from design to testing, using precision instruments to verify each adapter before shipping.

We serve diverse industries including telecommunications, medical devices, and military applications. Our experience across these sectors helps us understand your unique requirements.

2.92mm Female to N-Type Male Adapter Customization Service

Perfect Applications

This adapter works excellently in:

Test equipment calibration
Network analyzer setups
Antenna system connections
Laboratory measurement systems
Military communication equipment
Research and development projects

2.92mm female to N-type male adapter applications

Quality Assurance

Every product undergoes comprehensive testing. We verify electrical performance, mechanical integrity, and environmental compliance. Our digital manufacturing approach ensures consistent quality.

The 500-cycle mate/demate rating means long service life. You get reliable connections that maintain their performance over time. This reduces maintenance costs and system downtime.

2.92 Female to N Male Adapter Quality Guarantee

Get Your Adapter Today

Ready to experience superior RF connectivity? Our 2.92 Female To N Male Adapter delivers the performance and reliability your applications demand. Contact our technical team for detailed specifications or custom requirements.

For inquiries and orders, reach us at postmaster@cymicrowave.com. We provide technical support and can discuss your specific application needs. Let us help you find the perfect connectivity solution.
