Name: Hermetic Feedthrus
SKU: N/A

Hermetic Feedthrus

1. Hermetic feedthroughs are components used for safely transferring current, signals, or fluids in a sealed environment. Their core function is to maintain the system's hermeticity, water resistance, or vacuum state while achieving internal and external connections.
2. Glass-to-metal seals and ceramic-to-metal hermetic feedthroughs.
3. Widely used in industries such as defense, healthcare, semiconductors, energy, and aerospace, which have strict requirements for environmental isolation (e.g., high-pressure equipment, Phoxinus phoxinus subspecies phoxinus Utetheisa kong system).
4. Rated current: 2-3A
5. DWV @ sea level: 300 Vrms
6. Insulation resistance: 1,000 megohms minimum
7. Leak rate: < 1.01325 X 10^-3 Pa*cm^3/s
8. Temperature range: -65°C to 260°C

Hermetic Feedthrus: Precision Solutions for Sealed Environment Connectivity

When you need reliable electrical connections in demanding sealed environments, Hermetic Feedthrus become essential components for your critical applications. These specialized connectors maintain perfect system integrity while enabling safe current, signal, or fluid transmission between isolated environments. At Shaanxi Chuangyu Electronic Technology Co., Ltd., we understand that your projects require components that deliver unwavering performance in the most challenging conditions. Our precision-engineered solutions ensure your systems maintain their airtight, waterproof, or vacuum states without compromising connectivity.

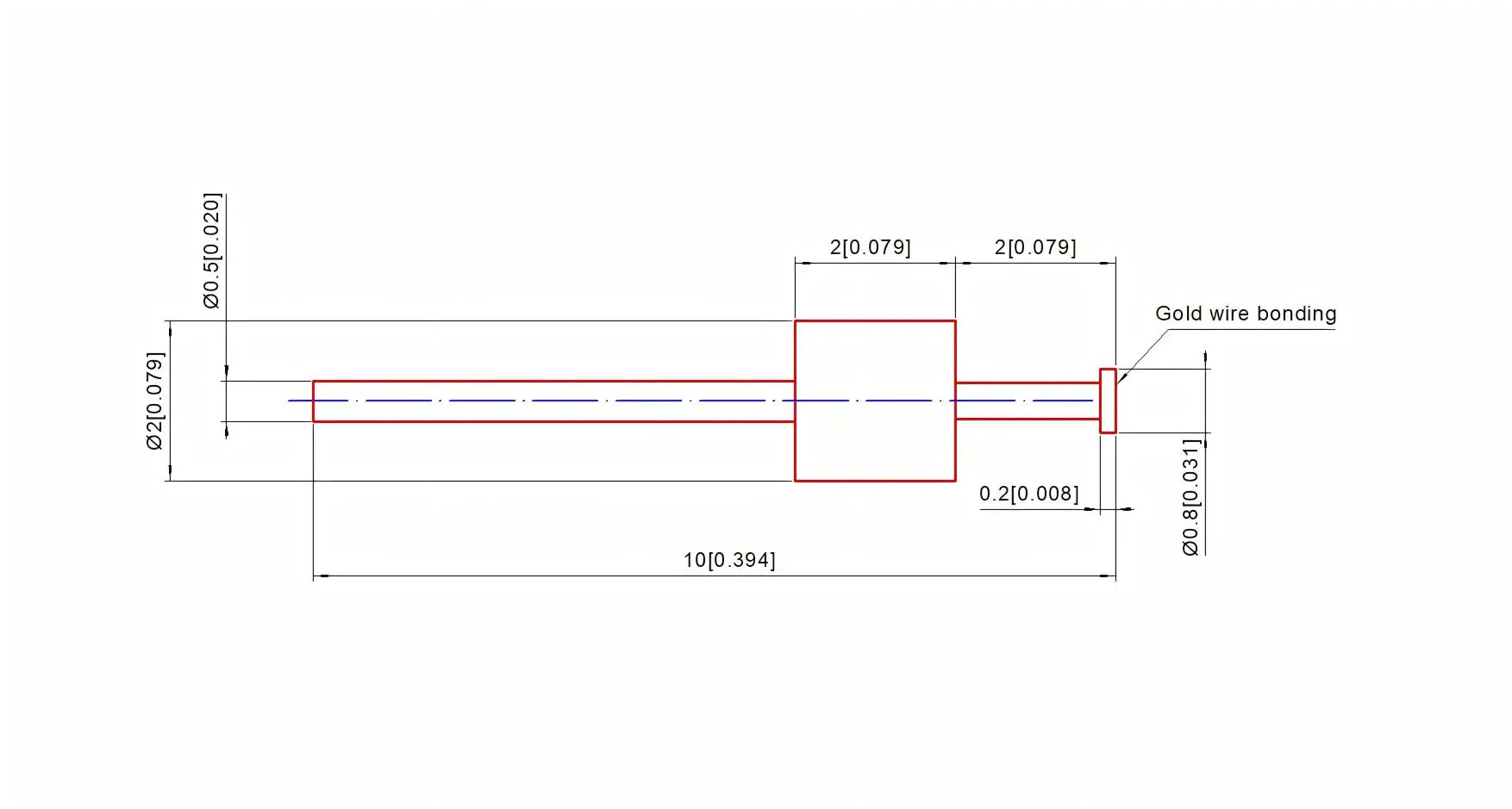

product-1-1

What are the products and Why Do You Need Them?

Hermetic feedthrough connectors serve as the bridge between your internal and external systems. They're designed to prevent any environmental contamination while maintaining electrical continuity. Think of them as guardians of your sealed environments.

Your applications benefit from these components when you need:

Complete environmental isolation
Long-term reliability in harsh conditions
Precise electrical performance
Zero tolerance for leakage

Industries like defense, medical devices, semiconductors, energy, and aerospace rely on these connectors daily. Your high-pressure equipment and vacuum systems depend on their flawless performance.

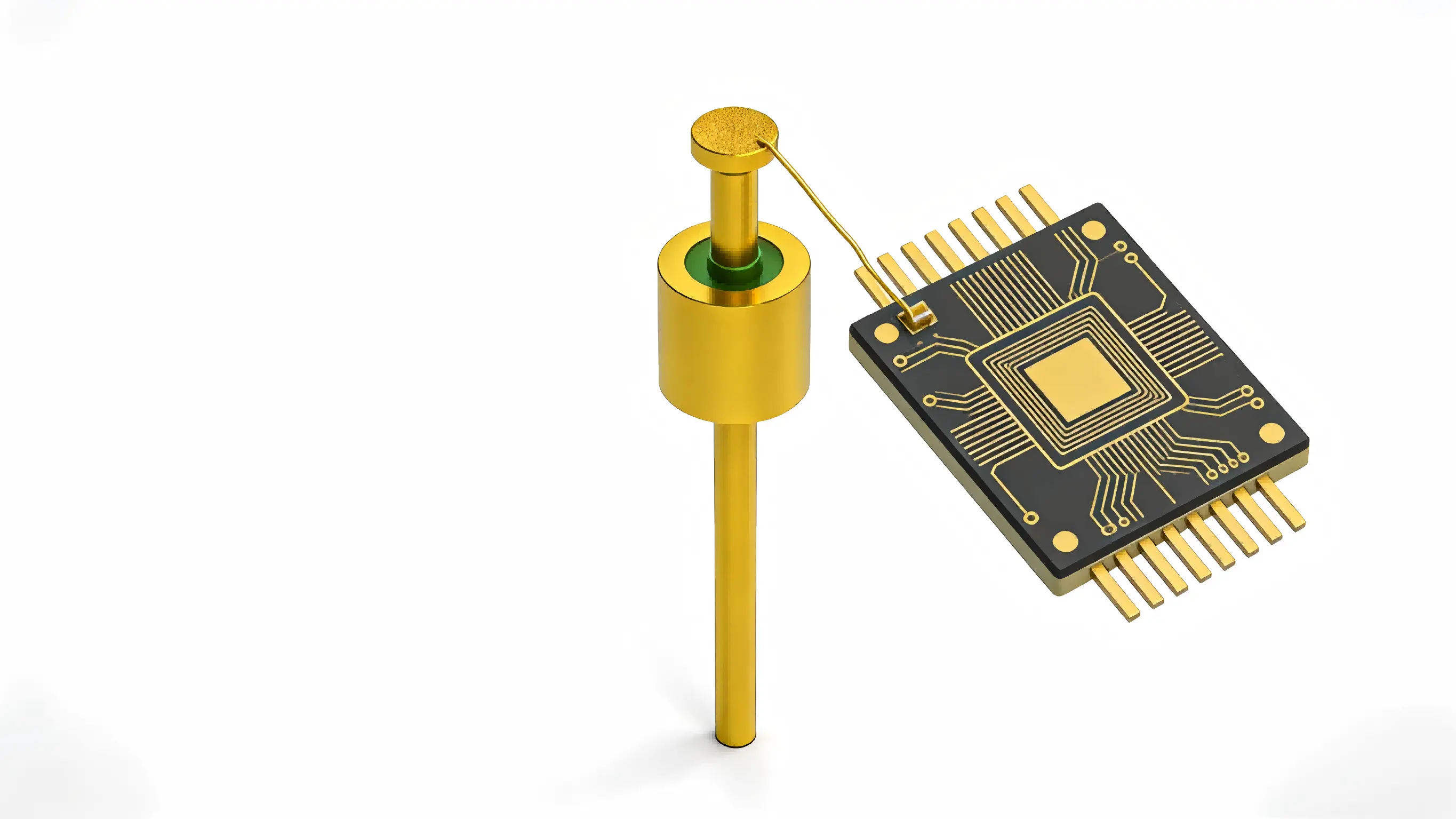

product-1-1

Key Features That Set Our Products Apart

Superior Sealing Technology

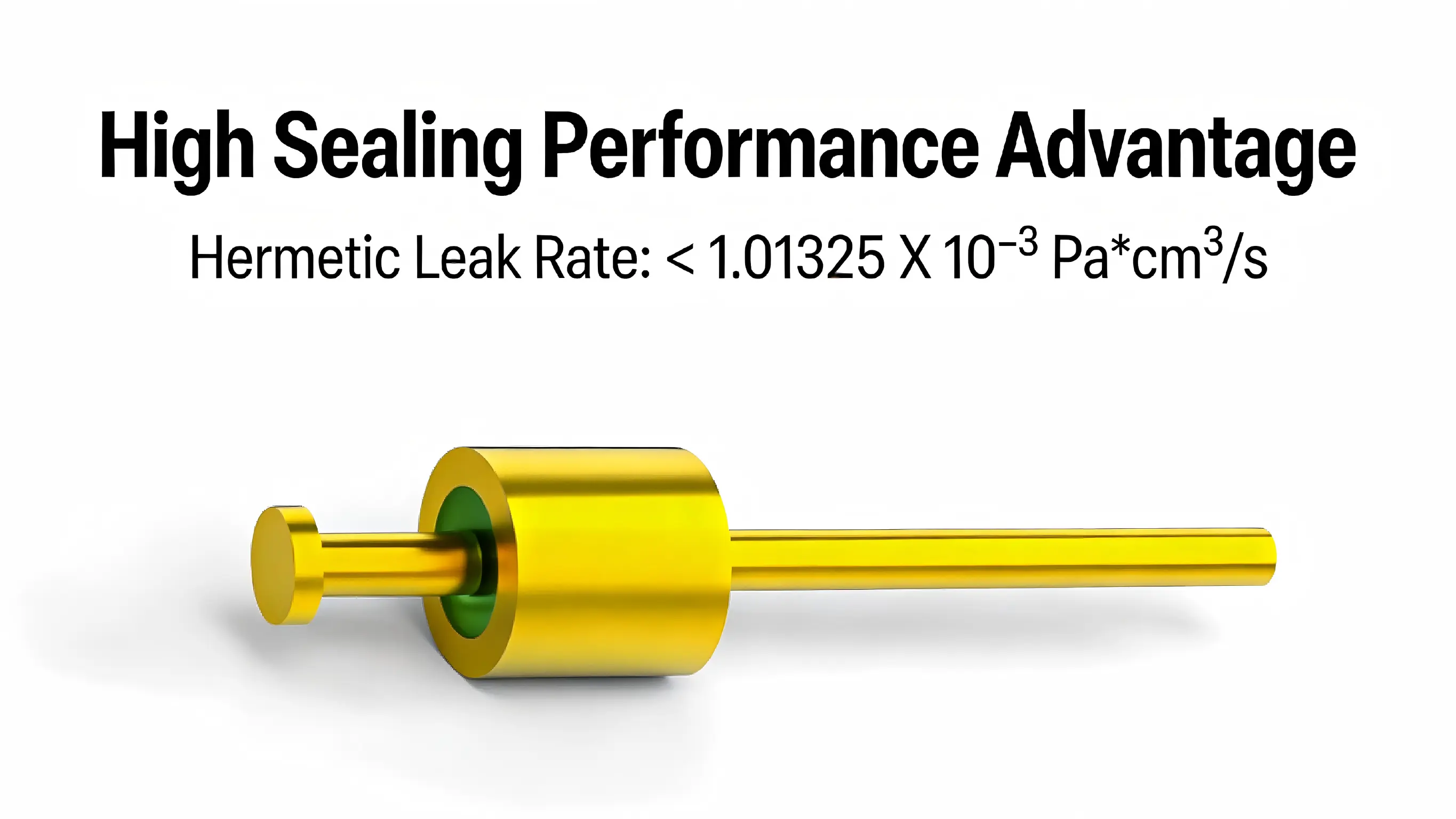

Our sealing technology ensures bonds with leak rates below 1.01325 X 10^-3 Pa*cm³/s, protecting sealed environments under extreme conditions.

Wide Temperature Performance

Your operations won't be limited by temperature extremes. Our connectors perform reliably from -65°C to 260°C, covering virtually any application you might encounter.

Robust Electrical Characteristics

With 2-3A current rating, over 1,000 megohms insulation resistance, and 300 Vrms dielectric voltage, these components ensure reliability and safety.

Premium Materials

We use Kovar 4J29 with gold plating for housing, paired with glass insulators (7050, 7070, DM308) for excellent corrosion resistance and electrical isolation.

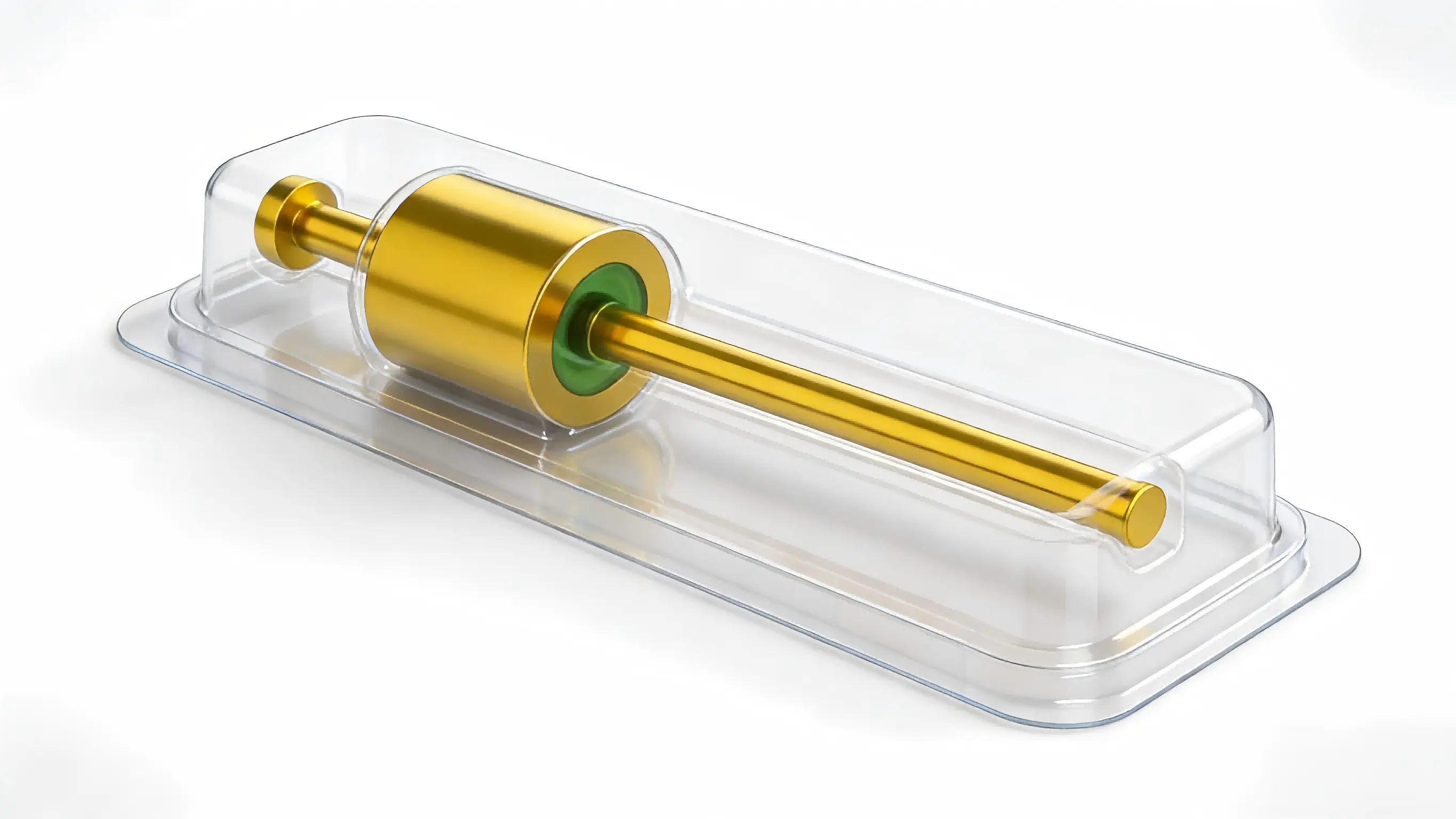

product-1-1

Technical Specifications

Category	Parameter	Value
General	Model	CYD2020-0.5(10-2)-JH
	Temperature Range	-65°C to 260°C
Electrical	Rated Current	2-3A
	DWV @ Sea Level	300 Vrms
	Insulation Resistance	1,000 megohms minimum
	Leak Rate	< 1.01325 X 10^-3 Pa*cm³/s
		< 1X 10^-9 mbar*l/s
		< 1 x 10^-9 ccHe/sec @ 1 atm
Materials	Housings	Kovar 4J29 gold
	Center Contacts	Kovar 4J29 gold
	Insulators	7050/7070 Type or DM308 glass
Environmental	Thermal Shock	MIL-STD-202, Method 107, Condition B
	Salt Spray	MIL-STD-202, Method 101, Condition B
	Vibration	MIL-STD-202, Method 204, Condition D
	Shock	MIL-STD-202, Method 213, Condition I
	Moisture Resistance	MIL-STD-202, Method 106

Applications Across Industries

Medical Equipment

Your medical devices require absolute reliability. Our hermetic seals protect sensitive electronics in implantable devices, diagnostic equipment, and life-support systems.

Aerospace and Defense

Mission-critical applications demand components that never fail. These connectors maintain performance in extreme altitudes, temperatures, and pressure differentials.

Semiconductor Manufacturing

Clean room environments and vacuum chambers need contamination-free connections. Our Hermetic Feedthrus ensure your processes remain pure and controlled.

Energy Systems

From nuclear facilities to renewable energy installations, these connectors provide safe electrical transmission in hazardous or sensitive environments.

product-1-1

Quality You Can Trust

Our manufacturing follows strict quality control with tests for thermal shock, salt spray, vibration, and moisture resistance per MIL-STD-202. We’ve invested in precision testing and digital manufacturing processes to ensure top quality.This ensures consistency from the first prototype to high-volume production runs. Your projects benefit from components that meet or exceed industry standards.

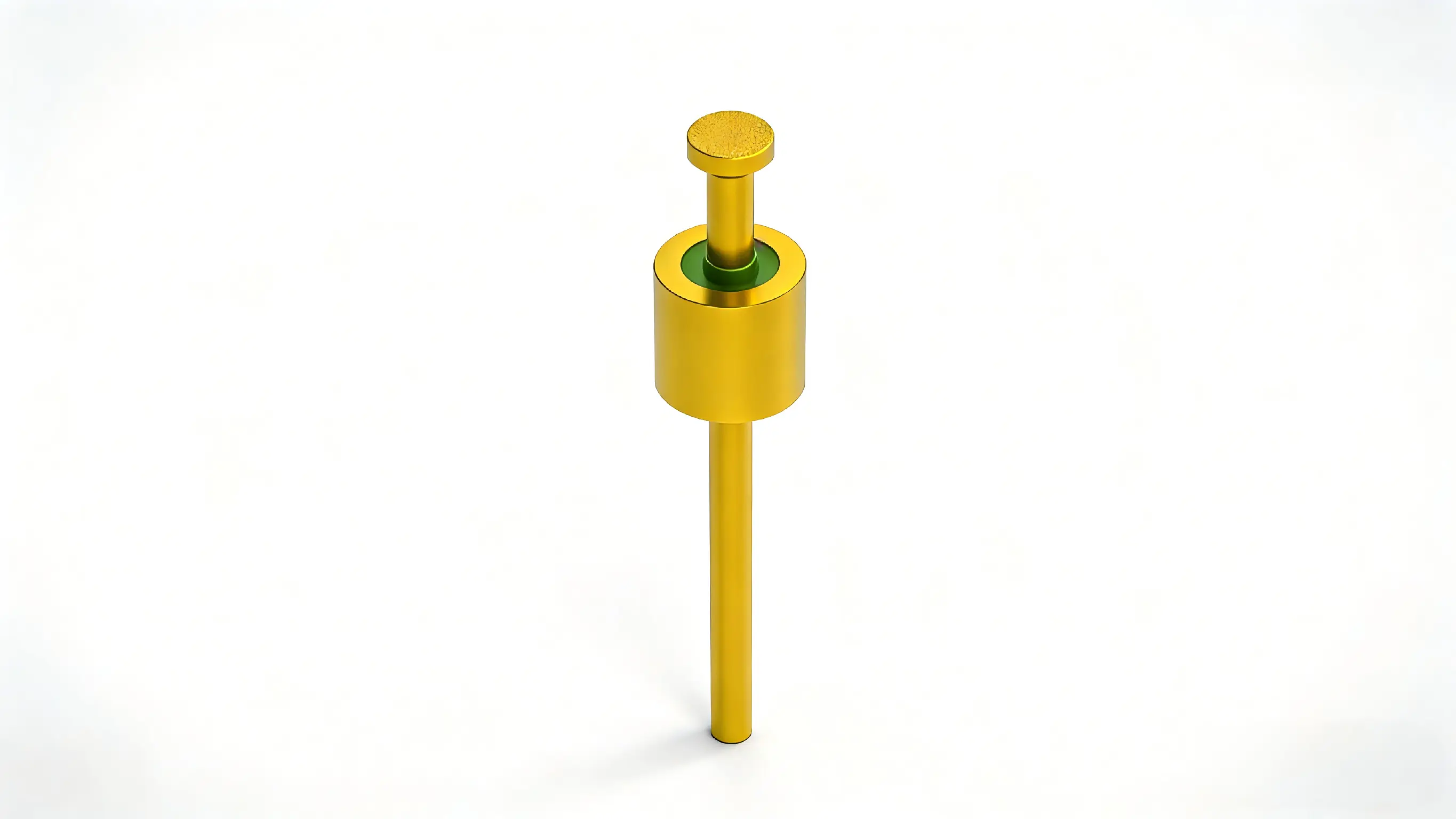

product-1-1

Custom Solutions for Unique Requirements

Standard products may not meet all needs, so we offer customization services for pin configurations, materials, and form factors. Our engineering team collaborates to create tailored solutions, with design capabilities extending beyond connectors.We provide complete solutions including PCB design, electronic assembly, and testing fixtures. You get a single-source partner for your entire project.

Why Choose Shaanxi Chuangyu?

Located in Xi'an's Chang'an Park, we blend advanced manufacturing with technical expertise. Our team excels in applications, extending connector tech to 110 GHz while ensuring reliability.

Your satisfaction drives our continuous improvement efforts. We maintain rigorous production processes and invest in the latest testing equipment to ensure every products connector meets your expectations.

product-1-1

Get Started Today

Ready to discuss your hermetic feedthrough requirements? Our technical team is here to help you select the right solution or develop a custom design. Contact us at postmaster@cymicrowave.com to begin your project consultation.

Your sealed environment applications deserve components that deliver flawless performance. Choose our precision-engineered Hermetic Feedthrus for connections you can trust in any environment.
