Name: 2.4 Female To Gppo Female Adapter
SKU: N/A

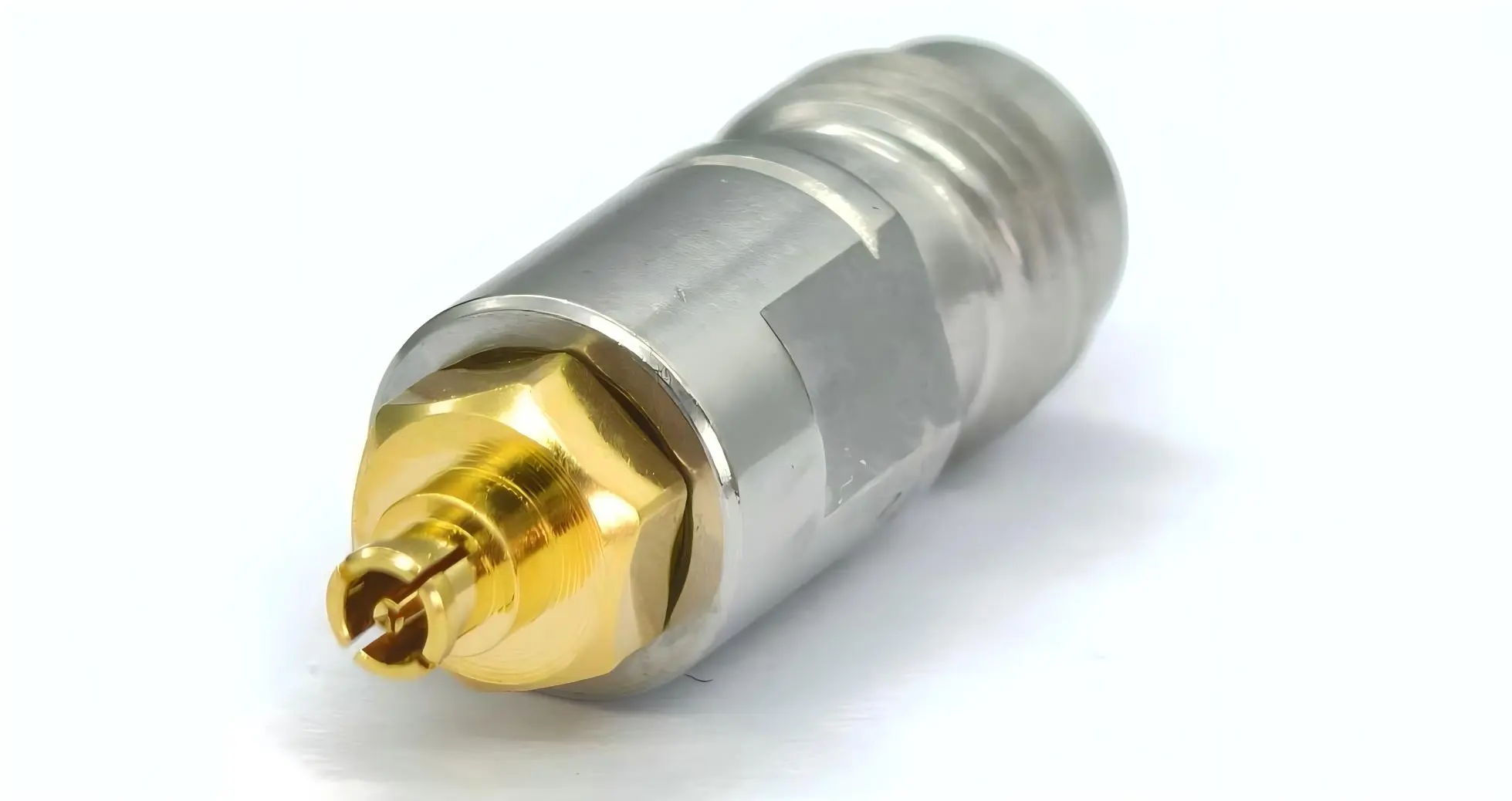

2.4 Female To Gppo Female Adapter

1.2.4mm female to GPO female adapter, one end is a 2.4mm female to GPO (SMP) female precision adapter. One end is a 2.4mm female connector, and the other end is a GPO female connector.
2. Suitable for high-frequency communication interconnect scenarios.
3.Impedance: 50 Ohms nominal
4.VSWR: 1.25:1 to 40GHz typical
5.Insertion loss: .12√f (GHz)
6.Temperature range: -55°C to 125°C

High-Performance 2.4 Female To Gppo Female Adapter for Precision RF Applications

Are you seeking a reliable connector solution for your high-frequency communication needs? Our 2.4 Female To Gppo Female Adapter delivers exceptional performance for demanding RF applications. This precision-engineered connector bridges the association between 2.4mm female and GPO female connectors, making it basic for test hardware, aviation, and broadcast communications frameworks. This connector, outlined for up to 40GHz, guarantees flag keenness and strong development, advertising dependable execution for both model testing and generation environments.

2.4 Female To Gppo Female Adapter

What Makes Our RF Connectors Stand Out

Our connector guarantees flag judgment over wide frequencies with moo VSWR and controlled addition misfortune. Its vigorous stainless steel plan stands up to erosion and bolsters visit association cycles, making it perfect for solid utilize in requesting RF testing and generation environments.

Our focus extends beyond basic functionality. We understand that your projects demand connectors that perform consistently over thousands of connection cycles. That's why every 2.4 Female To Gppo Female Adapter is built to withstand the demanding requirements of professional testing environments.

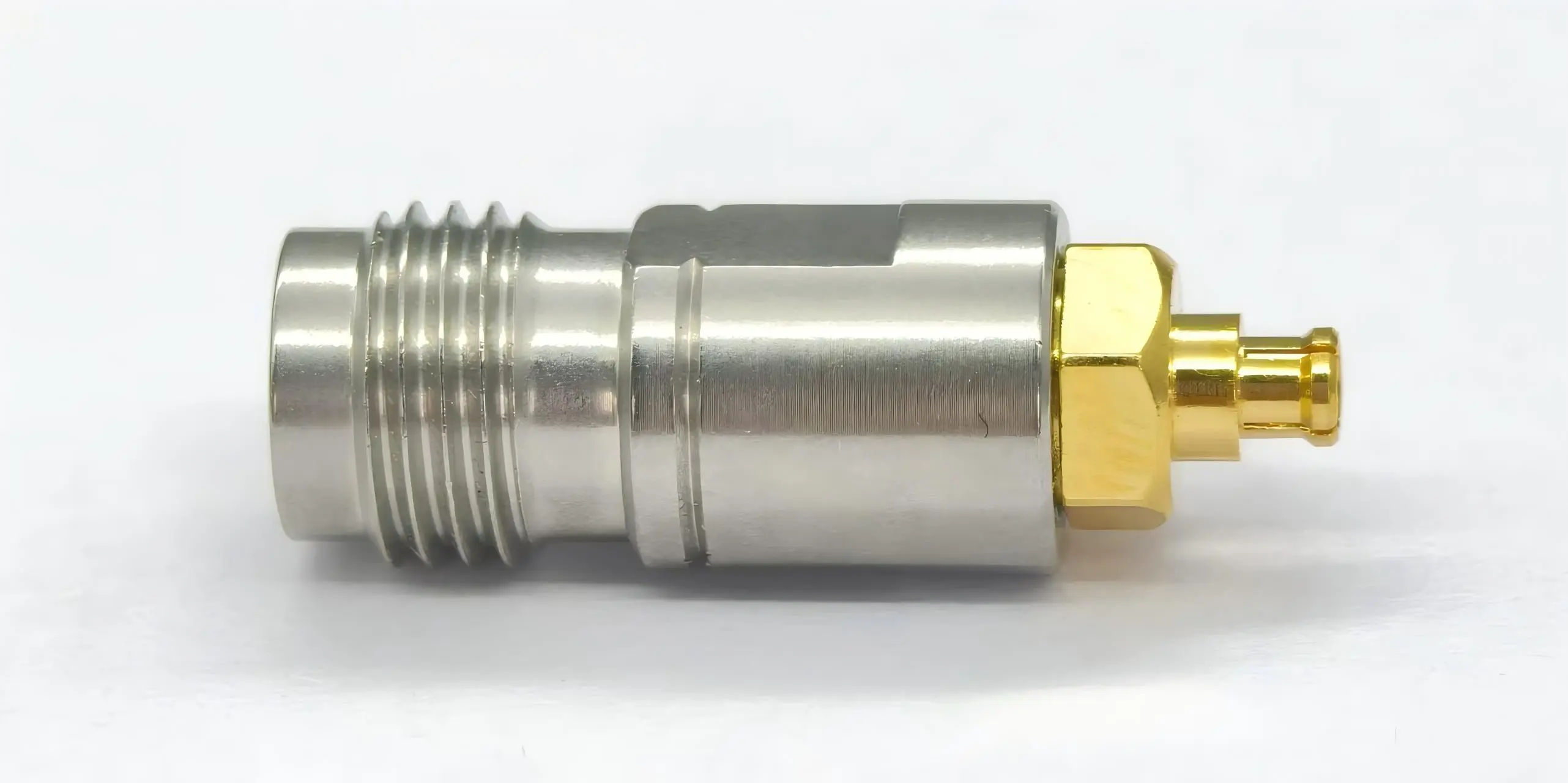

2.4 Female To Gppo Female Adapter

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
VSWR	1.25:1 to 40GHz typical
Insertion Loss	.12√f (GHz)
Operating Temperature	-55°C to 125°C
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum

Material Specifications

Component	Material
Housing	Stainless steel passivated & Beryllium copper gold
Center Contacts	Beryllium copper gold
Insulators	PEI

Mechanical Performance

Parameter	Specification
2.4 Port Cycles	500 cycles
GPO Port Cycles	FD-100 min, LD-500 min, SB-1,000 min
Engagement Force (2.4 Port)	≤0.23N.m
Connection Torque (2.4 Port)	0.79N·m - 1.13N·m

Why Choose This Adapter for Your Applications

Our connector guarantees flag astuteness over wide frequencies with moo VSWR and controlled inclusion misfortune. Its vigorous stainless steel plan stands up to erosion and underpins visit association cycles, making it perfect for dependable utilize in requesting RF testing and generation environments.

For aerospace and military applications, our 2.4 Female To Gppo Female Adapter meets stringent environmental requirements. The design passes thermal shock, salt spray, vibration, and shock testing according to MIL-STD-202 specifications.

Applications and Use Cases

This adapter is versatile in modern RF systems, used by test engineers to connect different connector types, by research facilities for bridging instruments, and in production lines for high-volume testing in automated setups.

The wide recurrence extend makes it reasonable for 5G testing, toady communications, and radar applications. Its steady execution over temperature extremes bolsters both research facility and field testing requirements.

Applications of 2.4mm female to GPPO female adapter

Installation and Dealing with Guidelines

Proper establishment is key to ideal execution and life span. Guarantee rectify connector arrangement to dodge harming contact surfaces, and apply indicated torque values to accomplish solid associations without overstressing the threads.

Store connectors in defensive cases when not in utilize. The gold-plated contacts stand up to erosion but advantage from security against physical harm. Standard assessment of contact surfaces makes a difference keep up execution over the adapter's benefit life.

2.4mm Female to GPPO Female Adapter Installation Guide

Quality Assurance and Testing

Every adapter undergoes comprehensive testing before shipment. Our quality control processes verify electrical performance, mechanical integrity, and environmental compliance. This attention to detail ensures that your 2.4 Female To Gppo Female Adapter meets specifications from the first connection.

Our manufacturing facility maintains ISO quality standards and implements continuous improvement processes. This commitment to quality has earned recognition from customers across aerospace, telecommunications, and test equipment industries.

2.4mm female to GPPO female adapter - reliable quality.

Get Your Precision Adapters Today

Ready to enhance your RF test capabilities? Our engineering team stands ready to support your connector requirements. Whether you need standard adapters or custom solutions, we deliver products that meet your exact specifications.

Contact us at postmaster@cymicrowave.com to discuss your application requirements. Our technical specialists can recommend the optimal connector solution for your specific needs. With our 2.4 Female To Gppo Female Adapter and comprehensive product line, you'll find the perfect match for your demanding RF applications.
