Name: Orthogonal Waveguide Coaxial Converter
SKU: N/A

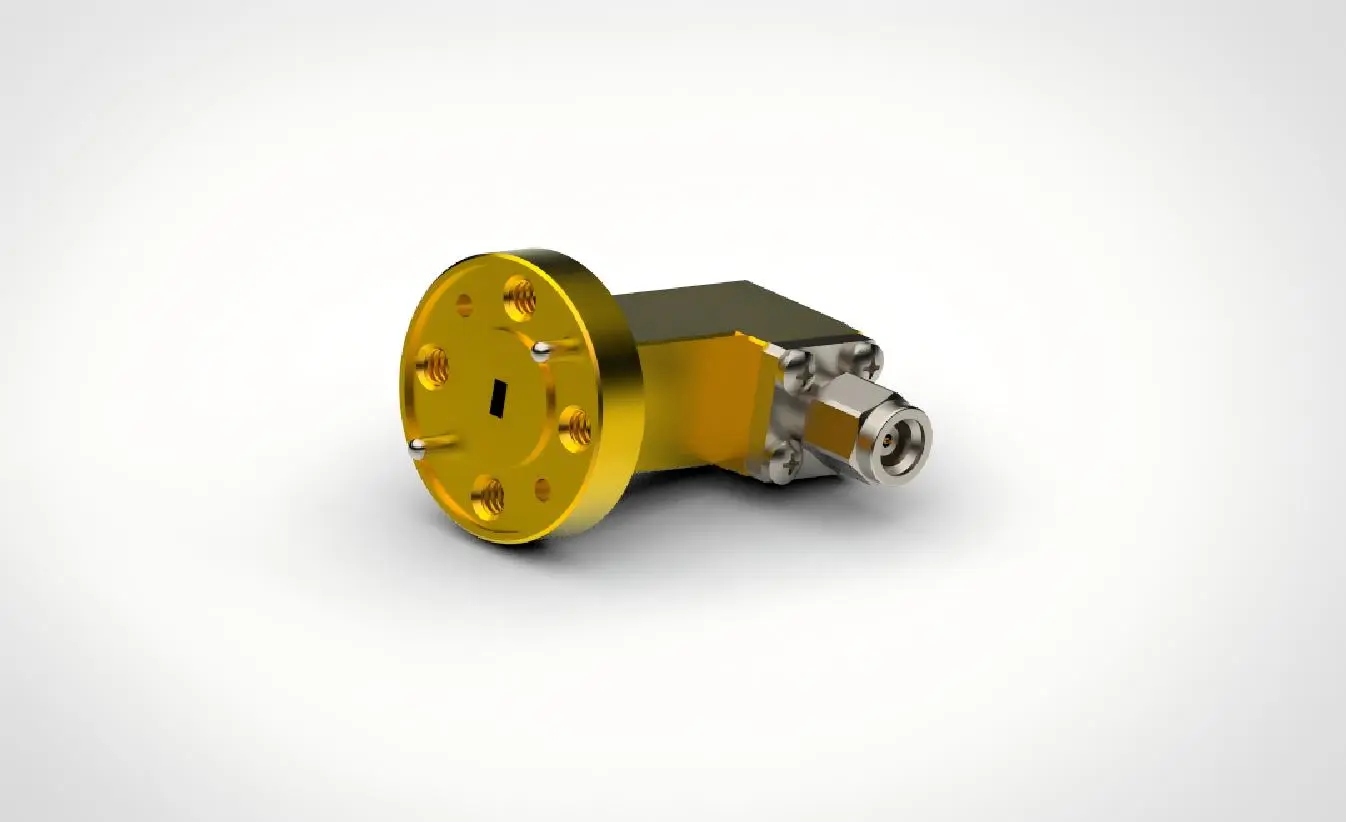

Orthogonal Waveguide Coaxial Converter

1. The waveguide-to-coaxial orthogonal converter features a 90-degree orthogonal connection between the waveguide and coaxial line. As a passive conversion device in microwave and RF systems,
2. it is used to achieve signal transmission conversion between coaxial lines and waveguides. With characteristics such as wide bandwidth, low insertion loss, and small standing wave ratio, it is widely applied in fields such as radar, communication, and test measurement.
3. Impedance: 50 Ohms nominal
4. Frequency range: 75GHz to 110GHz
5. VSWR: 1.4:1 to 50GHz typical
6. Power: 10W
7. Insertion loss: ≤0.7dB
8. Waveguide Port: WR10
9. Temperature range: -55°C to 125°C

Orthogonal Waveguide Coaxial Converter - High-Performance Microwave Signal Conversion Solution

Looking for a reliable solution to bridge your waveguide and coaxial systems? Our Orthogonal Waveguide Coaxial Converter delivers exceptional performance for your most demanding applications. This precision-engineered gadget highlights a 90-degree orthogonal association plan that guarantees ideal flag transmission between waveguide and coaxial interfacing. Whether you're working in radar frameworks, communications, or test estimation situations, this converter gives the unwavering quality and execution you require for consistent microwave flag conversion.

product-1-1

What Makes Our Converter Stand Out?

Superior Plan Architecture

Our converter highlights a 90-degree orthogonal association for minimized flag reflections and optimized control exchange. With gold-plated copper lodgings, beryllium copper contacts, and PEI insulin, it guarantees fabulous conductivity, toughness, and flag astuteness over the recurrence range.

Wide Recurrence Coverage

Operating from 75GHz to 110GHz, this converter covers the whole W-band range. You can certainly utilize it over different millimeter-wave applications without stressing almost recurrence impediments. The wide transmission capacity capability makes it perfect for broadband frameworks and multi-frequency operations.

Exceptional Electrical Performance

With inclusion misfortune of as it were 0.7dB greatest and VSWR of 1.4:1, you get negligible flag debasement amid change. The 10W control taking care of capability guarantees solid operation indeed in high-power applications. These determinations interpret into cleaner signals and way better in general framework performance.

product-1-1

Key Applications and Benefits

Radar Systems

Modern radar applications demand precise signal conversion with minimal loss. Our Orthogonal Waveguide Coaxial Converter excels in these environments, providing stable performance across temperature variations from -55°C to 125°C. You'll find this temperature stability crucial for outdoor radar installations and aerospace applications.

Communication Networks

High-frequency communication systems require components that maintain signal fidelity. The converter's low insertion loss and excellent VSWR characteristics ensure your communication signals remain clear and strong throughout the conversion process.

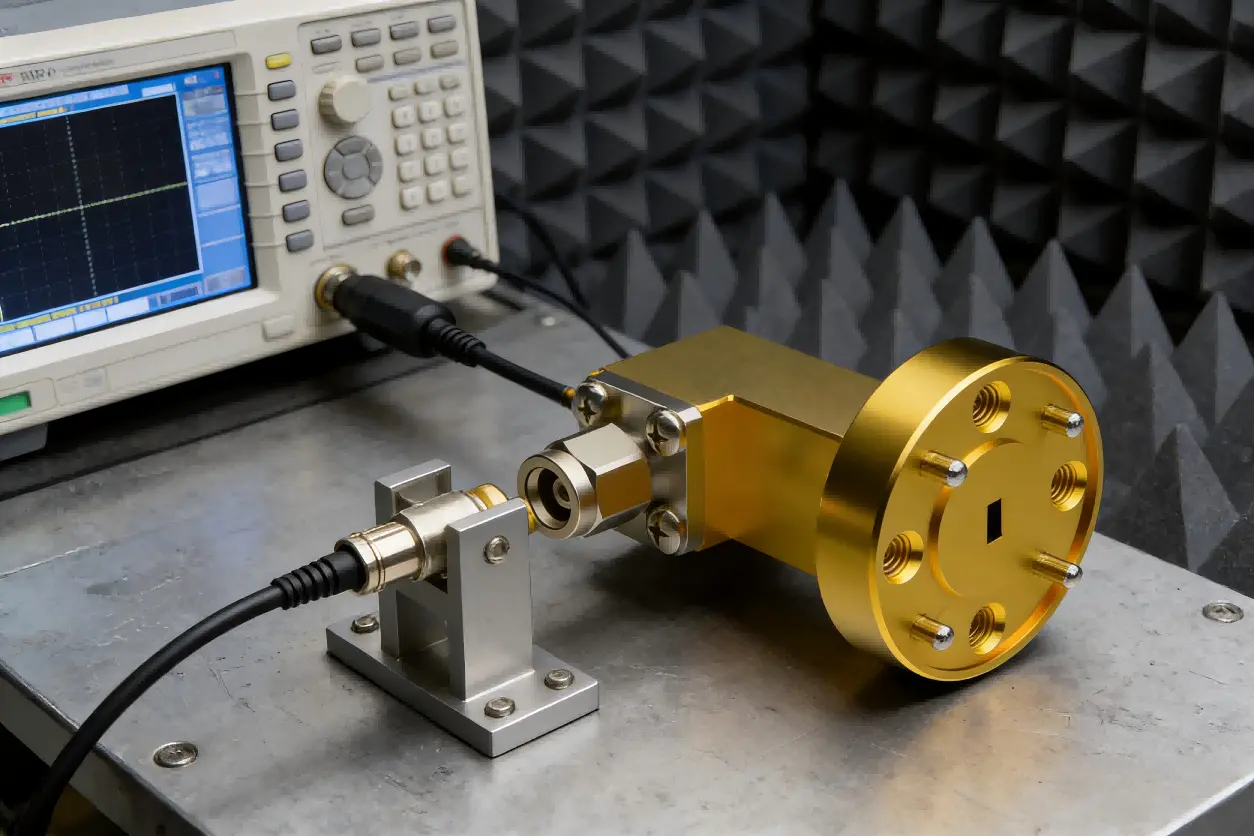

Test and Measurement

This converter offers consistent performance in lab environments, ensuring precision and repeatability for calibration and measurement setups, with stable characteristics across the frequency range for reliable results.

product-1-1

Technical Excellence in Every Detail

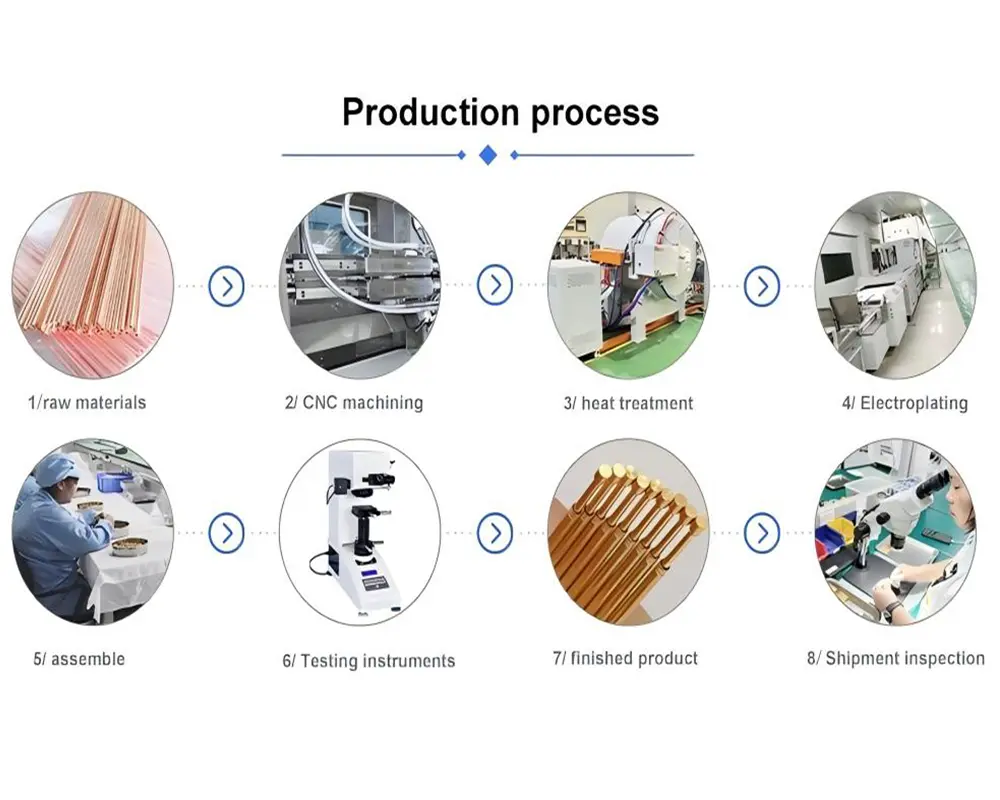

Precision Manufacturing

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we employ strict production process management and precision testing instruments. Each converter experiences comprehensive testing to guarantee it meets our exacting quality benchmarks. This consideration to detail ensures you get a item that performs dependably from day one.

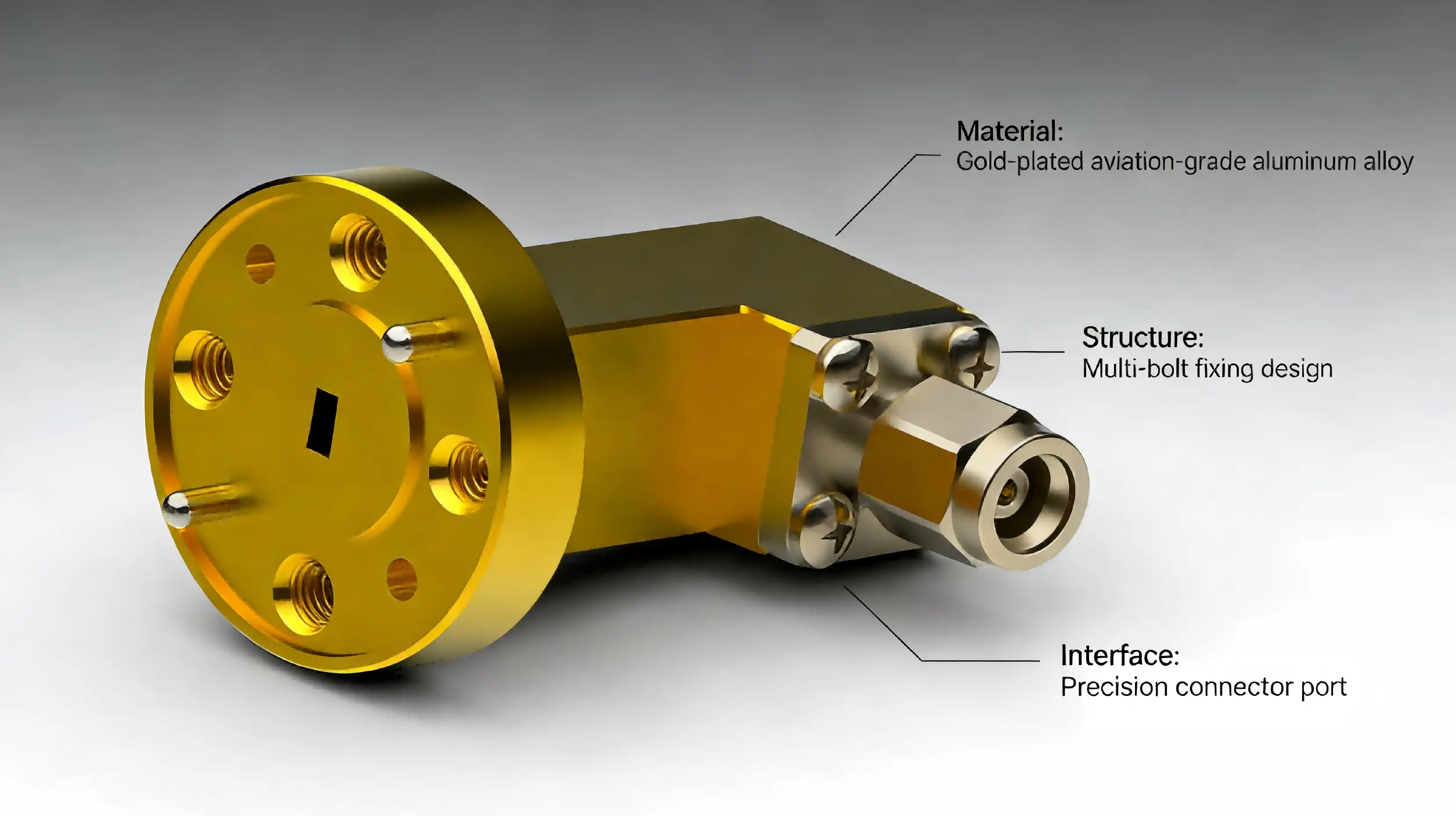

Quality Materials and Construction

Gold-plated surfaces guarantee erosion resistance and moo contact resistance, whereas beryllium copper center contacts adjust conductivity and mechanical quality, ensuring long-term unwavering quality and reliable execution.

Standard Compliance

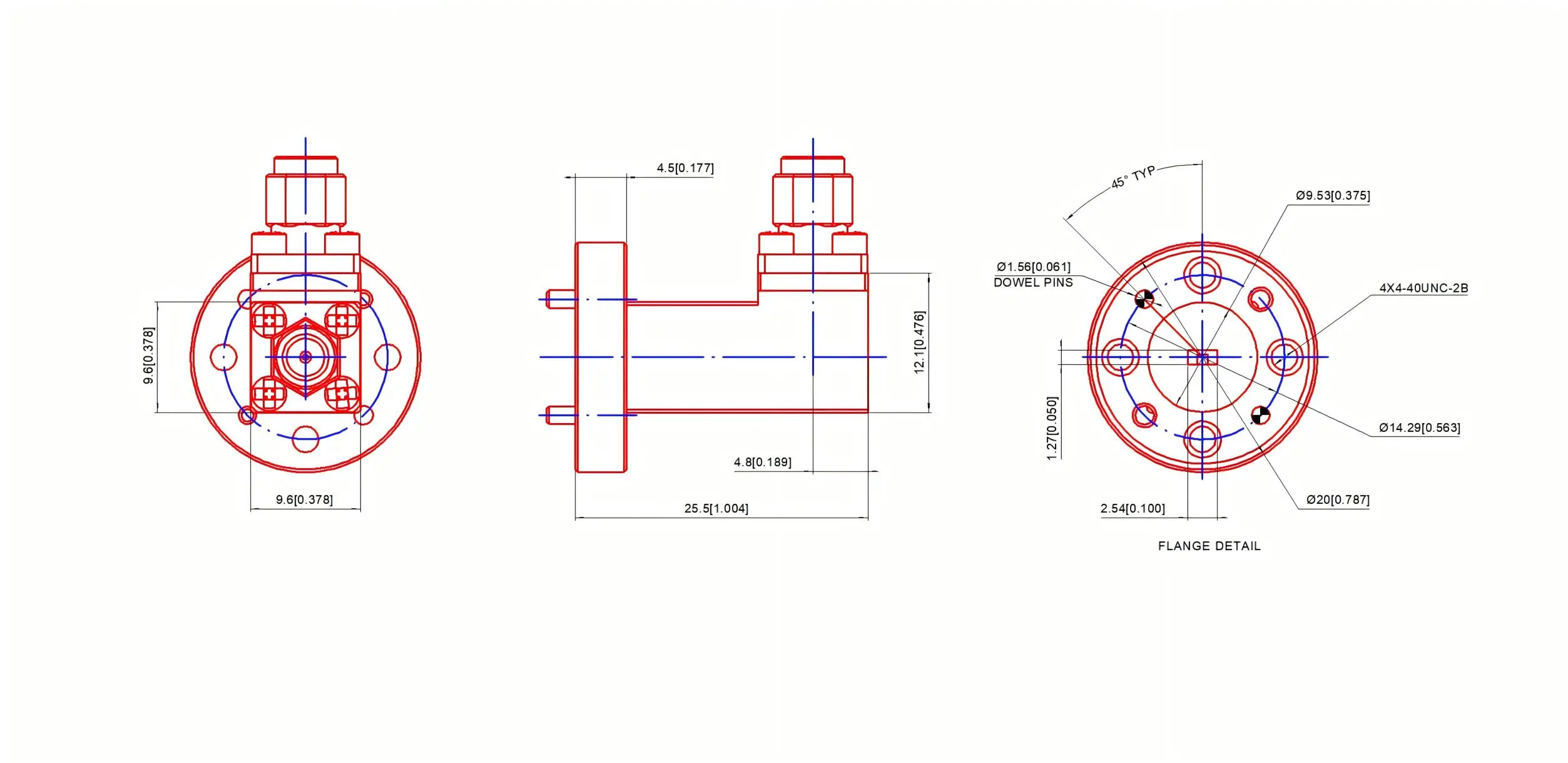

Our Orthogonal Waveguide Coaxial Converter uses industry-standard WR10 waveguide port with UG387/U flange model, ensuring compatibility with your existing systems. The 1.0-K connector type provides secure, repeatable connections that maintain electrical performance over multiple connect/disconnect cycles.

Technical Specifications

Parameter	Specification
Product Name	1.0-WR10-KFZ Coaxial Waveguide Converter
Impedance	50 Ohms nominal
Frequency Range	75GHz to 110 GHz
Temperature Range	-55°C to 125°C
Connector Type	1.0-K
Waveguide Port	WR10
Flange Model	UG387/U
Structure Type	Orthogonal
VSWR	1.4:1
Insertion Loss	≤0.7dB
Power Rating	10W
Housing Material	Gold-plated copper
Center Contacts	Beryllium copper gold
Insulators	PEI

Why Choose Our Solution?

Proven Reliability

We specialize in precision electronic components and millimeter-wave technologies, with over 200 millimeter-wave connector specifications and 400 cable assembly specifications, showcasing our deep expertise.

Custom Solutions Available

We offer customization services for unique application needs, including specific connectors, frequency ranges, and performance characteristics, with our engineering team working to develop the perfect solution.

Comprehensive Support

From consultation to post-delivery support, our team provides technical guidance to ensure optimal integration of our products into your microwave systems and specific application needs.

product-1-1

Get Started Today

Ready to experience our precision-engineered converter? Our team will help you select the right configuration, ensuring you get exactly what you need for new systems or equipment upgrades.

For technical inquiries, custom requirements, or ordering information, contact us at postmaster@cymicrowave.com. Let's discuss how our Orthogonal Waveguide Coaxial Converter can enhance your system's performance and reliability.
