Fine Pitch Probes: Precision Testing Solutions for High-Density Electronic Devices

When your testing requirements demand exceptional precision and reliability, Fine Pitch Probes deliver the accuracy you need for today's miniaturized electronic components. ​​​​​​​These specialized testing apparatuses are built to handle the most challenging high-density applications, making them basic for producers working with coordinates circuits, wafer-level testing, and progressed bundling innovations. At Shaanxi Chuangyu Electronic Innovation, we get it that cutting edge hardware require testing arrangements that can keep pace with progressively littler component dispersing and higher stick densities.

What is the Fine Pitch Probes?

The item speaks to the cutting edge of accuracy testing innovation. These modern disobedient include test dividing measured in microns, ordinarily extending from tens to hundreds of microns. This ultra-precise dispersing makes them flawlessly suited for testing gadgets with high-density stick arrangements.

This innovation benefits different divisions, counting wafer-level testing, chip bundling, and SMT forms, tending to the challenges of miniaturization with precise, solid arrangements for more tightly spaces.

Key Features and Specifications

Our product delivers exceptional performance through carefully engineered specifications:

Premium Materials for Superior Performance

Quality materials ensure long-lasting performance and consistent results:

Applications Across Industries

Semiconductor Testing

Automotive Electronics

Medical Device Manufacturing

Medical electronics demand the highest reliability standards. Our probes help verify the functionality of implantable devices, diagnostic equipment, and monitoring systems where failure is not an option.

Telecommunications Equipment

Why Choose Our Fine Pitch Testing Solutions?

Precision Engineering

Every probe undergoes rigorous quality control processes. We maintain tight tolerances to ensure consistent performance across all units. Your testing results remain reliable and repeatable.

Customization Capabilities

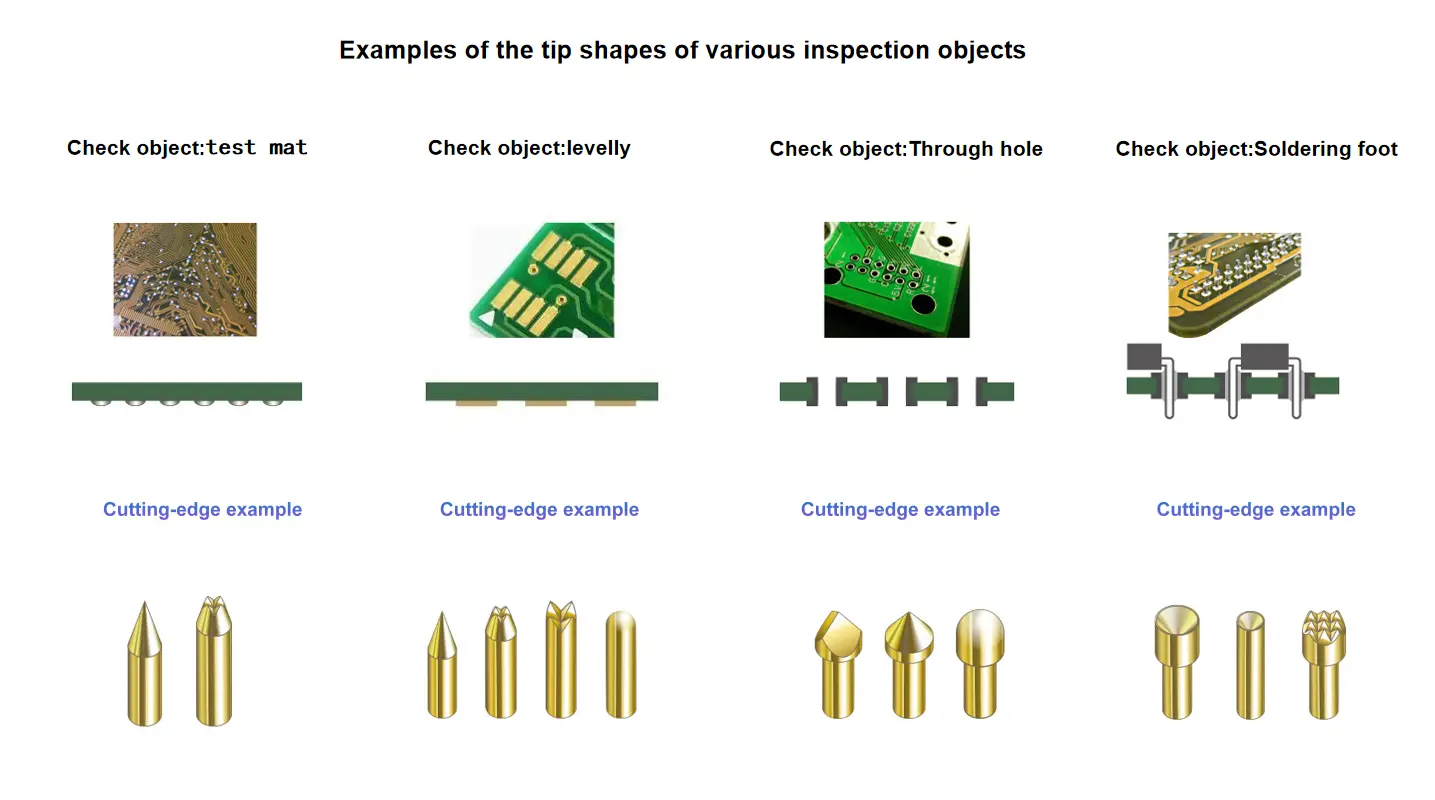

Standard specifications may not meet every application requirement. We offer customization services for non-standard probe configurations, specialized tip geometries, and unique spacing requirements.

Extended Service Life

Our probes are designed for 50,000 test cycles minimum. This extended lifespan reduces replacement costs and minimizes production downtime.

Temperature Stability

Operating range from -45°C to +80°C ensures reliable performance across various environmental conditions. Your testing protocols remain consistent regardless of ambient temperature variations.

Technical Advantages

Low Contact Resistance

With typical resistance below 70mOhm, our Fine Pitch Probes ensure accurate electrical measurements. This low resistance minimizes signal degradation and measurement errors.

Controlled Spring Force

The 0.3N spring force at working stroke provides sufficient contact pressure without damaging delicate test surfaces. This balance protects sensitive components while maintaining reliable connections.

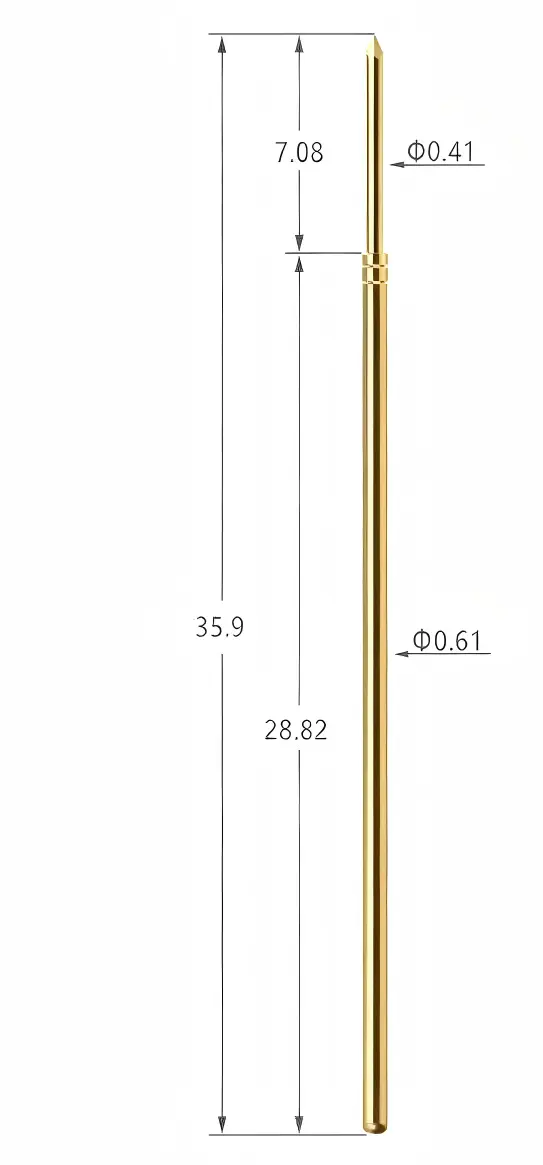

Compact Design

The 0.8mm pitch accommodates high-density test requirements without probe interference. Your test fixtures can incorporate more test points in smaller areas.

Quality Assurance and Testing

Our manufacturing process incorporates strict quality control measures. Each probe undergoes comprehensive testing before shipment. We verify electrical characteristics, mechanical properties, and dimensional accuracy.

Digital manufacturing processes ensure consistency across production runs. Precision testing instruments validate every specification parameter. This attention to detail guarantees reliable performance in your applications.

Getting Started with Your Testing Solution

When precision testing demands the best, Fine Pitch Probes from Shaanxi Chuangyu Electronic Technology provide the reliability and accuracy your applications require.
