Name: GPO Coaxial Connector Test Probe
SKU: N/A

GPO Coaxial Connector Test Probe

1.Coaxial connector test probes are designed specifically for testing SMP(GPO) type coaxial connectors, used in high-frequency signal transmission scenarios such as radio frequency and microwave applications, to evaluate the signal transmission performance of the connector (e.g., impedance matching, loss, etc.).
2.VSWR: 1.3:1 to 18GHz typical
3.Insertion loss: .15 √f (GHz)
4.DWV @ sea level: 500 Vrms
5.Materials: Inner conductor beryllium copper gold-plated, outer shell copper gold-plated and stainless steel
6.Operating temperature: -30°C to +85°C.

GPO Coaxial Connector Test Probe - Professional RF Testing Solutions

When you need reliable high-frequency testing solutions, our GPO Coaxial Connector Test Probe delivers precision and performance you can trust. Designed specifically for testing SMP (GPO) type coaxial connectors, this advanced probe excels in radio frequency and microwave applications where accuracy matters most. You'll find it invaluable for evaluating signal transmission performance, including impedance matching and loss measurements, ensuring your product testing meets the highest standards.

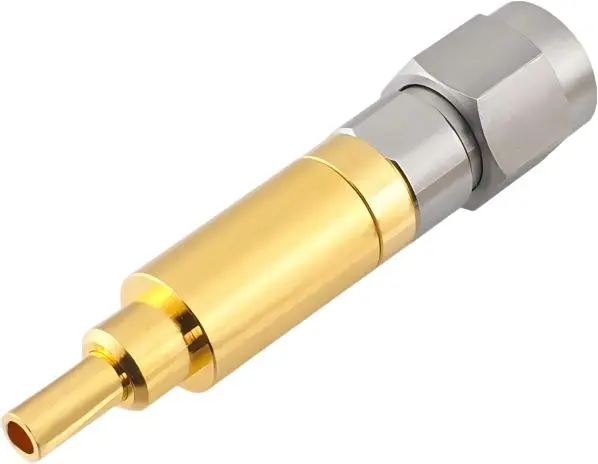

GPO Coaxial Connector Test Probe

What Makes Our Test Probe Different?

Our test stands separated through imaginative plan and prevalent materials. You get exact flag parameter estimations through carefully built test heads that contact connector interfacing with remarkable precision. This guarantees your coaxial connectors meet electrical execution benchmarks consistently.

The conventional connector mating approach comes with tall costs and restricted solidness. Our arrangement disposes of these disadvantages whereas amplifying benefit life altogether. You advantage from long-lasting execution that diminishes substitution recurrence and testing downtime.

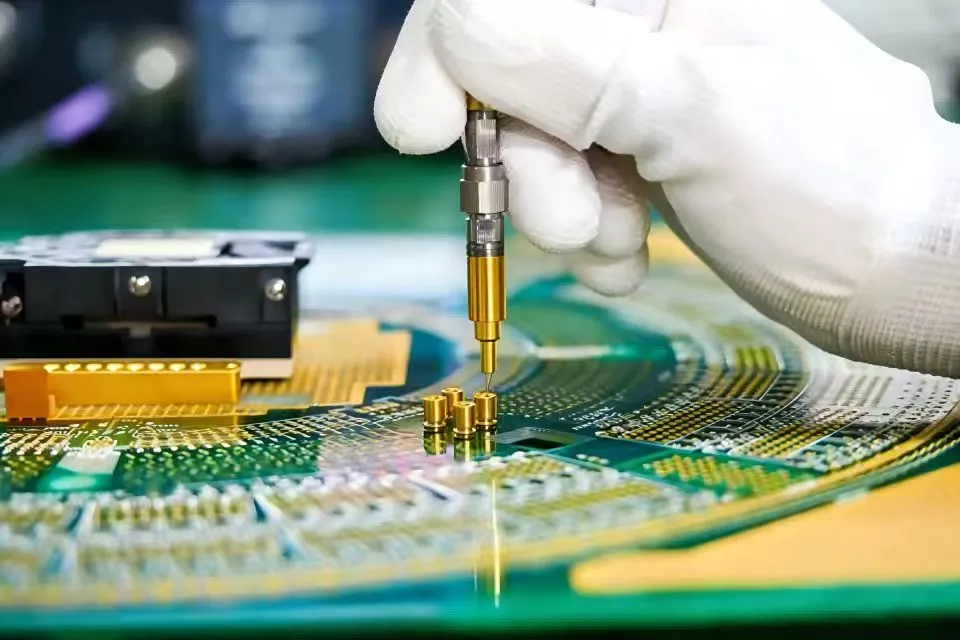

GPO coaxial connector test probe applications

Technical Excellence in Every Detail

Superior Frequency Performance

Your testing needs broad frequency coverage. Our probe operates from DC to 18GHz with a typical VSWR of 1.3:1. Insertion loss is low at 0.15√f (GHz), ensuring accurate, reliable measurements.

Robust Construction Materials

We use premium materials for reliability: beryllium copper with gold plating for the inner conductor, and copper-gold-plated stainless steel for the outer shell. PTFE insulators ensure stable performance from -30°C to +85°C, even in demanding conditions.

Complete Technical Specifications

Category	Parameter	Value
General	Impedance	50 Ohms nominal
	Frequency range	DC to 18GHz
	Temperature range	-30°C to 85°C
Electrical	VSWR	1.3:1 to 18GHz typical
	Insertion loss	.15 √f (GHz)
	DWV @ sea level	500 Vrms
	Insulation resistance	5,000 megohms minimum
	Contact resistance (outer)	10 milliohms maximum
	Contact resistance (inner)	15 milliohms maximum
Materials	Housings	Beryllium copper gold
	Center contacts	Beryllium copper gold
	Insulators	PTFE
Mechanical	Mate/demate cycles	10,000 cycles
	Internal needle elasticity	1.2N@0.6mm
	Inner conductor max stroke	1.5mm
	Outer conductor spring force	8N@1.5mm
	Outer conductor max stroke	3.0mm

Applications Across Industries

Your testing needs vary depending on your industry. Our probe serves multiple sectors effectively:

Telecommunications: The probe ensures consistent performance, handling high-frequency signals while maintaining signal integrity during network equipment testing.

Aerospace and Defense: Designed for military use, the probe's wide temperature range and durable construction meet strict requirements for mission-critical systems.

Medical Devices: Precision matters in medical electronics. Our probe provides the accuracy needed for testing sensitive RF components in medical equipment.

Automotive Electronics: Modern vehicles rely heavily on RF communications. You can test automotive connector systems confidently with our proven solution.

Application areas of GPO coaxial connector test probes

Quality That Delivers Results

Our manufacturing process emphasizes precision at every step. Strict production process management combines with advanced testing instruments to ensure consistent quality. Each GPO Coaxial Connector Test Probe undergoes comprehensive testing before shipment.

The 10,000 mate/demate cycle rating demonstrates our commitment to durability. You invest once and benefit from extended service life that reduces total cost of ownership.

GPO coaxial connector test probe quality control

Why Choose Shaanxi Chuangyu?

Located in Chang'an Innovation and Technology Industrial Park, we specialize in exactness electrical connectors and RF testing arrangements. Our skill expands to millimeter wave frequencies up to 110GHz, illustrating our specialized capabilities.

We get it your challenges since we've illuminated comparative issues for clients over unused vitality, photovoltaic, restorative, communications, and computerization businesses. Our group combines profound specialized information with commonsense fabricating experience.

Custom arrangements are our strength. If standard details do not meet your necessities, we can create customized tests custom fitted to your particular testing needs.

GPO Coaxial Connector Test Probe Company Profile

Ready to Improve Your Testing?

Experience the difference professional-grade test equipment makes. Our GPO Coaxial Connector Test Probe combines proven performance with competitive pricing to deliver exceptional value.

Contact us today to discuss your testing requirements. Our technical team stands ready to help you select the right solution for your application.
