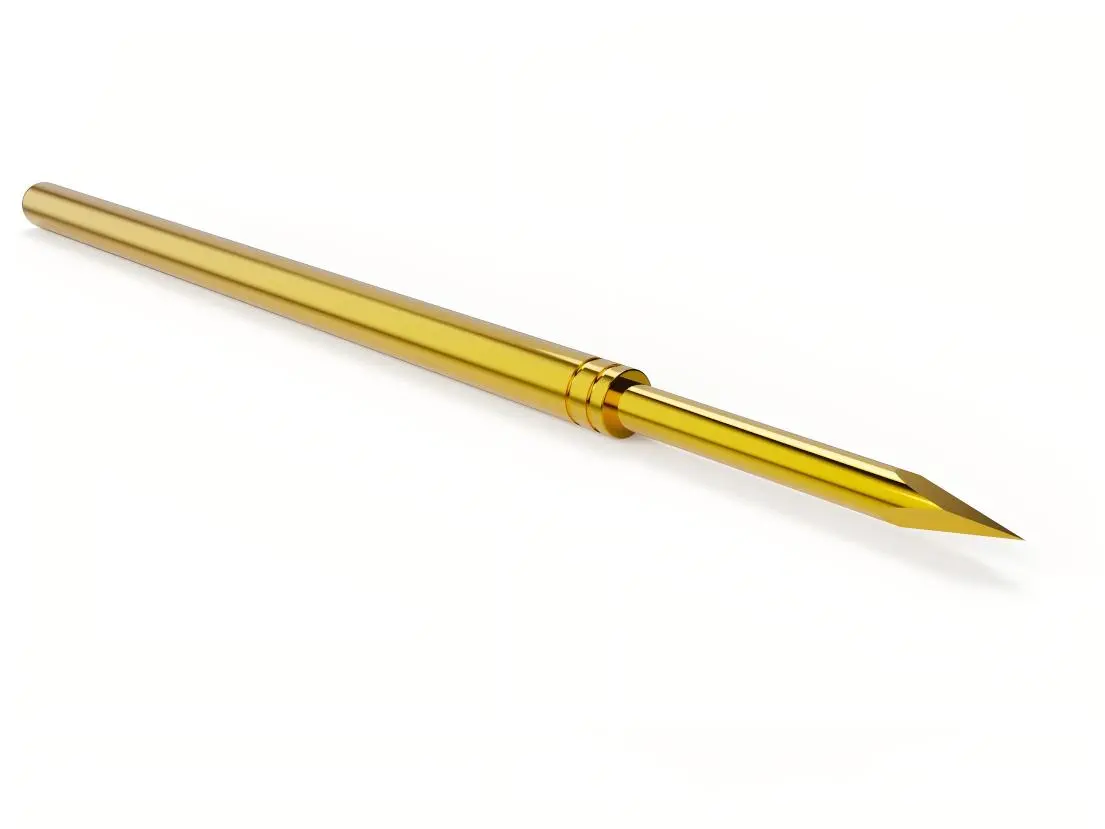

Standard Stroke Test Probe

Standard Stroke Test Probe - Precision Testing Solutions for Professional Applications

When you need reliable circuit testing solutions, our Standard Stroke Test Probe delivers exceptional performance for your most demanding applications. Planned particularly for ICT (In-Circuit Test) and FCT (Useful Circuit Test) situations, this precision-engineered test guarantees exact contact and flag transmission through its optimized mechanical stroke plan. With a standard 2.54mm/100mil dispersing, our item consistently coordinating into your existing test gear whereas giving the unwavering quality you require for basic testing operations.

Why Choose Our Product?

Superior Material Construction

Your testing accuracy depends on quality components. That's why we craft each probe using premium materials:

• Beryllium copper plunger with gold plating for optimal conductivity
• Phosphor bronze barrel with gold plating for durability
• Steel spring with gold coating for consistent performance

This material combination ensures your probe maintains low contact resistance while delivering exceptional wear resistance throughout its operational life.

Engineered for Demanding Applications

Our probe excels in precision testing with a self-cleaning dagger tip, 5A current capacity, and resistance below 15mOhm, ensuring reliable performance across various testing scenarios.

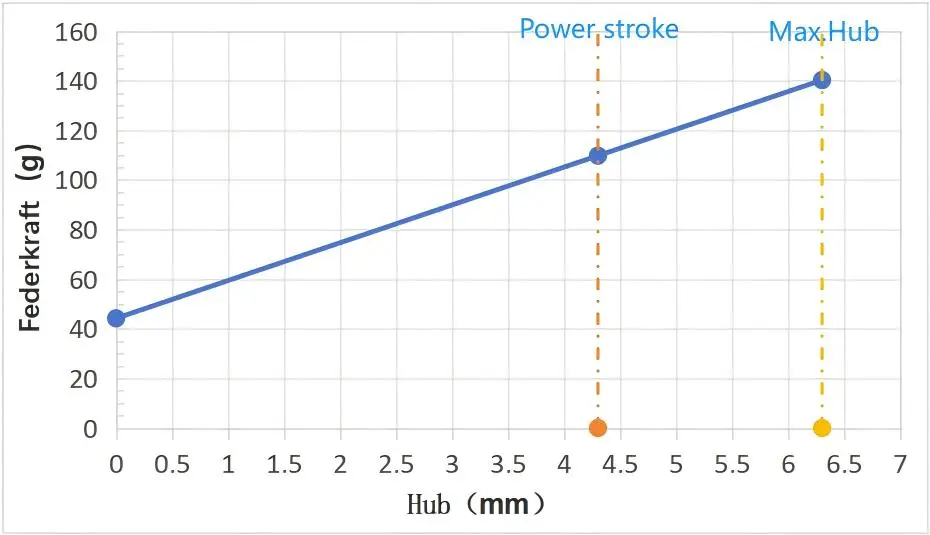

The 6.35mm maximum stroke of the Standard Stroke Test Probe provides flexibility for different board thicknesses and component heights. Meanwhile, the optimized 4.3mm working stroke delivers 1N of contact force, creating secure connections without damaging delicate components.

Technical Specifications

Key Performance Features

Extended Service Life

Our test offers up to 500,000 test cycles, lessening substitution costs and downtime. Gold-plated surfaces stand up to erosion, keeping up electrical judgment all through its operational life.

Wide Temperature Range

Whether you're testing in unforgiving mechanical situations or controlled research facility conditions, this test works dependably from -45°C to +80°C. This temperature solidness guarantees steady execution over different testing scenarios.

Precision Contact Technology

The 0.9mm dagger tip provides precise contact with test points while the self-cleaning design maintains optimal electrical connections. This combination reduces false readings and improves test reliability.

Applications and Benefits

ICT Testing Excellence

In-circuit testing requires dependable contact with individual components on populated boards. Our Standard Stroke Test Probe's design accommodates tight spacing requirements while providing the mechanical stability needed for accurate measurements.

Functional Test Reliability

For functional circuit testing, consistent electrical contact is crucial. The probe's optimized spring force ensures reliable connections without applying excessive pressure that could damage sensitive components.

Quality Assurance You Can Trust

Every product undergoes rigorous quality control processes. Our manufacturing facility maintains strict production standards, ensuring each probe meets our exacting specifications before reaching your test floor.

Why Shaanxi Chuangyu Electronic Technology?

We get it the basic part that exactness testing plays in your operations. Found in Chang'an Development and Innovation Mechanical Stop, our company specializes in exactness electrical connectors, RF cable gatherings, and test test solutions.

Our designing group centers on equipment advancement and electronic item improvement, bringing you cutting-edge arrangements that meet real-world testing challenges. We can too customize tests and test installations to meet your particular prerequisites.

Get Started Today

Ready to enhance your testing capabilities? Contact our technical team to discuss your specific requirements and learn how our Standard Stroke Test Probe can improve your testing operations.

For technical specifications, custom solutions, or ordering information, reach out to us at postmaster@cymicrowave.com. Our experts are ready to help you find the perfect testing solution for your applications.
