Name: GPO Panel Connector
SKU: N/A

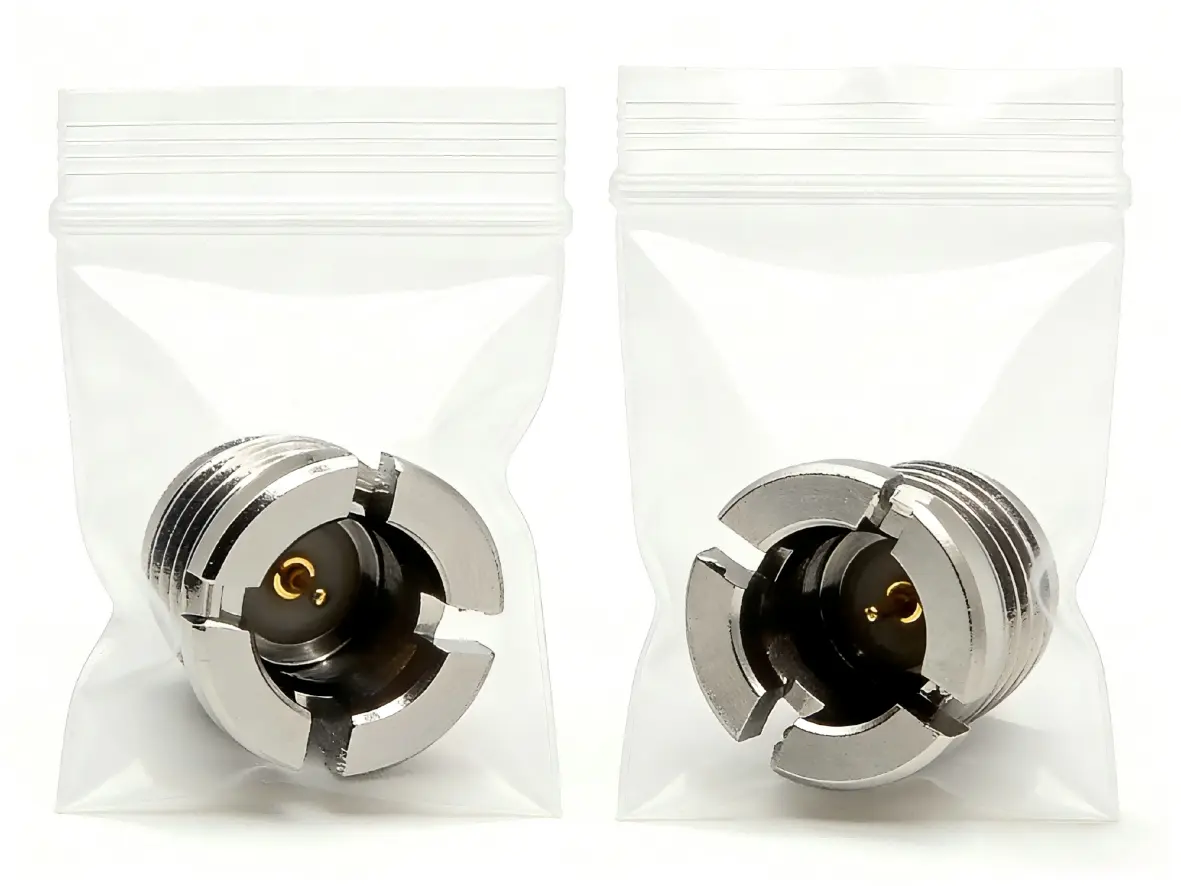

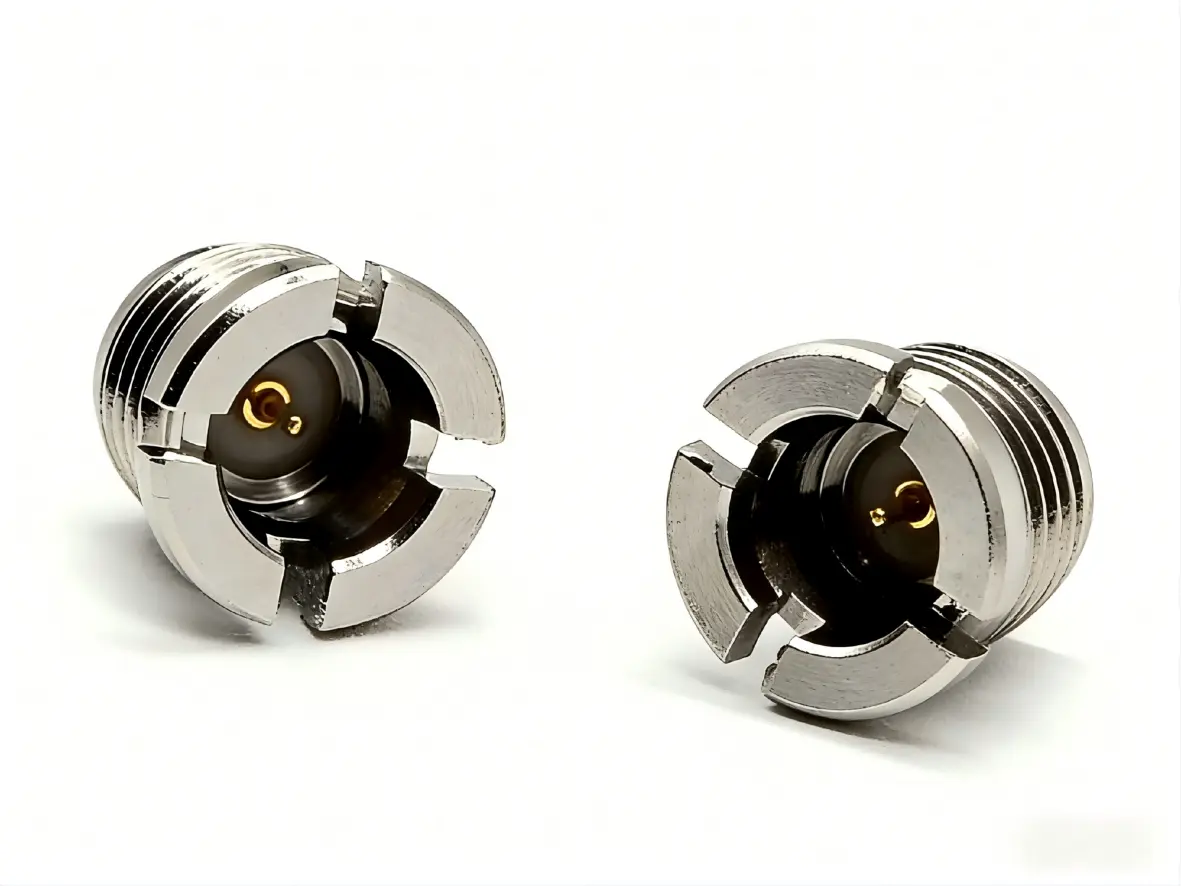

GPO Panel Connector

1. GPO (SMP) connector, suitable for through-wall or panel mounting, its core features include through-wall flange or threaded fastening structure, making it suitable for signal transmission scenarios in equipment panels.
2. Tail microstrip welding
3. Stainless steel housing, salt spray resistance 96h
4. Impedance: 50 Ohms nominal
5. VSWR: 1.4:1 to 18GHz typical
6. Insertion loss: .05√f (GHz)
7. Temperature range: -55°C to 125°C

GPO Panel Connector: High-Performance Through-Wall RF Solution

When you need reliable signal transmission through equipment panels, the GPO Panel Connector delivers exceptional performance and durability. Our product features specialized through-wall flange and threaded fastening structures that make panel mounting simple and secure. This advanced SMP series connector is engineered for demanding applications where signal integrity matters most. Whether you're working on telecommunications, military, or precision testing equipment, the product provides the reliability you need for critical connections.

product-1-1

What Makes Our Product Special

Our panel-mount connectors stand out in the industry for a few key reasons. The stainless steel lodging gives remarkable toughness and stands up to salt shower for up to 96 hours. This makes them idealize for unforgiving situations where other connectors might fail.

The beryllium copper or stainless steel development upgrades long-term unwavering quality. You get steady execution over a wide recurrence extend from DC to 40GHz. The tail microstrip welding plan guarantees secure associations that keep up flag judgment over time.

Key Features and Benefits

Superior Signal Performance

Our connectors provide low insertion loss (.05√f) and excellent VSWR (1.4:1 to 18GHz), with 50-ohm impedance matching standard RF systems.

Robust Construction

These durable connectors feature brass gold-plated housings, beryllium copper contacts, and PTFE insulators for excellent electrical performance from -55°C to 125°C.

Versatile Mounting Options

The through-wall flange design makes installation straightforward. Threaded fastening provides secure mechanical connection that won't loosen under vibration or thermal cycling.

product-1-1

Technical Specifications

Parameter	Specification
General Characteristics
Impedance	50 Ohms nominal
Frequency Range	DC to 18GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.4:1 to 18GHz typical
Insertion Loss	.05√f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housing	Brass Gold Plated
Center Contacts	Beryllium Copper Gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles	FD-100 min, LD-500 min, SB-1,000 min
Engagement Force	FD–7.0lb typ, LD–5.0lb typ, SB–3.0lb typ
Disengagement Force	FD–9.0lb typ, LD–7.0lb typ, SB–0.5lb typ
Environmental
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Applications and Industries

These GPO Panel Connectors excel in numerous applications. Telecommunications equipment benefits from their wide frequency response and low loss characteristics. Military systems rely on their rugged construction and environmental resistance.

Medical equipment manufacturers choose our connectors for their precision and reliability. The automotive industry uses them in testing applications where durability is essential. Research and development labs appreciate their consistent performance across temperature extremes.

product-1-1

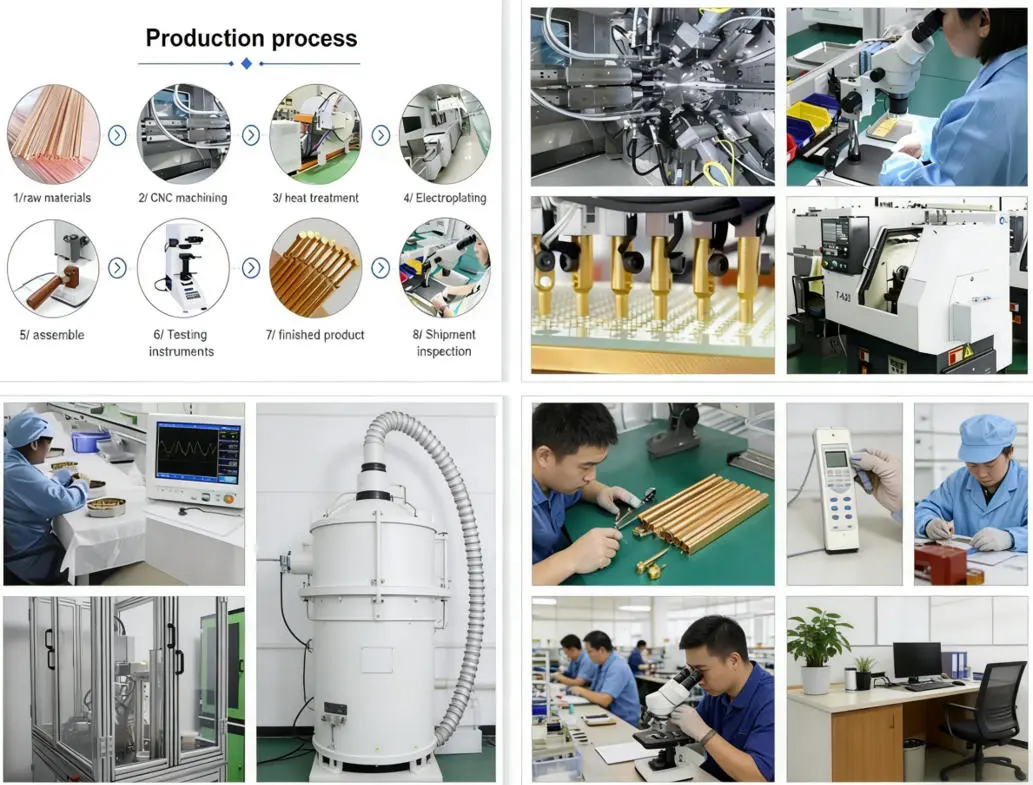

Why Choose Shaanxi Chuangyu Electronic Technology

Located in Chang'an Advancement and Innovation Mechanical Stop in Xi'an, Shaanxi Territory, we specialize in exactness electrical connectors and RF arrangements. Our mastery ranges electronic item investigate, advancement, and manufacturing.

We offer total electronic plan arrangements, from schematic and high-speed PCB plan to fabricating and gathering, guaranteeing consistent integration. Our strict generation and exactness testing guarantee unwavering quality, whereas our RF connector skill expands to millimeter waves up to 110 GHz.

product-1-1

Quality and Unwavering quality You Can Trust

Every connector experiences thorough testing to meet or surpass determinations. Our quality administration framework guarantees steady execution over all items. We utilize progressed testing hardware to confirm electrical and mechanical characteristics.

The salt spray resistance of 96 hours demonstrates our commitment to durability. Temperature cycling tests confirm performance across the full operating range. Vibration and shock testing validate mechanical integrity under real-world conditions.

product-1-1

Getting Started

Ready to enhance your panel-mount connectivity? Our team is here to help you select the right GPO Panel Connector configuration for your specific needs. We can also provide custom solutions when standard products don't meet your exact requirements.

Contact us at postmaster@cymicrowave.com to discuss your application. Our engineers will work with you to ensure optimal performance and reliability for your project.
