Name: Short Stroke High Current Probe Plug In Type
SKU: N/A

Short Stroke High Current Probe Plug In Type

1. Short stroke high current probe (plug-in type), this is a test probe with a short mechanical stroke, suitable for high current scenarios, such as: photovoltaic laser induced probe, and采用 plug-in installation method.
2. Material: Probe beryllium copper gold-plated
3. Total height: 27.3mm
4. Working stroke force: 1N@4mm
5. Current load capacity: 30A
6. Typical resistance: <5mOhm
7. Operating temperature: -45°C to +80°C.

Short Stroke High Current Probe Plug In Type - Professional Testing Solutions

When you need reliable high-current testing capabilities in compact spaces, our Short Stroke High Current Probe Plug In Type delivers exceptional performance for demanding applications. Designed for photovoltaic testing, functional testing, and aging tests, this specialized probe combines short mechanical stroke design with impressive 30A current handling capacity. The plug-in installation method ensures quick setup and efficient operation, making it perfect for high-throughput testing environments where space and accuracy matter most.

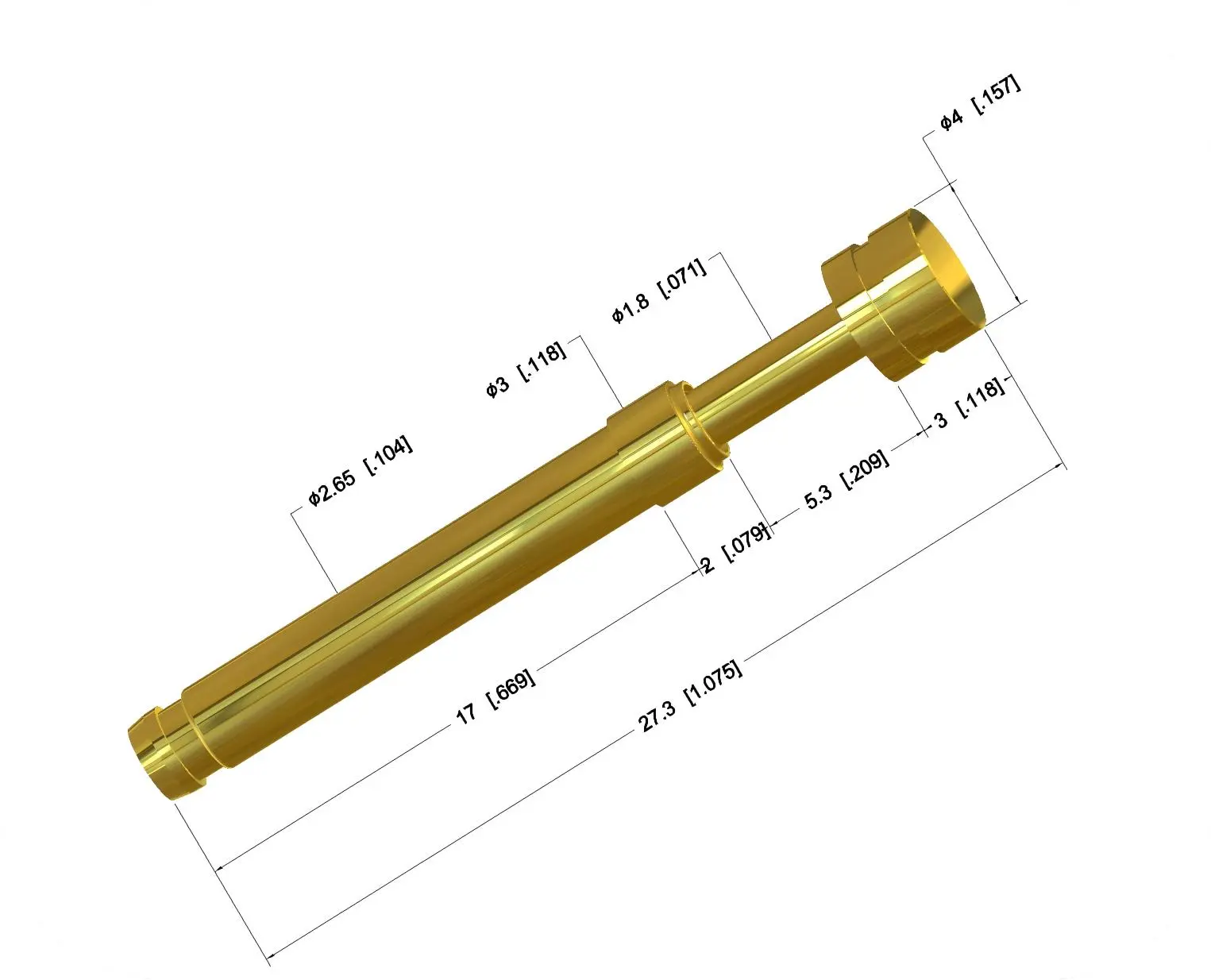

Short Stroke High Current Probe Plug In Type

What Makes Our High Current Testing Probe Special?

Our probe stands out in the competitive testing market through innovative engineering and premium materials. The beryllium copper gold-plated construction ensures superior conductivity and long-lasting performance. You'll appreciate the compact 27.3mm total height that fits seamlessly into tight testing configurations.

The product features a unique 4mm working stroke with just 1N force requirement. This gentle touch prevents damage to sensitive components while maintaining excellent electrical contact. Your testing operations become more reliable with typical resistance below 5mOhm.

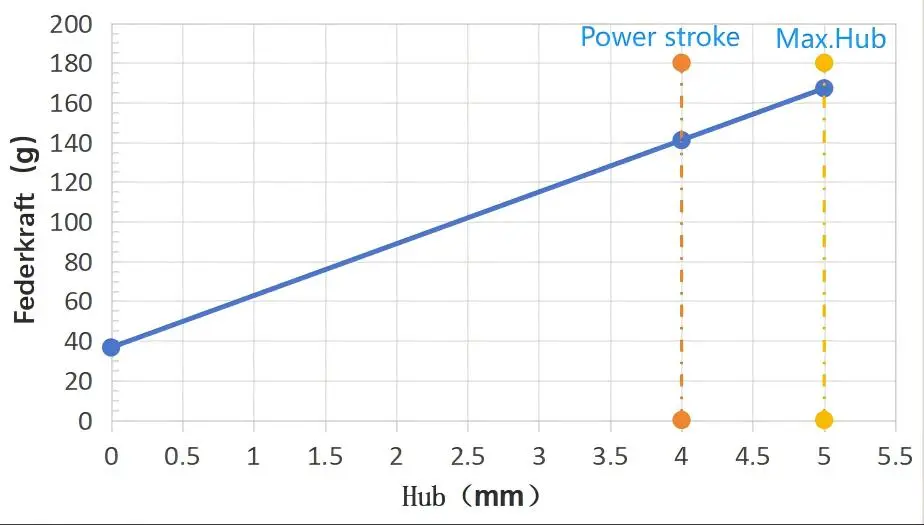

Short-stroke high-current probe insertion elasticity curve

Key Applications and Benefits

Photovoltaic Industry Testing

Solar panel manufacturers rely on our probes for critical junction box testing and cell efficiency measurements. The high current capacity handles demanding photovoltaic applications with ease.

Electronic Manufacturing

PCB testing becomes more efficient with our plug-in design. You can quickly position probes for functional testing without complex mounting procedures.

Quality Control Operations

Aging tests and burn-in procedures benefit from the Short Stroke High Current Probe Plug In Type's robust construction and consistent performance over millions of cycles.

Technical Specifications

Category	Parameter	Value
General	Model	CY 400A-3 150
	Pitch	5mm
	Operating Temperature	-45°C to +80°C
Materials	Plunger	Beryllium copper gold
	Barrel	Phosphor bronze gold
	Spring	Steel gold
Mechanical	Total Length	27.3 mm
	Barrel Diameter	2.65 mm
	Spring Force	1N at working stroke
	Working Stroke	4mm
	Tip Style	Flat
	Tip Diameter	4mm
	Tip Surface	Gold plated
Electrical	Current Capacity	30A
	Typical Resistance	<5mOhm

Superior Design Features

Short Stroke Advantage

The compact stroke design reduces mechanical stress on test points while maintaining reliable contact. Your delicate components stay protected during repeated testing cycles.

High Current Capability

With 30A current handling capacity, the Short Stroke High Current Probe Plug In Type manages demanding power applications that would overwhelm standard testing solutions. You can confidently test high-power circuits and components.

Plug-In Convenience

The plug-in installation eliminates complex mounting procedures. Simply insert the probe into your test fixture and begin testing immediately. This design saves valuable setup time in production environments.

Gold-Plated Reliability

All contact surfaces feature gold plating for corrosion resistance and optimal conductivity. Your measurements remain accurate even after extended use in challenging environments.

Why Choose Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, our company specializes in precision electrical connectors and test solutions. We focus on electronic product research and development with particular expertise in miniaturized testing solutions.

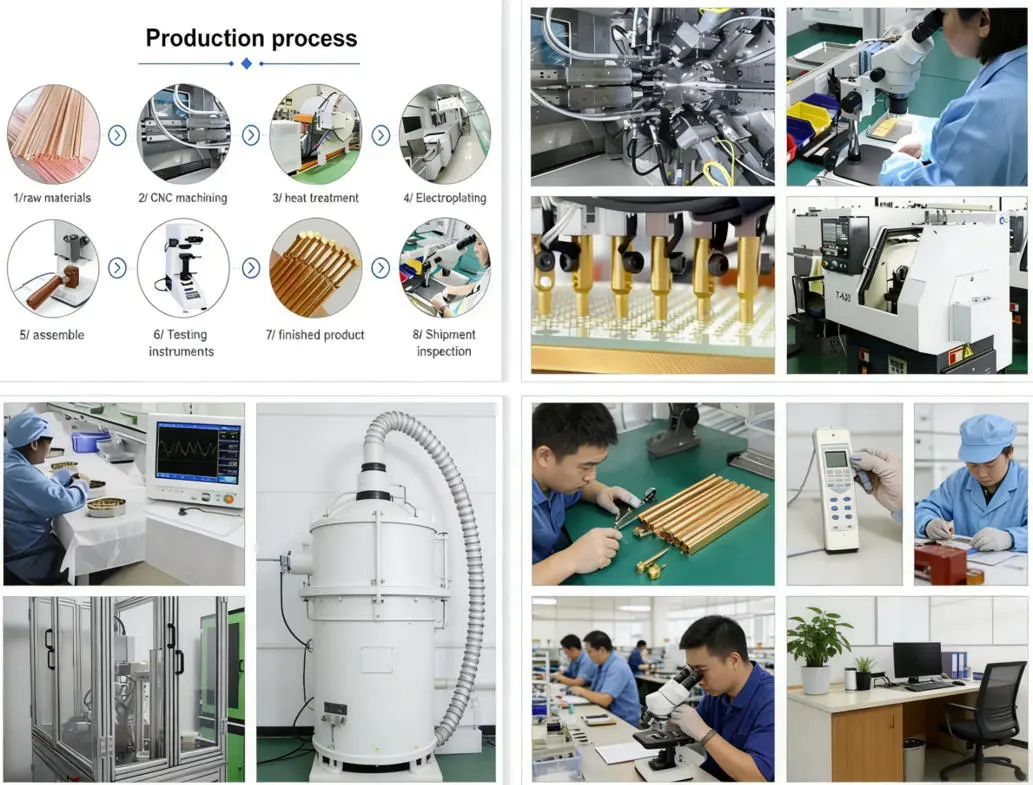

Short-stroke high-current probe insertion manufacturing capability

Our manufacturing capabilities include:

Custom probe design and manufacturing
Precision test fixture development
PCB design and manufacturing services
Electronic assembly solutions

Industry Expertise

We serve diverse markets including new energy, photovoltaic, medical devices, communications, and automation industries. This broad experience ensures our product meets real-world testing challenges.

Quality Assurance

Digital manufacturing processes and precision testing instruments guarantee consistent quality from design through customer use. Every probe undergoes rigorous testing before shipment.

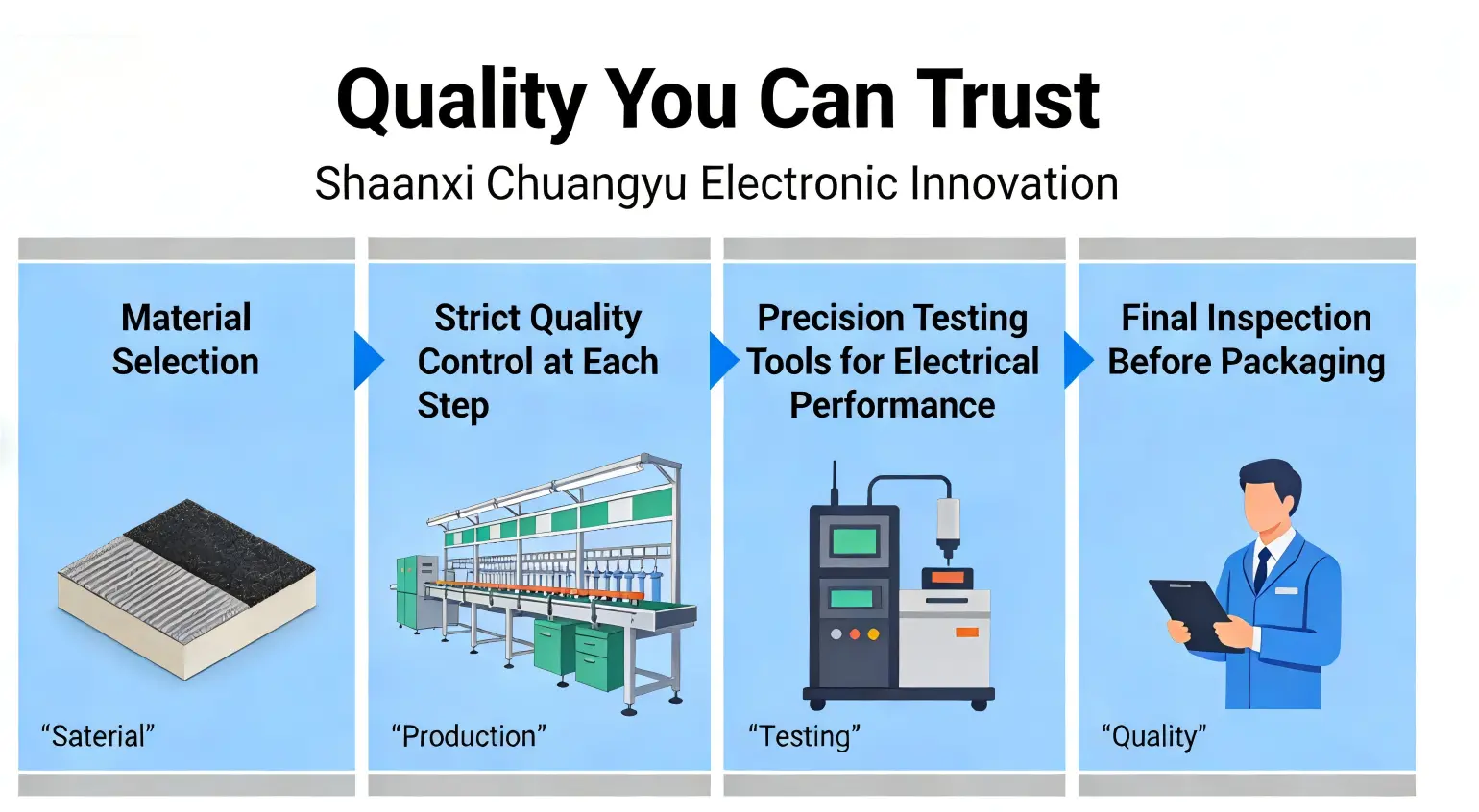

Short-stroke high-current probe insertion quality control
