Name: Coaxial Probe Pin
SKU: N/A

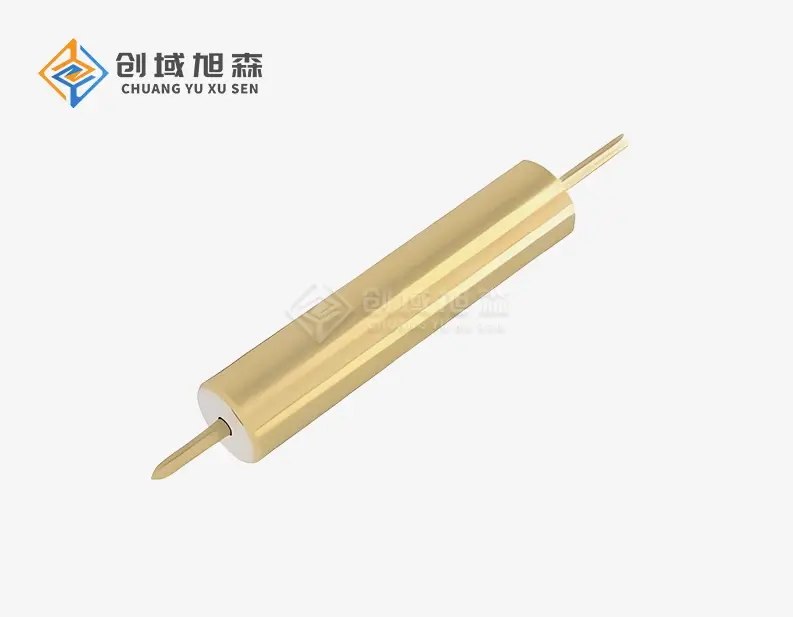

Coaxial Probe Pin

1. Coaxial probe foot with double-ended floating needle head. It can be used in high-frequency bands up to 60GHz. Acceptable device types: BGA, LGA, etc.
2. Spacing: 0.8mm/30mil
3. Material: Inner needle beryllium copper gold-plated, outer needle phosphor bronze gold-plated, dielectric PTFE
4. Impedance: 50Ω±5%
5. Frequency range: DC to 60 GHz\n6. Bandwidth: -1.0dB at 60GHz
7. Total length: 4.45mm
8. Working stroke force: 0.14N@0.45mm
9. Current carrying capacity: 0.5A\n10. Operating temperature: -25°C to +85°C

Coaxial Probe Pin - High-Frequency Testing Solutions for Precision Electronics

Superior Performance Testing with Advanced Product Technology

When you need reliable high-frequency testing solutions, our Coaxial Probe Pin delivers exceptional performance up to 60GHz. Designed for precision electronics testing, this advanced probe combines cutting-edge materials with innovative engineering. You'll experience superior signal integrity and consistent results across demanding applications. Our double-ended floating needle head design ensures optimal contact stability for BGA and LGA devices. The gold-plated contacts minimize signal loss while maintaining excellent conductivity. This product represents the perfect balance of durability and precision for your testing requirements.

coaxial probe

Key Features and Benefits

Our probe pins feature gold-plated contacts that significantly reduce signal loss during testing operations. The spring-loaded design ensures consistent contact pressure across multiple test cycles. You benefit from 50-ohm impedance matching that maintains signal integrity throughout the testing process.

The 0.8mm pitch design allows high-density testing with accuracy, while PTFE dielectric ensures excellent high-frequency performance. Beryllium copper construction provides long-term reliability and consistent performance across millions of cycles.

Technical Specifications

Parameter	Specification
Model	CYR 013A-FB-014-4.45
Pitch	0.8mm / 30mil
Impedance	50Ω±5%
Frequency Range	DC to 60 GHz
Operating Temperature	-25°C to +85°C
Device Compatibility	BGA, LGA, etc.
Total Length	4.45mm
Barrel Diameter	0.68mm
Working Stroke	0.45mm
Spring Force	0.14N
Maximum Current	0.5A
Bandwidth	-1.0dB at 60GHz
Tip Diameter	0.13mm
Tip Style	Crown/Pointed

Material Composition

Plunger Construction: Beryllium copper with gold plating ensures optimal conductivity and corrosion resistance.

Barrel Design: Phosphor bronze with gold plating provides excellent mechanical properties and electrical performance.

Spring Element: Steel with gold plating offers consistent force characteristics and long service life.

Dielectric Material: PTFE insulation delivers superior high-frequency performance with minimal signal loss.

Applications Across Industries

New Energy Testing

You can rely on our Coaxial Probe Pin for solar panel efficiency testing and battery management system validation. The high-frequency capabilities support advanced energy conversion technologies.

Medical Device Validation

Precision testing of medical electronics requires reliable contact solutions. Our probes meet the stringent requirements for medical device manufacturing.

Communications Equipment

5G and beyond wireless technologies demand exceptional high-frequency performance. These probe pins support next-generation communication system development.

Automotive Electronics

Modern vehicles contain sophisticated electronic systems that require precise testing. Our solutions support automotive industry quality standards.

Coaxial probe mounting

Why Choose Our Solutions

Shaanxi Chuangyu Electronic Technology brings decades of expertise in precision testing solutions. We understand the challenges you face in high-frequency testing applications. Our engineering team continuously innovates to meet evolving industry requirements.

Our quality manufacturing ensures consistent performance, validated by advanced testing. Custom solutions and engineering support are available, from concept to production, to meet unique testing requirements.

Coaxial probe production workshop

Installation and Usage Guidelines

Proper handling ensures optimal performance and extended service life. Clean contact surfaces regularly to maintain electrical integrity. Store probes in controlled environments to prevent contamination.

Follow force specifications to prevent probe damage. Regular calibration and maintenance ensure accuracy, while replacing worn components maximizes performance and investment return.

Coaxial probe installation and use

Quality Assurance

Every Coaxial Probe Pin undergoes comprehensive testing before shipment. Our quality management system ensures consistent manufacturing standards. Traceability documentation supports your quality requirements.

Precision measurement equipment validates electrical and mechanical specifications. Environmental testing confirms performance across operating temperature ranges. You receive products that meet demanding application requirements.

Coaxial probe quality control

Technical Support and Custom Solutions

Our engineering team offers technical support, custom probe configurations, design consultation, and training, ensuring optimal performance and providing detailed documentation throughout your project lifecycle.

For technical inquiries or custom solution discussions, contact our engineering team at postmaster@cymicrowave.com. We're committed to supporting your testing success with innovative Coaxial Probe Pin solutions.
