Pre-Wired Spring Probe

1. Terminal pin suitable for cable assemblies, tail wire connection equipment, charger battery connections, and many other applications requiring wire termination and spring connections.
2. Spacing: 2.54mm/100mil
3. Material: Pin head copper gold-plated, phosphor bronze gold-plated tube, steel gold-plated spring
4. Total length: 12.31mm
5. Head diameter: 1.07mm
6. Head shape: Spherical
7. Working stroke force: 0.6N@1.15mm
8. Current carrying capacity: 7A@30℃ Temp.Rise
9. Typical resistance: <20mOhm
10. Operating temperature: -55°C to +125°C
11. Test cycle: 10-100K times
Product Description

Pre-Wired Spring Probe - High-Performance Test Solution

Looking for a reliable testing solution for your electronic assemblies? Our Pre-Wired Spring Probe delivers exceptional performance for cable assemblies, charger battery connections, and wire termination applications. This precision-engineered test combines toughness with predominant electrical characteristics, making it your perfect choice for requesting test situations. With pre-wired cables and vigorous spring-loaded associations, our item guarantees steady, dependable contact each time you test.

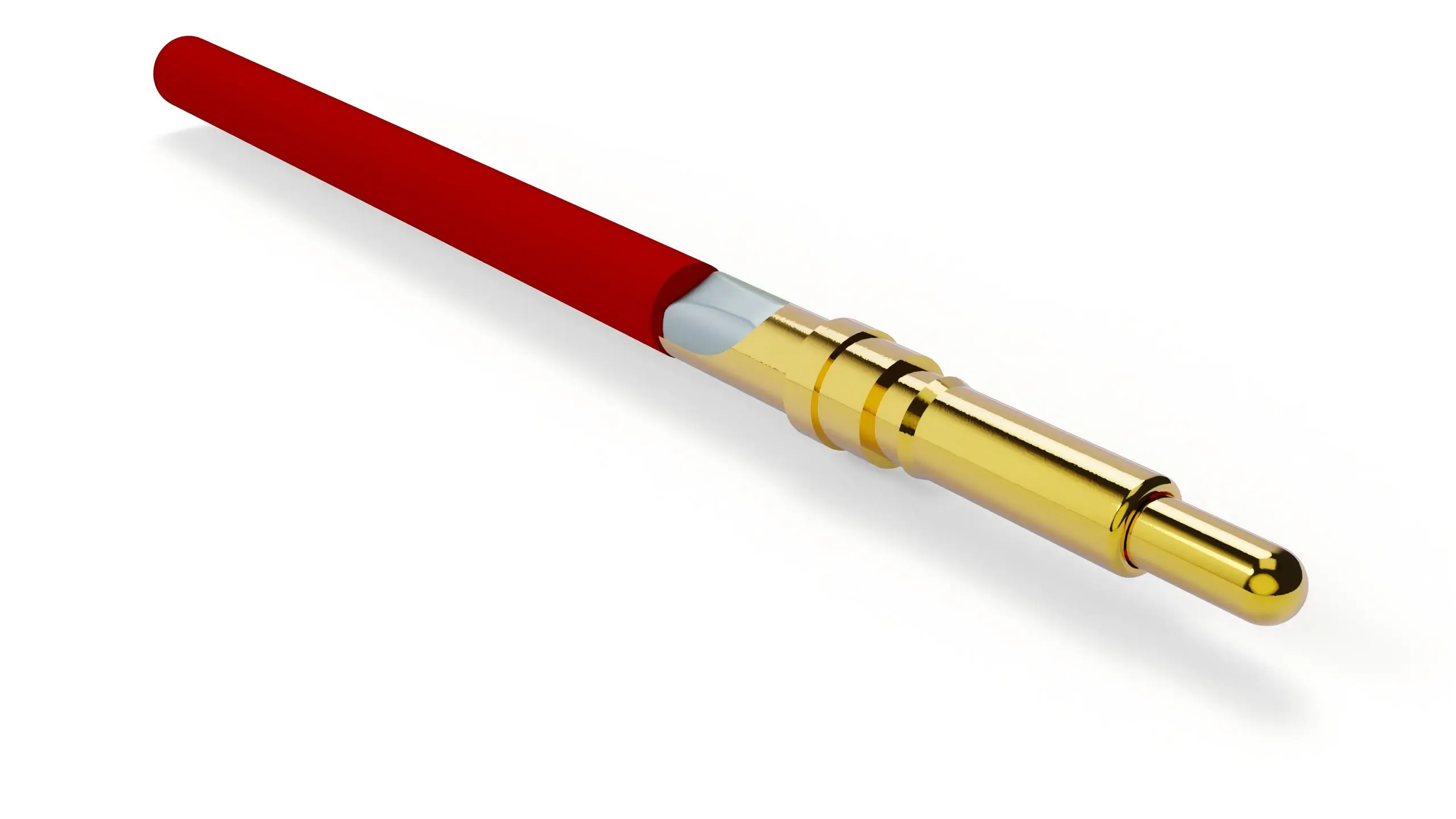

Pre-Wired Spring Probe

Superior Design for Demanding Applications

Our spring probe meets your testing requirements with gold-plated contacts for excellent conductivity and corrosion resistance. The spherical tip ensures optimal contact, while the robust spring provides consistent force. With 2.54mm pitch spacing, it’s compatible with standard circuit board layouts.

You'll appreciate the thoughtful engineering that goes into every component - from the beryllium copper plunger to the phosphor bronze barrel, each element contributes to the probe's exceptional performance characteristics.

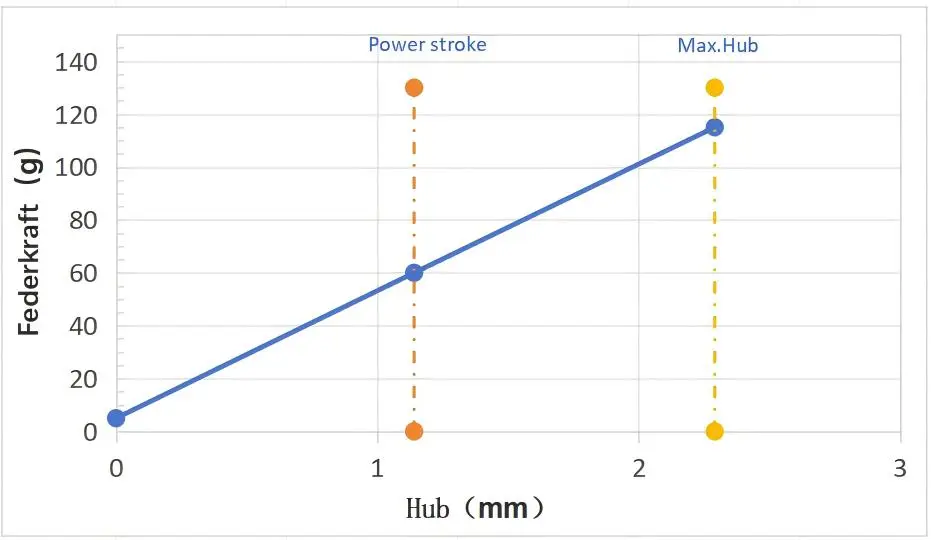

Pre-wired spring probe elasticity curve

Technical Excellence in Every Detail

Our spring probe combines manufacturing precision with electrical performance. Gold-plated surfaces ensure superior conductivity and protection against environmental factors, maintaining consistent characteristics after thousands of test cycles. The pre-wired configuration simplifies installation, eliminating complex assembly procedures.Your technicians will save valuable time with the ready-to-use 8-inch cable assembly. This Pre-Wired Spring Probe reduces installation complexity while maintaining the high-performance standards your applications demand.

Technical Specifications

Parameter Specification
General Specifications
Model CYX 107A-5-60-12.31
Pitch 2.54mm / 100mil
Mounting Type Wire Termination - Crimp Type
Adapter Cable Pre-Wired with 8" 24 AWG Stranded Wires
Operating Temperature -55°C to +125°C
Materials
Plunger Beryllium copper gold
Barrel Phosphor bronze gold
Spring Steel gold
Mechanical Data
Total Length 12.31 mm
Barrel Diameter 2 mm
Maximum Stroke 2.3 mm
Working Stroke 1.15 mm
Spring Force 0.6N@1.15mm
Tip Style Ball
Tip Diameter 1.07mm
Tip Surface Gold
Mate/Demate Cycles 10K-100K cycles
Electrical Data
Maximum Current 7A@30℃ Temp.Rise
Typical Resistance < 20 mOhm

​​​​​​​Wide Temperature Range Performance

Our test works dependably from -55°C to +125°C, guaranteeing reliable execution in extraordinary cold or high-temperature situations. Its vigorous development ensures mechanical unwavering quality, indeed beneath warm push, making it perfect for challenging applications.

You won't encounter execution corruption or untimely disappointment due to temperature cycling. This unwavering quality interprets to decreased upkeep costs and progressed test exactness.

Versatile Application Solutions

The Pre-Wired Spring Probe excels in numerous testing scenarios. Cable assembly manufacturers use these probes for continuity testing and signal verification. Charger manufacturers rely on them for battery connection testing. Electronic assembly lines benefit from their quick-connect capabilities and consistent electrical performance.

Your specific application requirements are met through customizable configurations. Whether you need different cable lengths, alternative tip styles, or modified electrical specifications, our engineering team works with you to develop the optimal solution.

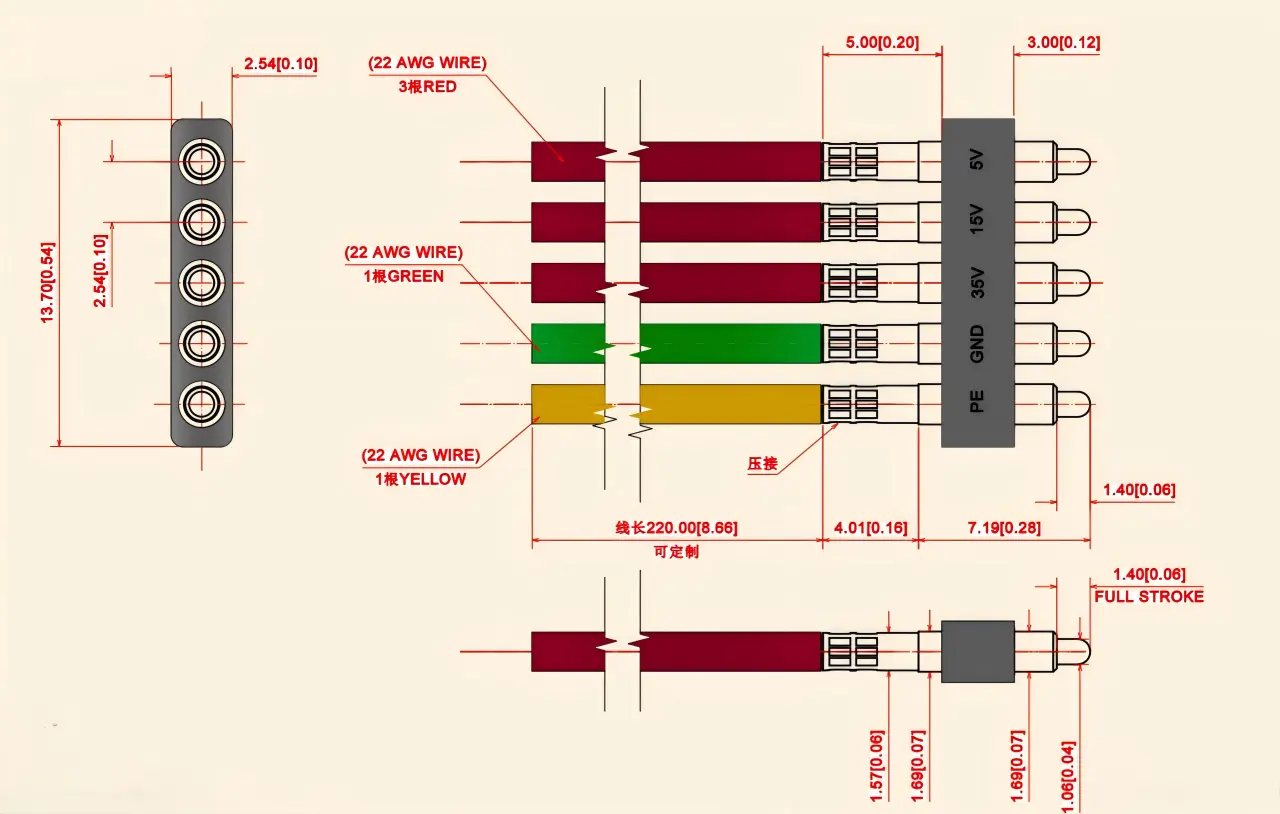

Pre-wired spring probe dimensions

High-Cycle Reliability

Our probe offers exceptional durability with 10,000 to 100,000 mate/demate cycles. The precision spring ensures consistent force, providing reliable contact pressure for accurate results. Its long lifespan and reliability deliver cost-effectiveness in production testing environments.

Fewer probe replacements mean reduced maintenance downtime and lower operational costs. The robust construction handles high-volume production testing without compromising accuracy or reliability.

Quality Manufacturing Excellence

Shaanxi Chuangyu Electronic Technology combines decades of precision manufacturing with digital processes to ensure consistent quality. Our facility in Chang'an Innovation Park offers advanced manufacturing and strict quality control to maintain the highest production standards.Every product undergoes comprehensive testing before shipment, ensuring you receive components that meet your exact specifications.

Pre-wired spring probe quality control

Partner with the Experts

Your testing applications demand components you can trust. Our experience in precision electrical connectors, test probes, and microwave components makes us your ideal partner for complex testing requirements. We understand the challenges you face in modern electronics testing.

Ready to enhance your testing capabilities? Contact our technical team at postmaster@cymicrowave.com to discuss your specific requirements. We'll work with you to identify the optimal Pre-Wired Spring Probe solution for your applications, ensuring you get the performance, reliability, and value your projects demand.
