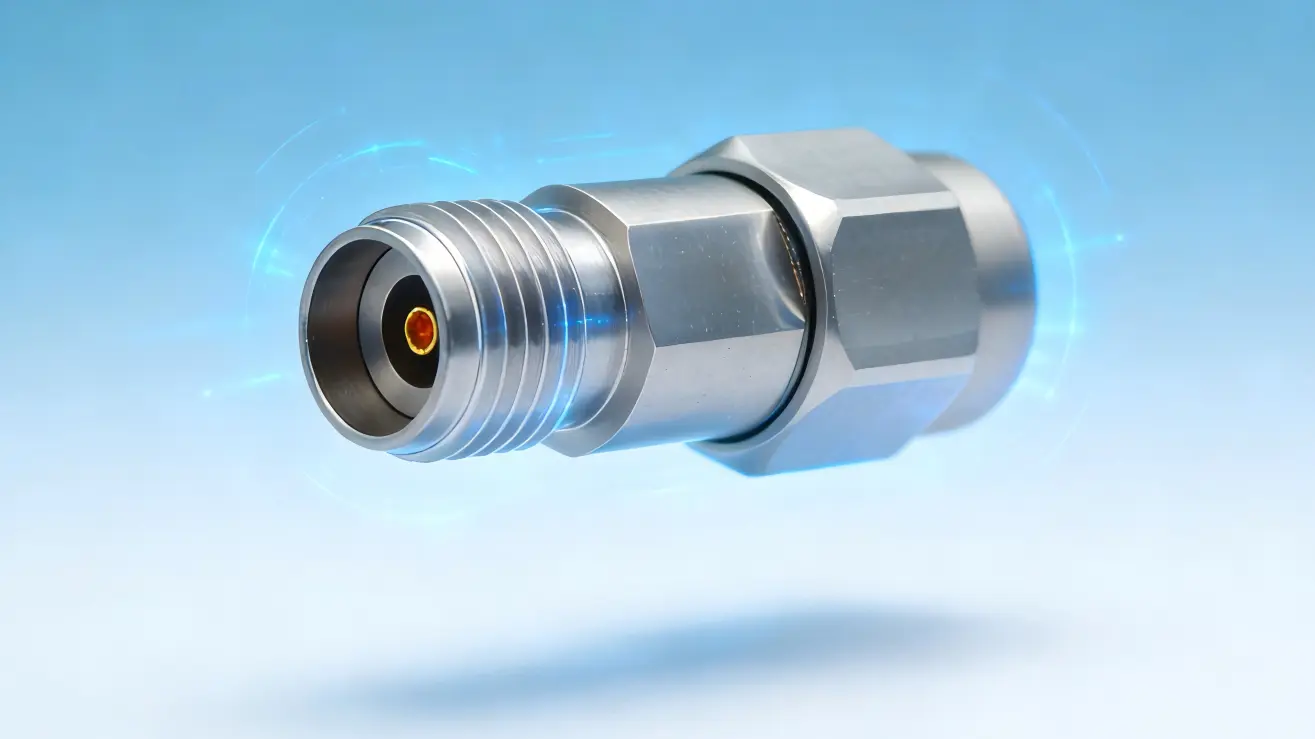

Are you looking for a reliable connection solution for your high-frequency applications? Our Coaxial Adapter 2.92mm Plug To 2.92mm Jack delivers exceptional performance for demanding RF systems. This precision-engineered connector interfaces diverse interfacing consistently whereas keeping up flag keenness up to 40GHz. Whether you're working with microwave communication frameworks, test gear, or millimeter-wave applications, this connector guarantees dependable flag transmission. You can check on its strong development and great electrical characteristics for your most basic projects.

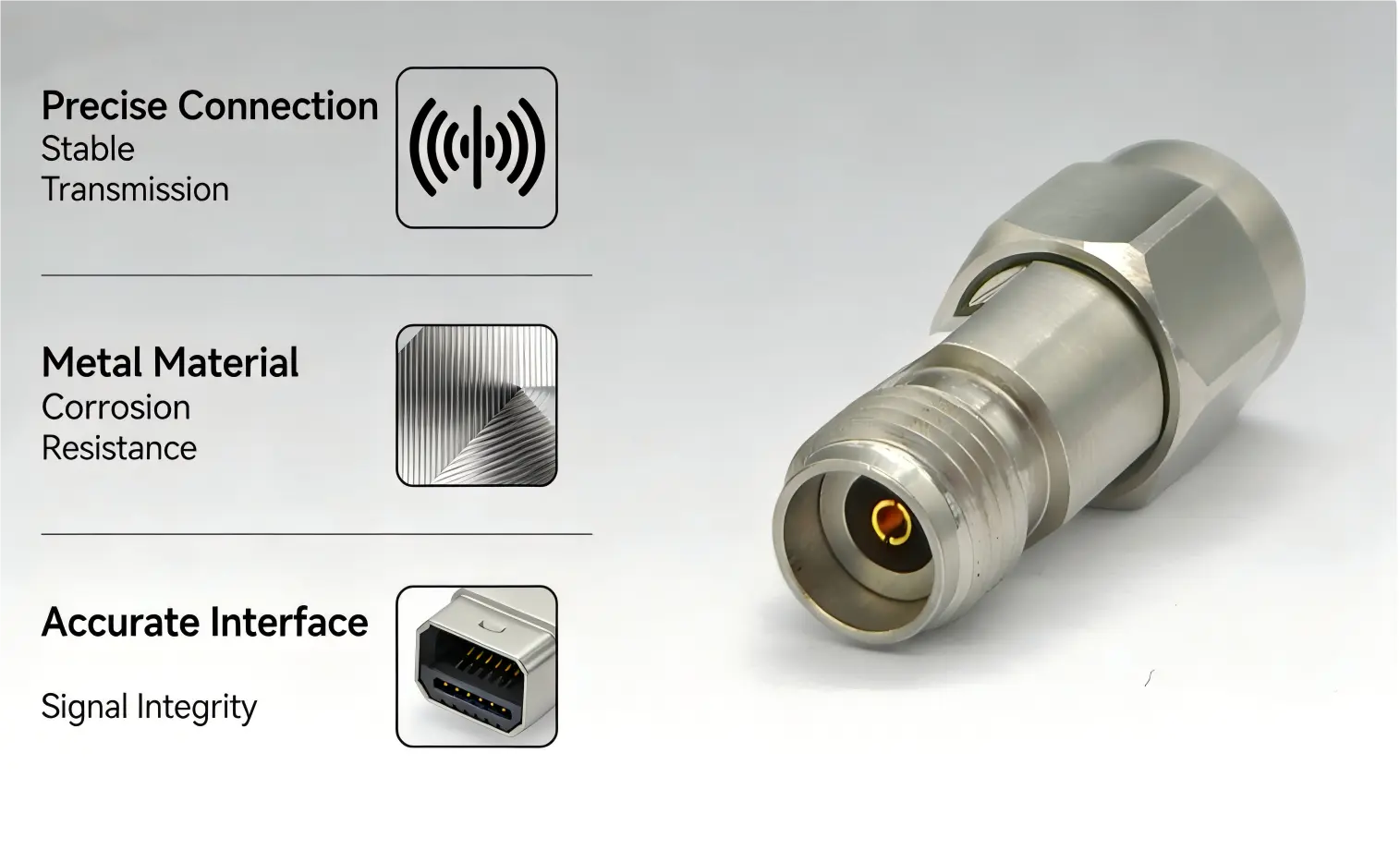

This high-performance connector ranges DC to 40GHz with moo 1.15:1 VSWR, guaranteeing negligible flag reflection. Its stainless steel lodging, beryllium copper contacts, and PEI insulin give solidness, great conductivity, and steady execution over temperature extremes.
You can compatibility this connector with 3.5mm or SMA connectors. This adaptability streamlines your framework plan. It decreases stock prerequisites whereas maximizing compatibility.
Our engineering team designed this Coaxial Adapter 2.92mm Plug To 2.92mm Jack to meet stringent industry standards. The 50-ohm nominal impedance matches standard RF systems perfectly. You'll experience minimal insertion loss with our .05√f (GHz) specification.
With temperature solidness from -65°C to 165°C, this connector performs dependably in cruel situations. It underpins 500 mate/demate cycles and has a association torque extend of 0.79N·m to 1.13N·m for secure attachment.
This connector guarantees exactness and unwavering quality in research facility situations, keeping up estimation precision in arrange analyzers, range analyzers, and flag generators.
Base station applications require robust connectivity solutions. The adapter handles high-power signals while maintaining low loss characteristics. Your network performance remains optimal.
Meeting MIL-STD-202 for thermal shock, vibration, and moisture resistance, this adapter ensures reliable performance in critical military applications.
Prototype development often requires flexible connection solutions. This Coaxial Adapter 2.92mm Plug To 2.92mm Jack adapts to changing requirements while maintaining signal integrity.

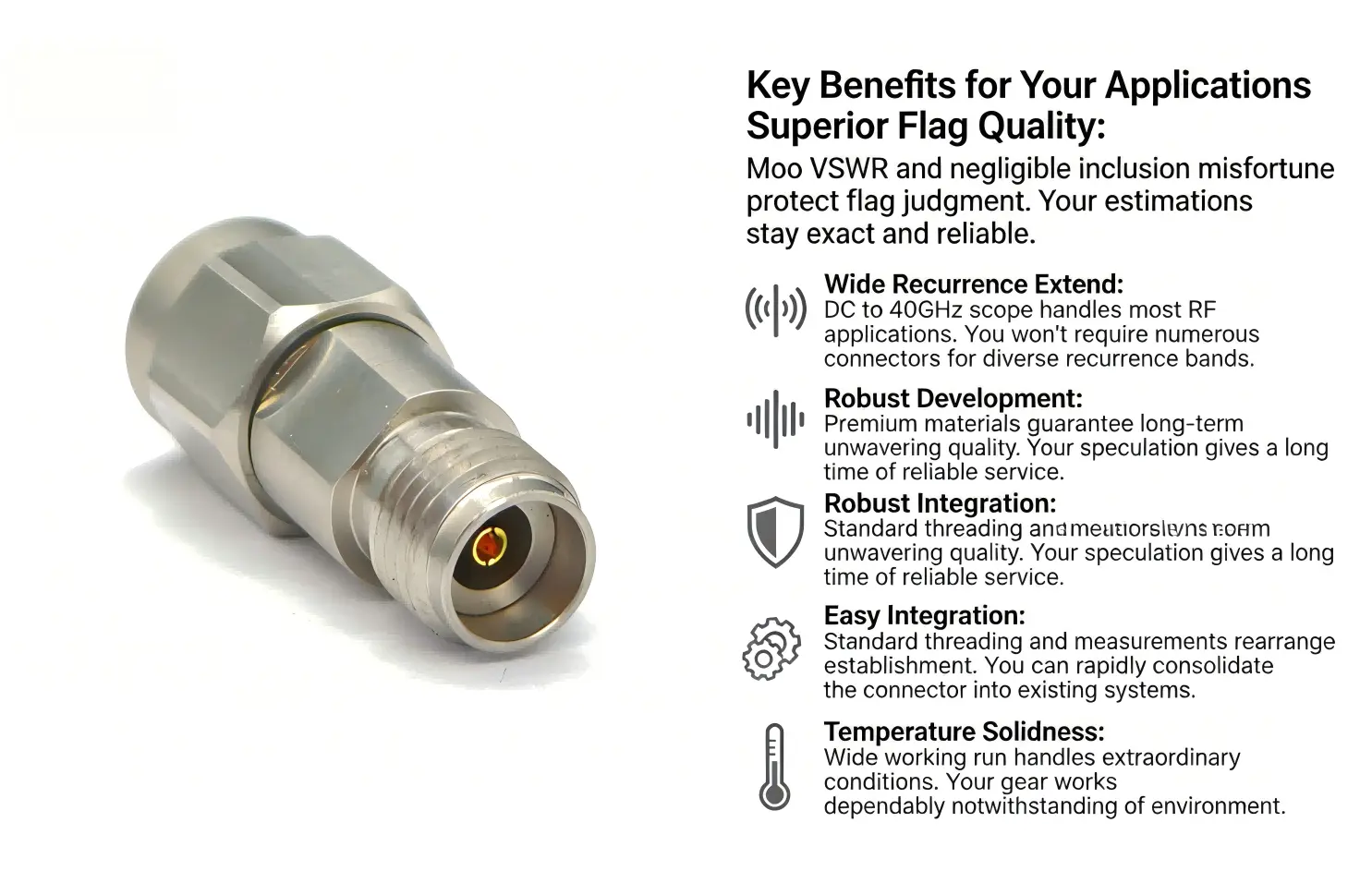

Superior Flag Quality: Moo VSWR and negligible inclusion misfortune protect flag judgment. Your estimations stay exact and reliable.
Wide Recurrence Extend: DC to 40GHz scope handles most RF applications. You won't require numerous connectors for diverse recurrence bands.

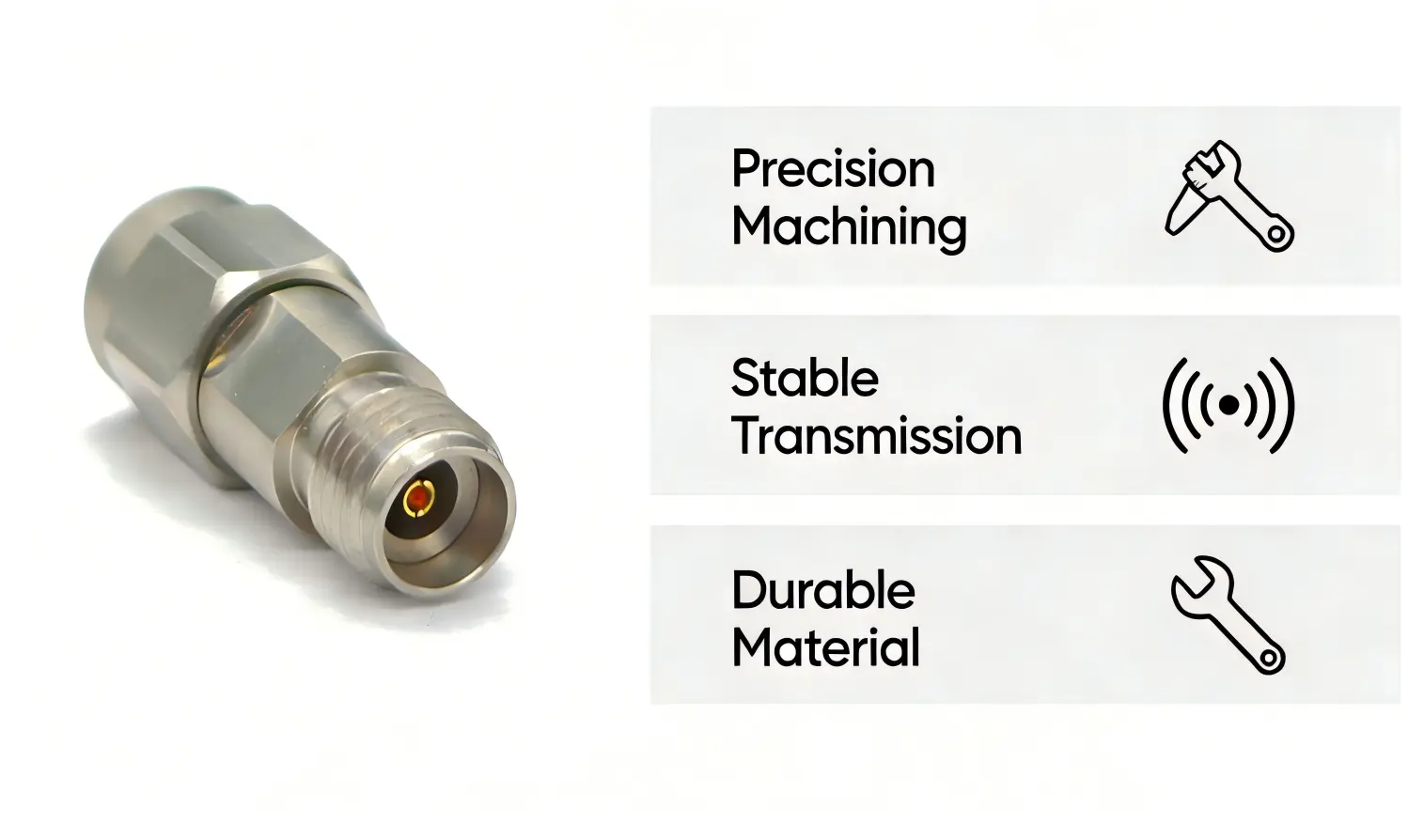

Robust Development: Premium materials guarantee long-term unwavering quality. Your speculation gives a long time of reliable service.
Easy Integration: Standard threading and measurements rearrange establishment. You can rapidly consolidate the connector into existing systems.
Temperature Solidness: Wide working run handles extraordinary conditions. Your gear works dependably notwithstanding of environment.
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 40 GHz |
| VSWR | 1.15:1 to 40GHz typical |
| Insertion Loss | .05√f (GHz) |
| Temperature Range | -65°C to 165°C |
| DWV @ Sea Level | 1000 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
| Contact Resistance (Outer) | 2.5 milliohms maximum |
| Contact Resistance (Inner) | 3 milliohms maximum |
| Mate/Demate Cycles | 500 cycles |
| Engagement Force | ≤0.23N.m |
| Connection Torque | 0.79N·m-1.13N·m |
| Withstand Torque | 1.69N·m |

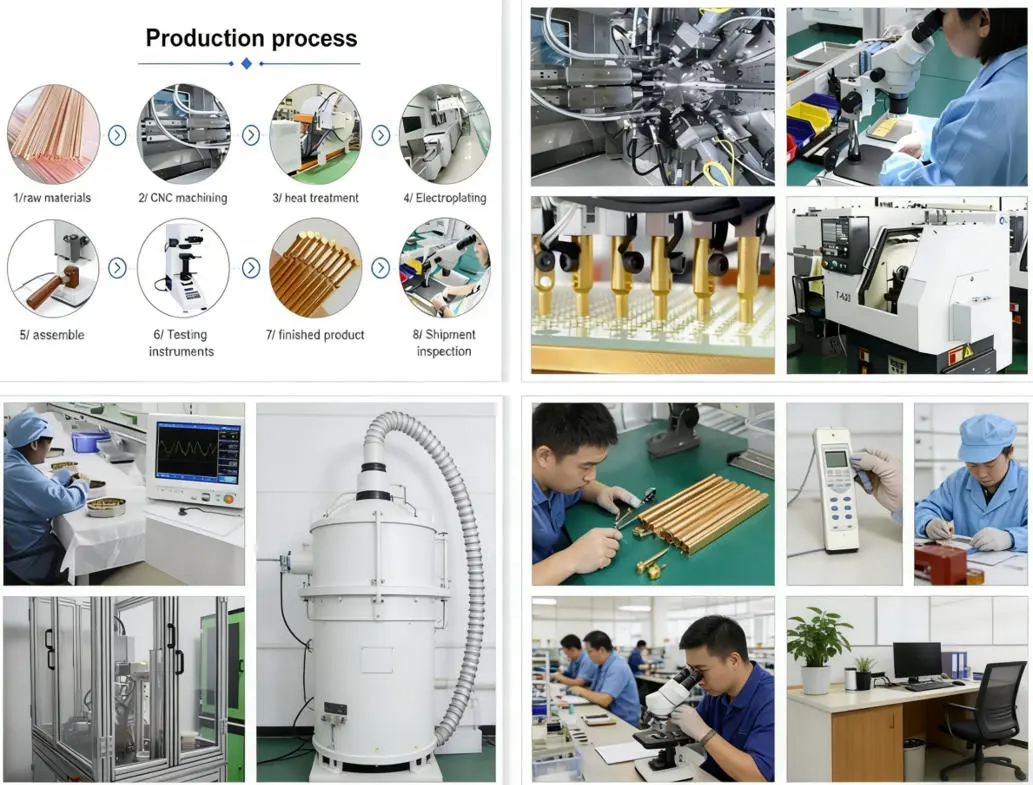

Located in Chang'an Advancement and Innovation Mechanical Stop, we specialize in accuracy RF arrangements. Our ability amplifies to millimeter-wave frequencies up to 110 GHz. You advantage from our progressed fabricating capabilities and strict quality control.
With over 200 mmWave connector determinations and 400+ cable get together variations, our thorough testing and advanced fabricating guarantee reliable quality, assembly or surpassing your necessities each time.
Ready to enhance your RF system performance? Contact our technical team to discuss your specific requirements, including the Coaxial Adapter 2.92mm Plug To 2.92mm Jack. We provide expert guidance to ensure you select the optimal solution.
Email us at postmaster@cymicrowave.com for detailed specifications, pricing, and delivery information. Our responsive customer service team stands ready to support your project needs. Experience the difference that precision engineering and quality manufacturing make in your RF applications.
