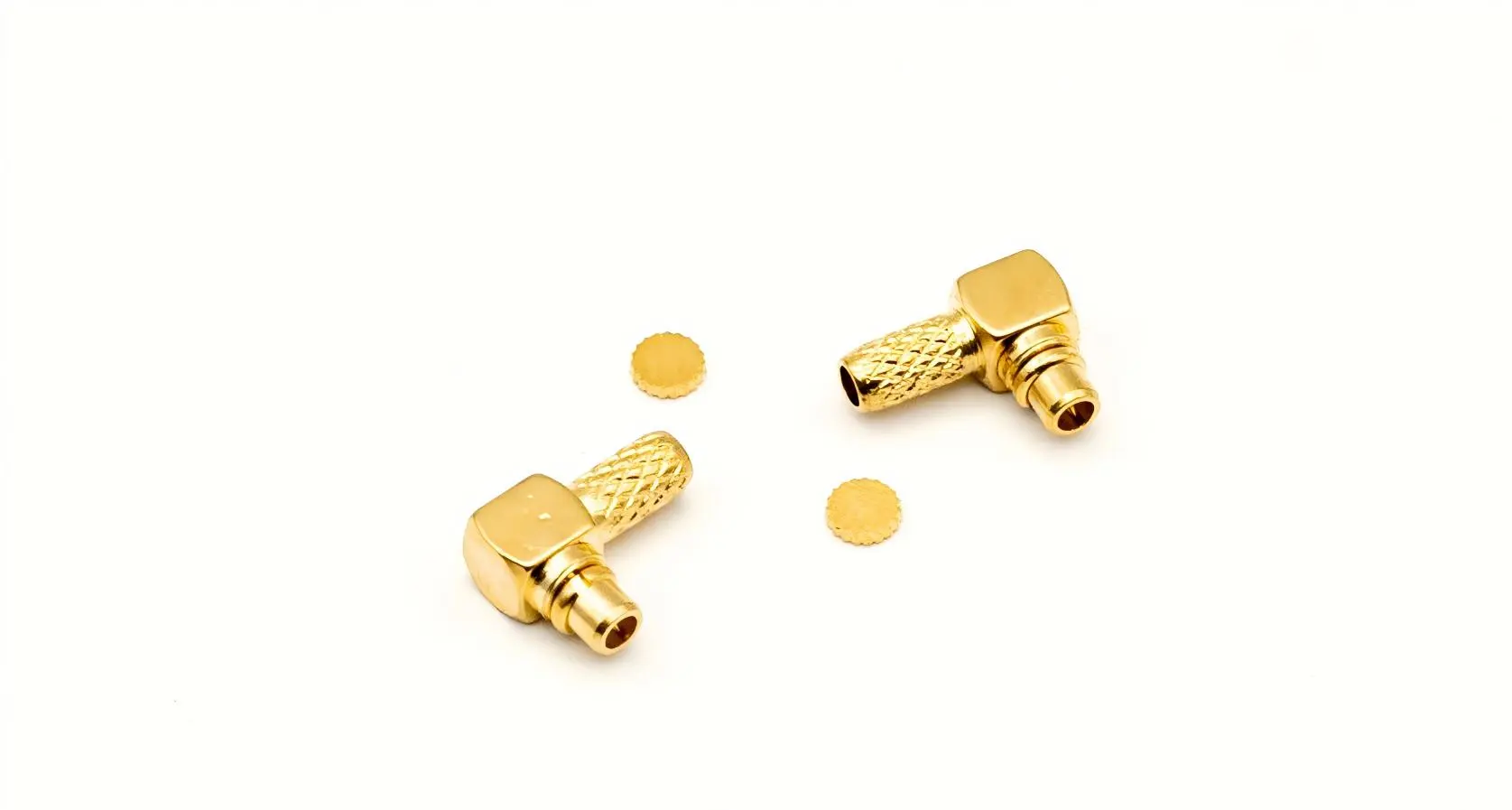

Are you searching for reliable micro-coaxial connections for your next project? Our MMCX RF Connector delivers exceptional performance in a compact design. These miniaturized 50-ohm connectors work consistently from DC to 6 GHz, making them idealize for GPS frameworks, remote base stations, and versatile communication gadgets. With their snap-on association component and 360° turn capability, the item arrangements give the adaptability your applications request whereas keeping up prevalent electrical execution in space-critical environments.
MMCX connectors represent a breakthrough in miniaturized RF technology. These micro-coaxial connectors solve critical design challenges where space and weight matter most.
Their snap-on association framework disposes of strung coupling, speeding get together and guaranteeing unwavering quality. With 360° turn for adaptable directing, the connector lodging is 30% littler than SMB connectors, whereas keeping up SMB-compatible contact and separators measurements for simple plan moves and stock administration.
Your wireless infrastructure projects benefit from MMCX connectors' reliable performance. Base stations, antenna systems, and RF modules use these connectors for consistent signal transmission.
Portable GPS devices rely on MMCX connectors for antenna connections. Their lightweight design doesn't compromise device portability while maintaining signal integrity.
Laboratory equipment and field testing tools incorporate MMCX connectors for precision measurements. Quick-connect capabilities speed up test procedures without sacrificing accuracy.
Compact medical devices use MMCX RF Connector connectors in monitoring equipment and diagnostic tools. Their reliable performance meets strict medical industry standards.
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 6 GHz |
| VSWR | 1.30:1 to 6GHz typical |
| Insertion Loss | 0.10 √f (GHz) |
| Temperature Range | -55°C to 125°C |
| Adaptation Cable | RG316 |
| Voltage Rating | 750 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
| Contact Resistance (Outer) | 2.5 milliohms maximum |
| Contact Resistance (Inner) | 5 milliohms maximum |
| Mate/Demate Cycles | 500 cycles |
| Occlusal Force | ≥25N |
| Separation Force | 8-20N |

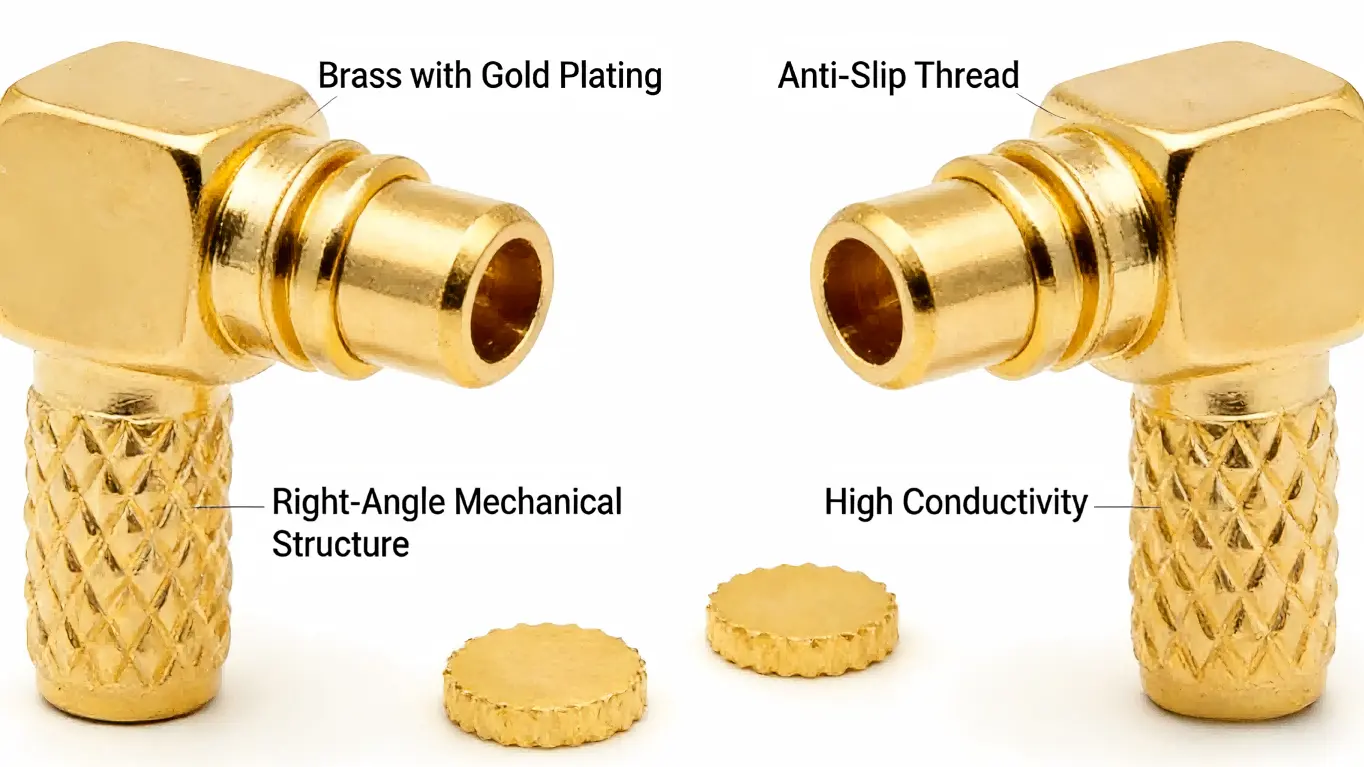

| Component | Material |
|---|---|
| Housing | Brass with gold plating |
| Center Contact | Beryllium copper with gold plating |
| Insulator | PTFE |
| Test Standard | Specification |
|---|---|
| Thermal Shock | MIL-STD-202, Method 107, Condition B |
| Salt Spray | MIL-STD-202, Method 101, Condition B |
| Vibration | MIL-STD-202, Method 204, Condition D |
| Shock | MIL-STD-202, Method 213, Condition I |
| Moisture Resistance | MIL-STD-202, Method 106, except Step 7B |
You can choose from straight or right-angle PCB mount configurations. These options accommodate different board layouts and space constraints in your designs.

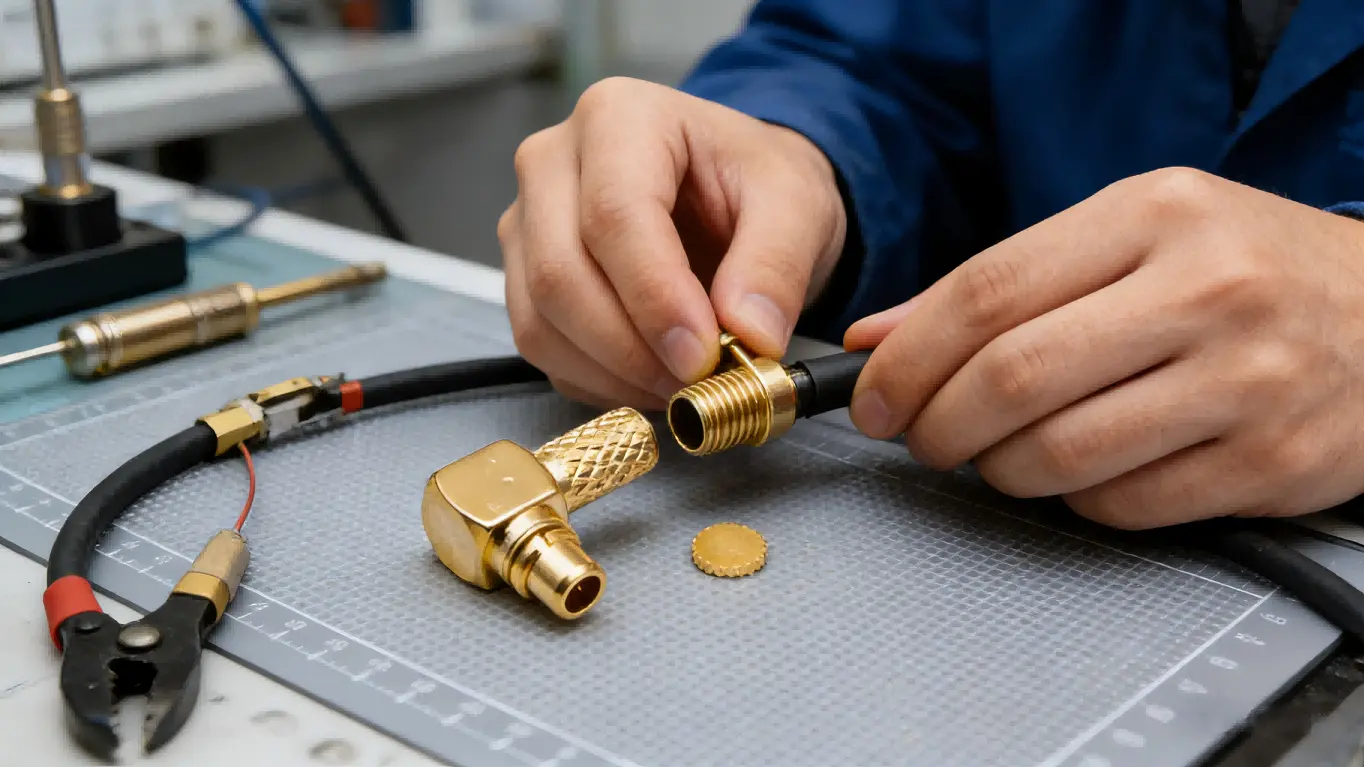

Crimping and soldering options provide flexibility for cable assembly requirements. RG316 cable compatibility ensures reliable connections in demanding applications.
The snap-on design of the MMCX RF Connector eliminates threading requirements. This feature reduces assembly time while maintaining secure connections under vibration and thermal cycling.
Low insertion loss characteristics preserve signal quality across the entire frequency range. VSWR performance ensures minimal reflections in your RF path.
500 mate/demate cycles provide long-term reliability in applications requiring frequent connections. Precise force specifications ensure consistent performance.
Military-standard environmental testing validates performance under extreme conditions. Temperature stability from -55°C to 125°C covers demanding applications.
High insulation resistance and low contact resistance maintain signal integrity. 750 Vrms voltage rating provides adequate safety margins for most applications.

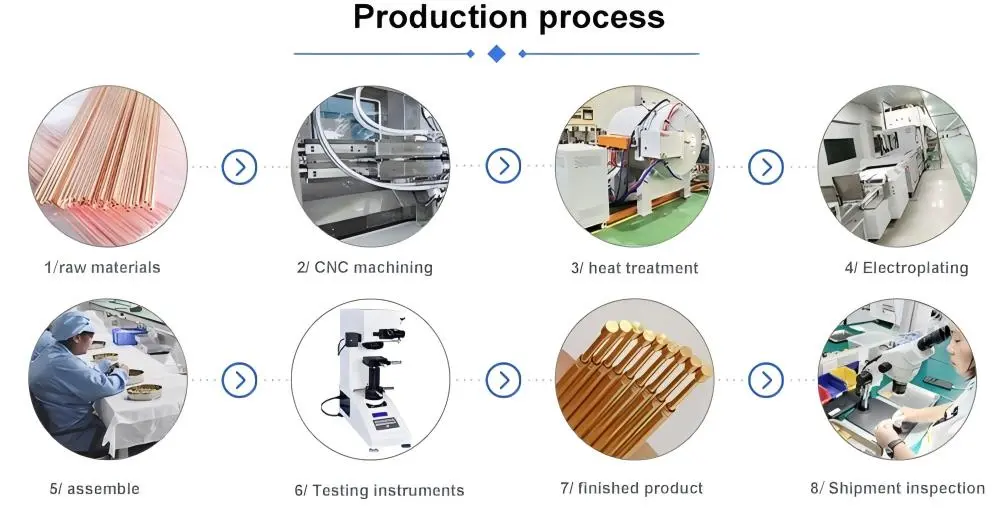

At Shaanxi Chuangyu Electronic Technology, we maintain strict production process management systems. Our precision testing instruments ensure every connector meets specifications from design through customer use.
Guided by digital manufacturing principles, we ensure each product undergoes comprehensive testing for electrical and mechanical performance. Our facility in Chang'an Innovation Park, equipped with advanced technology, guarantees consistent quality and rapid delivery for your projects.
We specialize in precision connectors up to 110 GHz for MMCX applications, offering customization and personalized engineering support for your unique, non-standard requirements.
Ready to enhance your next project with reliable micro-coaxial connections? Contact our technical team at postmaster@cymicrowave.com to discuss your specific requirements. Our MMCX RF Connector solutions deliver the performance and reliability your applications demand.
