GPPO Panel Connector

1. GPPO (SSMP) panel mount connector, featuring push-in blind plug high-frequency interface, supporting transmission in the DC-65GHz frequency range, with a minimum size of 4mm×4mm×4mm. It is suitable for high-density integration scenarios such as aerospace electronic systems.
2. Through-wall flange fixed, microstrip welding
3. Impedance: 50 Ohms nominal
4. VSWR: 1.3:1 to 40GHz typical
5. Insertion loss: .06√f (GHz)
6. Temperature range: -55°C to 125°C

GPPO Panel Connector: High-Performance Millimeter Wave Solutions for Demanding Applications

When you need reliable high-frequency signal transmission in space-constrained environments, the GPPO Panel Connector delivers exceptional performance. This push-in blind plug interface supports DC to 65GHz transmission with minimal footprint requirements. Our product features through-wall flange mounting and microstrip welding capabilities, making it ideal for aerospace electronic systems and industrial applications. With its compact 4mm×4mm×4mm minimum size, this connector provides superior signal integrity while maximizing space efficiency in your critical designs.

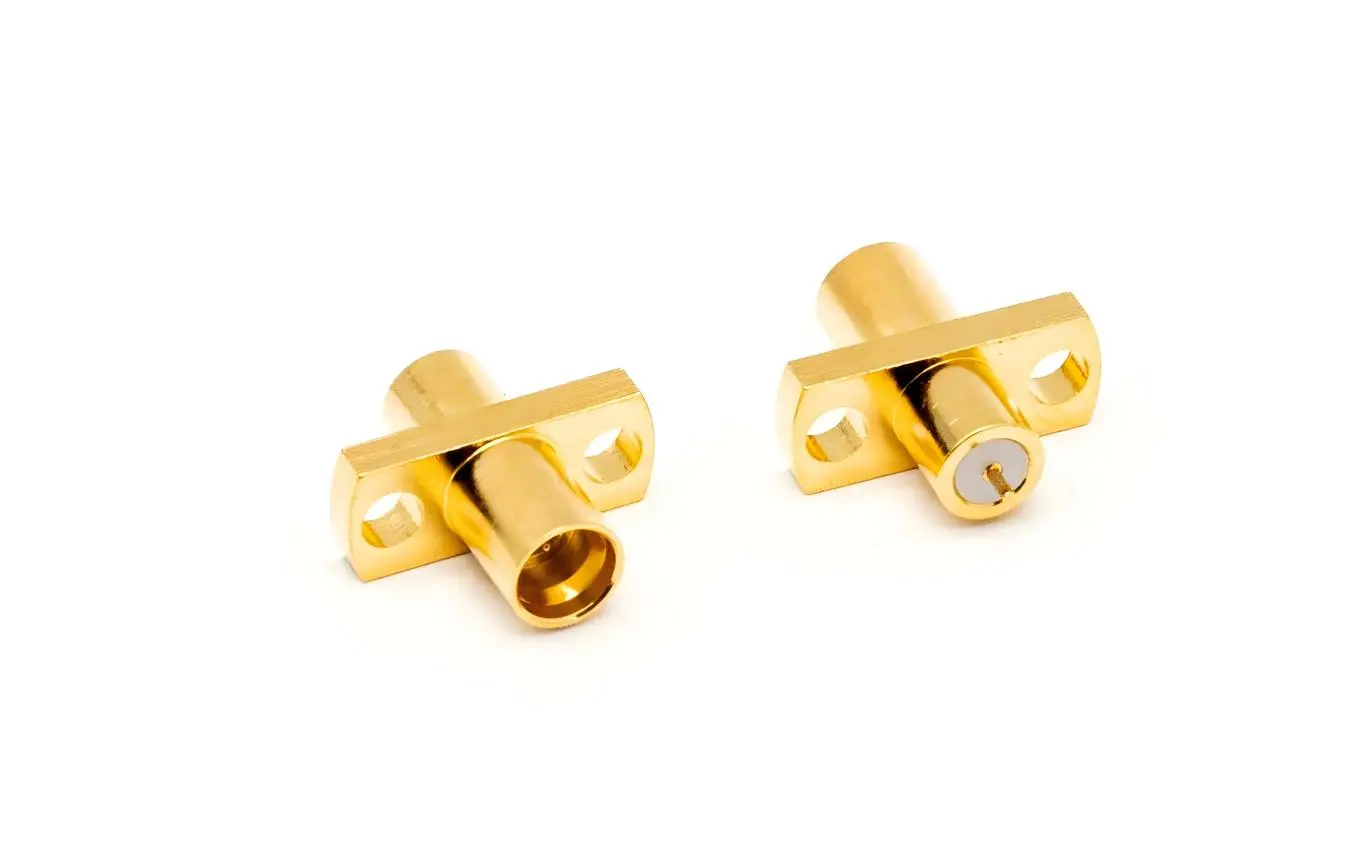

GPPO wall-mounted connector

What Makes Our Panel Mount Connectors Special

Our engineering team designed this connector series with modular blind-mating for quick connections and vibration resistance, ideal for high-frequency industrial applications. The through-wall flange ensures secure installation, while microstrip welding offers excellent electrical continuity in harsh environments.

Superior Electrical Performance You Can Count On

Your signal integrity demands are met with our precision-engineered GPPO Panel Connector. The 50-ohm nominal impedance maintains consistent performance across the entire frequency range. You'll experience minimal signal degradation with our low insertion loss specification.

The VSWR performance of 1.3:1 to 40GHz typical ensures clean signal transmission. Your system efficiency remains high even at elevated frequencies. The temperature range from -55°C to 125°C provides reliable operation in extreme conditions.

Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 40GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.3:1 to 40GHz typical
Insertion Loss	.06√f (GHz)
DWV @ Sea Level	500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	3 milliohms maximum
Contact Resistance (Inner)	6 milliohms maximum
Materials
Housing	Brass Gold Plated
Center Contacts	Beryllium Copper Gold
Insulators	PTFE
Mechanical Data
Mate/Demate Cycles (FD)	100 minimum
Mate/Demate Cycles (SB)	500 minimum
Engagement Force (FD)	4.5lb typical
Disengagement Force (FD)	6.5lb typical
Engagement Force (SB)	2.5lb typical
Disengagement Force (SB)	1.5lb typical

Premium Materials for Long-Term Reliability

We utilize brass gold-plated lodgings for great erosion resistance. The beryllium copper gold center contacts give predominant conductivity and toughness. PTFE insulin keep up their dielectric properties over the full temperature range.

These fabric choices guarantee your connectors perform reliably all through their benefit life. You get the unwavering quality required for mission-critical applications.

Environmental Solidness Testing

Our connectors experience thorough testing to MIL-STD-202 measures. This incorporates warm stun, salt splash, vibration, stun, and dampness resistance testing. You can send these connectors with certainty in requesting environments.

The comprehensive testing program approves execution beneath real-world conditions. Your applications advantage from demonstrated unwavering quality in aviation and mechanical settings.

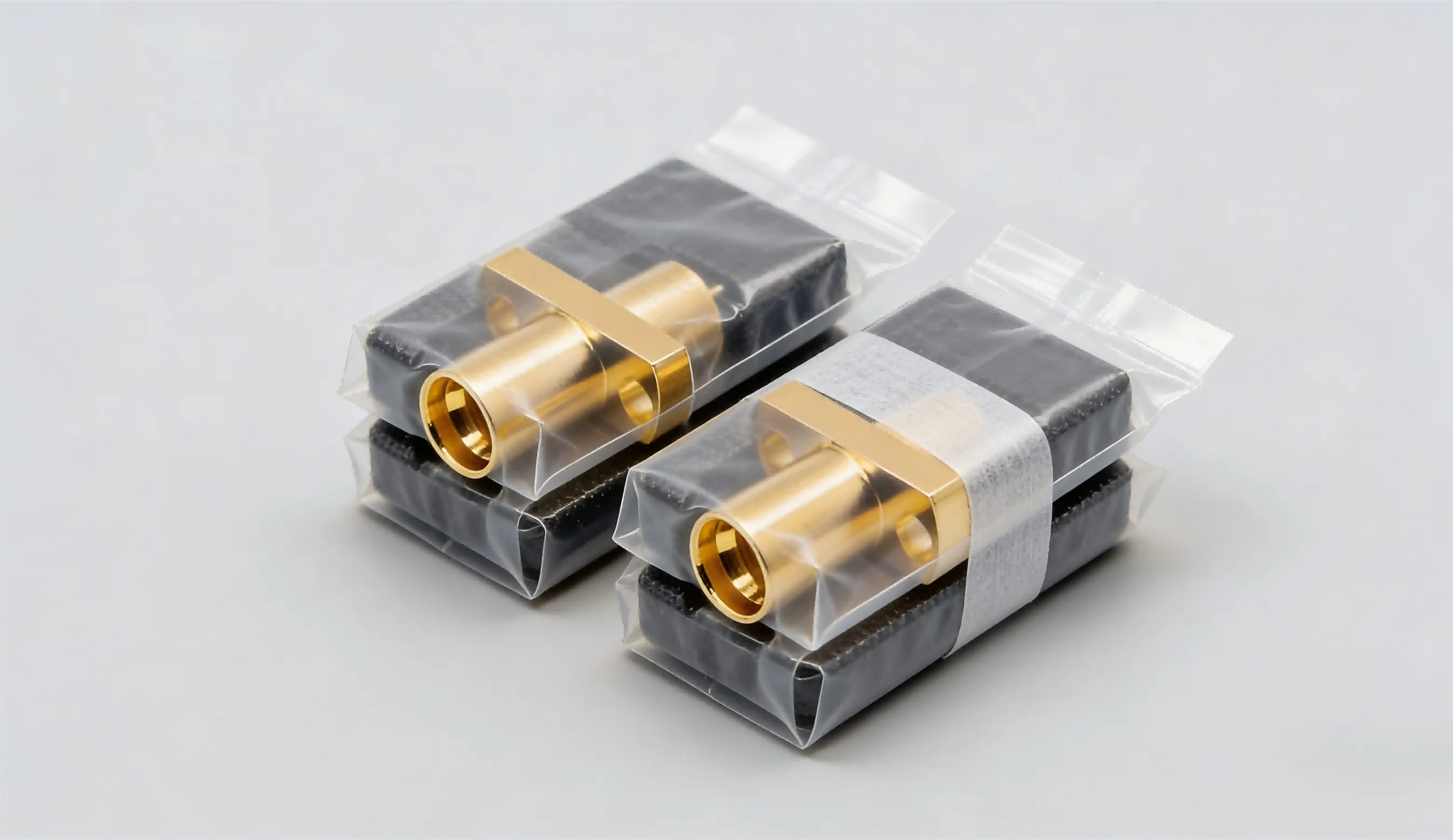

SSMP panel connector

Applications and Industries

High-density integration scenarios benefit most from our GPPO Panel Connector design. Aerospace electronic systems utilize the compact size and reliable performance. Test equipment manufacturers appreciate the precise electrical characteristics.

Military applications leverage the rugged construction and environmental resistance. Communication systems rely on the clean signal transmission capabilities. Medical device manufacturers value the consistent impedance characteristics.

Custom Solutions Available

Our engineering team can modify connector specifications for your unique requirements. We provide custom cable assembly solutions to complement your panel mount connectors. Special plating options and material variations are available upon request.

Contact our technical team to discuss your specific application needs. We'll work with you to optimize connector performance for your particular requirements.

Quality Assurance and Manufacturing

Digital manufacturing processes ensure consistent quality across all production runs. Our precision testing instruments validate every connector before shipment. Strict production process management maintains the high standards you expect.

From initial design through final testing, we maintain rigorous quality control. Your projects receive connectors that meet or exceed all specified performance parameters.
