Name: 1.5mm Needle Standard Stroke Photovoltaic Test Probe
SKU: N/A

1.5mm Needle Standard Stroke Photovoltaic Test Probe

1.Standard travel photovoltaic test probes with a diameter of 1.5mm, featuring the characteristics of standard travel photovoltaic test probes, are used for electrical performance testing of photovoltaic cell circuits.
2.Spacing: 2.54mm/100mil
3.Materials: Beryllium copper gold-plated, phosphor bronze gold-plated tube, steel gold-plated spring
4.Total length: 33.4mm
5.Head diameter: 1.5mm
6.Head shape: Flat
7.Working travel force: 1N@4.3mm
8.Current carrying capacity: 5A
9.Typical resistance: <15mOhm
10.Operating temperature: -45°C to +80°C
11.Test cycle: 3000K times

1.5mm Needle Standard Stroke Photovoltaic Test Probe - Precision Testing Solution

When you're testing photovoltaic cell circuits, precision matters more than anything else. Our 1.5mm Needle Standard Stroke Photovoltaic Test Probe delivers exceptional accuracy and reliability for your electrical performance testing needs. This precision-engineered test highlights a 1.5mm needle distance across with standard stroke capabilities, making it culminate for comprehensive photovoltaic circuit testing. Built with premium materials and progressed building, our test guarantees reliable comes about each time you test.

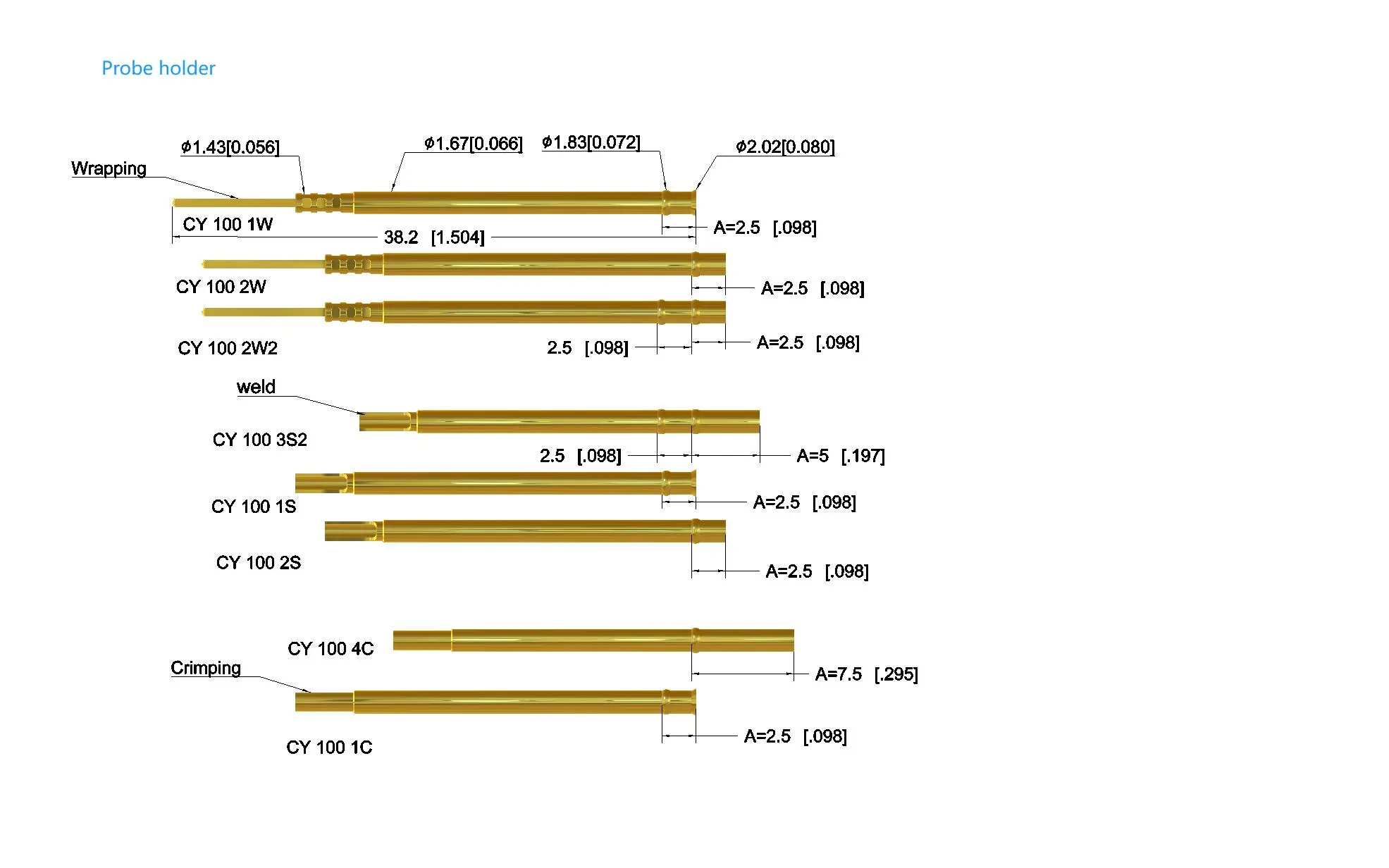

Installation and usage diagram

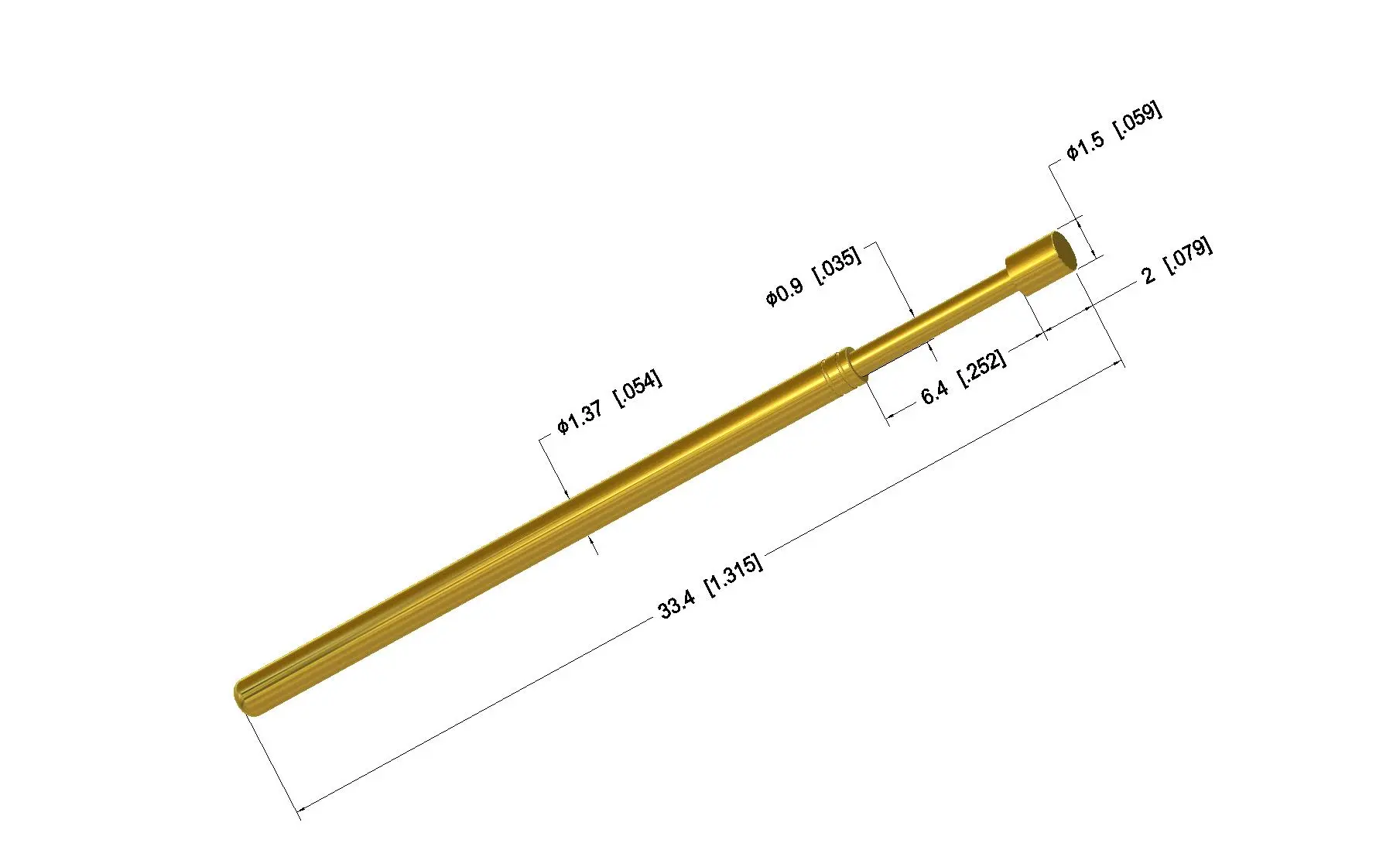

1.5mm Needle Standard Stroke Photovoltaic Test Probe

Why Choose Our Photovoltaic Test Probe?

You no longer need expensive imported solutions. Our probe offers comparable performance to premium international brands while providing better value. The competitive pricing doesn't compromise on quality or reliability.

Shaanxi Chuangyu Advantages

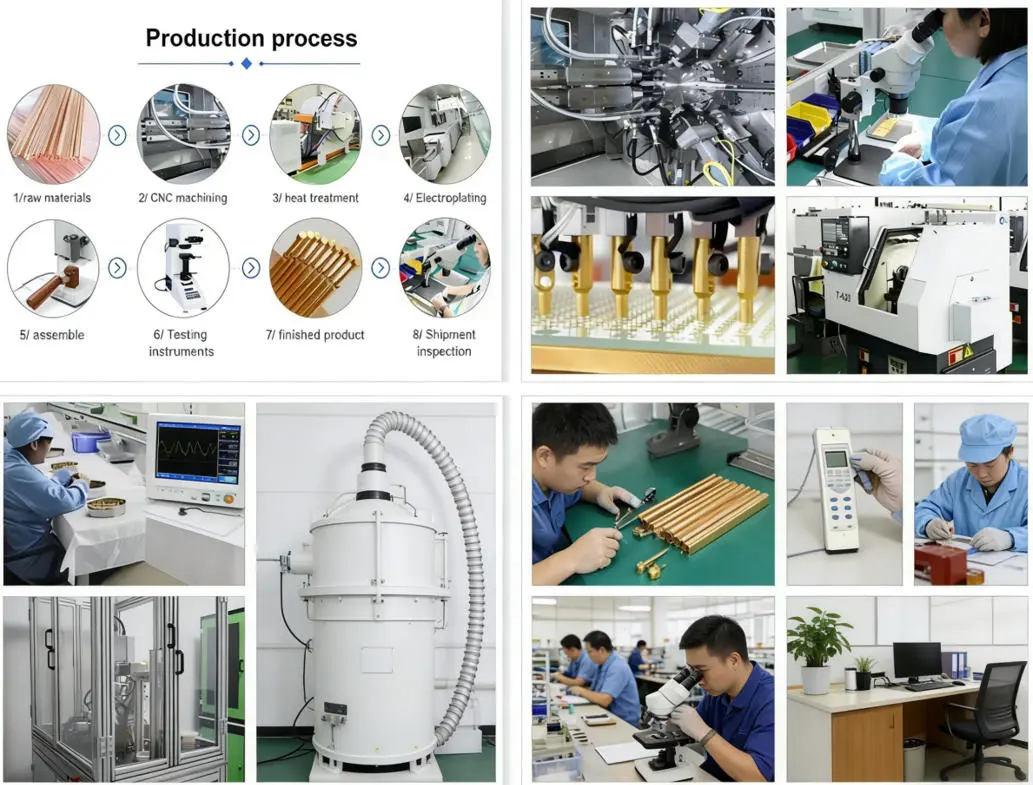

Production Workshop

Our strict production process management ensures every probe meets demanding quality standards. From initial design through final testing, each component undergoes rigorous quality control procedures.

Shaanxi Chuangyu Production Workshop

Technical Specifications

Parameter	Specification
Model	CY100 150A 5100
Pitch	2.54mm / 100mil
Total Length	33.4mm
Needle Diameter	1.5mm
Barrel Diameter	1.37mm
Maximum Stroke	6.35mm
Working Stroke	4.3mm
Spring Force	1N @ 4.3mm
Current Capacity	5A
Typical Resistance	<15mOhm
Operating Temperature	-45°C to +80°C
Test Cycle	3000K times
Tip Style	Flat
Tip Surface	Gold plated

Premium Materials for Reliable Performance

Plunger Construction

Our beryllium copper gold-plated plunger provides exceptional conductivity and durability. The gold plating resists oxidation and ensures consistent electrical contact throughout the probe's lifetime.

Barrel Design

The phosphor bronze gold-plated barrel offers excellent mechanical stability and electrical performance. This material combination provides the perfect balance between flexibility and strength.

Spring System

The steel gold-plated spring maintains consistent force application across thousands of test cycles. This ensures reliable contact pressure and accurate measurements every time.

Applications and Industries

Your 1.5mm Needle Standard Stroke Photovoltaic Test Probe excels in various testing scenarios:

PERC cell testing and validation
HPBC circuit performance analysis
TOPCon technology evaluation
Solar panel quality control
Photovoltaic research and development
Production line testing protocols

OUR CUSTOMERS

Shaanxi Chuangyu Customers

Quality Assurance and Manufacturing Excellence

Shaanxi Chuangyu Electronic Technology Co., Ltd. brings years of expertise in precision electronic components manufacturing. Located in Chang'an Innovation and Technology Industrial Park, our facility specializes in high-precision test probes and electronic solutions.

Shaanxi Chuangyu Quality Commitment

Custom Solutions Available

Your specific testing requirements may need specialized solutions. We offer customization services for various non-standard probes and test fixtures. Our engineering team can adapt the 1.5mm Needle Standard Stroke Photovoltaic Test Probe design to meet your unique specifications.

Packaging and Transportation

Shaanxi Chuangyu Packaging & Transportation

Get Started Today

Ready to enhance your photovoltaic testing capabilities? Contact our team for detailed specifications, pricing information, or custom solutions. We're committed to providing you with the precision testing tools your applications demand.

For technical support, custom orders, or product inquiries, reach out to us at postmaster@cymicrowave.com. Our experienced team is ready to help you select the perfect testing solution for your specific needs.

Trust in our 1.5mm Needle Standard Stroke Photovoltaic Test Probe for reliable, accurate, and cost-effective photovoltaic circuit testing that delivers results you can depend on.
