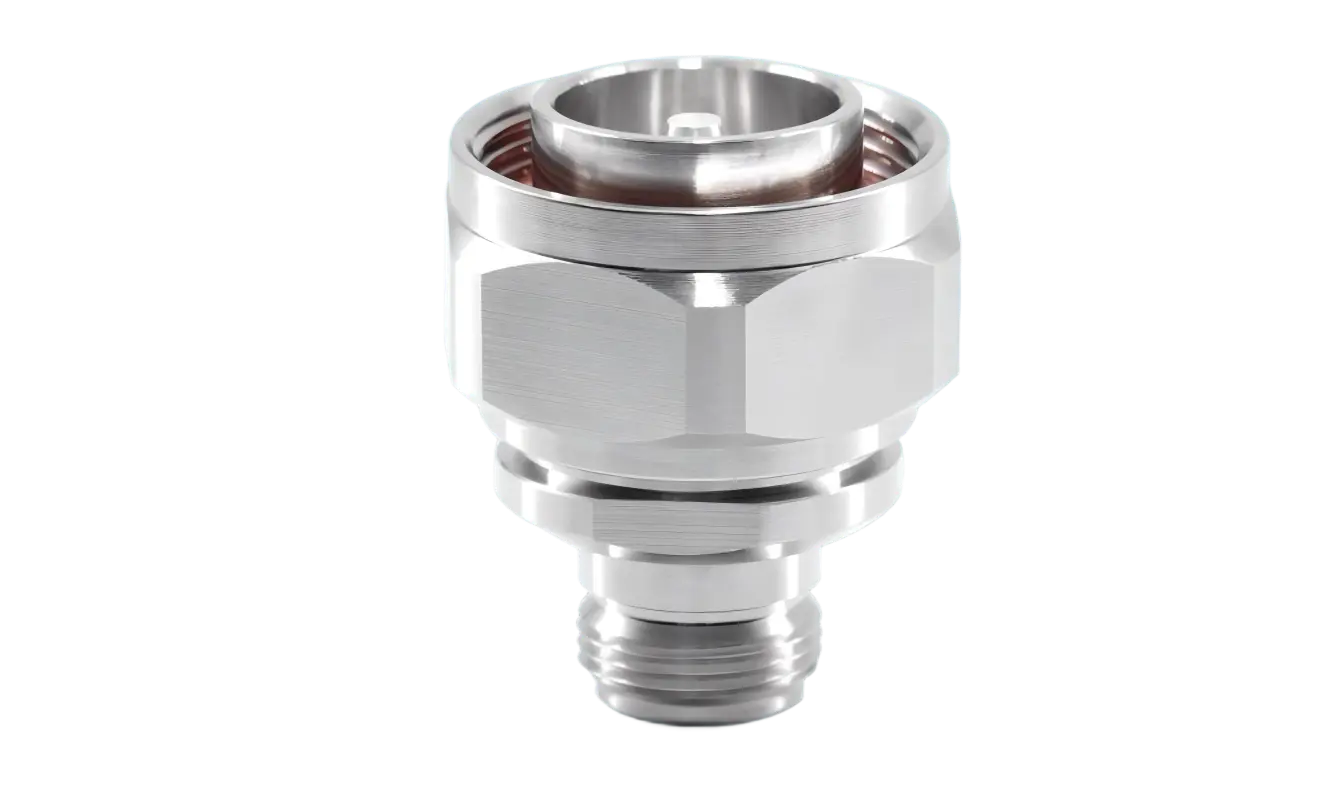

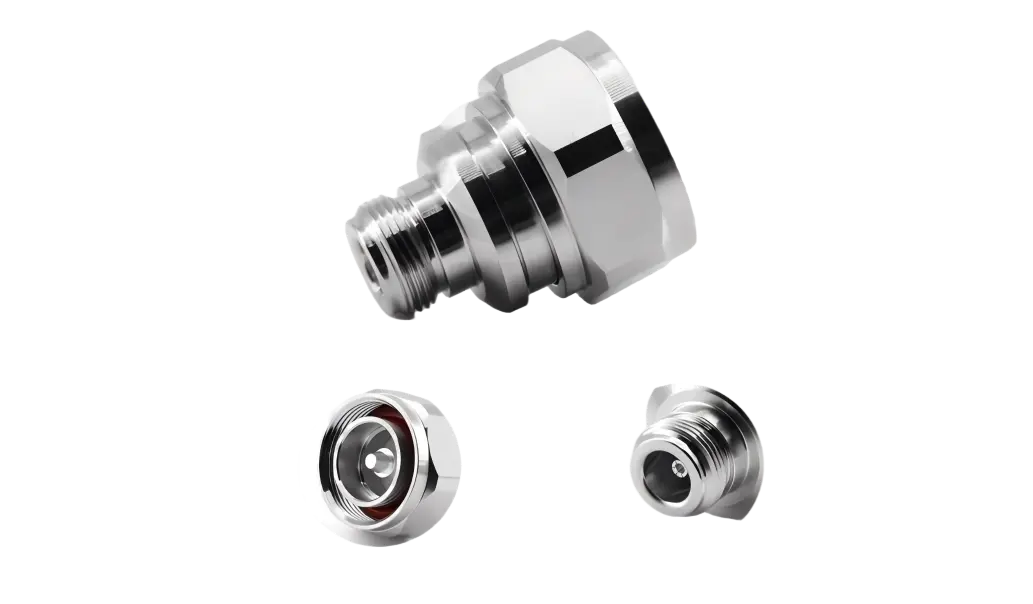

7/16 Din Male To N Female Adapter - Premium RF Interface Solution
Are you looking for a reliable way to connect different RF interfaces in your communication systems? Our 7/16 Din Male To N Female Adapter provides the perfect solution for seamless connectivity between 7/16 DIN and N-type interfaces. This precision-engineered connector empowers you to interface base stations, test gear, radio wires, and other RF gadgets with certainty. Whether you're working on broadcast communications foundation or research facility testing, this connector guarantees ideal flag keenness and execution over your whole system.
What Makes Our RF Connector Special?
At Shaanxi Chuangyu Electronic Innovation Co., Ltd., we get it that solid associations are basic for your RF applications. Our connector highlights premium materials and exact fabricating forms that provide reliable performance.
The brass-plated lodging guarantees toughness and erosion resistance, whereas beryllium copper gold contacts offer negligible flag misfortune. PTFE cover keeps up flag judgment, and the connector performs dependably from -55°C to 125°C for different installations.
Key Technical Specifications
| Parameter |
Specification |
| Impedance |
50 Ohms nominal |
| Frequency Range |
DC to 7.5GHz |
| VSWR |
1.15:1 to 7.5GHz typical |
| Insertion Loss |
0.03√f (GHz) |
| Temperature Range |
-55°C to 125°C |
| DWV @ Sea Level |
3000 Vrms |
| Insulation Resistance |
5,000 megohms minimum |
| Mate/Demate Cycles |
500 cycles |
| Connection Torque |
0.79N·m - 1.13N·m |
Materials and Construction
| Component |
Material |
| Housing |
Brass-plated ternary alloy |
| Center Contacts |
Beryllium copper gold |
| Insulators |
PTFE |
Perfect Applications for Your Projects
This versatile adapter works excellently in telecommunications infrastructure. You can use it to connect base station equipment with different connector types. Test laboratories benefit from its precision when connecting various measurement instruments.
The 7/16 Din Male To N Female Adapter also serves well in antenna systems where different connector standards need to interface. Military and aerospace applications appreciate its rugged construction and reliable performance.
Broadcasting facilities often require this type of adapter for connecting transmission equipment. The low insertion loss ensures your signal quality remains optimal throughout the connection chain.
Why Choose Our Adapter?

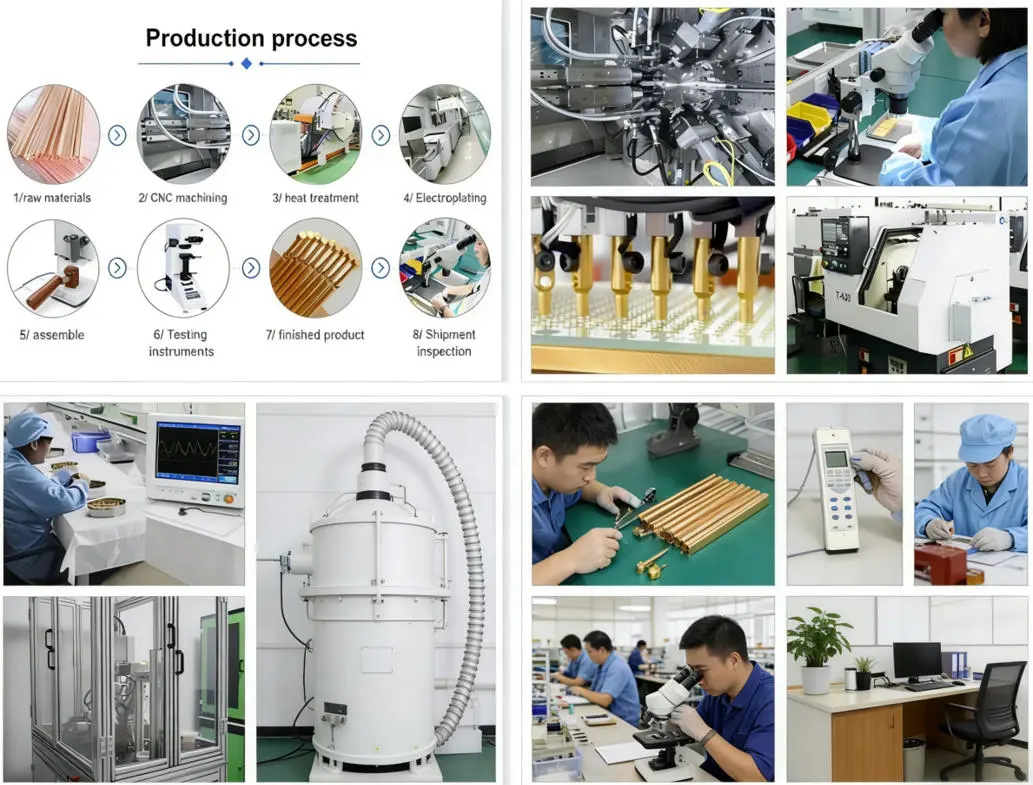

Our fabricating prepare takes after strict quality control, with each connector tried for warm stun, salt splash, vibration, and dampness resistance. Exactness disobedient guarantee unwavering quality, and certifications ensure execution in cruel conditions.
Our plan group has optimized each perspective for most extreme execution. The mechanical resistances guarantee legitimate mating drive and secure associations each time.
Installation and Utilization Tips
Install the connector with a torque of 0.79N·m to 1.13N·m for ideal execution. Assess and clean contacts some time recently mating to guarantee moo addition misfortune. Store unused connectors in defensive caps to avoid harm and defilement.
Check VSWR measurements after installation to verify proper connection. The typical 1.15:1 VSWR specification should be easily achievable with proper installation techniques.
Quality Assurance and Reliability
Shaanxi Chuangyu Electronic Technology Co., Ltd. maintains rigorous quality standards throughout manufacturing. Our facility in Chang'an Innovation and Technology Industrial Park features advanced testing equipment and controlled production environments.
Each 7/16 Din Male To N Female Adapter undergoes electrical testing including VSWR, insertion loss, and contact resistance measurements. Environmental testing validates performance across the specified temperature range.
We back our products with comprehensive technical support. Our engineering team can assist with application questions and provide customization options when needed.
Get Your Adapter Today
Ready to enhance your RF system connectivity? Our high-quality adapter delivers the performance and reliability you need for demanding applications. The combination of premium materials, precise manufacturing, and thorough testing ensures long-lasting performance.
Contact us today to discuss your specific requirements. Our technical team can help you select the right 7/16 Din Male To N Female Adapter configuration for your application.
Contact Information:
Email: postmaster@cymicrowave.com
Experience the difference that quality engineering makes in your RF connections. Choose Shaanxi Chuangyu Electronic Technology Co., Ltd. for your precision connector needs.
