Name: Coaxial Adapter 1.0mm Male To 1.85mm Female
SKU: N/A

Coaxial Adapter 1.0mm Male To 1.85mm Female

1. The coaxial adapter converts from a 1.0mm male connector to a 1.85mm female connector, used to connect RF equipment with different interface types. One end is a 1.0mm male connector (plug), and the other end is a 1.85mm female connector (socket).
2. It is suitable for scenarios such as microwave communication and test measurement.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 6GHz typical
5. Insertion loss: .04 √f (GHz)
6. Temperature range: -65°C to 165°C

Coaxial Adapter 1.0mm Male To 1.85mm Female - Professional RF Interface Solution

When you need to connect RF equipment with different interface types, our Coaxial Adapter 1.0mm Male To 1.85mm Female provides the perfect solution. This precision-engineered connector consistently changes over between 1.0mm male and 1.85mm female connectors. You'll discover it basic for microwave communication frameworks and test estimation applications. Our connector highlights one 1.0mm male connector (plug) and one 1.85mm female connector (attachment), conveying dependable execution over requesting RF situations. With 50-ohm ostensible impedance, you get reliable flag keenness for your basic applications.

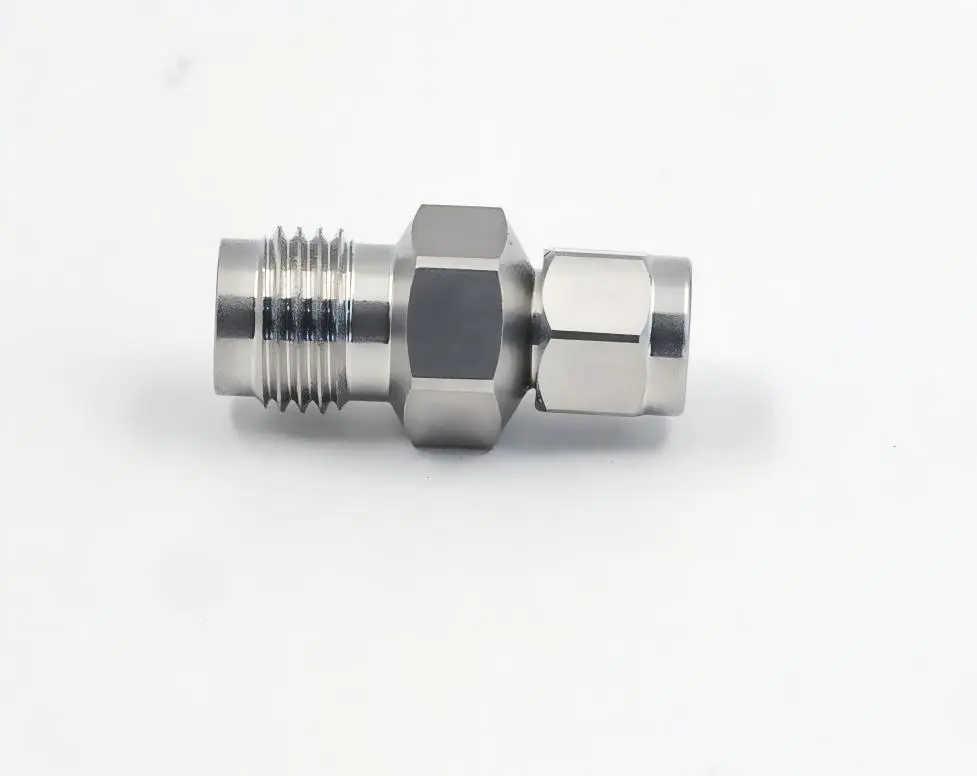

Coaxial adapter 1.0 mm male to 1.85 mm female

Why Choose Our RF Interface Solution?

Our adapter supports high-frequency transmission up to 67GHz, with precision-machined housings for durability. Advanced materials and manufacturing ensure reliable performance in demanding environments for your applications. We use stainless steel housings with passivation treatment for corrosion resistance. The beryllium copper gold center contacts provide excellent conductivity and wear resistance.

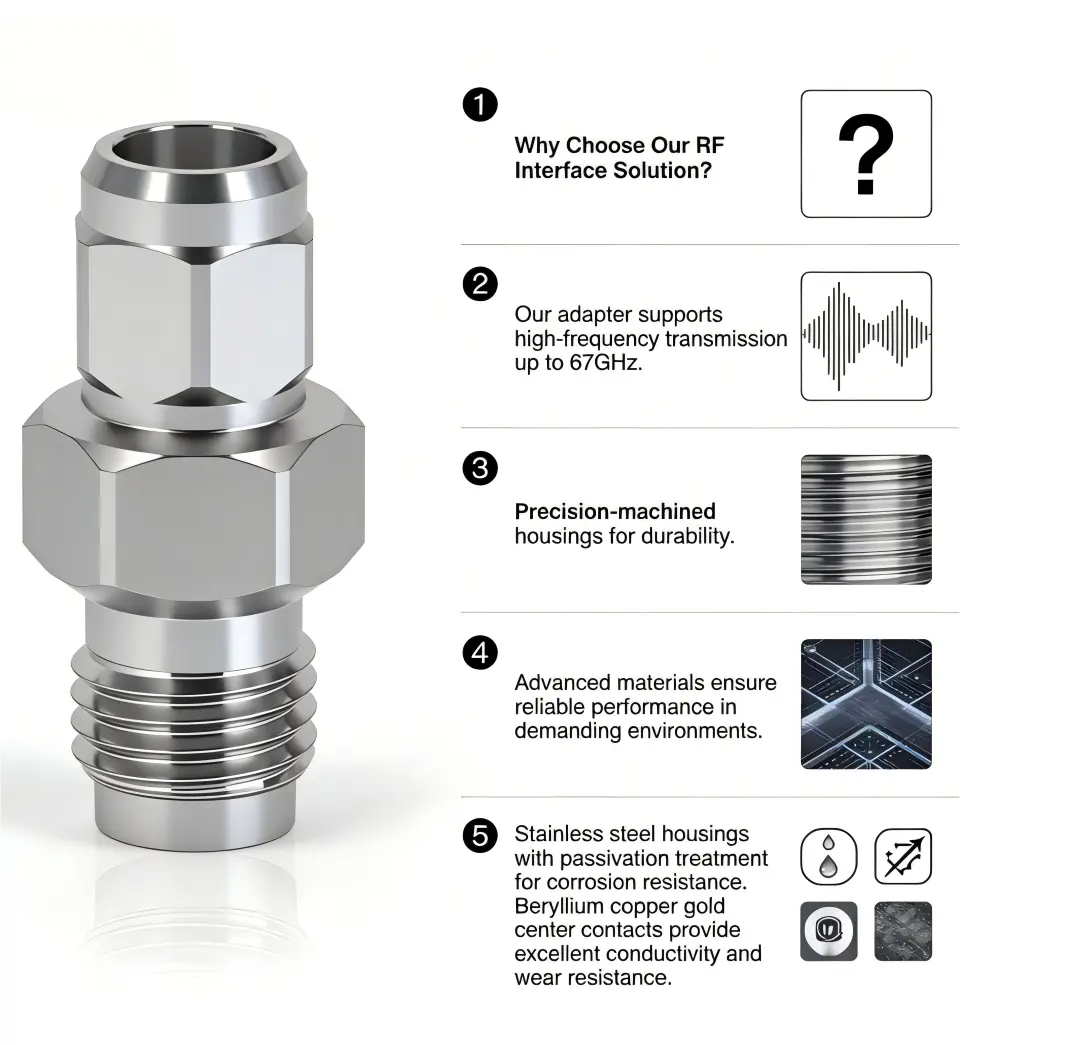

Coaxial adapter, 1.0mm male to 1.85mm female: Product advantages

Technical Excellence You Can Trust

Designed to surpass industry guidelines, our connector offers moo addition misfortune, great VSWR, and dependable operation from -55°C to 125°C, with steady execution guaranteed through quality fabricating. Each connector experiences thorough testing to confirm electrical and mechanical details. You can depend on our items for basic RF applications.

Key Features and Benefits

Superior Electrical Performance

DC to 67GHz frequency range covers your broadband needs
Low insertion loss of .04 √f (GHz) maintains signal quality
Excellent VSWR of 1.3:1 typical ensures minimal reflections
50-ohm nominal impedance matches standard RF systems

Robust Mechanical Design

500 mate/demate cycles provide long service life
Precision torque specifications ensure proper connections
Low engagement force reduces installation effort
Durable materials withstand repeated use

Environmental Reliability

Wide temperature range from -55°C to 125°C
Meets MIL-STD-202 environmental testing standards
Salt spray resistance for harsh environments
Vibration and shock resistance for mobile applications

Detailed Technical Specifications

Parameter	Specification
General Specifications
Impedance	50 Ohms nominal
Frequency Range	DC to 67GHz
Temperature Range	-55°C to 125°C
Electrical Performance
VSWR	1.3:1 to 67GHz typical
Insertion Loss	.04 √f (GHz)
DWV @ Sea Level	200 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2.5 milliohms maximum
Contact Resistance (Inner)	4 milliohms maximum
Materials
Housings	Stainless steel passivated
Center Contacts	Beryllium copper gold
Insulators	PEI
Mechanical Data
Mate/Demate Cycles	500 cycles
Engagement Force	≤0.23N.m
Connection Torque (1.85 Port)	0.8N·m - 1.1N·m
Connection Torque (1.0 Port)	0.3N·m - 0.45N·m
Withstand Torque (1.0 Port)	0.7N·m

Applications and Industries

Your microwave communication systems benefit from our precision adapters, including the Coaxial Adapter 1.0mm Male To 1.85mm Female. Test and measurement equipment requires reliable connections for accurate results. Our adapters serve multiple industries including telecommunications, aerospace, defense, and research facilities.

Laboratory environments demand consistent performance. Production testing requires durable connections that maintain accuracy over thousands of cycles. Our millimeter-wave capability extends your system capabilities.

Coaxial adapter, 1.0mm male to 1.85mm female, application industries

Quality and Manufacturing Excellence

Shaanxi Chuangyu Electronic Technology Co., Ltd. brings decades of RF expertise to every product. Our advanced manufacturing facility in Xi'an utilizes precision machining and strict quality control processes. We've developed over 200 specifications of millimeter-wave connectors and 400 cable assembly specifications.

Your projects benefit from our comprehensive testing procedures. Every adapter undergoes electrical verification and mechanical inspection before shipment. We maintain traceability throughout the manufacturing process.

Coaxial adapter, 1.0mm male to 1.85mm female, high quality

Installation and Handling Guidelines

Proper installation ensures optimal performance and longevity. Clean both connector interfaces before mating. Apply the specified torque values using a calibrated torque wrench. Avoid over-tightening which can damage precision threads.

Handle connectors carefully to prevent damage to delicate center conductors. Store adapters in protective packaging when not in use. Regular inspection helps identify wear before it affects performance.

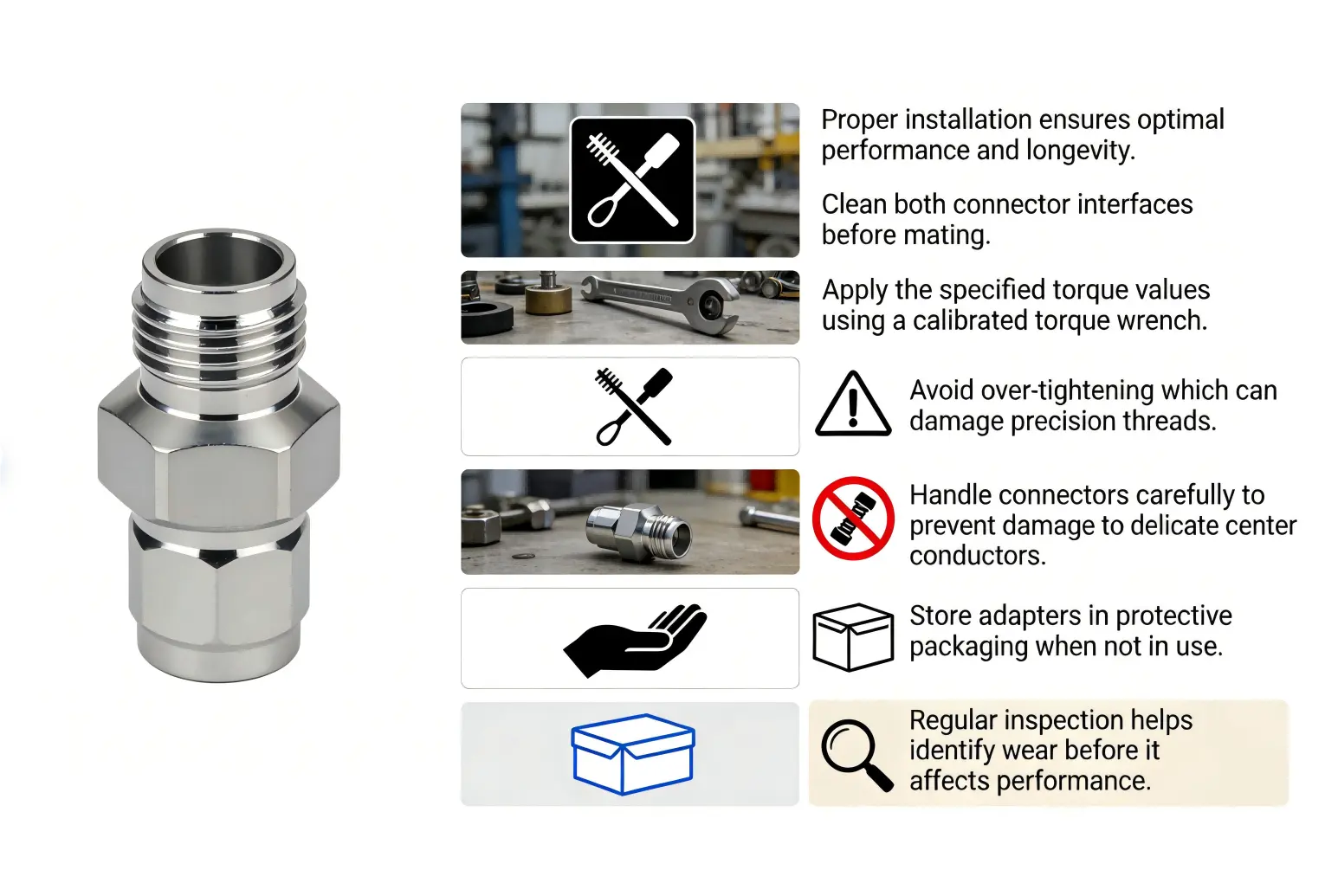

Coaxial adapter, 1.0mm male to 1.85mm female connector installation procedure.

Get Your Solution Today

Our Coaxial Adapter 1.0mm Male To 1.85mm Female delivers the precision and reliability your applications demand. We support both prototyping and production needs. Contact our technical team for assistance, custom solutions, and detailed supporting documents.

Ready to enhance your RF system performance? Reach out to us at postmaster@cymicrowave.com for pricing, availability, and technical support. Our experts are standing by to help you select the right solution for your specific requirements.
