Name: N Female To Mini DIN Male Adapter
SKU: N/A

N Female To Mini DIN Male Adapter

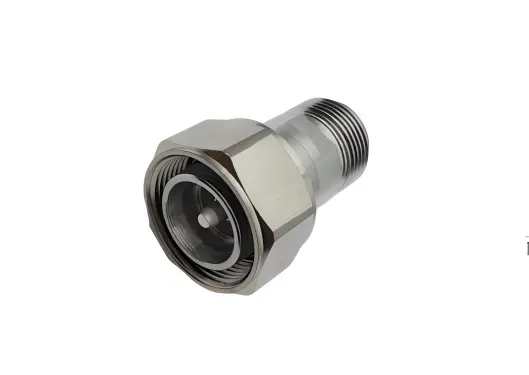

1. N-type female to miniDIN male adapter, a coaxial RF adapter with an N-type female connector on one end and a miniDIN male connector on the other,
2. Used for signal conversion between different RF interfaces. It is suitable for scenarios such as RF communication and microwave equipment.
3. Impedance: 50 Ohms nominal
4. VSWR: 1.15:1 to 6GHz typical
5. Insertion loss: .04√f (GHz)
6. Temperature range: -55°C to 125°C

N Female To Mini DIN Male Adapter - Professional RF Solution

Looking for a reliable signal conversion solution between different RF interfaces? Our N Female To Mini DIN Male Adapter delivers exceptional performance for your RF communication and microwave equipment needs. This precision-engineered coaxial RF connector highlights an N-type female connector on one conclusion and a miniDIN male connector on the other. You can believe this connector to keep up flag keenness over a wide recurrence run whereas giving steady execution in requesting applications.

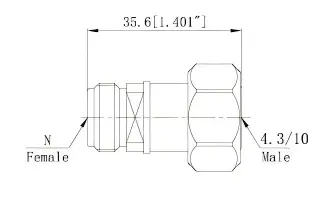

N-type female to mini-DIN male adapter

Why Select Our RF Connector Solution?

Our connector bridges N-type and miniDIN interfacing, guaranteeing consistent compatibility in complex RF frameworks. With strong development and dependable execution, it keeps up 50-ohm impedance over its operational run. This guarantees negligible flag twisting and greatest control exchange productivity. Whether you're setting up test gear, building communication frameworks, or working on microwave applications, this connector conveys the execution you need.

Technical Greatness in Each Detail

Our connectors highlight brass-plated ternary amalgam lodgings for solidness and protecting, gold-plated beryllium copper contacts for conductivity, and PTFE insulin for amazing dielectric properties over the whole recurrence range.This fabric choice contributes to the adapter's moo inclusion misfortune and great VSWR characteristics. Temperature soundness remains reliable from -55°C to 125°C, making it reasonable for unforgiving natural conditions.

N-type female to mini-DIN male adapter

Key Performance Features

Wide Frequency Coverage: DC to 6GHz operation
Low VSWR: 1.15:1 typical to 6GHz
Minimal Signal Loss: Only .04√f (GHz) insertion loss
High Reliability: 500 mate/demate cycles rated
Robust Construction: Military-standard environmental testing

Technical Specifications

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 6GHz
VSWR	1.15:1 to 6GHz typical
Insertion Loss	.04√f (GHz)
Temperature Range	-55°C to 125°C
DWV @ Sea Level	2500 Vrms
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	3 milliohms maximum
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.23N.m
Connection Torque	0.79-1.13N·m
Housing Material	Brass-plated ternary alloy
Center Contacts	Beryllium copper gold
Insulators	PTFE

Applications and Use Cases

This adapter excels in various professional applications. You might use it in:

RF Test Equipment: Connecting different measurement instruments
Communication Systems: Bridging interface gaps in radio equipment
Microwave Applications: Laboratory and field testing setups
Antenna Systems: Adapting between different connector standards
Military/Aerospace: Where reliability and performance are critical

The N Female To Mini DIN Male Adapter handles power levels effectively thanks to its robust construction and quality materials. The gold-plated contacts ensure long-term reliability even in challenging environments.

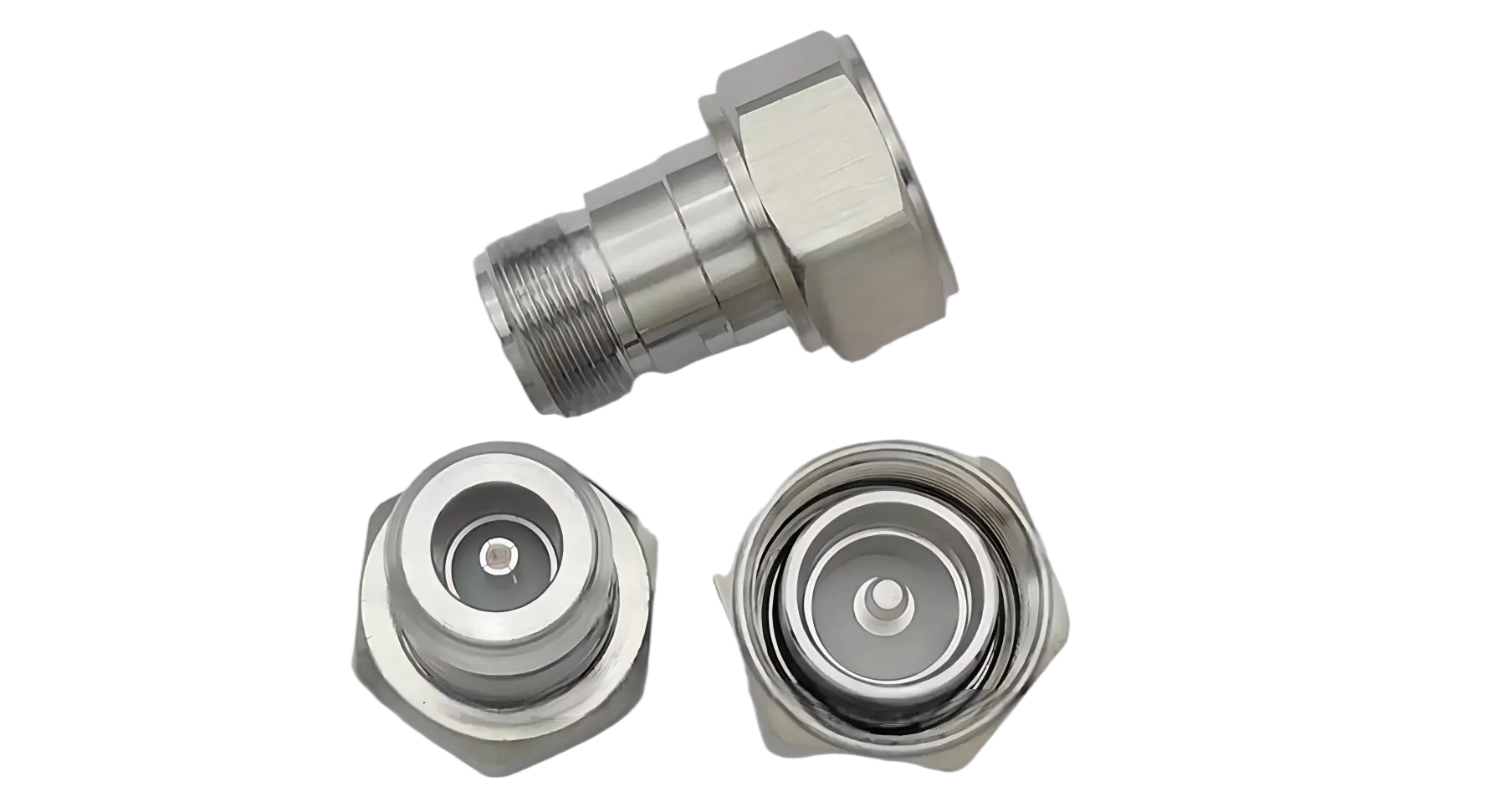

N-type female to mini-DIN male adapter

Quality and Reliability Standards

Our fabricating prepare follows to strict quality control, with each connector tried for warm stun, salt splash, vibration, and dampness resistance per MIL-STD-202. Engagement and withdrawal strengths are absolutely controlled to guarantee reliable performance.This gives secure associations whereas permitting simple establishment and evacuation when required. Association torque determinations guarantee legitimate mating without over-stressing the connectors.

N-type female to mini-DIN male adapter - Quality Guarantee

Why Shaanxi Chuangyu Electronic Technology?

Located in Chang'an Development and Innovation Mechanical Stop in Xi'an, we specialize in exactness electrical connectors and RF arrangements. Our center on electronic item investigate and advancement drives persistent development in connector technology.

We get it that each application has one of a kind necessities. Our specialized group works closely with clients to guarantee appropriate connector choice and application direction. This collaborative approach makes a difference you accomplish ideal framework execution.

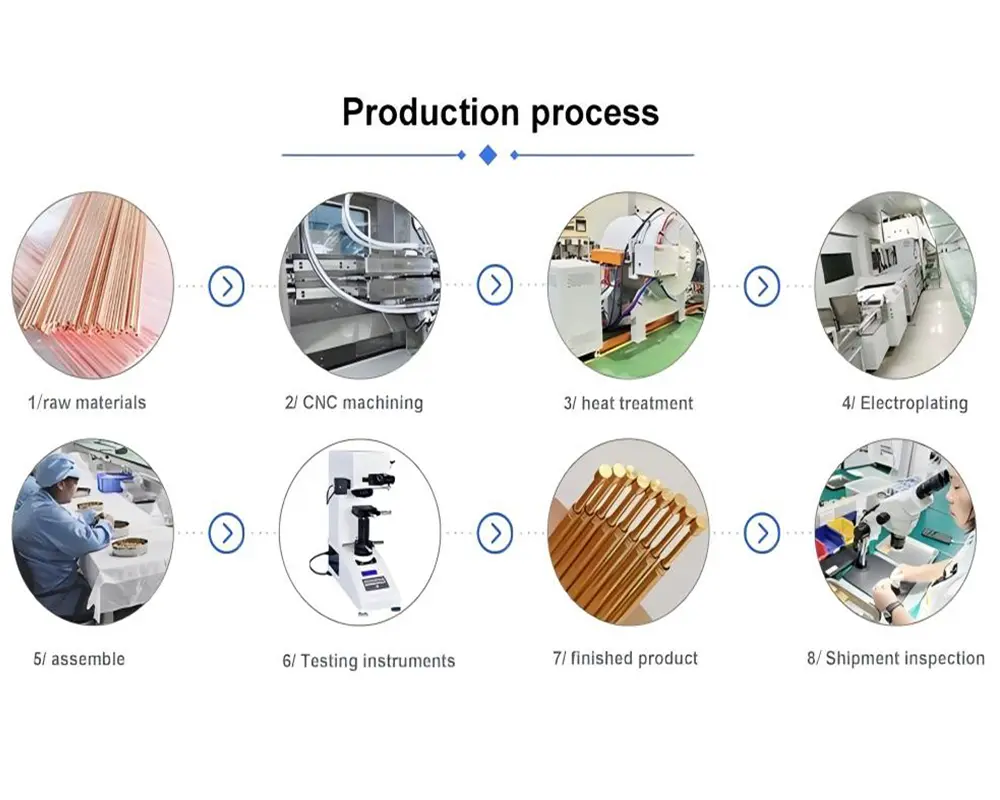

N-type female to mini-DIN male adapter production process

Professional Support and Service

Choosing the right RF adapter involves more than just matching connector types. Our technical experts can help you evaluate electrical requirements, environmental conditions, and mechanical constraints. This ensures the N Female To Mini DIN Male Adapter meets your specific application needs.

For technical questions, custom requirements, or ordering information, contact us at postmaster@cymicrowave.com. Our team provides responsive support to help you implement successful RF solutions.

This adapter represents our commitment to quality, performance, and customer satisfaction. You can rely on consistent performance, robust construction, and professional support for your critical RF applications.
