Name: Single-Ended Movable Test Probe
SKU: N/A

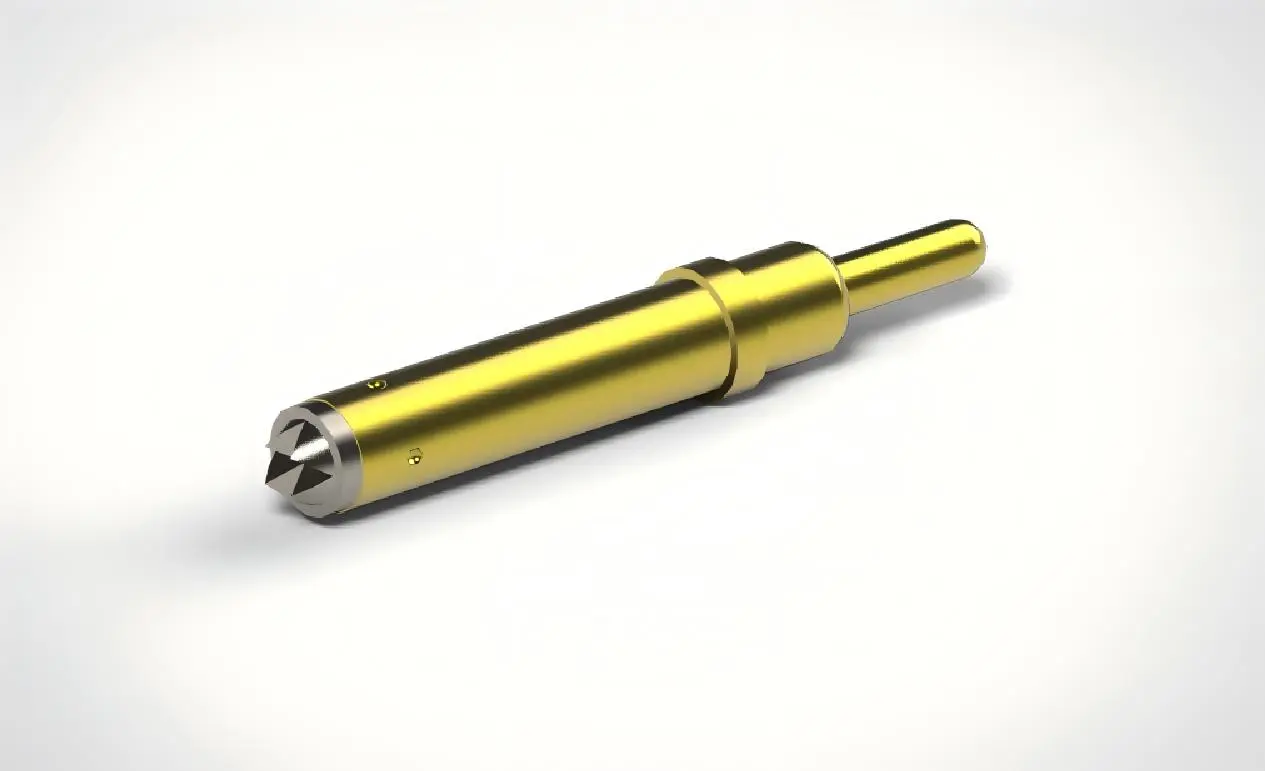

Single-Ended Movable Test Probe

1. A single-ended movable test probe is a precision testing device, belonging to one type of spring contact probe. One end of the probe is designed with a claw-shaped structure for contacting the tested product, while the other end is connected to the testing equipment or fixed on a fixture, contrasting with the 'double-ended' probe.
2. Spacing: 0.5mm/20MiL
3. Material: Probe beryllium copper gold-plated/PD alloy, needle tube phosphor bronze gold-plated
4. Overall height: 2.2mm
5. Working stroke force: 0.22N@0.4mm
6. Current carrying capacity: 2A
7. Typical resistance: <50mOhm
8. Operating temperature: -45°C to +80°C.

Single-Ended Movable Test Probe - Precision Testing Solution for High-Density Circuits

When you need reliable testing for high-density electronic circuits, our Single-Ended Movable Test Probe delivers exceptional performance and precision. This advanced testing device belongs to the spring contact probe family, designed specifically for PCB testing, chip testing, and various electronic component verification. Our product features a unique claw-shaped contact design that ensures stable electrical connection while maintaining excellent conductivity throughout your testing process.

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we understand your testing challenges. You need equipment that performs consistently under demanding conditions while delivering accurate results every time.

Single-Ended Movable Test Probe

What Makes Our Test Probe Special?

Our movable test probe stands out in the competitive testing equipment market. The innovative design incorporates positioning cavity limits and protrusion fixing structures. These features include probe head convex platforms and barrel wall compression protrusions that guarantee stability and superior conductivity.

The compact 0.5mm spacing and 2.2mm height make this probe ideal for dense circuit boards and space-constrained environments, with durable beryllium copper and phosphor bronze materials ensuring long-lasting performance.

Single-ended movable test probe

Technical Excellence You Can Trust

Our engineering team has carefully designed every aspect of this testing solution. The working stroke force of 0.22N at 0.4mm provides the perfect balance between reliable contact and gentle component handling. You won't damage delicate circuits while ensuring solid electrical connections.

With a 2A current capacity and resistance below 50mOhm, this probe ensures accurate measurements and stable performance from -45°C to +80°C, handling a wide range of testing scenarios.

Single-ended movable test probe quality trust

Applications Across Industries

This versatile testing tool serves multiple industries effectively. Photovoltaic manufacturers use our probes for PERC, HPBC, and TOPCon product testing. The automotive industry relies on our probes for electronic control unit verification. Medical device manufacturers trust our precision for critical component testing.

Communication equipment testing benefits from the Single-Ended Movable Test Probe's high-frequency performance capabilities. Military and aerospace applications demand the reliability our probes consistently deliver. New energy sector companies choose our solutions for battery management system testing.

Application areas of single-ended movable test probes

Why Choose Shaanxi Chuangyu?

Located in Chang'an Innovation and Technology Industrial Park in Xi'an, we specialize in precision electrical connectors, RF cable assemblies, and precision test probes. Our focus on electronic product research and development drives continuous innovation in hardware solutions.

We offer comprehensive electronic design, PCB manufacturing, and assembly services, ensuring product reliability through strict process management and precision testing from design to customer use.

Single-ended movable test probe - About Us

Custom Solutions for Your Unique Needs

Standard specifications might not always meet your specific requirements. We customize various non-standard probes and test fixtures to match your exact testing needs. Our engineering team works closely with you to develop solutions that integrate seamlessly into your existing processes.

With PCB design and manufacturing capabilities, we offer complete testing solutions. Our precision probes, including 15 photovoltaic head shapes and 20 microneedle specs, ensure comprehensive testing coverage.

Customization process for single-ended movable test probes

Technical Specifications

Parameter	Specification
Model	CY 015AP-FB-2.2
Pitch	3.7mm/145MiL
Operating Temperature	-45°C to +80°C
Plunger Material	PD/Beryllium copper gold
Barrel Material	Phosphor bronze gold
Spring Material	Steel gold
Total Length	2.2mm
Barrel Diameter	0.29mm
Spring Force at Working Stroke	0.22N
Working Stroke	0.4mm
Tip Style	Ball/Floral pattern
Tip Diameter	0.15mm
Tip Surface	PD/gold
Current Load Capacity	2A
Typical Resistance	<50mOhm

Get Started Today

Ready to improve your testing accuracy and efficiency? Our Single-Ended Movable Test Probe is available for immediate delivery with standard specifications. Custom configurations typically ship within your project timeline requirements.

Contact our technical team at postmaster@cymicrowave.com to discuss your specific testing challenges. We'll provide detailed recommendations based on your application requirements and help you select the optimal probe configuration for your needs.
