Name: BNC To RF Connector
SKU: N/A

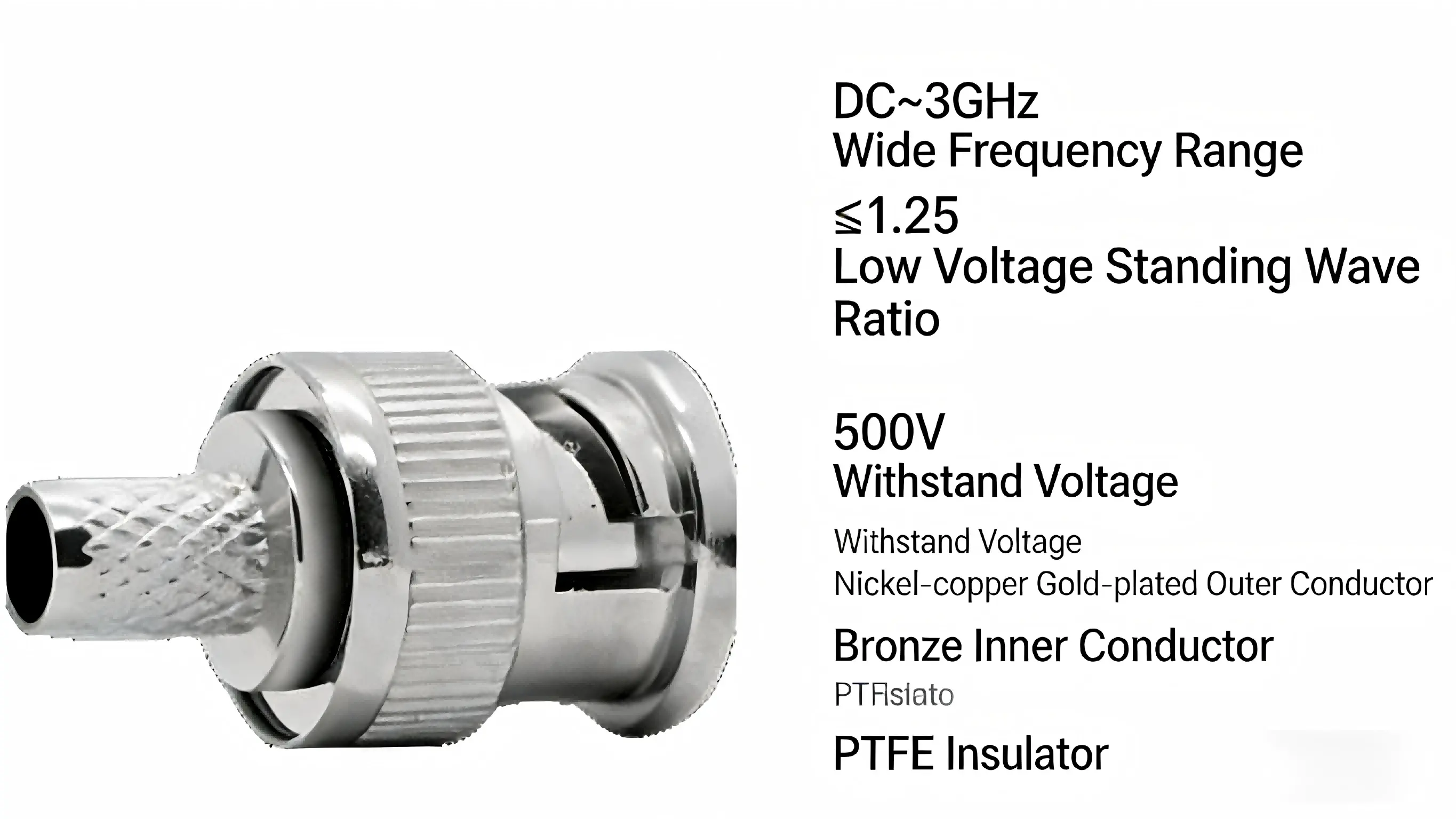

BNC To RF Connector

1. The BNC RF connector is a compact RF connector that uses a bayonet coupling mechanism. It is designed for radio frequency signal transmission and supports applications such as analog/digital video, antenna connections, and test equipment.
2. Its impedance specifications include 50 ohms and 75 ohms, with a typical frequency range from DC to 4GHz (some models up to 6GHz).
3. Straight BN male connector
4. Impedance: 50 Ohms nominal
5. VSWR: 1.3:1 up to 4GHz typical
6. Insertion loss: .1√f (GHz)
7. Adaptation cable: SFF-50-1.5-1, SYV-50-2-1
8. Temperature range: -55°C to 125°C

BNC To RF Connector - Professional Signal Transmission Solution

High-Performance Product for Your Critical Applications

When you need reliable signal transmission for your electronic systems, our BNC To RF Connector delivers the precision and performance you demand. Our compact RF connector employments an progressed knife coupling instrument that guarantees quick, secure associations each time. Whether you're working on analog video frameworks, advanced hardware, recieving wire associations, or test rebellious, this item gives the soundness and unwavering quality your ventures require. With impedance choices of 50 ohms and 75 ohms, our connector underpins a wide recurrence run from DC to 4GHz, making it culminate for assorted applications over different industries.

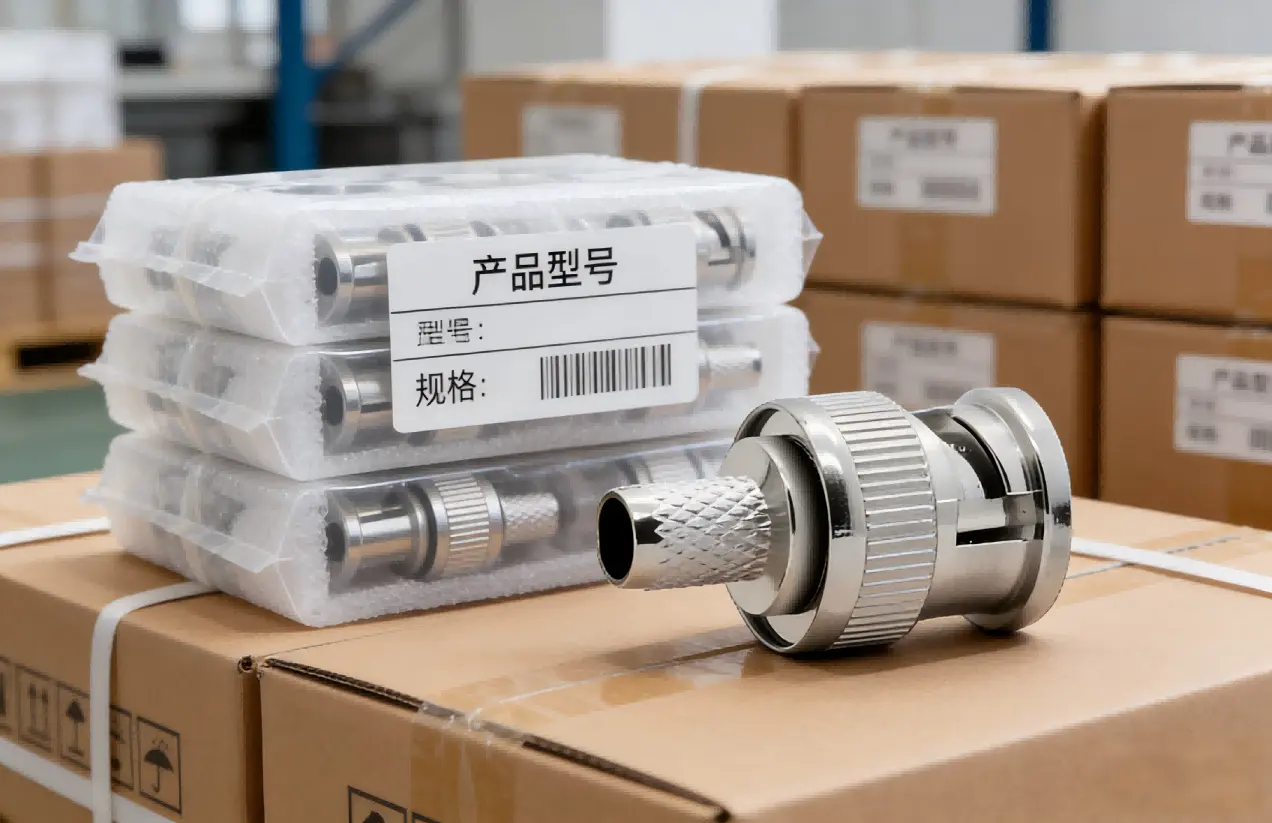

product-1-1

Why Select Our BNC RF Connector Solutions?

Quick and Dependable Association System

Our pike coupling component makes interfacing and disengaging quick and easy. You'll spare important time amid establishment and upkeep. The strong plan withstands rehashed utilize with up to 500 mate/demate cycles.

Compact However Tough Design

The space-saving shape figure fits into tight spaces without compromising execution. In spite of its compact estimate, our connector conveys remarkable toughness and vibration resistance. This makes it perfect for versatile applications and unforgiving environments.

Superior Flag Integrity

With VSWR execution of 1.3:1 up to 4GHz, you get negligible flag reflection. Moo addition misfortune guarantees your signals keep up their quality all through transmission. The exact 50-ohm impedance coordinating avoids flag distortion.

Wide Temperature Extend Performance

Our connectors work dependably from -55°C to 125°C, making them perfect for aviation, car, and open air applications. They guarantee steady execution, indeed beneath extraordinary natural conditions.

product-1-1

Technical Specifications

General Parameters

Parameter	Specification
Impedance	50 Ohms nominal
Frequency Range	DC to 3GHz
Temperature Range	-55°C to 125°C
Compatible Cables	SFF-50-1.5-1, SYV-50-2-1

Electrical Performance

Parameter	Specification
VSWR	1.25:1 to 3GHz typical
Insertion Loss	.1√f (GHz)
Dielectric Withstand Voltage	1500 Vrms at sea level
Insulation Resistance	5,000 megohms minimum
Contact Resistance (Outer)	2 milliohms maximum
Contact Resistance (Inner)	2.5 milliohms maximum

Material Construction

Component	Material
Housing	Nickel-plated brass
Center Contacts	Beryllium copper gold
Insulators	PTFE

Mechanical Performance

Parameter	Specification
Mate/Demate Cycles	500 cycles
Engagement Force	≥0.6N.m

Environmental Standards

Test	Standard
Thermal Shock	MIL-STD-202, Method 107, Condition B
Salt Spray	MIL-STD-202, Method 101, Condition B
Vibration	MIL-STD-202, Method 204, Condition D
Shock	MIL-STD-202, Method 213, Condition I
Moisture Resistance	MIL-STD-202, Method 106

Applications Across Industries

Test and Measurement Equipment

Our BNC To RF Connectors excel in laboratory environments where precision matters. They maintain signal integrity during critical measurements. The quick-connect feature speeds up test setup changes.

Communications Systems

From base stations to network analyzers, these connectors handle high-frequency signals reliably. The low insertion loss preserves signal strength across long cable runs. Perfect for both indoor and outdoor communication installations.

Medical Equipment

The biocompatible materials and reliable performance make them suitable for medical devices. They meet stringent quality requirements for healthcare applications. The compact design fits well in space-constrained medical equipment.

Aerospace and Defense

Military-standard compliance ensures performance in demanding conditions. The wide temperature range handles extreme operating environments. Vibration resistance maintains connections during high-stress situations.

product-1-1

Quality Manufacturing Excellence

At Shaanxi Chuangyu Electronic Technology Co., Ltd., we combine precision manufacturing with rigorous quality control. Located in Chang'an Innovation and Technology Industrial Park in Xi'an, our facility specializes in high-performance RF components.

Our digital manufacturing ensures consistent quality, with precision testing to meet international standards like MIL-C-39012 and IEC 60169-8. With over 200 millimeter wave connectors and 400 cable assemblies, we bring expertise and innovation to every product.

product-1-1

Custom Solutions Available

We specialize in customizing connectors to meet unique requirements, from impedance values to materials and dimensions. With expertise from DC to 110 GHz, we work closely with customers to ensure optimal fit, performance, and solutions.

Ready to enhance your system's connectivity? Contact us at postmaster@cymicrowave.com to discuss your BNC To RF Connector requirements. Our technical team stands ready to help you select the perfect solution for your application needs.
