GPO RF Connector

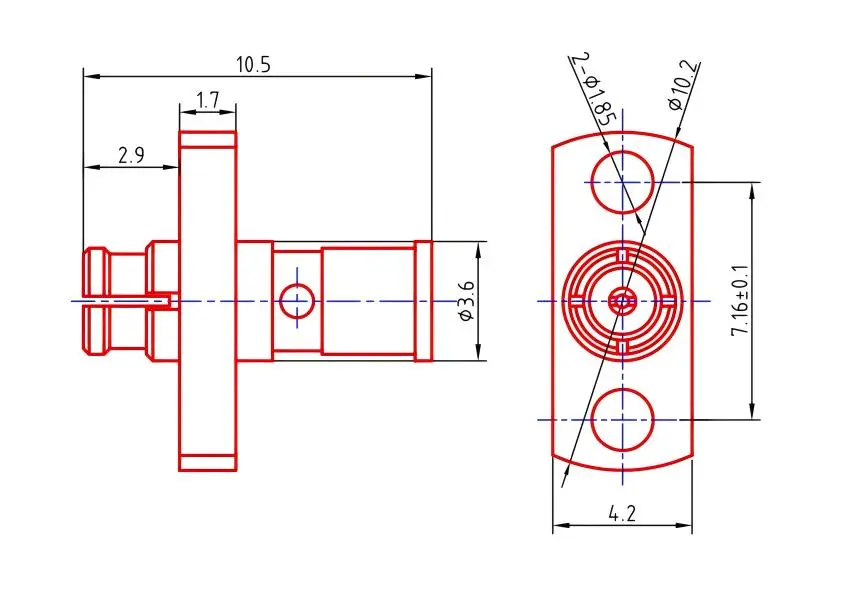

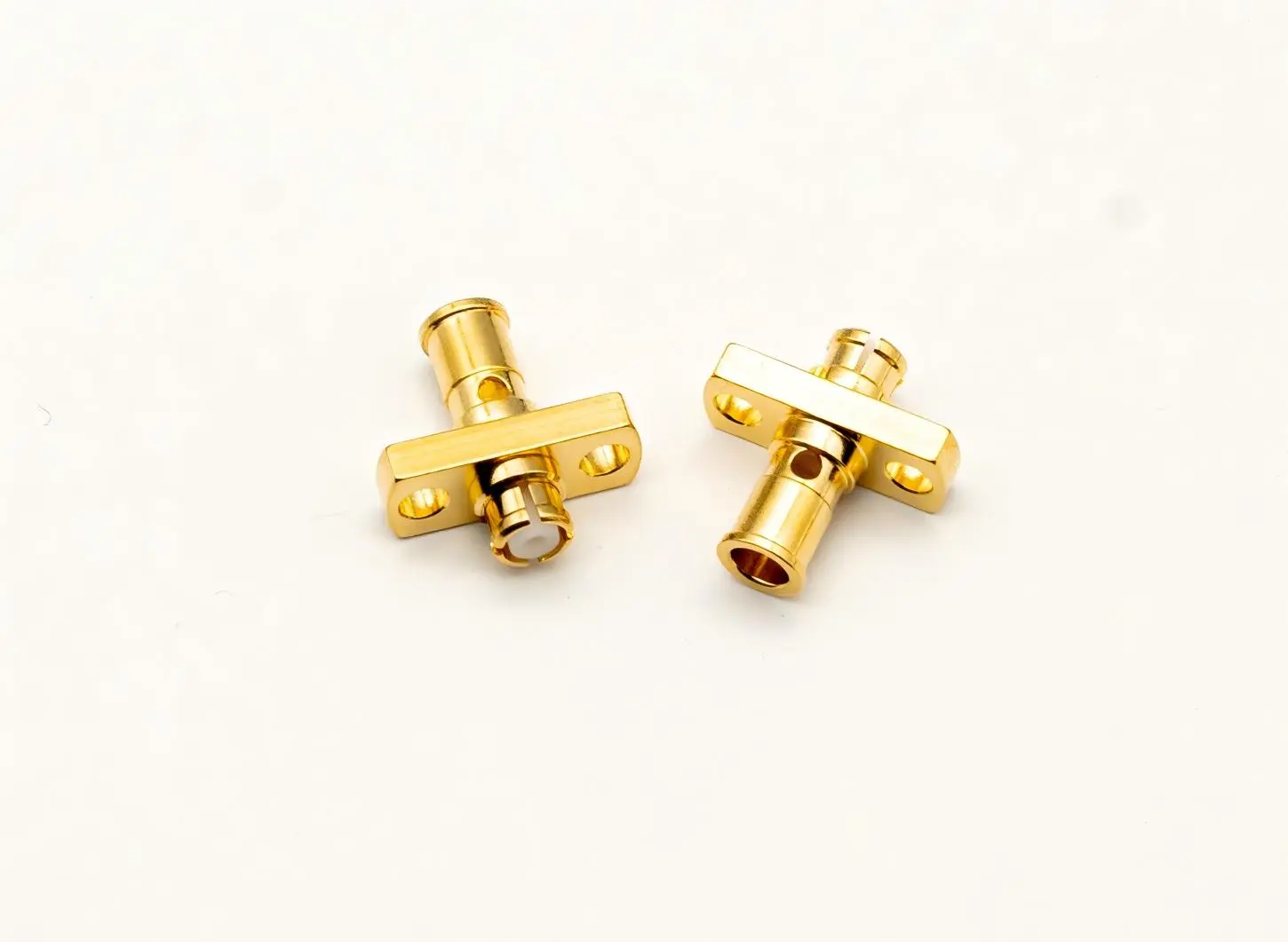

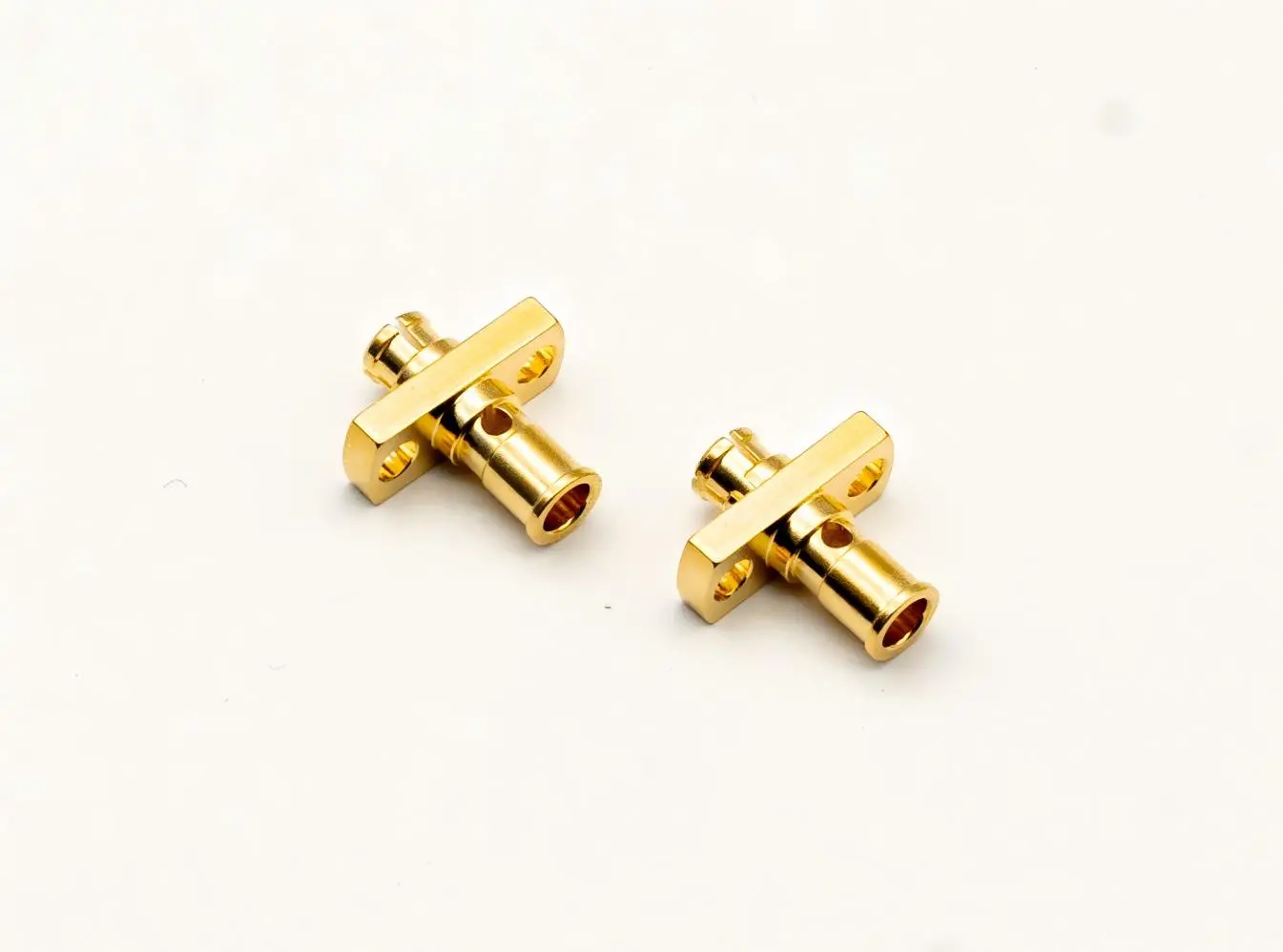

2.Straight flange fixed SMP female connector
3.Impedance: 50 Ohms nominal
4.VSWR: 1.4:1 to 40GHz typical
5.Insertion loss: .12√f (GHz)
7.Adaptation cable: .086, cnx3506
6.Temperature range: -55°C to 125°C
GPO RF Connector - High-Performance Solution for Precision Signal Transmission
When you need reliable signal transmission in demanding applications, the GPO RF Connector stands as your ideal electromagnetic component solution. This precision-engineered connector serves as the basic "bridge" between diverse transmission line sorts, guaranteeing consistent electrical association, partition, and move. Our item conveys remarkable execution over DC to 40GHz recurrence ranges, making it idealize for broadcast communications, military, therapeutic, and modern vitality applications where flag astuteness things most.
What Makes Our RF Connector Solutions Special?
At Shaanxi Chuangyu Electronic Technology Co., Ltd., we understand that your projects demand nothing less than excellence. Our straight flange fixed SMP female connector design represents years of engineering expertise and innovation. You get a component that not only meets international standards but exceeds them in performance and reliability.
Located in Chang'an Development and Innovation Mechanical Stop, our office combines progressed fabricating with thorough quality control. We specialize in accuracy electrical connectors, RF cable gatherings, and microwave components that thrust the boundaries of what's conceivable in electronic connectivity.
Technical Excellence You Can Trust
Your applications require connectors that perform consistently under extreme conditions. Our product delivers exactly that with its robust specifications and proven reliability.
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohms nominal |
| Frequency Range | DC to 40GHz |
| VSWR | 1.4:1 to 40GHz typical |
| Insertion Loss | .12√f (GHz) |
| Temperature Range | -55°C to 125°C |
| Cable Adaptation | .086, cnx3506 |
| DWV @ Sea Level | 500 Vrms |
| Insulation Resistance | 5,000 megohms minimum |
Materials and Construction
| Component | Material |
|---|---|
| Housings | Beryllium copper gold |
| Center Contacts | Beryllium copper gold |
| Insulators | PTFE |
Mechanical Performance
| Specification | Value |
|---|---|
| Mate/Demate Cycles | FD-100 min, LD-500 min, SB-1,000 min |
| Contact Resistance (Outer) | 3 milliohms maximum |
| Contact Resistance (Inner) | 6 milliohms maximum |
Why Choose Our RF Connector Technology?
You deserve components that deliver consistent performance across the entire operational spectrum. Our GPO RF Connector supports DC-40GHz broadband transmission with a VSWR ≤1.35, ensuring minimal signal reflection and maximum power transfer efficiency.
The beryllium copper gold construction provides superior conductivity and corrosion resistance. PTFE insulation guarantees stable dielectric properties across temperature extremes. These material choices aren't accidental – they're the result of extensive testing and real-world application feedback.
Built for Demanding Environments
Your equipment operates in challenging conditions, and our connectors are designed to thrive alongside it. Environmental testing includes:
- Thermal Shock: MIL-STD-202, Method 107, Condition B
- Salt Spray Resistance: MIL-STD-202, Method 101, Condition B
- Vibration Testing: MIL-STD-202, Method 204, Condition D
- Shock Resistance: MIL-STD-202, Method 213, Condition I
- Moisture Resistance: MIL-STD-202, Method 106, except Step 7B
Applications Across Industries
Whether you're working in new energy systems, photovoltaic installations, medical equipment, telecommunications, military applications, or automation systems, our connectors provide the reliability you need. The wide frequency range and robust construction make them suitable for millimeter wave applications up to 40GHz.
Our manufacturing expertise extends beyond standard products. We offer customization services for non-standard requirements, ensuring you get exactly what your application demands.
Your Partner in Innovation
We've developed more than 200 specifications of millimeter wave connectors and over 400 specifications of cable assemblies. This extensive product range means you'll likely find exactly what you need, or we can create a custom solution that fits perfectly.
Our commitment to quality goes past fabricating. We give comprehensive back all through your venture lifecycle, from introductory plan interview to post-delivery specialized help.、
Get Started Today
Ready to experience the difference that precision engineering makes? Contact our technical team to discuss your specific requirements. Whether you need standard specifications or custom solutions, we're here to help you succeed.
For technical inquiries and product information, reach out to us at postmaster@cymicrowave.com. Our experts are ready to provide detailed specifications, application guidance, and customization options that meet your exact needs.
Choose reliability. Choose performance. Choose our GPO RF Connector solutions for your next critical application.
