Name: Solar Photovoltaic Panel EL Test Probe Array
SKU: N/A

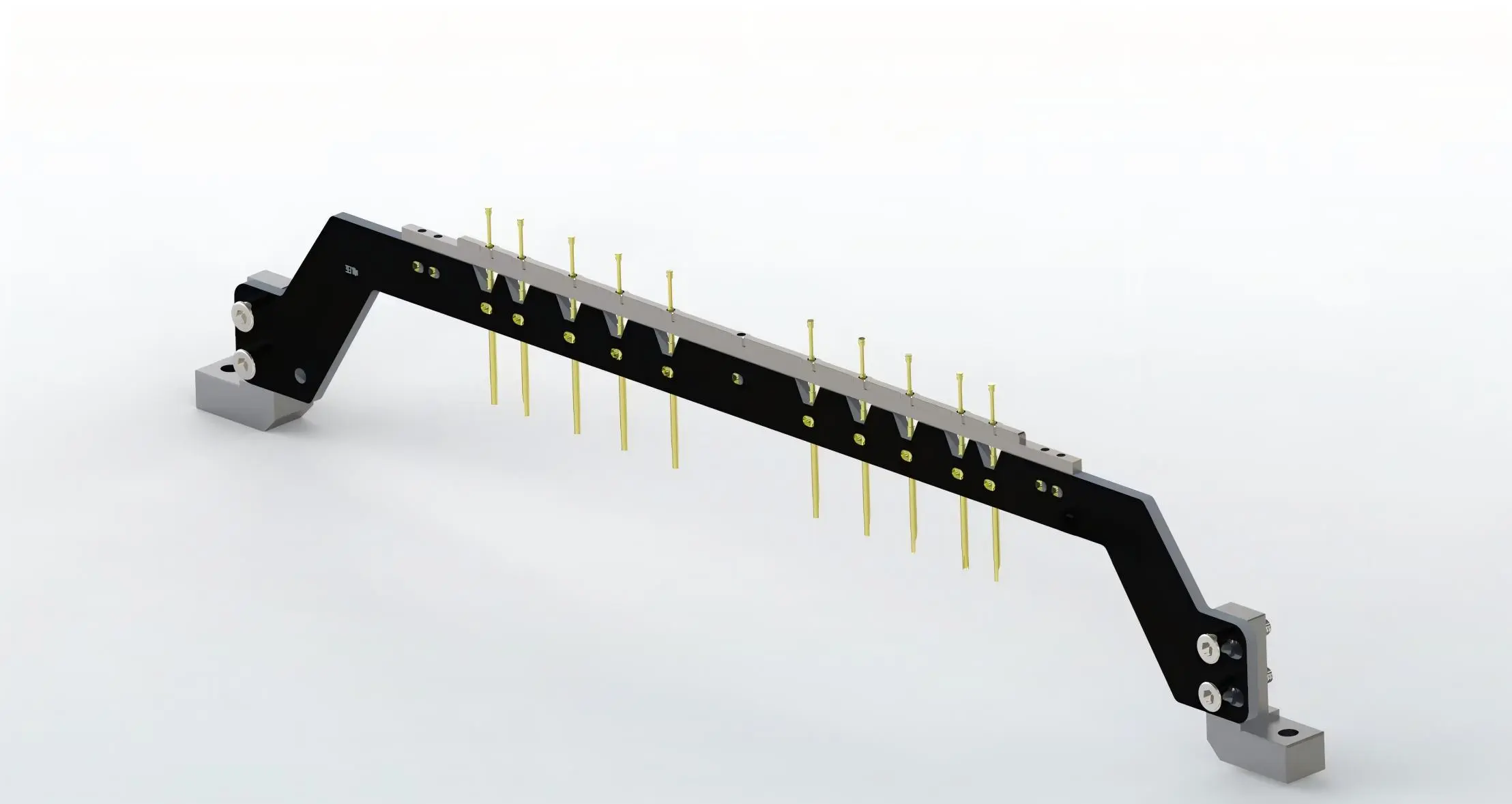

Solar Photovoltaic Panel EL Test Probe Array

1. Solar photovoltaic panel EL test probe array, which is one of the key components of the EL tester, used for contacting the electrodes of the photovoltaic module (solar panel) during testing, applying a specific current to excite its electroluminescence phenomenon, and cooperating with an infrared camera to capture images of internal defects.
2. Spacing: 3.5mm
3. Material: Probe copper gold-plated, support plate glass fiber
4. Size: 63mm*316.33mm (accepts customization)
5. Current carrying capacity: 5A
6. Typical resistance: <20mOhm
7. Operating temperature: -55°C to +125°C
8. Test cycle: 10-100K times

Solar Photovoltaic Panel EL Test Probe Array

Advanced Testing Solutions for Solar Panel Quality Control

When you're looking for reliable quality control in photovoltaic manufacturing, our Solar Photovoltaic Panel EL Test Probe Array delivers the precision you need. This innovative testing solution ensures accurate detection of internal defects in solar panels through electroluminescence testing. Our probe arrays are engineered to provide consistent current injection across photovoltaic modules. This enables uniform luminescence intensity throughout all panel regions. The result is precise identification of micro-cracks, broken grids, and poor soldering connections that could compromise your solar panel performance.

Solar Photovoltaic Panel EL Test Probe Array

What Makes Our EL Test Probe Array Special

Our testing arrays feature copper gold-plated probes and glass fiber support for stability, ensuring reliable contact with photovoltaic electrodes. The 3.5mm spacing suits various solar panel designs.This versatility means you can use our arrays across different product lines without compatibility concerns. The probe tips maintain optimal contact pressure to prevent testing errors caused by poor connections.

Technical Excellence in Every Detail

Our gold-plated probe arrays ensure consistent performance, low resistance, and accurate current delivery across thousands of cycles, with temperature stability for reliable test results in manufacturing environments.Our arrays operate effectively from -55°C to +125°C. This wide operating range ensures consistent performance regardless of your facility conditions. Your testing accuracy remains constant throughout different seasons and production schedules.

Technical Specifications

Parameter	Specification
General Specifications
Model	CY-TPP136055182
Pitch	3.5mm
Mounting Type	Wire Termination - Crimp Type
Adapter Cable	Pre-Wired with 8" 24 AWG Stranded Wires
Operating Temperature	-55°C to +85°C
Materials
Housing Material	Glass Fiber
Barrel Material	Phosphor Bronze Gold
Mechanical Data
Overall Dimensions	63mm × 316.33mm
Barrel Diameter	2mm
Maximum Stroke	0.4mm
Spring Force	0.4N @ 1.15mm
Working Stroke	0.4mm
Tip Style	Ball
Tip Diameter	1.5mm
Tip Surface	Gold Plated
Test Cycles	1,000K cycles
Electrical Data
Maximum Current	5A
Typical Resistance	< 20 mOhm
Current Carrying Capacity	5A Continuous

Applications in Modern Solar Manufacturing

Your production line benefits from our array's adaptability to different photovoltaic technologies. Whether you're manufacturing PERC, HPBC, or TOPCon solar cells, our testing solution provides the accuracy you require. The uniform current distribution reveals defects that might otherwise go undetected.

Integration with infrared camera systems is seamless. Our Solar Photovoltaic Panel EL Test Probe Array creates the optimal conditions for capturing clear defect images. This combination enables rapid identification of quality issues before products reach your customers.

Customization Options for Your Specific Needs

Every production line has unique requirements. We understand that standard solutions don't always fit your specific testing scenarios. Our engineering team can customize array dimensions and probe configurations to match your exact specifications.

Contact spacing adjustments accommodate different cell layouts. Probe quantities can be modified to suit various panel sizes. Custom housing materials are available for specialized environmental conditions. This flexibility ensures optimal performance in your specific application.

Why Choose Shaanxi Chuangyu Electronic Technology

We provide quality products and technical support for solar panel testing. Located in Xi'an, our facility specializes in precision connectors, test probes, and microwave components for superior performance.

Quality assurance is embedded in every manufacturing step. We employ digital manufacturing processes and precision testing instruments throughout production. This approach guarantees consistent performance from design through customer use.

Solar photovoltaic panel electroluminescence test probe array production workshop

Get Started with Professional EL Testing

Implementing our Solar Photovoltaic Panel EL Test Probe Array in your quality control process improves defect detection accuracy while reducing testing time. Your production efficiency increases while maintaining the highest quality standards.

Ready to enhance your solar panel testing capabilities? Our technical team is available to discuss your specific requirements and provide customized solutions. Contact us at postmaster@cymicrowave.com to explore how our testing arrays can improve your manufacturing process.
